Description

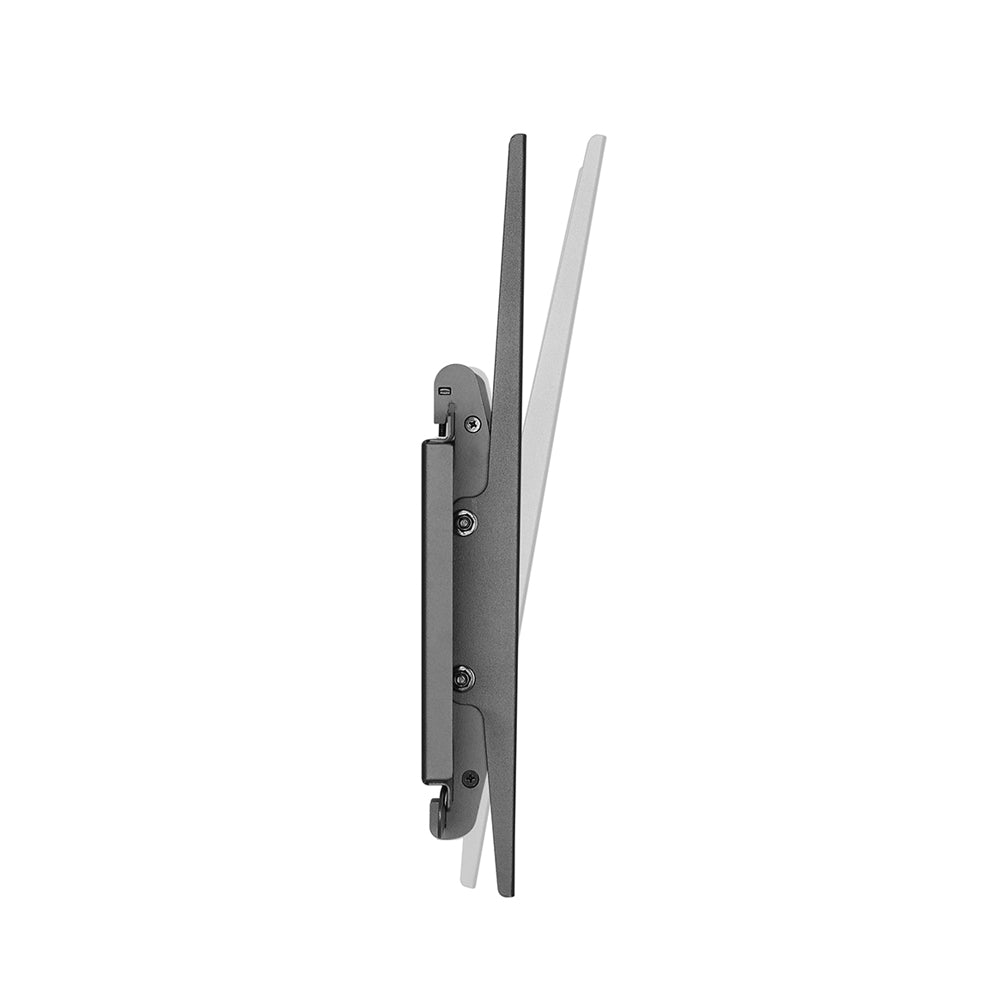

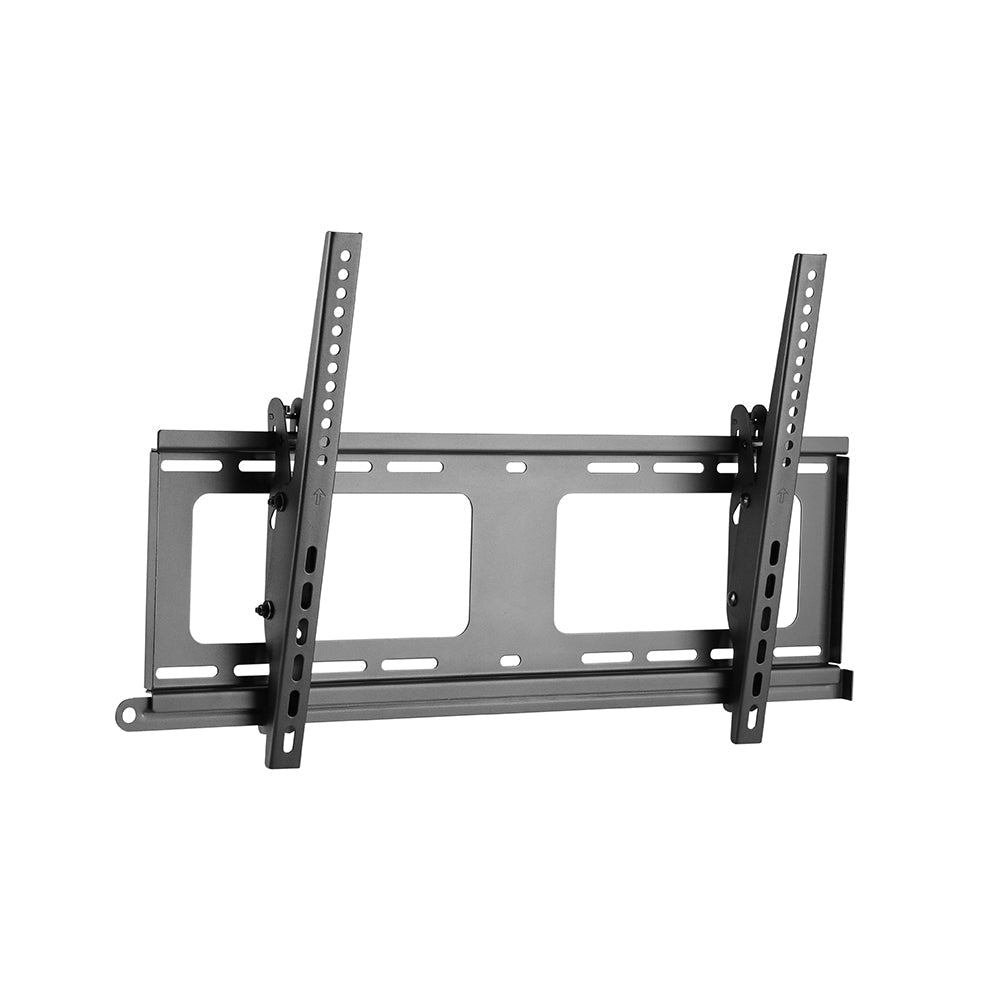

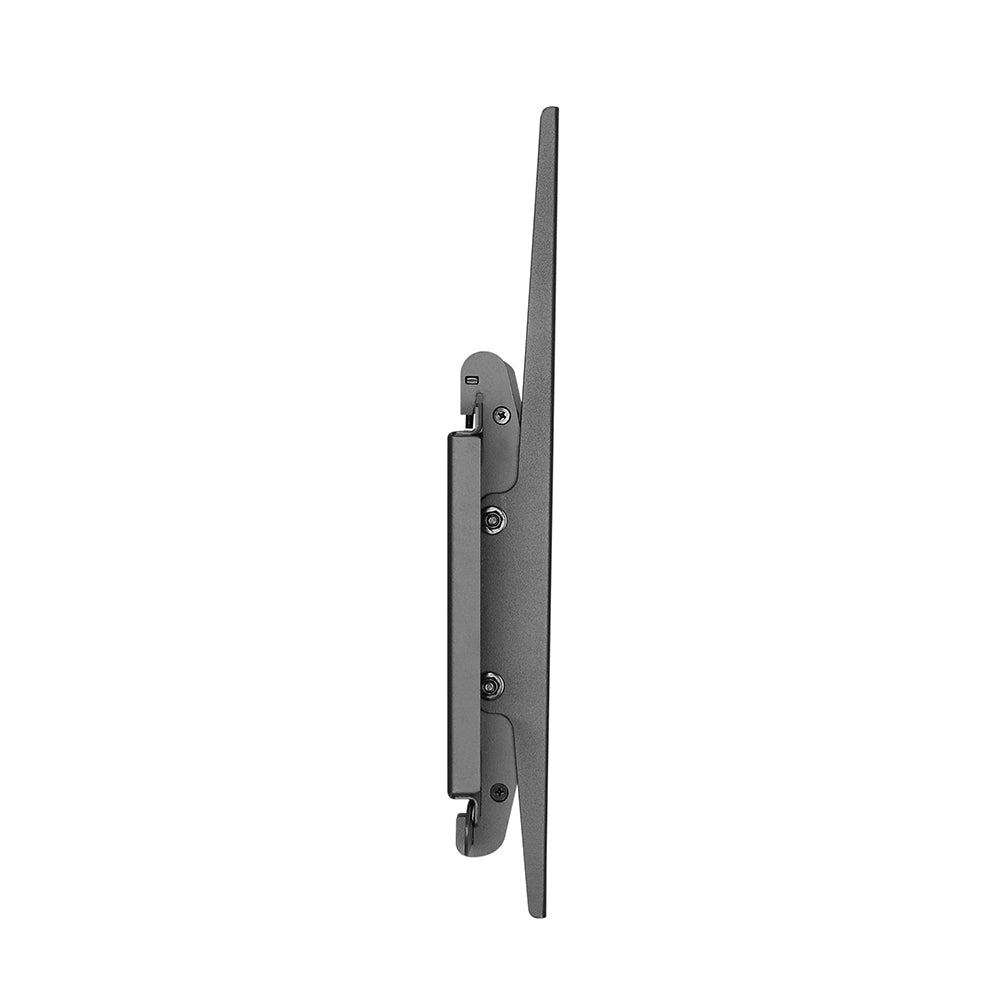

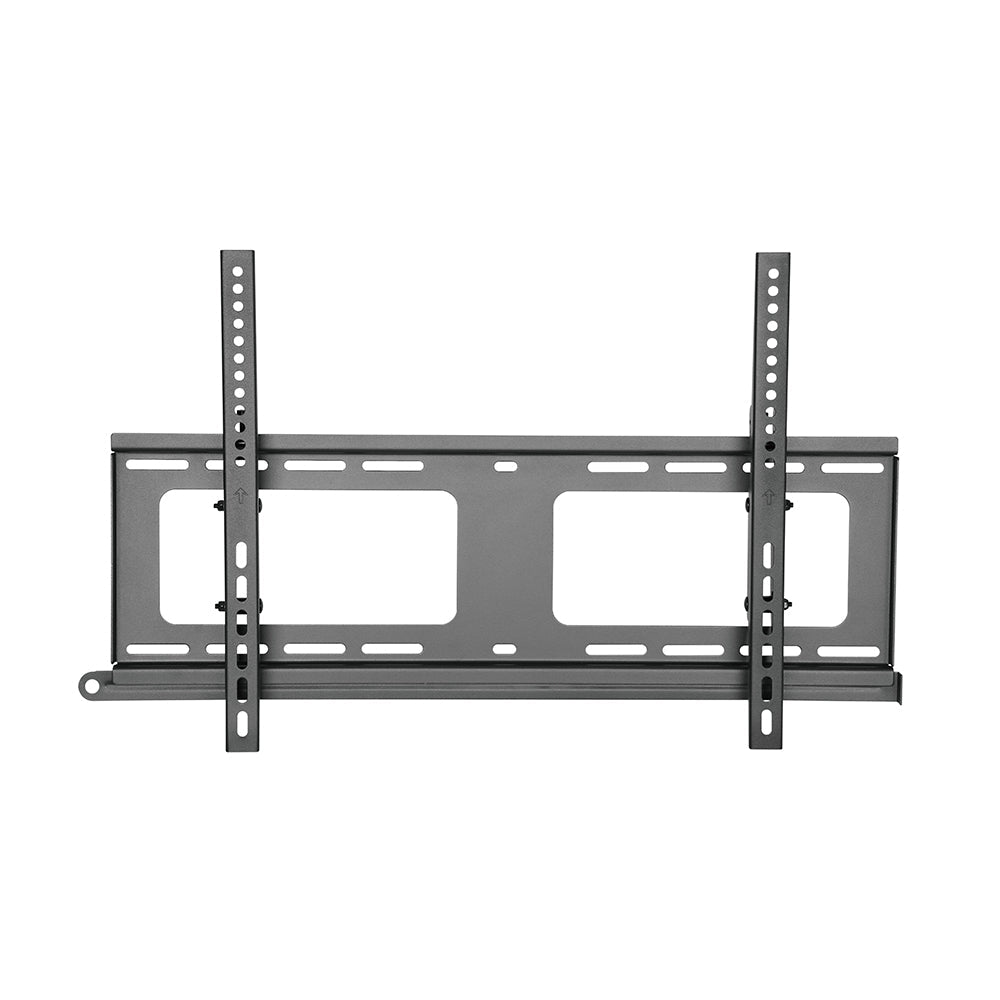

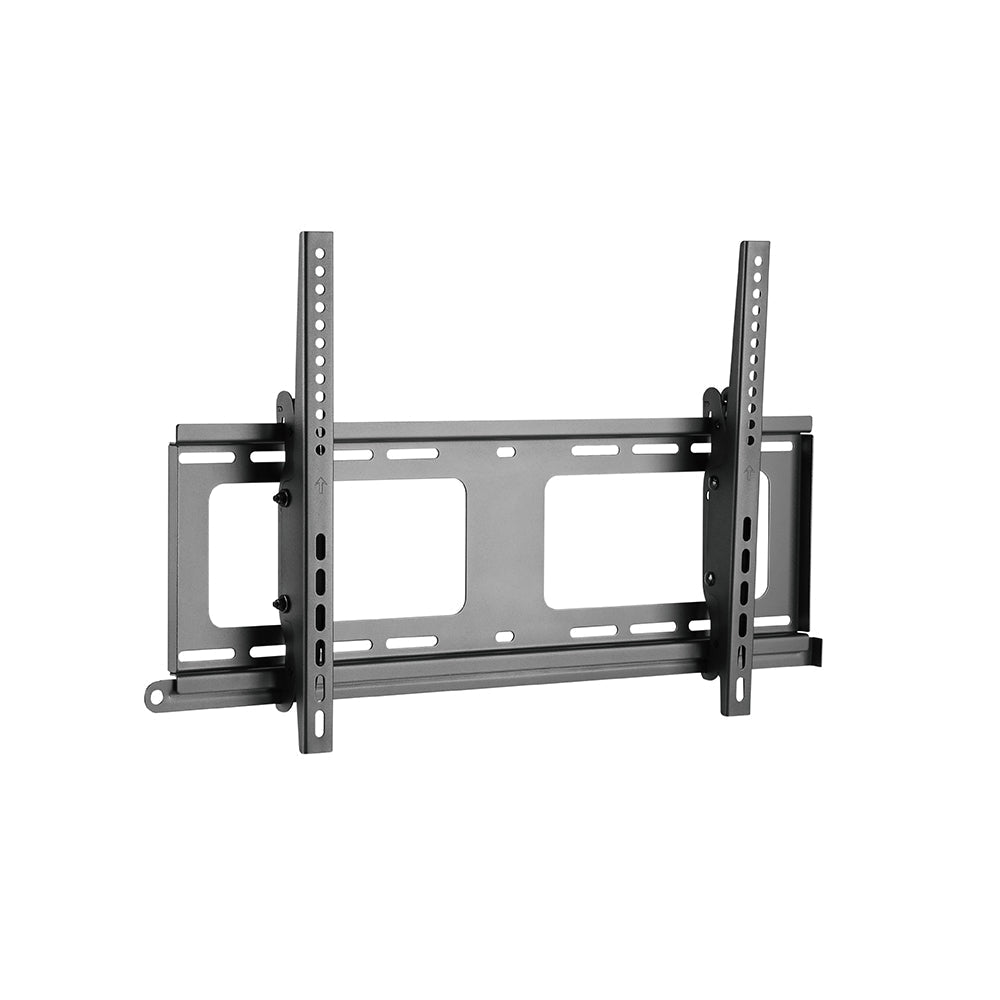

This LCD/LED tilting TV wall mount bracket is designed to hold most 37 inch to 80 inch LCD/LED displays with a maximum VESA hole pattern of 600×400. It offers up to a +5° to -10° tilt. It also has an anti-theft locking bar (padlock not included) and can be used in both residential and commercial environments.
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Mounting Pattern | VESA 200×200, 300×300, 400×200, 400×400, 600×400 |
| Screen Size | 37 – 80 inches [93.9 – 203.2cm] |
| Weight Capacity | 176lbs [80kg] |
| Tilt | +5° to -10° |
| Profile | 54 mm |
| Theft Resistant | Yes (requires small padlock) |
| Installation | Solid Wall or Double Stud |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacers 8 – Big Spacers 6 – ST6.3×55 Screws 6 – Concrete Anchors 6 – D6 Washers |
| Package Weight | 29.3 lbs [13.3kg] |
