Description

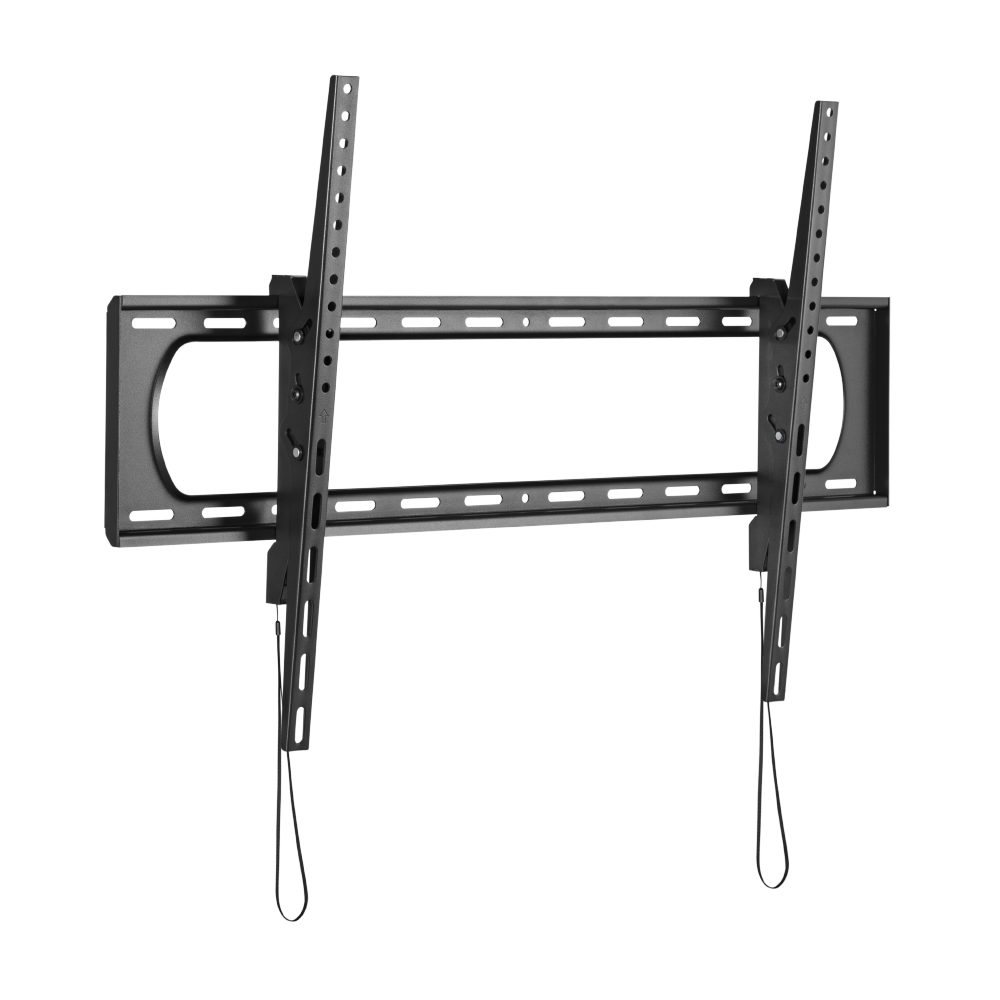

This LCD/LED tilting wall mount bracket is designed to hold most 60 inch to 120 inch LCD/LED displays with a maximum VESA hole pattern of 900×600. It offers up to a +10° to -10° tilt. Its easy to install and can be used in both residential and commercial environments.
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Black |
| Material | Steel |
| Surface Finish | Powder Coating |

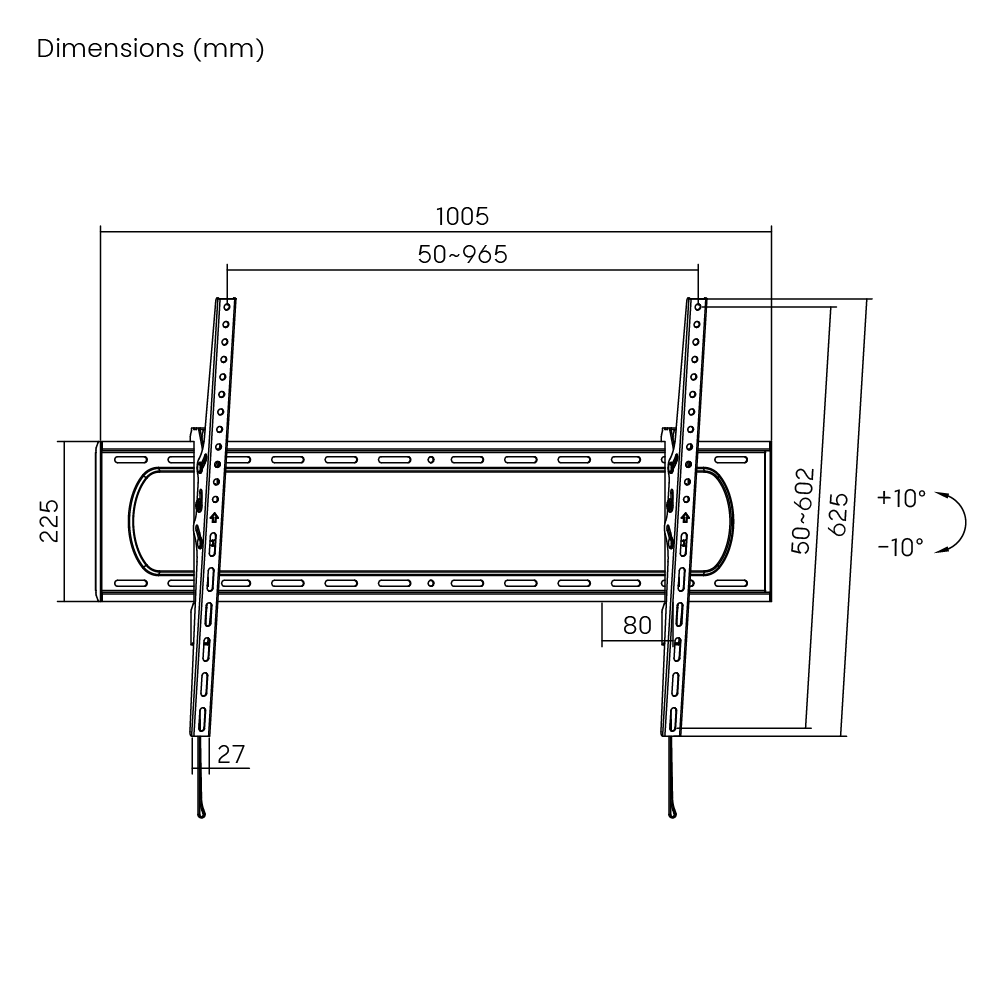

| Dimensions | 80x1005x602mm (3.1″x39.6″x23.7″) |
| Mounting Pattern | VESA 50×50 ,75×75 ,100×100 ,100×150 ,150×100 ,100×200 ,200×100 ,150×150 ,200×200 ,200×300 ,300×200 ,200×400 ,400×200 ,300×300 ,300×400 ,400×300 ,600×200 ,400×400 ,600×300 ,400×600 ,600×400 ,700×400 ,800×400 ,600×600 ,800×500 ,800×600 ,900×600 |
| Screen Size | 60 – 120 inches |

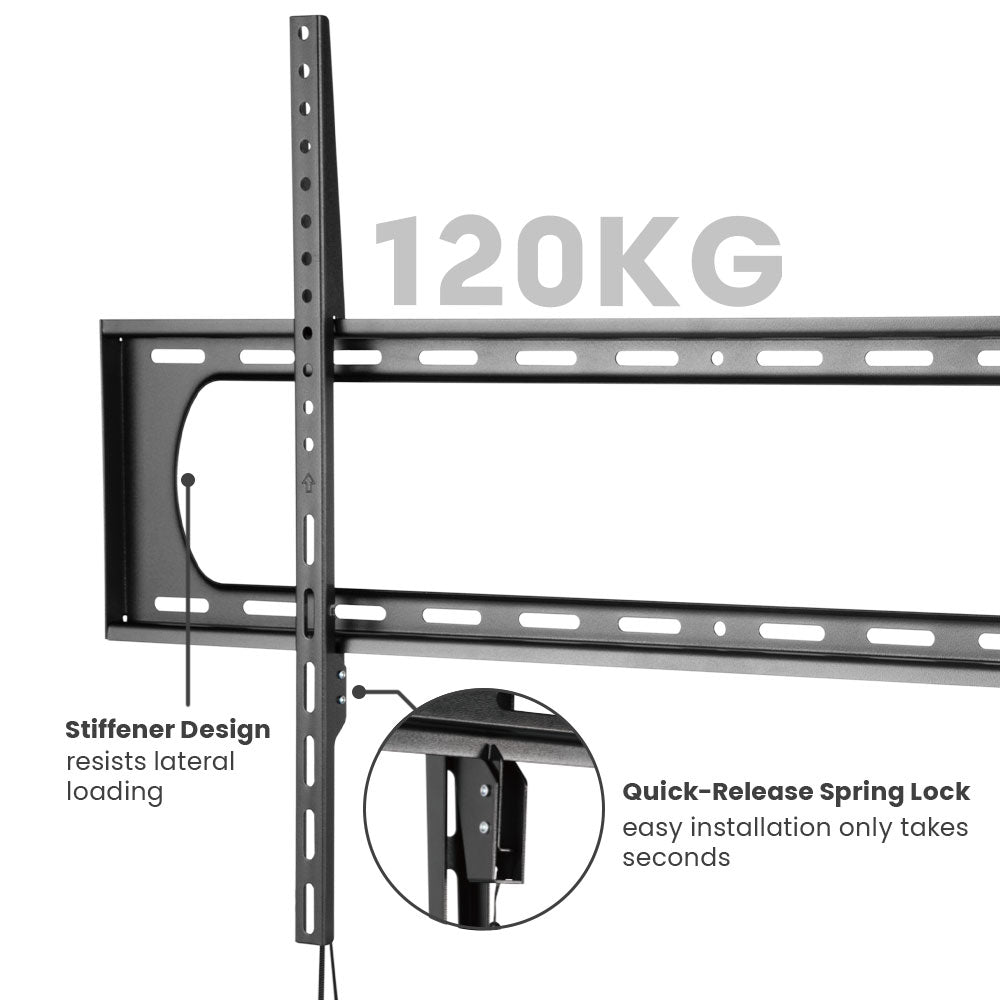

| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 4 Times Approved |

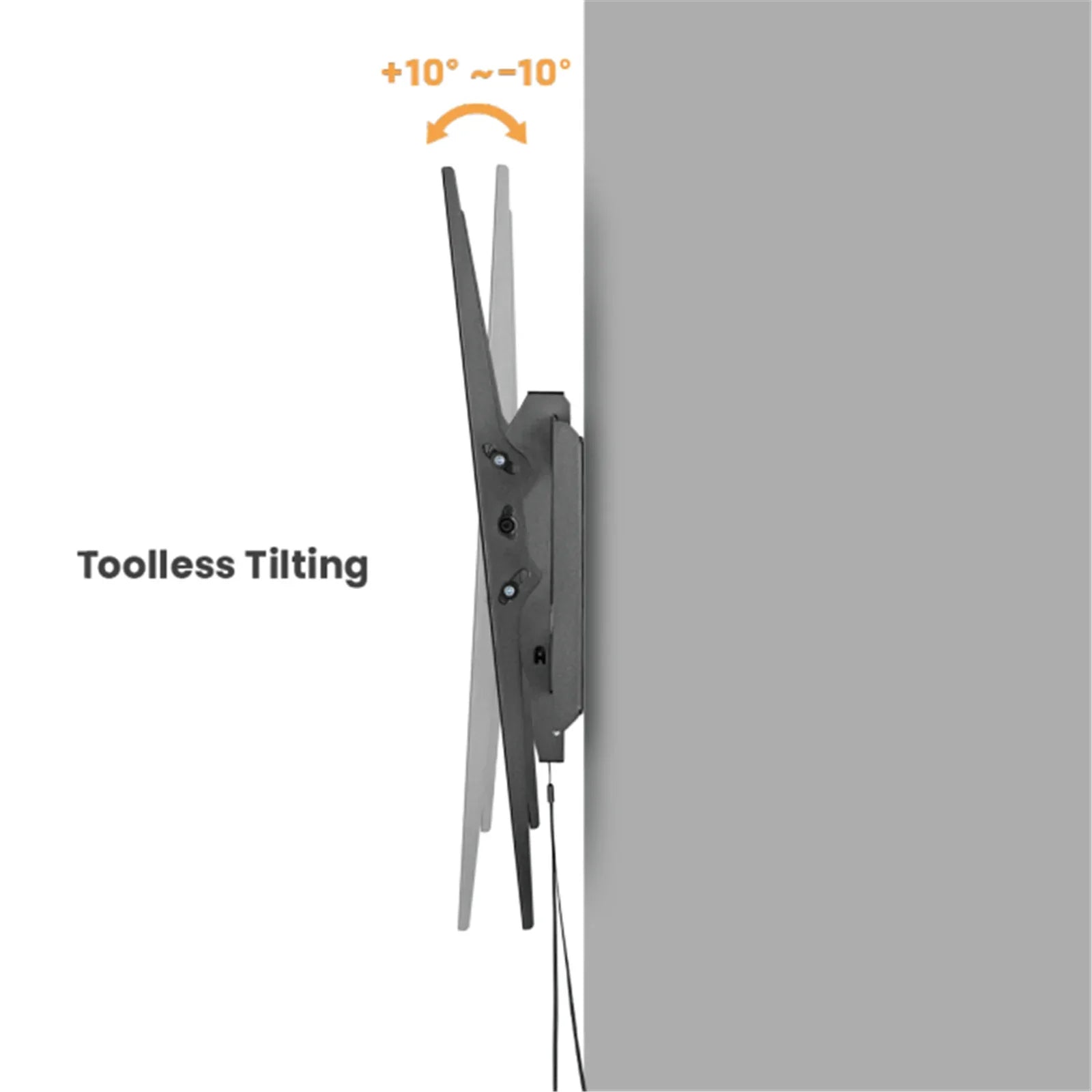

| Tilt | +10° to -10° |
| Profile | 80mm (3.1″) |
| Screen Freely Tilting | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Installation | Solid Wall, Dual Stud(406mm/450mm/600mm) |

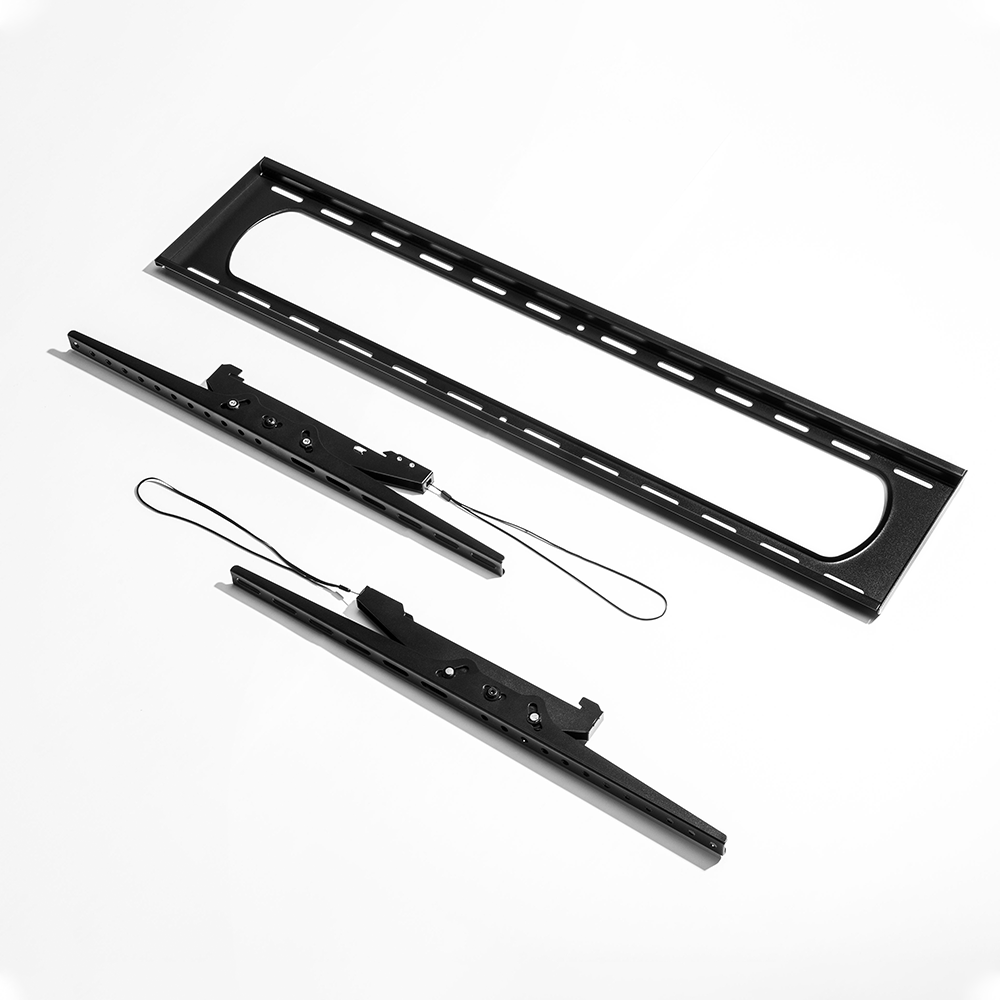

| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x16 Screws 4 – M8x35 Screws 4 – Small Spacers 4 – Big Spacers 6 – ST8x90 Screws 6 – Concrete Anchors 4 – D8 Washers |
| Product Weight | 10.4 lbs [4.7kg] |
Reviews
There are no reviews yet.
