Description

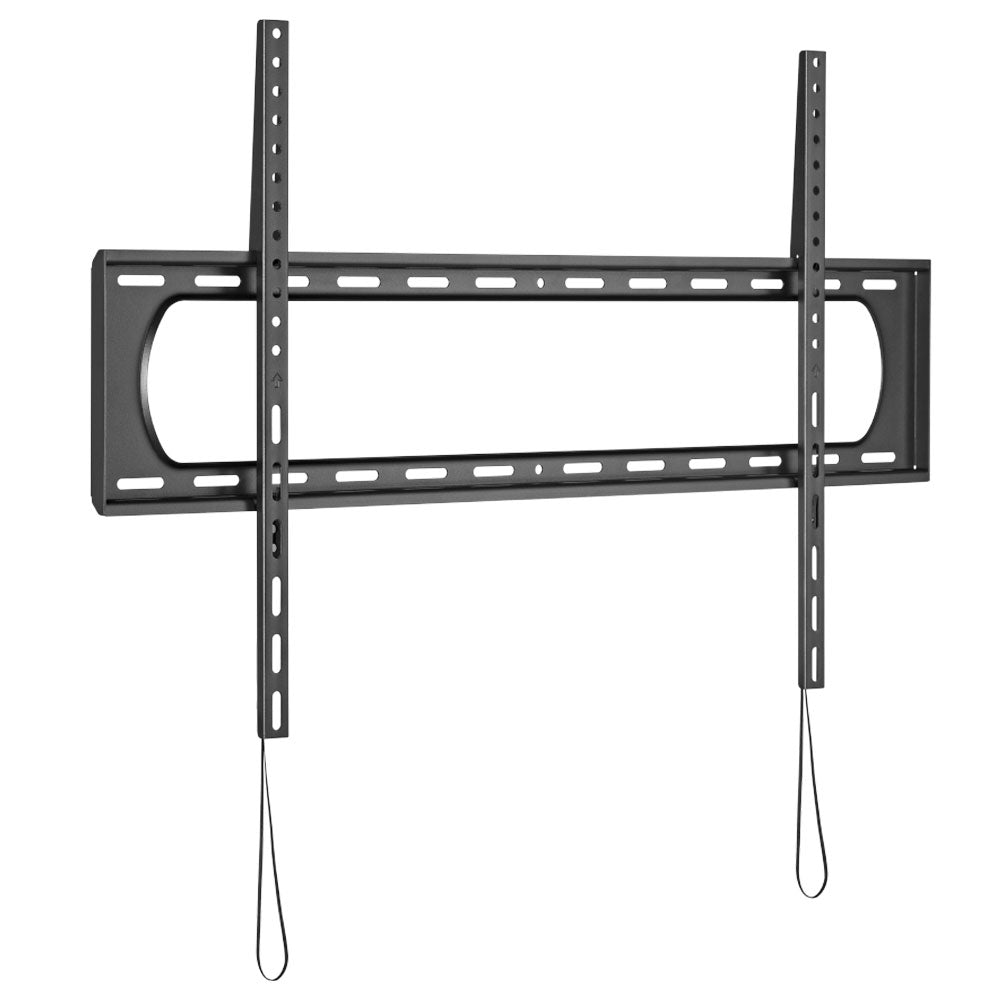

This LCD/LED fixed style wall mount bracket fits most 60 inch to 120 inch LCD displays with a maximum VESA hole pattern of 900×600. Its simple construction allows for easy installation. It can be used in both residential and commercial environments.
Features
- Heavy-Duty Construction: provides extra strength and durability
- Open Architecture: provides increased ventilation and easier access to wires

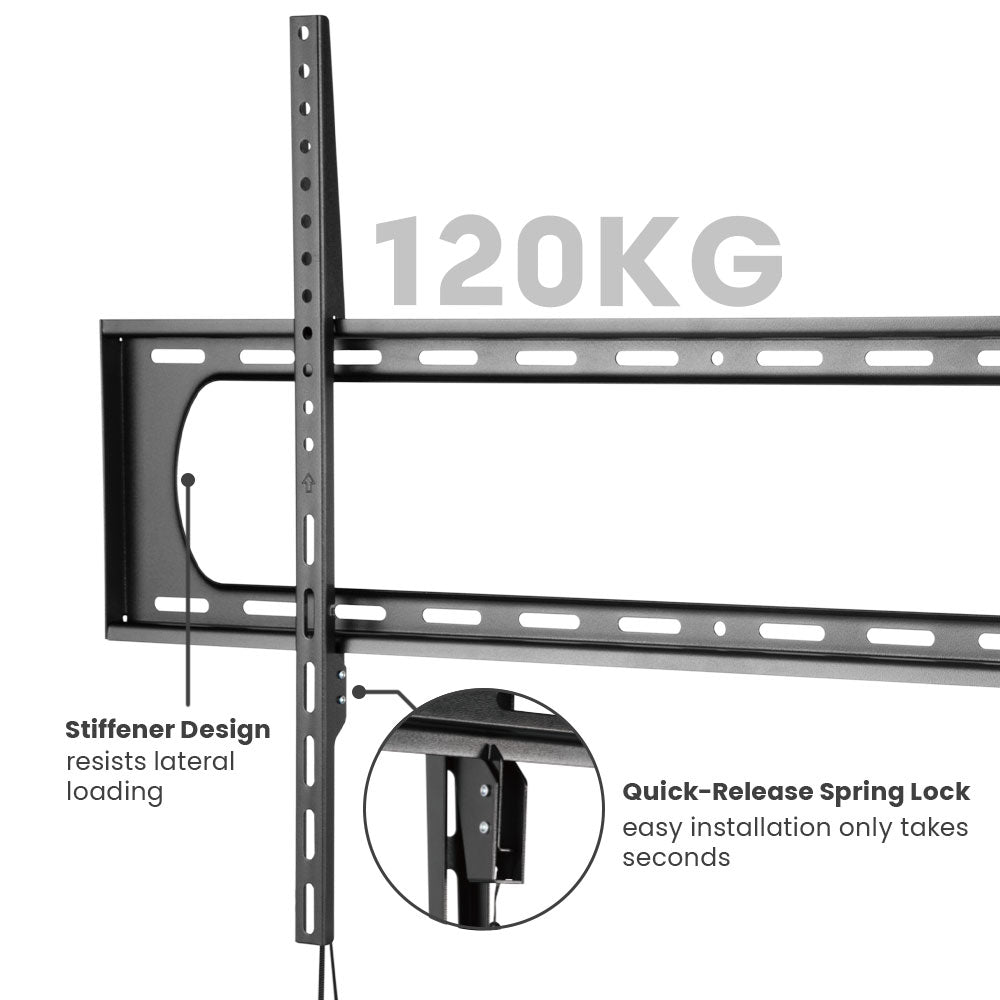

- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Fixed Wall Mount |
| Color | Black |
| Material | Steel |
| Surface Finish | Powder Coating |

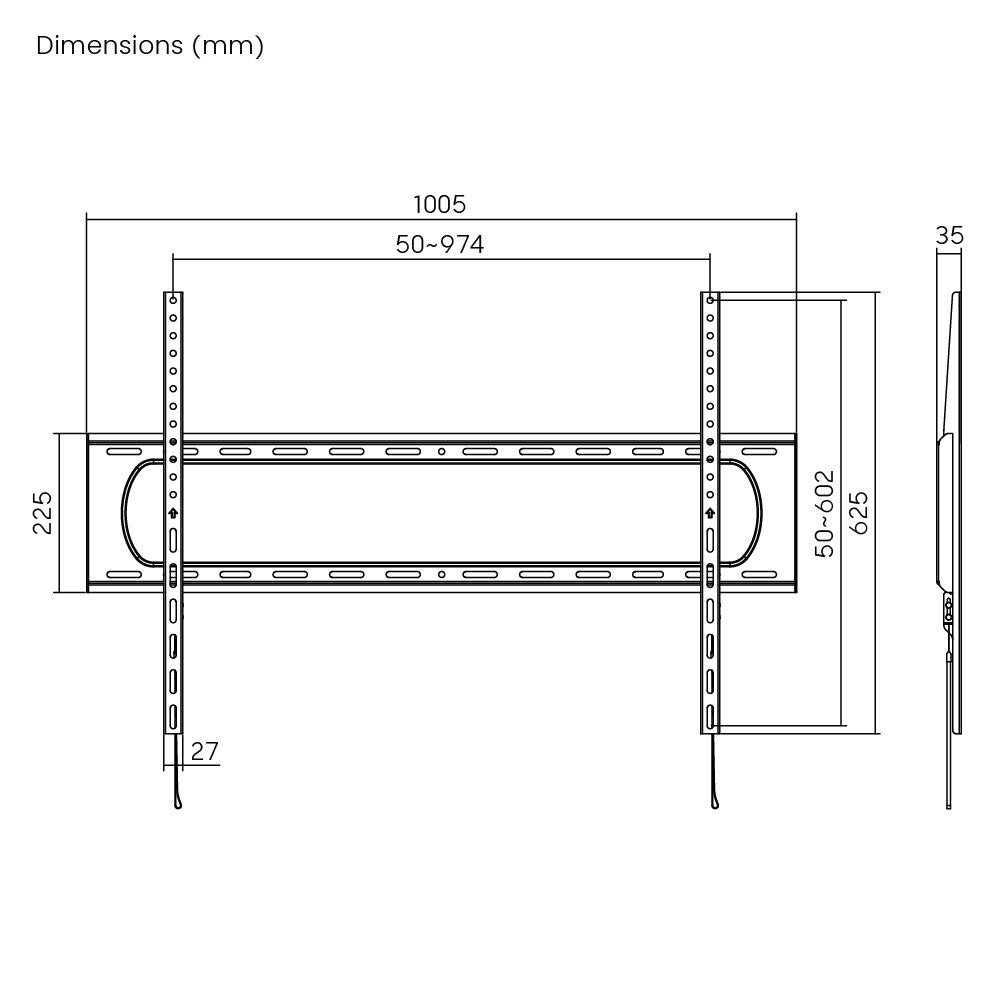

| Dimensions | 35x1005x625mm (1.4″x39.6″x24.6″) |
| Mounting Pattern | VESA 50×50, 75×75, 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 400×400, 600×300, 400×600, 600×400, 700×400, 800×400, 600×600, 800×500, 800×600, 900×600 |
| Max. Mounting Hole | 974x602mm |
| Screen Size | 60″-120″ |
| Fit Curved TV | Yes |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 4 Times Approved |
| Tilt | No |
| Profile | 35mm (1.4″) |
| Installation | Solid Wall, Dual Stud (406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
|
Approvals
|
|
| UL | Compliant |
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacers 8 – Big Spacers 6 – ST6.3×55 Screws 6 – Concrete Anchors 6 – D6 Washers |
| Product Weight | 8.5 lbs |
