Description

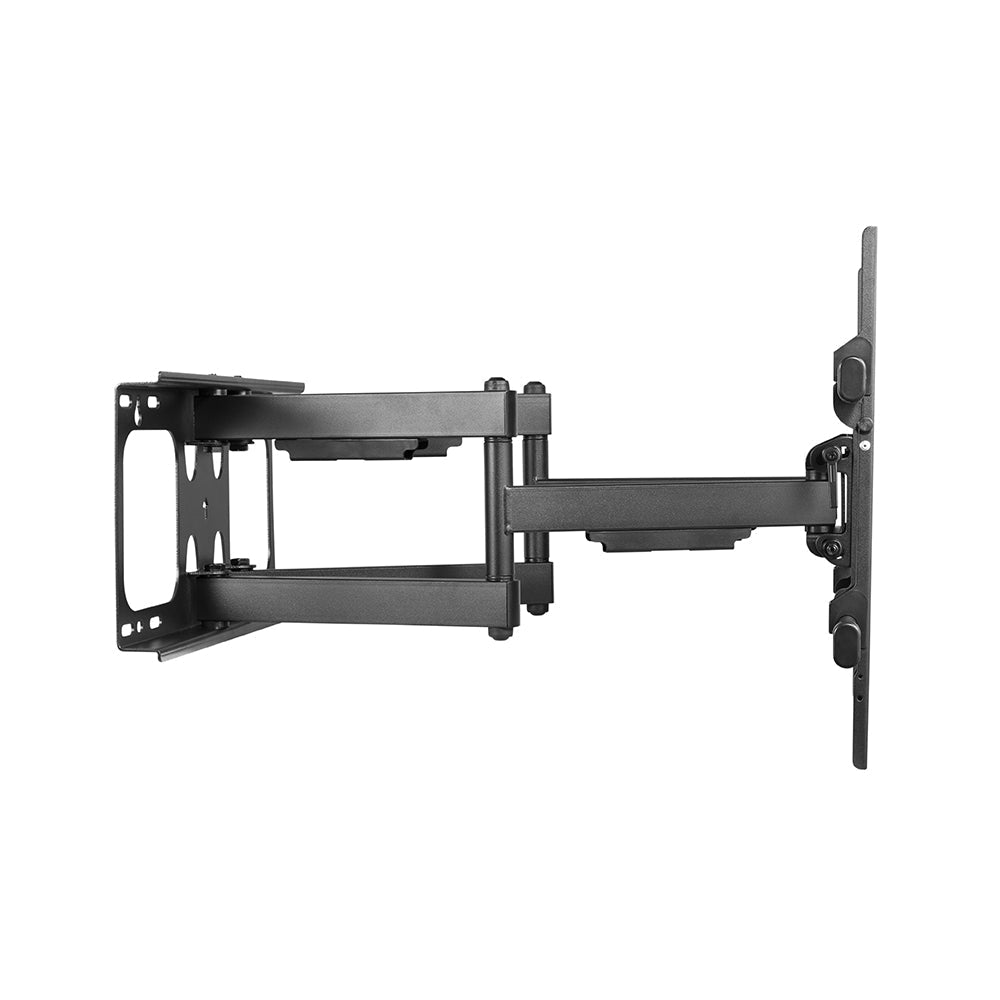

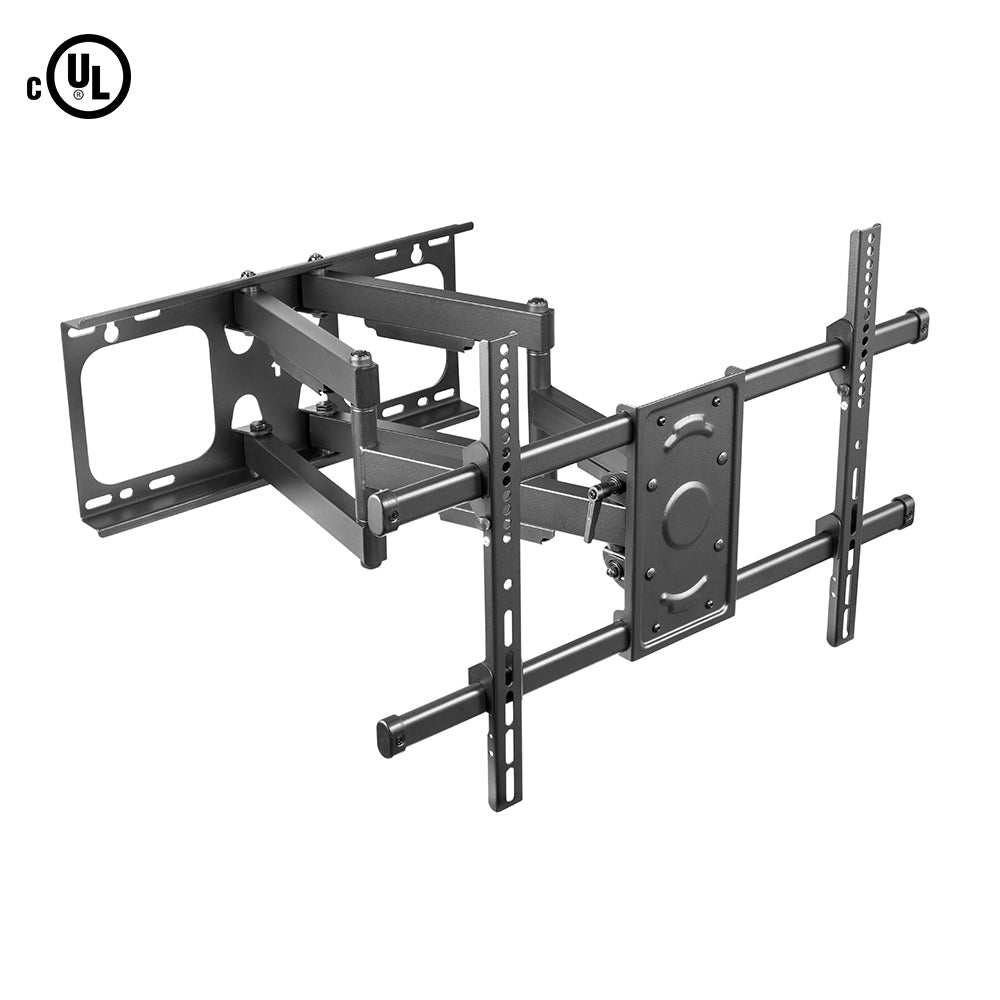

This full motion swivel, tilt and extending TV wall mount bracket is designed to hold most 37 inch to 90 inch LCD/LED displays with a maximum VESA hole pattern of 600×400. It offers up to a 5° to -15° tilt, 60° to -60° swivel and screen levelling of 3° ~ -3°. It can be used in both residential and commercial environments.
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Mounting Pattern | VESA 200×200, 300×300, 400×200, 400×400, 600×400 |
| Screen Size | 37 – 90 inches [93.9 – 228.6cm] |
| Weight Capacity | 143 lbs [65kg] |

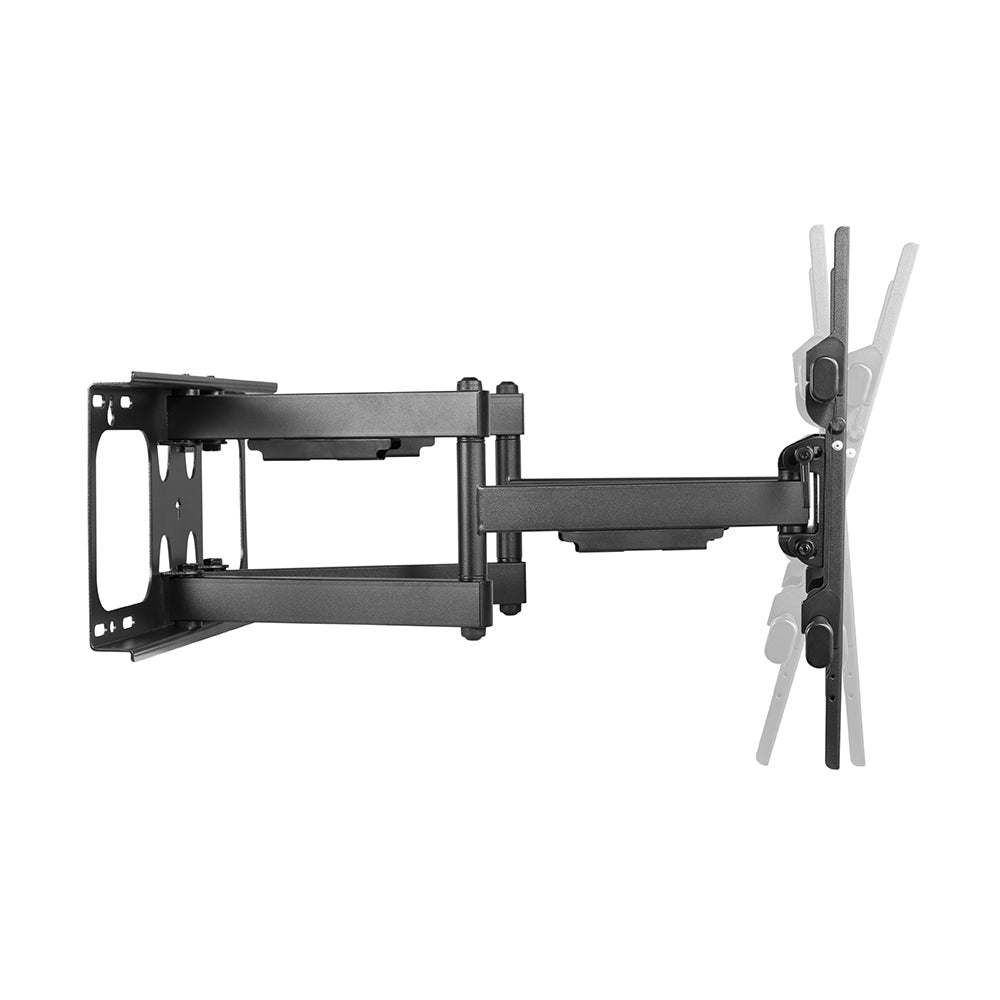

| Tilt | +5° ~ -15° |
| Swivel | +60° ~ -60° |
| Level Adjustment | +3° ~ -3° |
| Profile | 69 to 635mm [2.7 – 25 inches] |
| Bubble Level | Compliant |
| Cable Management | Compliant |
| Freely Tilting | Compliant |
| Curved TV Available | Compliant |
| Anti-theft | No |
| Motorized | No |
| Installation | Solid Wall or Double Stud |
|
Approvals
|
|
| c(UL) | Compliant |
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacers 8 – Big Spacers 6 – ST6.3×55 Screws 6 – Concrete Anchors 4 – D6 Washers |
| Package Weight | 23.3 lbs [10.6kg] |
