Description

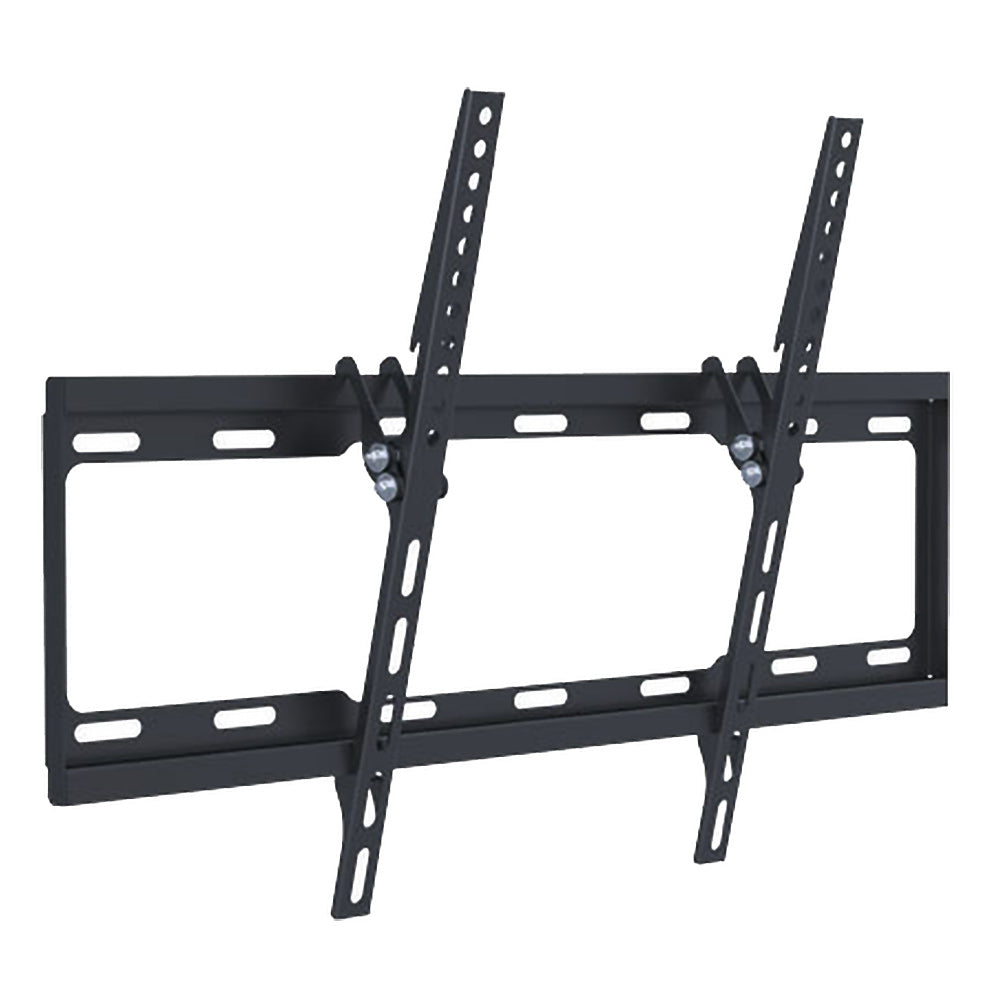

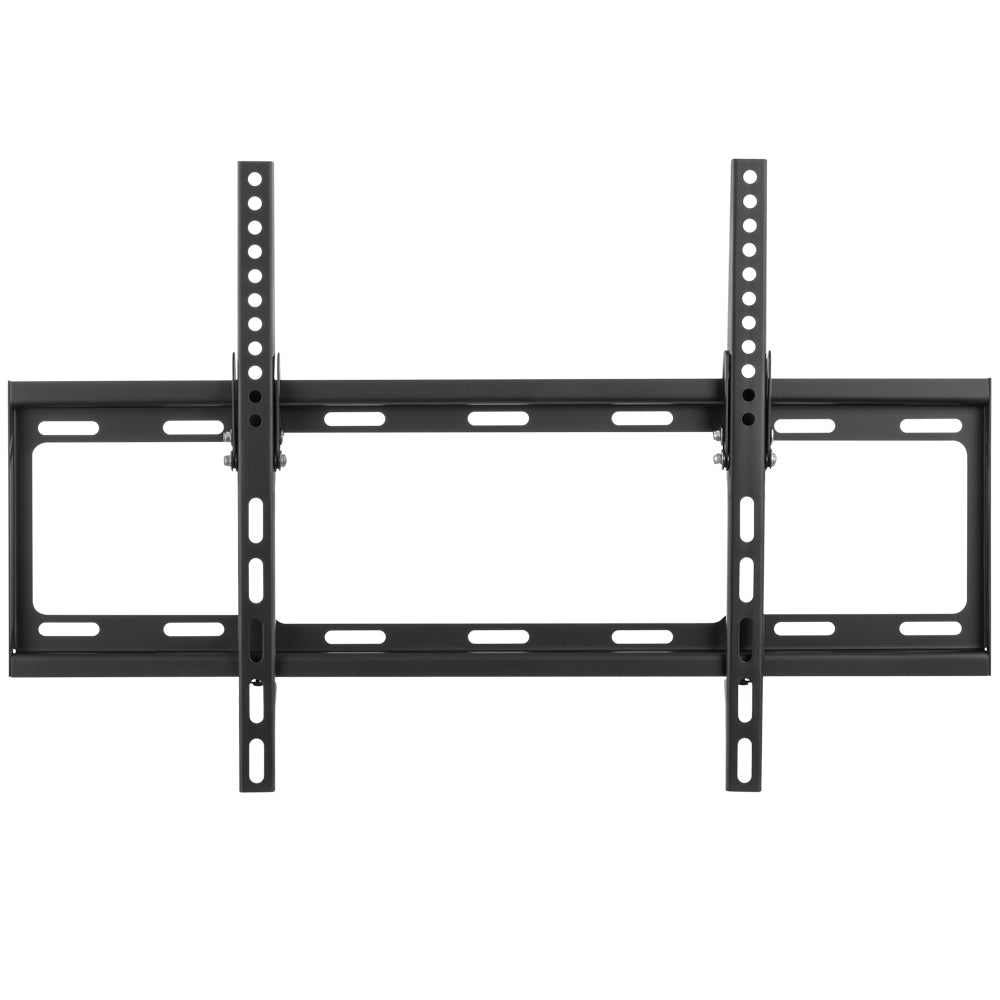

This wall mount bracket is designed to hold most 37 inch to 80 inch flat and curved screen displays with a maximum VESA hole pattern of 600×400. It offers a up to a 14° downward tilt. It can be used in both residential and commercial environments.
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Black |
| Material | Steel |
| Mounting Pattern | VESA 200×200, 400X200, 300X300, 400X400, 600×400 |
| Screen Size | 37 – 80 inches [94 – 203cm] |
| Weight Capacity | 77lbs [35kg] |

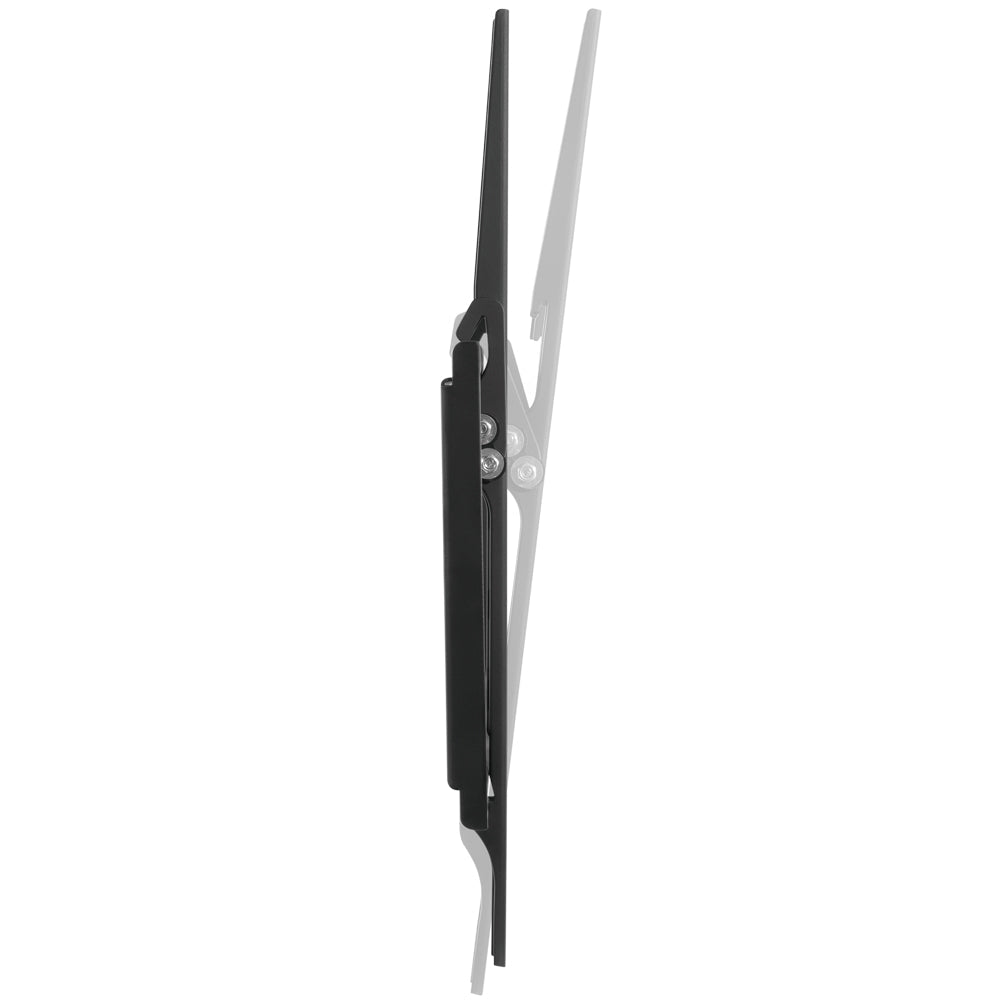

| Tilt | 0°~14 |
| Profile | 25mm |
| Installation | Solid Wall or Double Stud |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Certification | c(UL) |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M6x30 Screws 4 – M8x30 Screws 4 – D8 Washers 4 – Big Spacers 4 – ST6.3×55 Screws 4 – Concrete Anchors 4 – D6 Washers |
| Product Weight | 5.0lbs [2.0kg] |
