Description
Overview

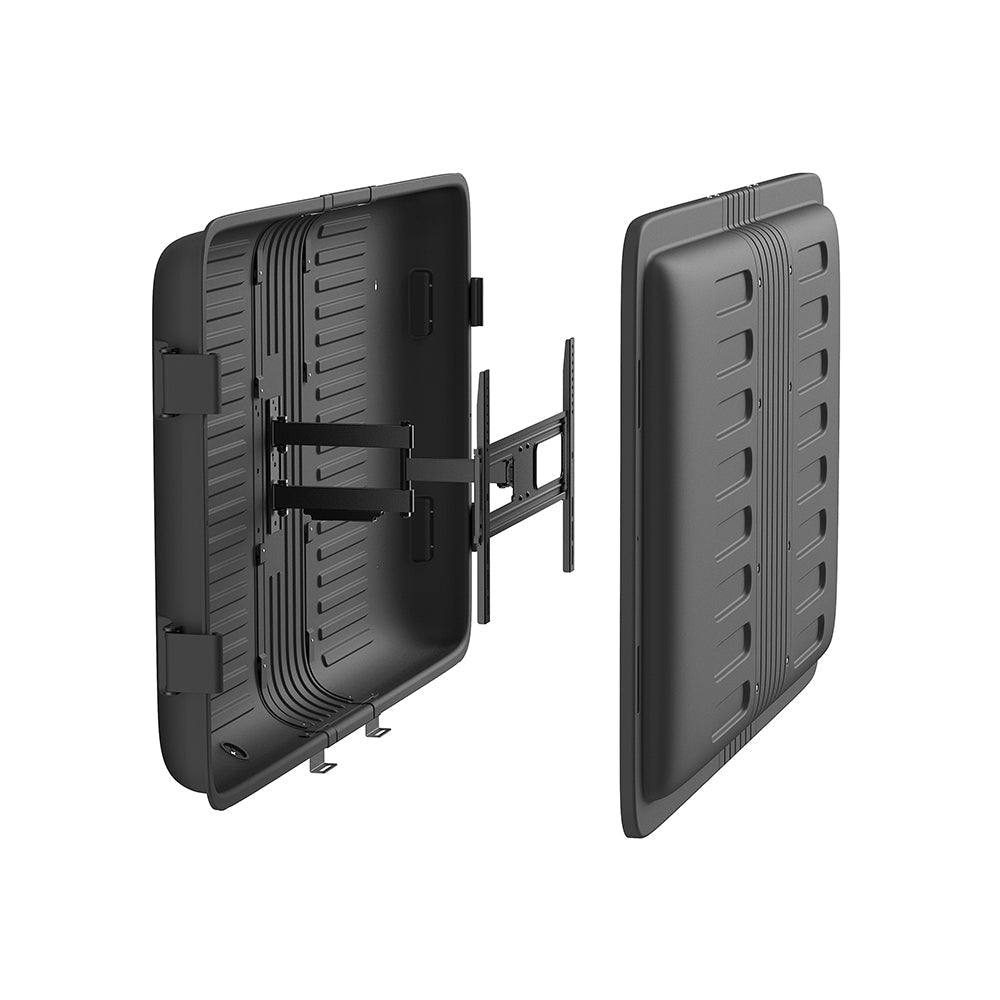

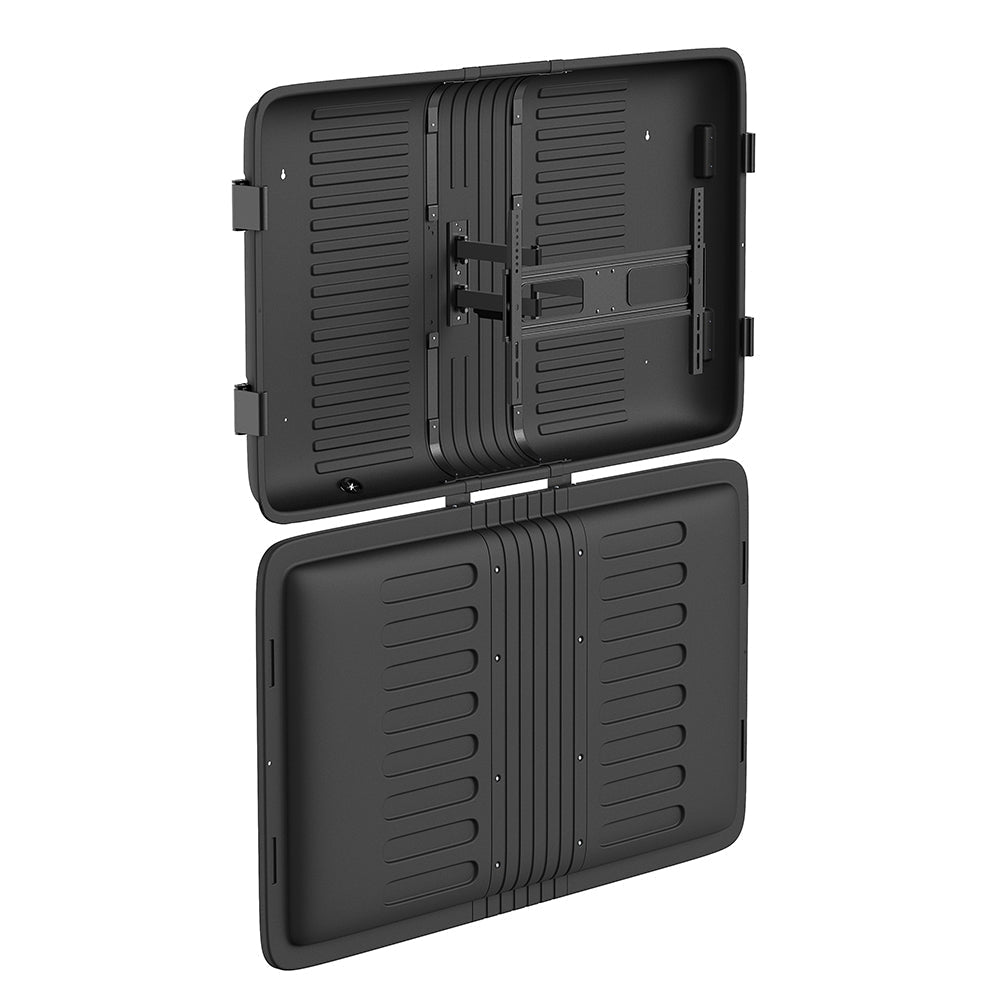

This swivel and tilting outdoor TV enclosure is designed to hold most 43 inch to 65 inch flat screen displays with a maximum VESA hole pattern of 600×400. It offers up to a +10° to -20° tilt and +90° to -90° swivel. This protective enclosure offers effective rain, wind, UV and vandal resistance, preventing the TV from any damage. Included is a full-motion mount for optimized viewing angles.
|
Dust, Weatherproof and Theft ProtectionThis protective TV enclosure offers rain, wind, UV resistance and theft protection due to its hard case and lockable construction. Size AccommodationsThis TV enclosure offers a wide VESA spacing to accommodate larger TVs and can accommodate TV sizes of 43 inch to 65 inch.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Dimensions | 1640 x 1020 x 205mm [64.6 x 40.2 x 8.1 inches] |
| Mounting Pattern | VESA 200×200,300×200,400×200,300×300,400×300,400×400,600×400 |
| Metal Sheet Thickness | Wall Plate Thickness = 2.5mm cold-rolled sheet [0.098 inches] VESA Panel Thickness = 2mm cold-rolled sheet [0.079 inches] Bracket Arm Thickness = 2mm cold-rolled sheet [0.079 inches] |
| Pipe Size | 40 x 20 x 1.5mm Square Steel Tube [1.6 x 0.79 x 0.059 inches] |
| Screen Size | 43 – 65 inches [109 – 165cm] |
| Weight Capacity | 110 lbs [50kg] |
| Tilt | +10° ~ -20° |
| Swivel | +90° ~ -90° |
| Profile | 2.4 – 18.6 inches [60 – 473mm] |
| Level Adjustment | -3° ~ +3° |
| Screen Freely Tilting | Compliant |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Compliant |
| Cable Management | Yes |
| Anti-theft | Compliant |
| Installation | Single Stud, Solid Wall |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacers 8 – Big Spacers 8 – ST6.3×55 Screws 4 – ST3.5×50 Screws 8 – Concrete Anchors 4 – Anchors 4 – D6 Washers 4 – D5 Washers |
| Product Weight | 49lbs [22.2kg] |
