Description

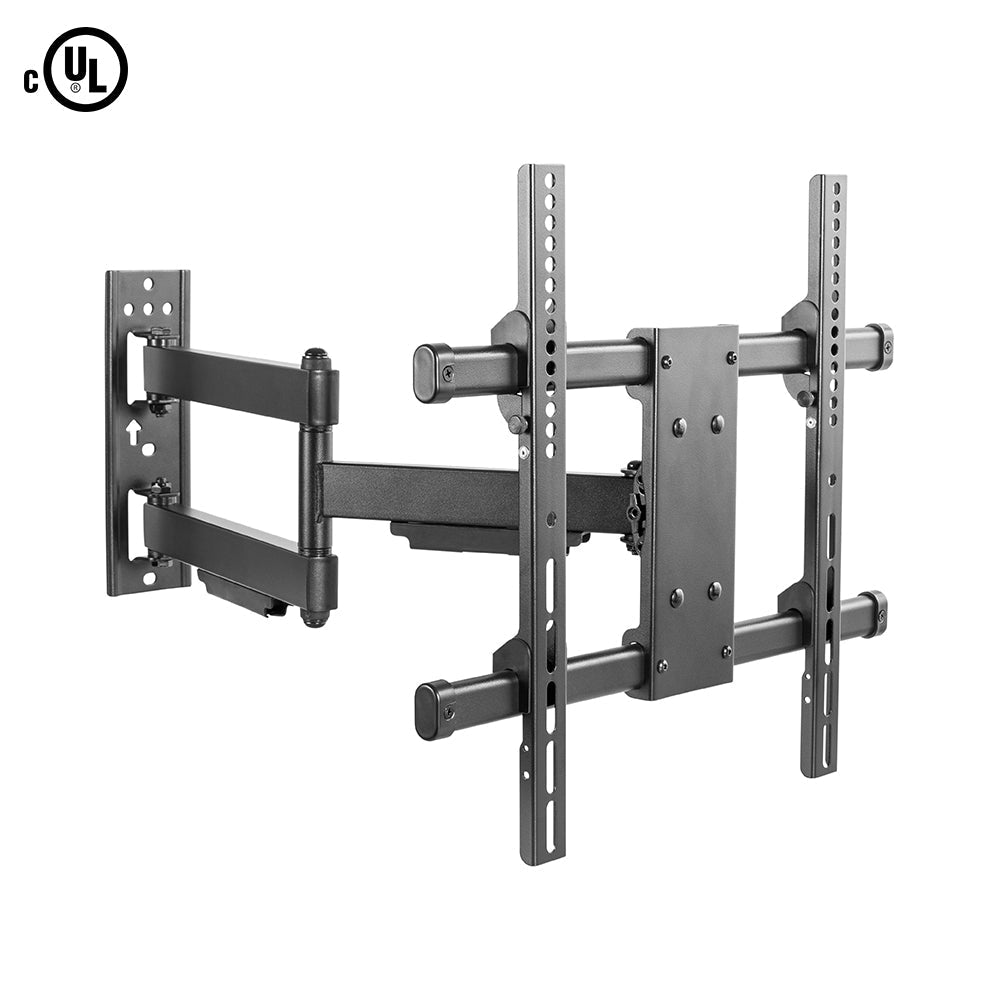

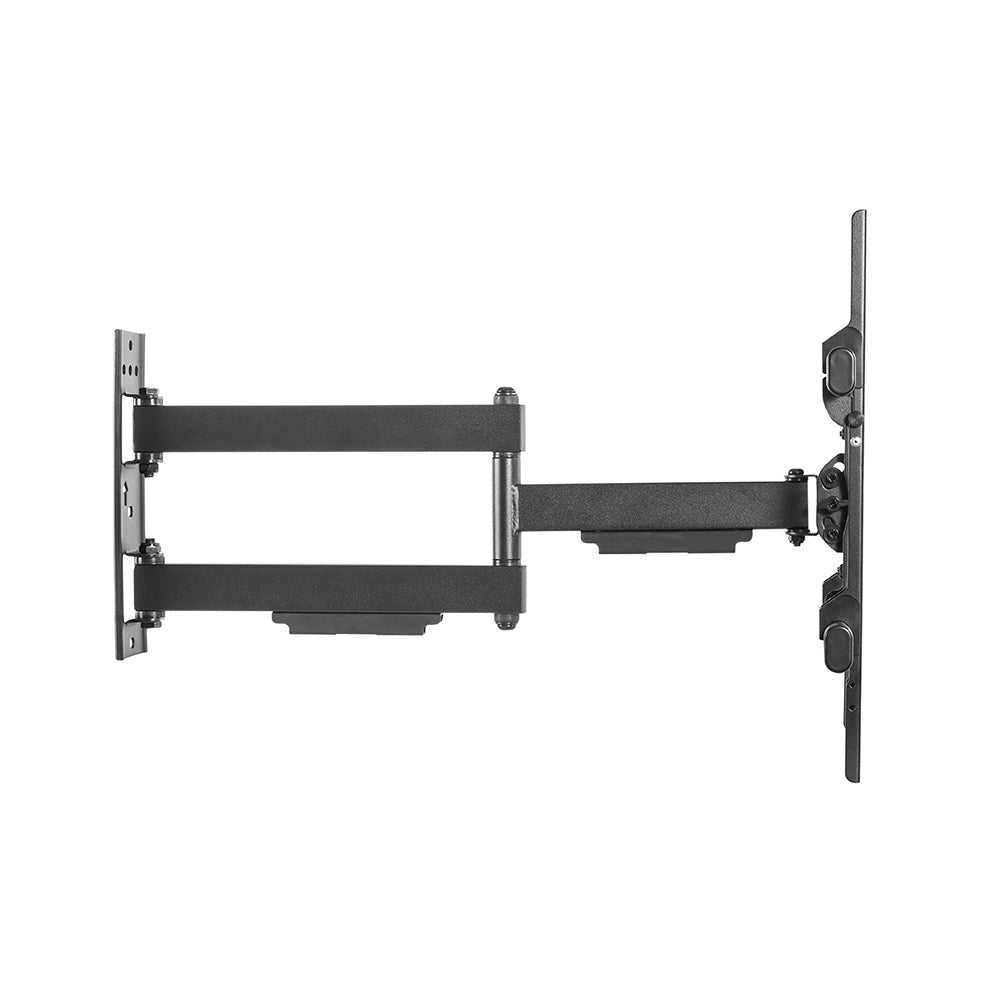

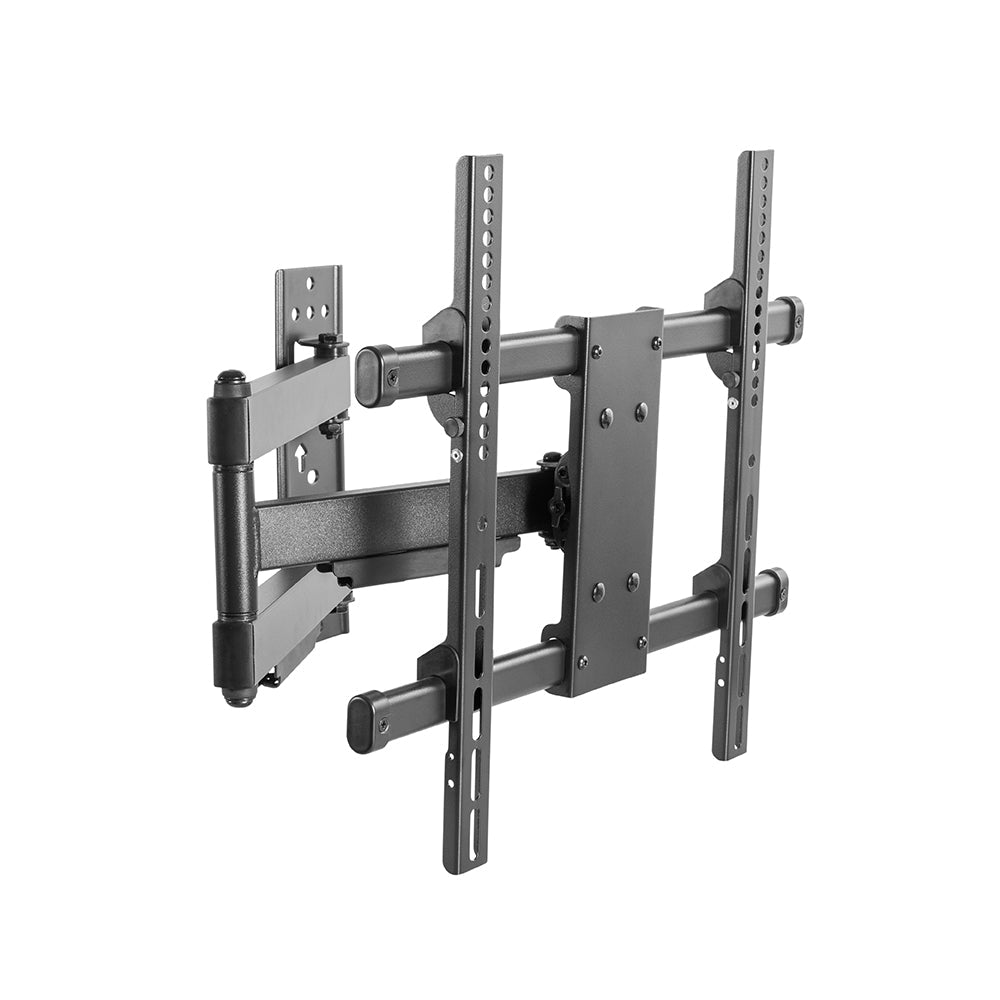

This full motion swivel, tilt and extending TV wall mount bracket is designed to hold most 32 inch to 55 inch LCD/LED displays with a maximum VESA hole pattern of 400×400. It offers up to a 5° to -15° tilt, 90° to -90° swivel and screen levelling of 3° ~ -3°. It can be used in both residential and commercial environments.
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Surface Finish | Powder Coating |
| Dimensions | 615x485x430mm (24.2″x19.1″x16.9″) |
| Mounting Pattern | VESA 200×200, 400×200, 300×300, 400×400 |
| Screen Size | 32 – 55 inches [81.2 – 139.7cm] |
| Weight Capacity | 110 lbs [50kg] |

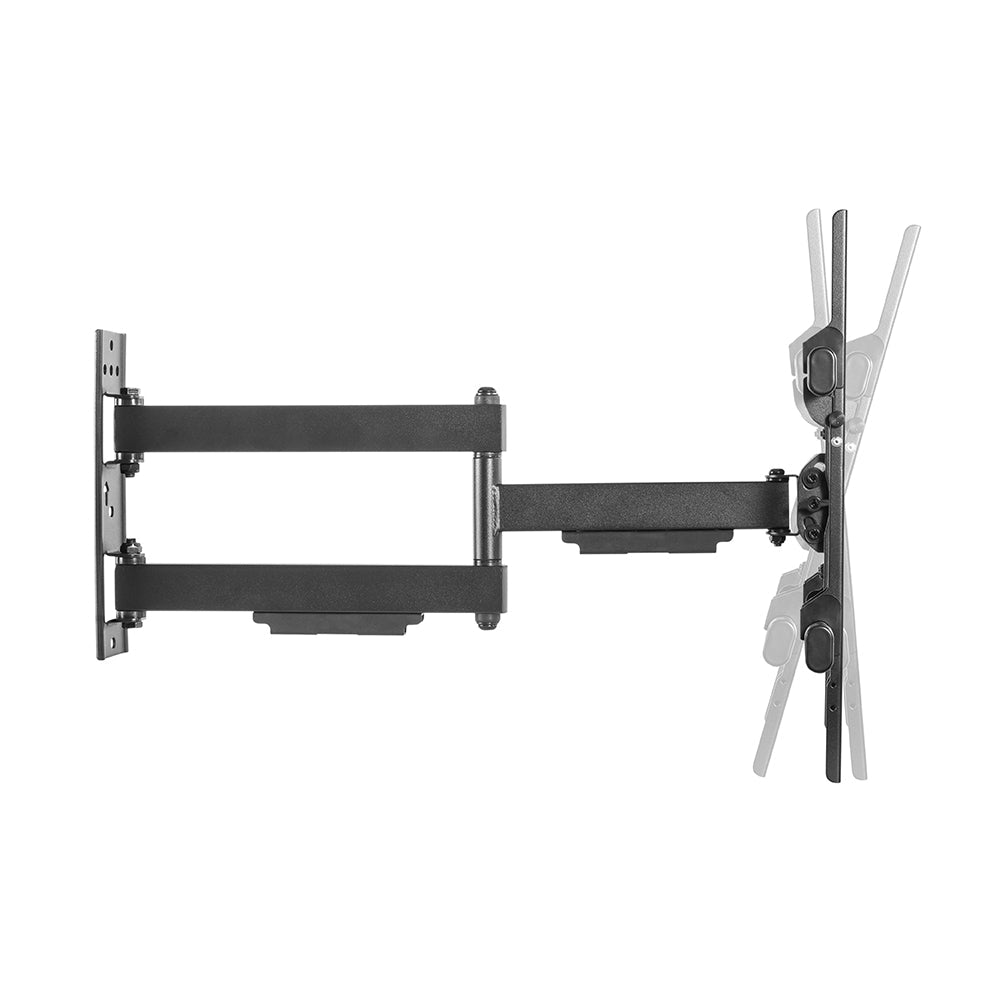

| Tilt | +5° ~ -15° |
| Swivel | +90° ~ -90° |
| Level Adjustment | +3° ~ -3° |
| Profile | 62 to 615mm [2.4 – 24.2 inches] |
| Bubble Level | Compliant |
| Cable Management | Compliant |
| Freely Tilting | Yes |
| Fit Curved TV | Compliant |
| Anti-theft | No |
| Motorized | No |
| Installation | Solid Wall or Single Stud |
| Pipe Size | 40x25x1.5mm,40x20x1.5mm (1.6″x0.98″x0.059″,1.6″x0.79″x0.059″) |
| Metal Sheet Thickness | Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059″ cold-rolled sheet, Wall Plate THK=0.12″ pickling sheet) |
|
Approvals
|
|
| c(UL) | Yes |
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacers 8 – Big Spacers 4 – ST6.3×55 Screws 4 – Concrete Anchors 4 – D6 Washers |
| Product Weight | 11.5 lbs [5.2kg] |
