Description
Overview

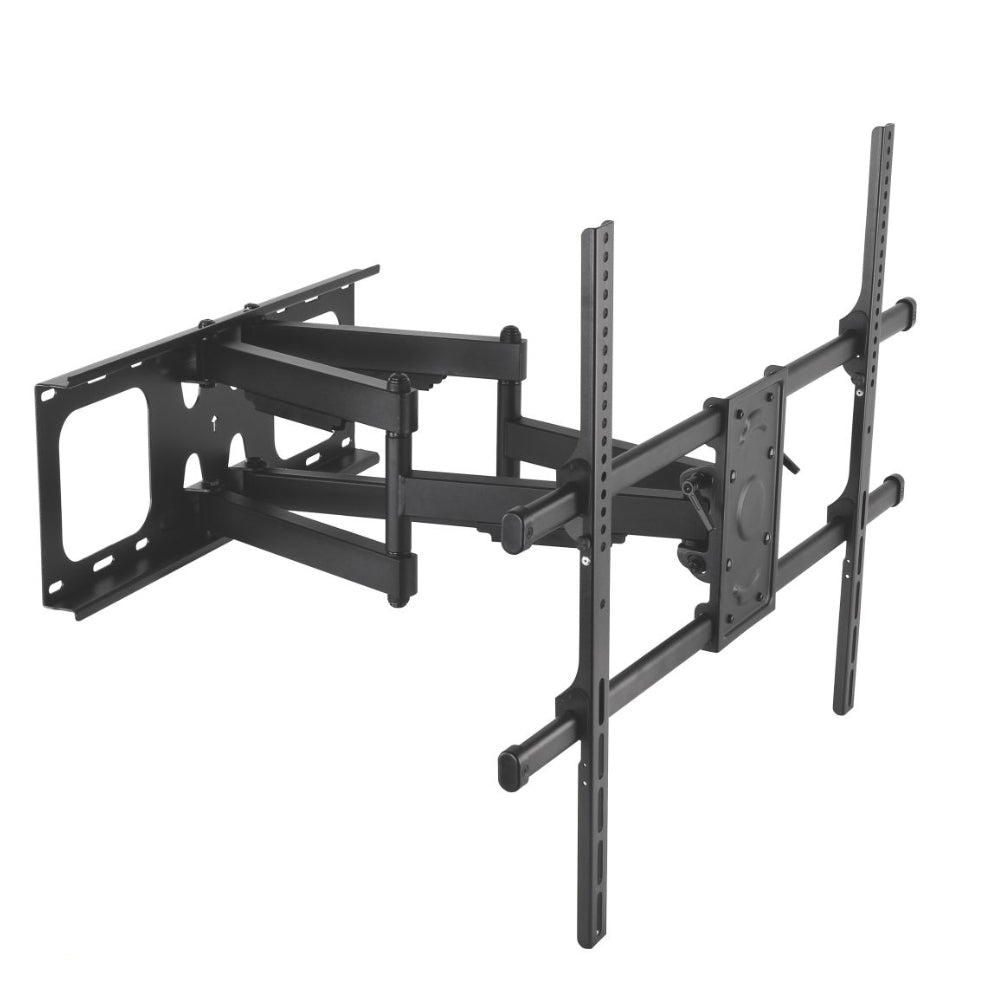

This swivel, tilting pan and extend wall mount bracket is designed to hold most 50 inch to 90 inch flat screen displays with a maximum VESA hole pattern of 600×800. It offers a up to a +5° to -15° tilt and a -60° to +60° swivel. It can be used in both residential and commercial environments.
|
Full Motion Makes any Seat, the Best SeatThis full motion TV mount bracket has swiveling arms and free-tilting design to give you maximum viewing flexibility and multiple viewing angles. It can be pulled out from the wall (635mm extension) and angled towards a separate viewing area, with a quick lock and release system to keep the TV in place with no tools required. Save Space and Keep Everything OrganizedThe heavy-duty steel constructed mount provides a solid hold for even the largest TVs. The mount also features built-in level adjustment to ensures perfect positioning and cable management to keep everything organized. The Ideal TV Mount for Many PossibilitiesThis TV mount offers a wide VESA spacing to accommodate larger TVs from 50 inch and up to 90 inch flat and curved displays. It can also be used on wood, masonry or concrete construction.   |
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel |
| Mounting Pattern | VESA 200×200,300×200,300×300,400×200,400×300,400×400,600×400,800×400,800×600 |
| Screen Size | 50 – 90 inches [127 – 228cm] |
| Weight Capacity | 165 lbs [75kg] |
| Tilt | -15° ~ +10° |
| Swivel | -60° ~ +60° |

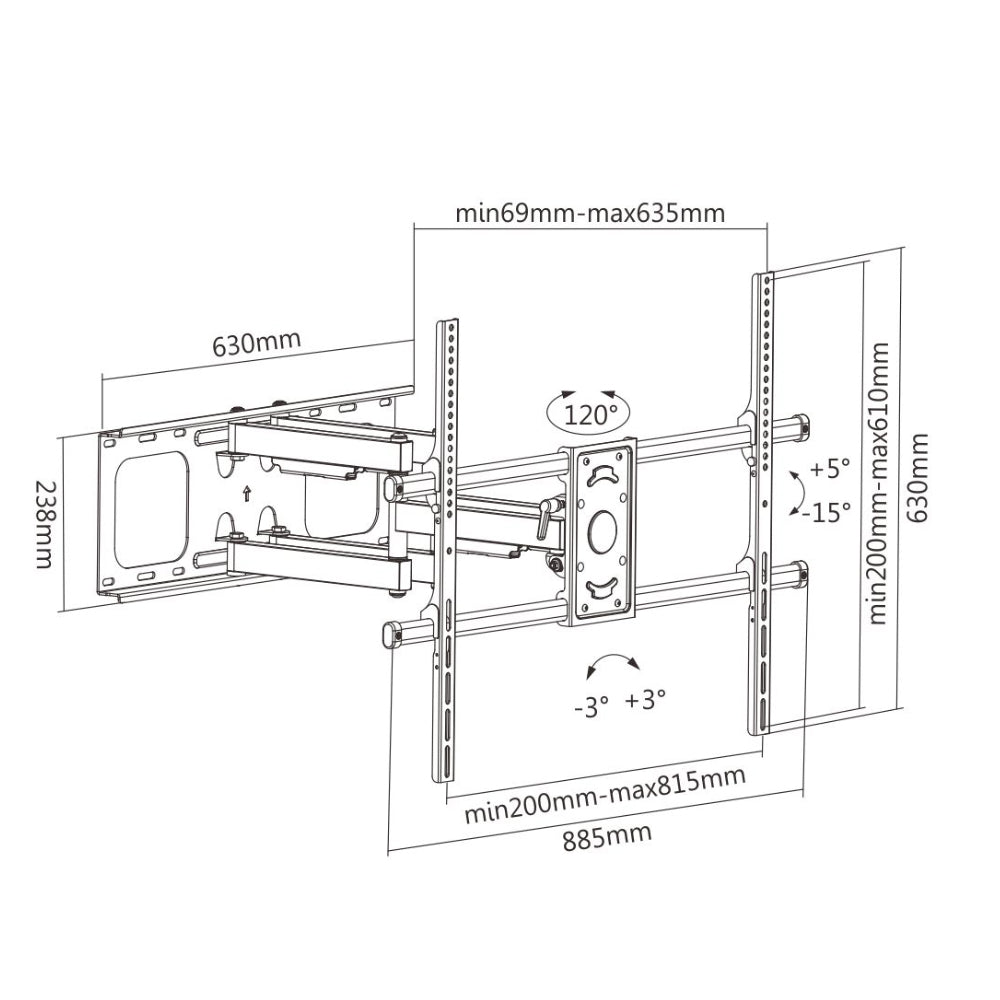

| Profile | 2.7 – 25 inches [69 – 635mm] |
| Level Adjustment | -3° ~ +3° |
| Screen Freely Tilting | No |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Cable Management | Yes |
| Anti-theft | No |
| Bubble Level | Hook-on Bubble Level(Included in Components Package) |
| Installation | Double Stud(406mm/450mm/600mm) or Solid Wall |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacers 8 – Big Spacers 6 – ST6.3×55 Screws 6 – Concrete Anchors 4 – D6 Washers |
| Product Weight | 26.05lbs [11.8kg] |
