Description
Overview

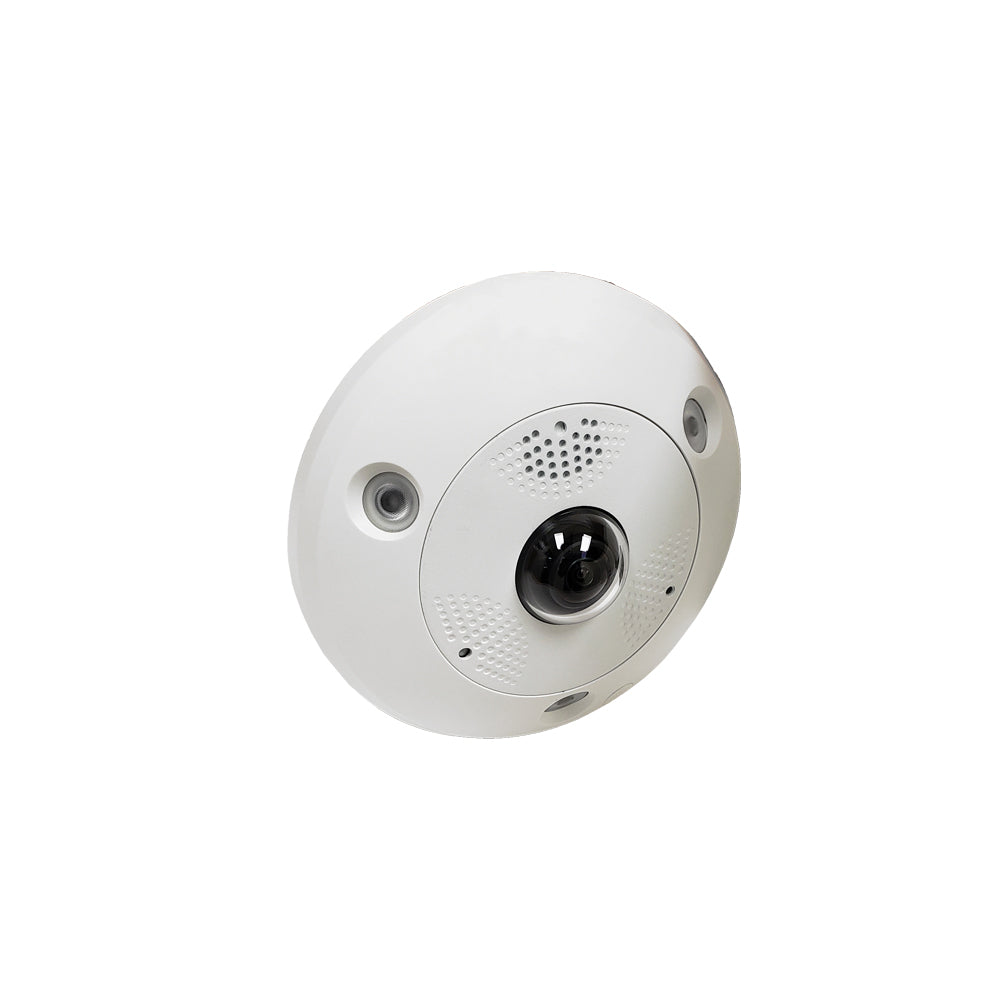

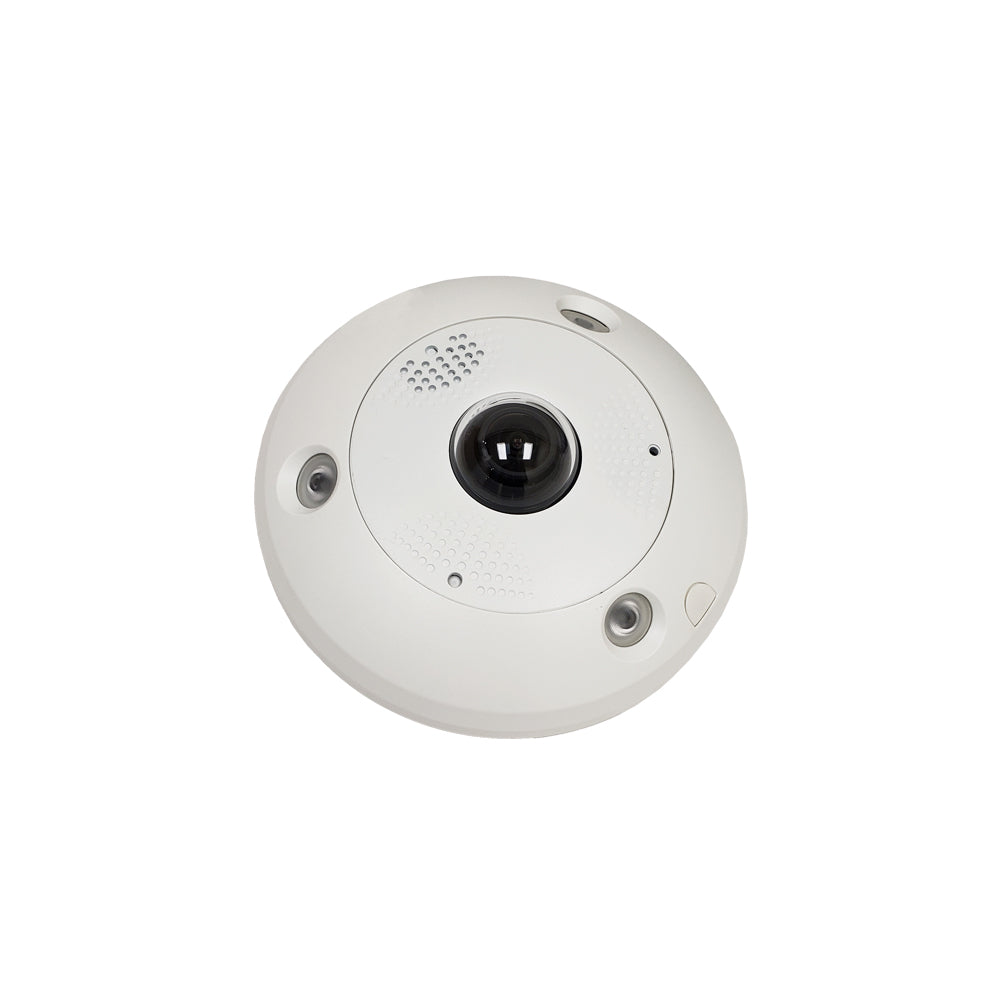

This 6MP fisheye, fixed dome IP based camera offers a full 360 degree panoramic image of its surveillance scene. The progressive scan CMOS sensor provides high-resolution images of up to 3072 x 2048 and has up to 18 live view display modes. It also has three independently controlled IR lights that offer a range of 15m which provides good vision in low or zero-light environments.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Minimum Illumination | Color: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day/Night | IR cut filter |
| DNR | 3D DNR |
| WDR | Digital WDR |
| DORI (Detect, Observe, Recognize, Identify) | Distance: 1.27mm Detect: 21.3m Observe: 8.5m Recognize: 4.3m Identify: 2.1m |
|
Lens
|
|
| Focal Length | 1.27mm |
| Aperture | F2.6 |
| FOV | Horizontal FOV 180°, Vertical FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount) |
| Lens Mount | M12 |
|
IR
|
|
| IR Range | Up to 15 m IR range, 3 LEDs. Each LED is independently controlled. |
| Wavelength | 850 nm |
|
Compression Standard
|
|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub stream: H.265+/H.265/H.264+/H.264/MJPEG; Third stream: H.265+/H.265/H.264+/H.264 |
| H.264 Type | Baseline Profile/ Main Profile /High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SVC | H.265 and H.264 support |
|
Smart Feature-Set
|
|
| Behavior Analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Audio exception detection |
| Intersection Analysis | Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways |
| Heat Map | A graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart |
| People Counting | Counts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height |
| Region of Interest | 4 fixed regions for main stream |
|
|
|
| Maximum Image Resolution | 3072 — 2048 |
| Main Stream Max. Frame Rate |
50Hz: 25fps (3072 — 2048, 2048 — 2048, 1280 — 1280) 60Hz: 30fps (3072 — 2048, 2048 — 2048, 1280 — 1280) |
| Sub Stream Max. Frame Rate |
50Hz: 25fps (720 — 720, 720 — 480) 60Hz: 30fps (720 — 720, 720 — 480) |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| Picture Overlay | LOGO picture can be overlaid on video with 128 — 128 24bit bmp format |
|
Live View Display
|
|
| Mount Type | Supports table, wall, and ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding |
| Display Mode | 18 display modes in total
Software decoding: Hardware decoding: |
|
Audio
|
|
| Environment Noise Filtering | Compliant |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
|
Network
|
|
| Network Storage | Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Security Measure | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | 5.5.73 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels, administrator, operator and user |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Guarding Vision |
| Web Browser | IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+ |
|
Interface
|
|
| Communication Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
| Audio | 2 built-in microphones, 1 built-in speaker, mono sound 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm) |
| Alarm (-S) | 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Reset Button | Compliant |
|
General
|
|
| Operating Conditions | -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC±20%, PoE (802.3at, class 4), Two-core terminal block |
| Power Consumption | 12 VDC, 1 A, max. 12.5 W PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W |
| Protection Level (-V) | IP67, IK10 |
| Heater | Compliant |
| Material | Metal |
| Dimensions | 167.4 — 152.8 — 55 mm (6. 6″ — 6″ — 2.2″) |
| Weight | 3.09 lbs [1.4kg] |
Compatible Products
Compatible Mounts
| CA-DS-1280ZJ-DM25-M1 | Junction Box Mounting Bracket for Fisheye IP Camera – White |
