Description
Overview

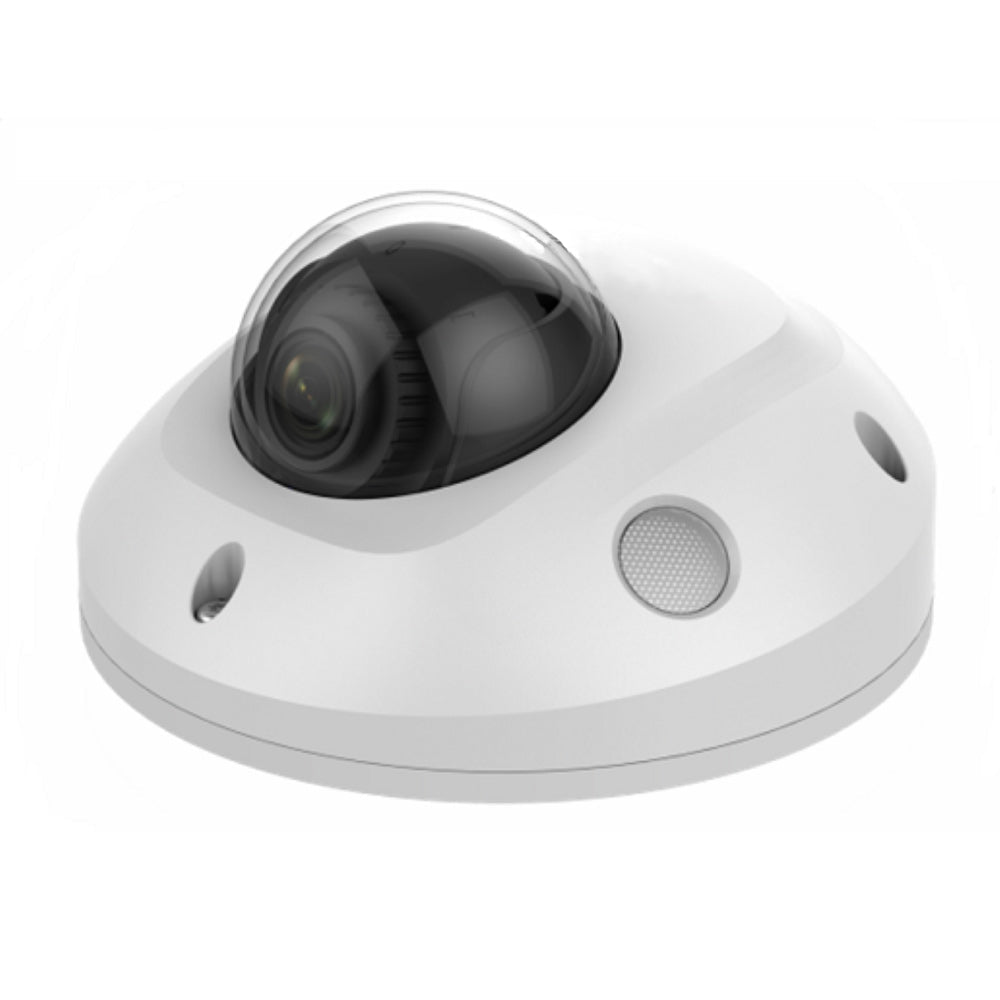

This 4MP indoor/outdoor, IP based compact dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 98°horizontal field of view. It also comes with a built in microphone and a speaker output for voice recording and 2-way communication. Its maximum resolution is 2688 x 1520 at 30 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP66 rated for outdoor use and has 10 meters of night vision using an IR cut filter and IRLEDs.
 |
Features
|
Application
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Minimum Illumination | Color: 0.018 lux @ (f/1.6, AGC on), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day /Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| Angle Adjustment | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
|
Lens
|
|
| Focal Length | 2.8 mm fixed lens |
| Aperture | f/1.6 |
| Focus | Manual |
| FOV | horizontal field of view: 98°, vertical field of view: 55°, diagonal field of view: 114° |
| Lens Mount | M12 |
|
IR
|
|
| IR Range | Up to 35 ft (10 m) |
| Wavelength | 850 nm |
|
Compression Standard
|
|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264 |
| H.264 Type | Main profile/high profile |
| H.264+ | Main stream and sub-stream support |
| H.265 Type | Main profile |
| H.265+ | Main stream and sub-stream support |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Audio Compression | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Audio Bit Rate | 64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2) |
|
Smart Features
|
|
| Behavior Analysis | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| Region of Interest | One fixed region for main stream and sub-stream |
|
|
|
| Maximum Resolution | 2688 x 1520 |
| Main Stream | 30 fps (2688 x 1520, 2304 x 1296, 1920 x 1080) |
| Sub-Stream | 30 fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream | 30 fps (1280 x 720, 640 x 360, 352 x 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Day/Night Switch | Auto/schedule/day/night/triggered by alarm in |
|
Network
|
|
| Network Storage | MicroSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS), and ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6 |
| General Function | One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User / Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 8+, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+ |
|

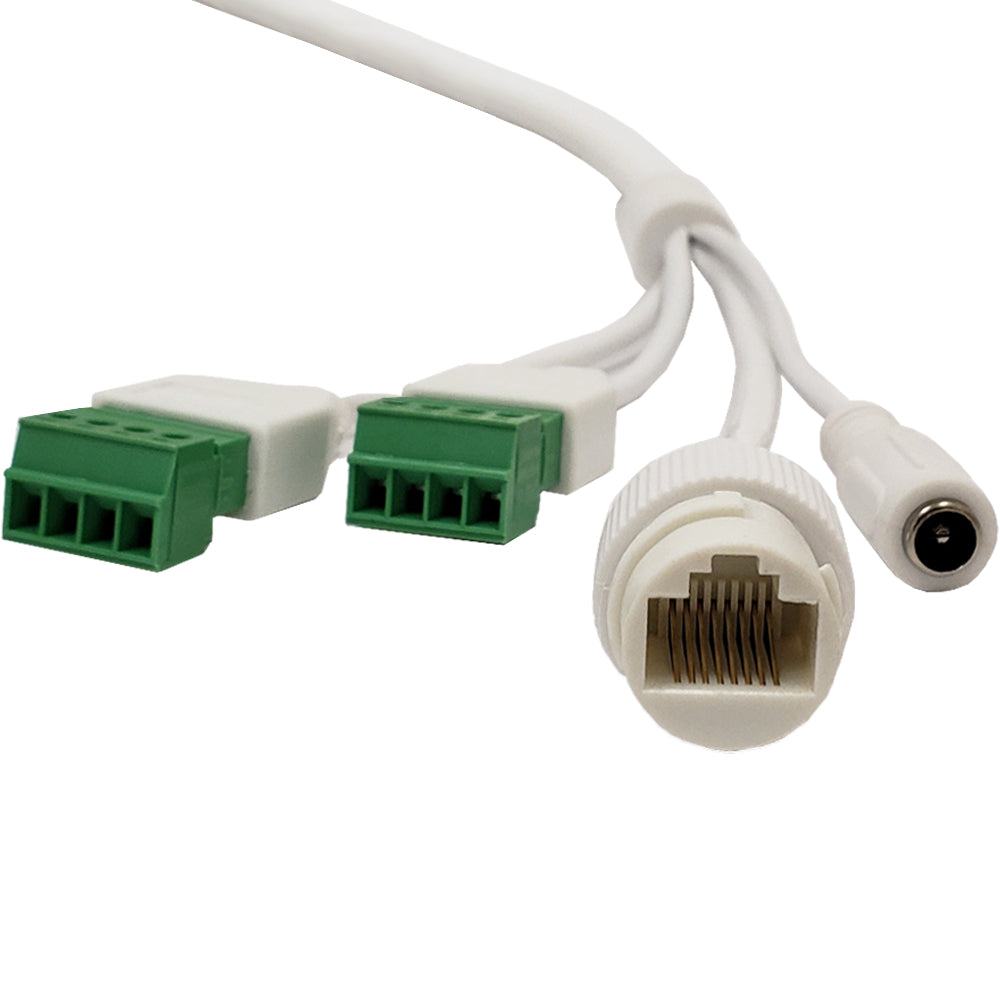

Interface
|
|
| Audio | 2 inputs: line in (3.5 mm) or mic in (built-in microphone), 1 output: line out (3.5 mm), mono sound |
| Alarm | 1 Input: alarm in (3.5mm), 1 output: alarm out (3.5mm) |
| Communication Interface | 1-port RJ-45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding |
|
Audio
|
|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 16 kHz, 32kHz, 44.1kHz, 48kHz |
|
General
|
|
| Operating Conditions | -22° F to 140° F (-30° C to 60° C); humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, N 5.5 mm coaxial power plug, PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.7 A, maximum 8.5 W; PoE (802.3aft, 36 V to 57 V), 0.3 A to 0.1 A, maximum 10 W |
| Protection Level | IK08, IP66 |
| Material | Front cover: plastic, bottom base: metal |

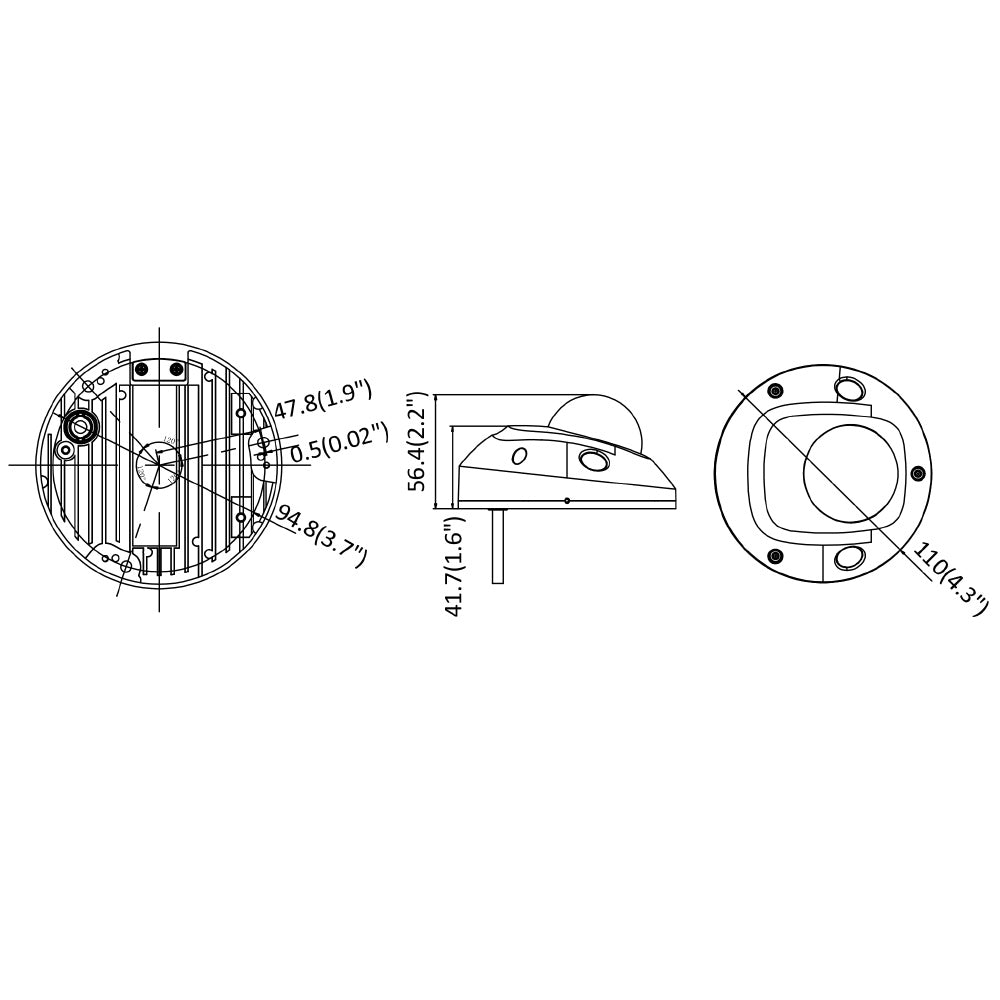

| Dimensions | Ø 4.3″ x 2.2″ (Ø 110 mm x 56.4 mm) |
| Weight | 0.90 lbs (0.40 kg) |
|
Approvals
|
|
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
