Description
Overview

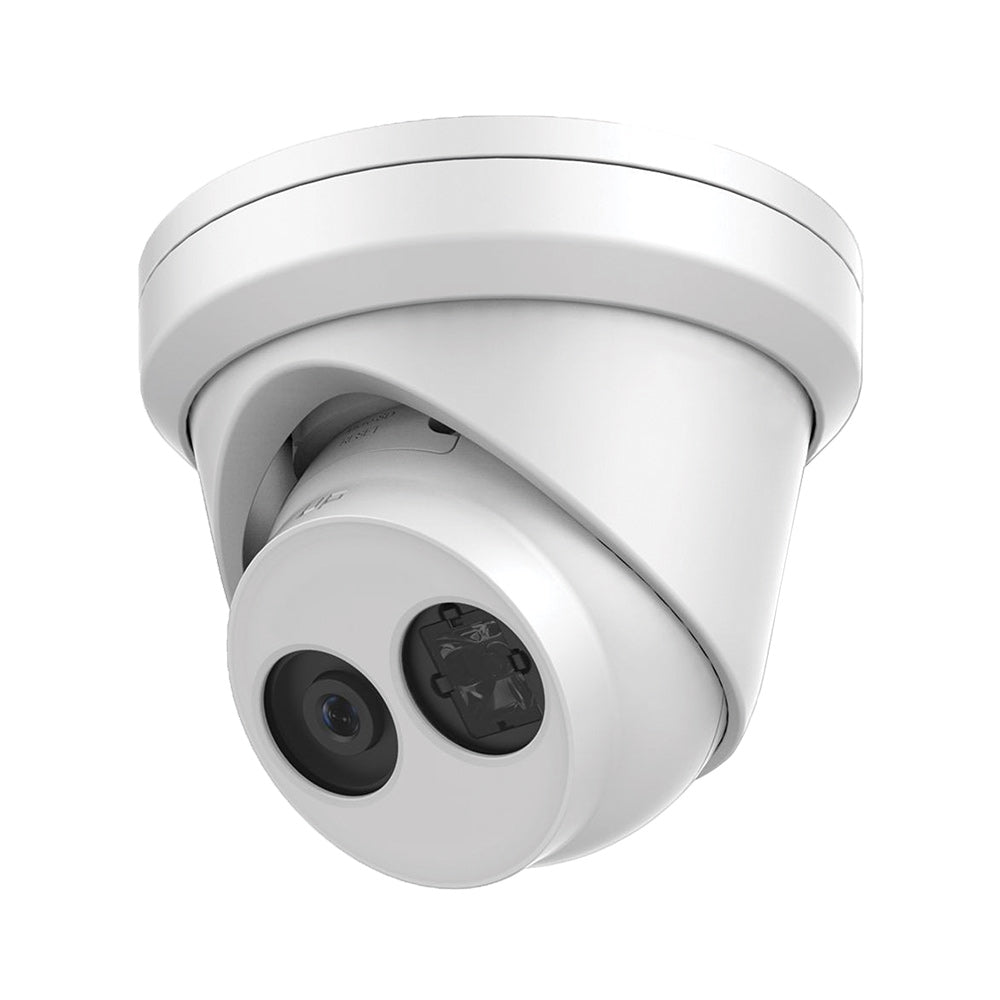

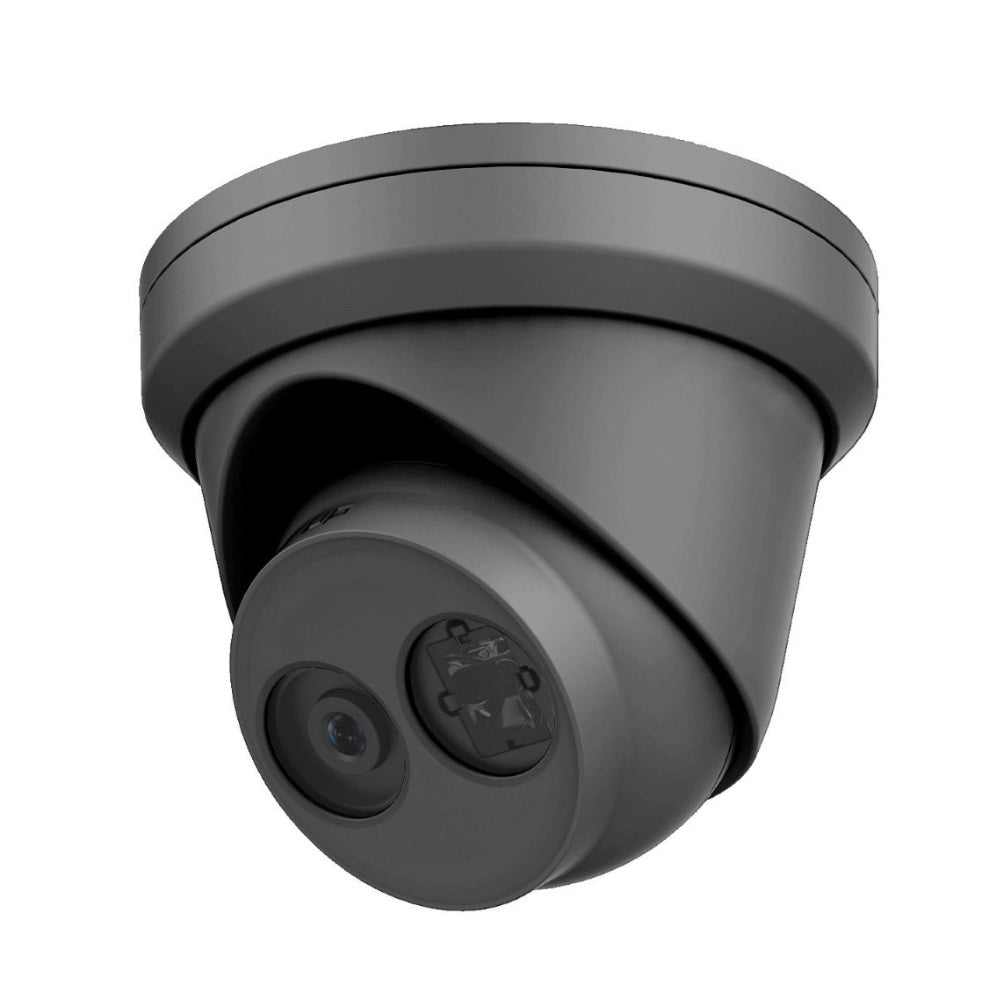

This 8MP outdoor, IP based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 102° horizontal field of view. Its maximum resolution is 3840 x 2160 at 15 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using an IR cut filter and IR LEDs.
 |
Features
|
Application
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/2.5″ (8 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.028 lux @ (f/2.0, AGC on), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Compliant |
| Auto-Iris | No |
| Day /Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|
Lens
|
|
| Focal Length | 2.8 mm, 4 mm |
| Aperture | F2.0 |
| Focus | Manual |
| FOV | 2.8mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° 4mm, horizontal FOV: 79° |
| Lens Mount | M12 |
|
IR
|
|
| IR Range | Up to 100 ft (30 m) |
| Wavelength | 850 nm |
|
Compression Standard
|
|
| Video Compression | Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main profile |
| H.265+ | Main stream support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
|
Smart Features
|
|
| Behavior Analysis | Line crossing detection, intrusion detection |
| Face Detection | Compliant |
| Region of Interest | One fixed region for main stream and sub-stream |
|
|
|
| Maximum Resolution | 3840 x 2160 |
| Main Stream | 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 30 fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream | 30 fps (1280 x 720, 640 x 360, 352 x 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Target Cropping | No |
| Day/Night Switch | Day/night/auto/schedule |
|
Network
|
|
| Network Storage | Supports microSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS), and ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User / Host | Up to 32 users; three levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
|
Interface
|
|
| Communication Interface | 1-port RJ-45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding support |
| Reset Button | Compliant |
|
General
|
|
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |

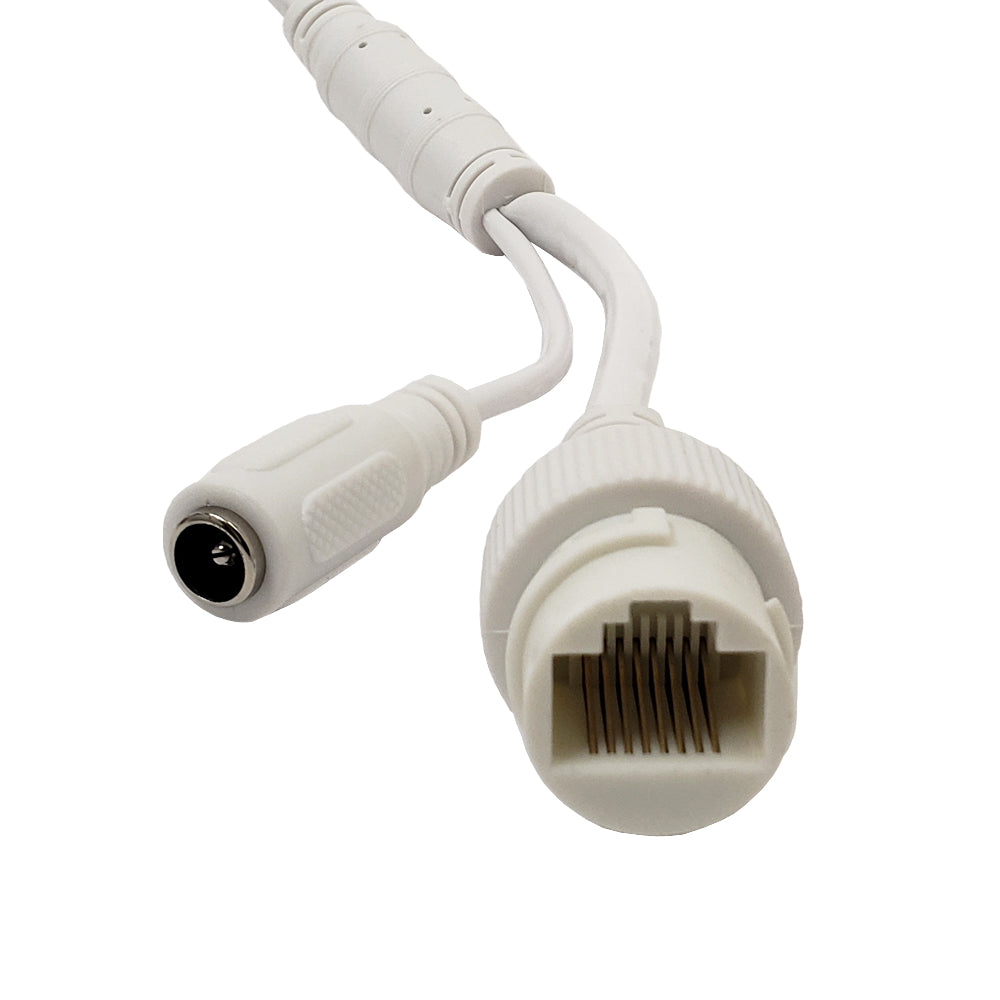

| Power Supply | 12 VDC ± 25%, ⌀ 5.5mm coaxial power plug; PoE(802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6.0 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W |
| Protection Level | IP67 |
| Material | Metal |

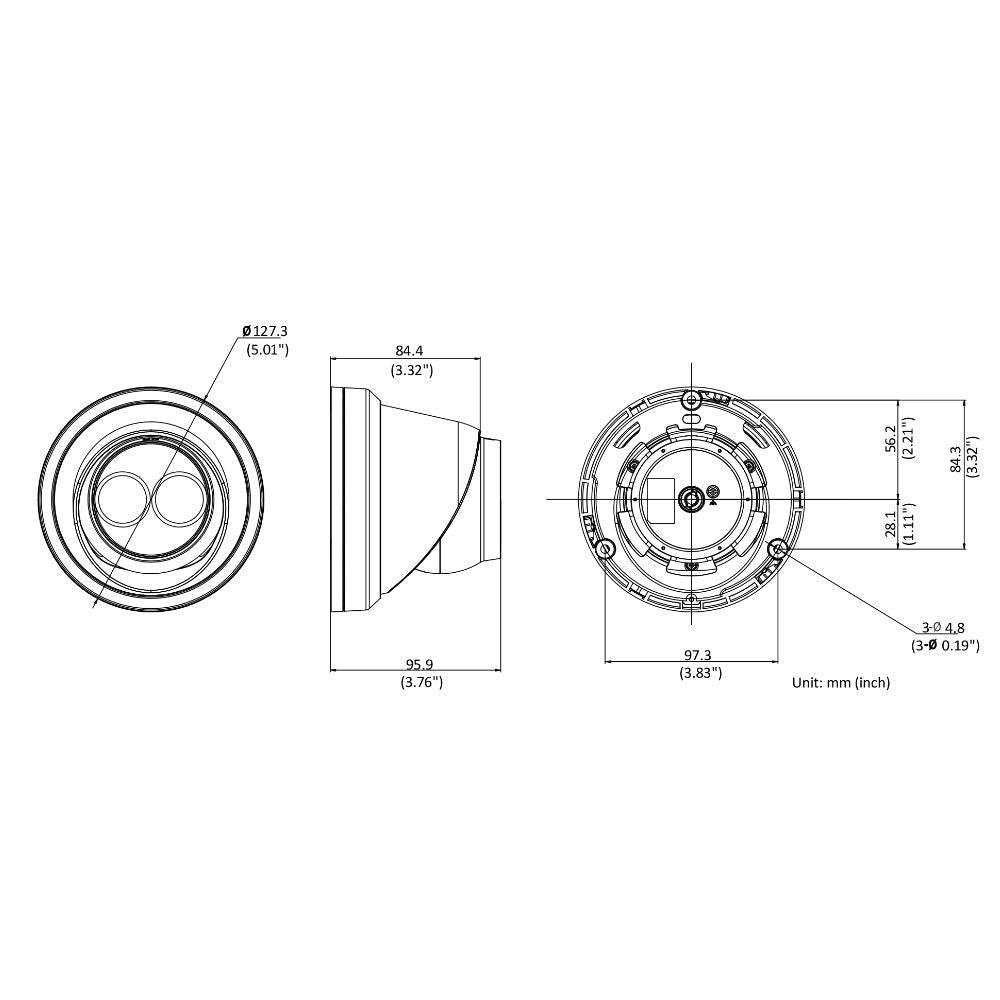

| Dimensions | Camera: ⌀ 5.0″ x 3.8″ (⌀ 127.3 x 95.9 mm) |
| Weight | Camera: 1.40 lbs (620 g) |
|
Approvals
|
|
| c(UL)us | Compliant |
| CE | Compliant |
| FCC | Compliant |
| ONVIF | Compliant |
