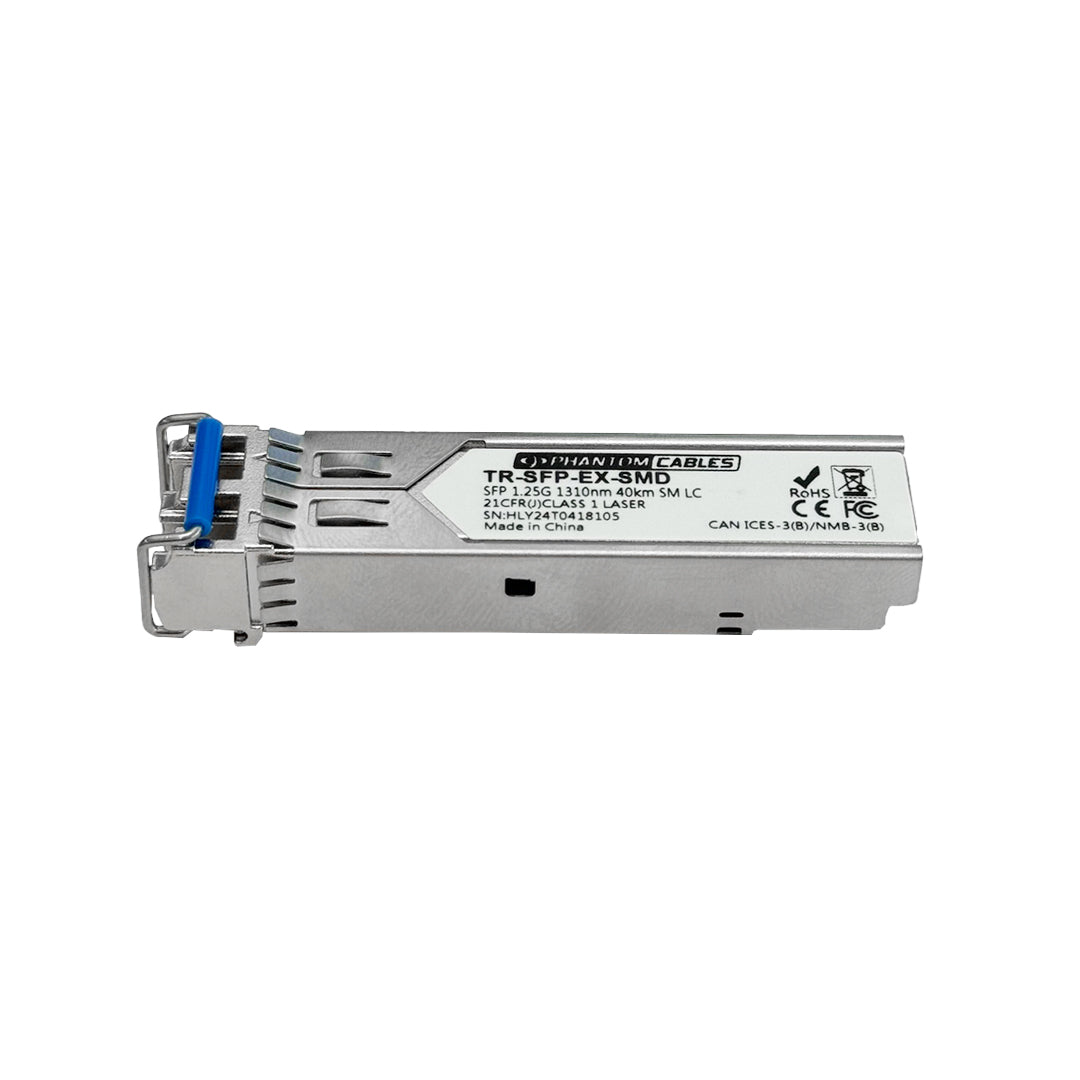

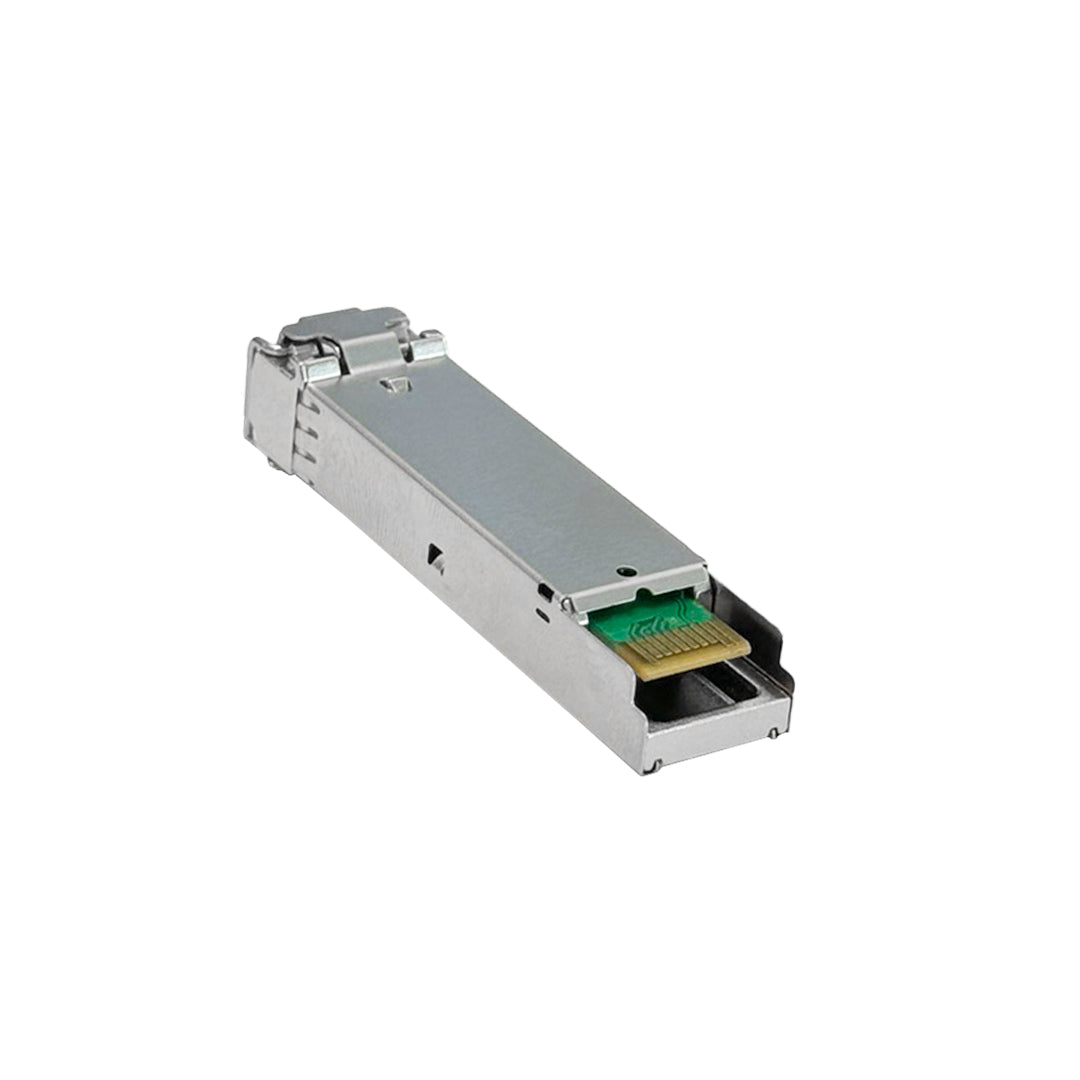

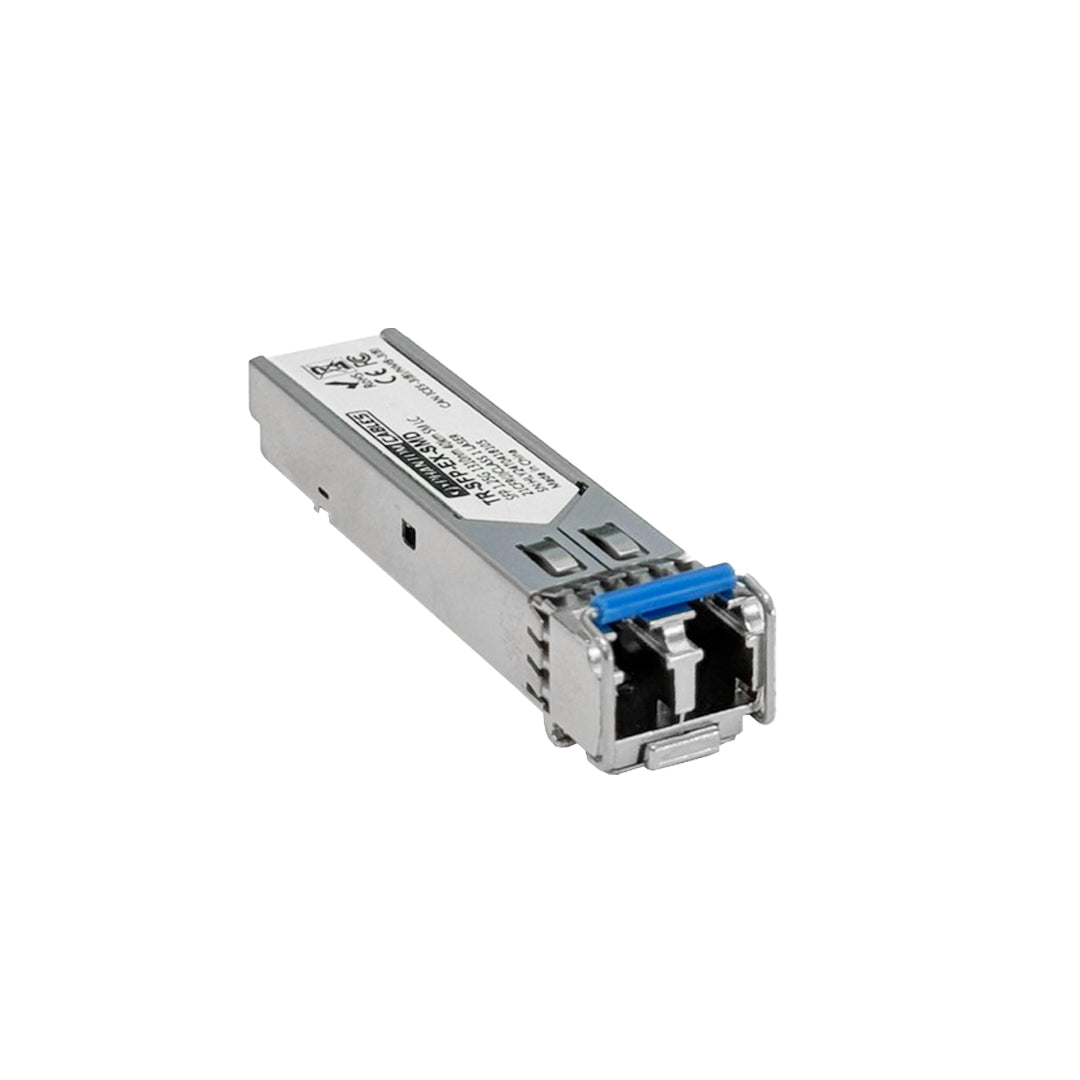

1000base-LX SFP 1310nm SM LC Transceiver, 40km – Industrial DOM

Description

This industrial grade Small Form-factor Pluggable (SFP) transceiver module has a maximum data transfer rate of 1.25 Gbps with extended distance of 40km over singlemode fiber cable and wide temperature range of -40 to 85°C. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.

Features:

• Data-rate of 1.25Gbps operation
• 1310nm DFB laser and PIN photodetector for 40km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with RoHS
• Compatible with SONET OC-24-LR-1
• Operating case temperature: -40 to +85°C
• +3.3V single power supply

Applications:

• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

SFP+ / QSFP+ Generic Transceivers Compatible Switches

Avaya – Force10 – D-Link – EMC2 – F5 Networks – Fortinet – Hirschmann – Linksys – Moxa – MRV – Netgear – Nokia Siemens Networks – Palo Alto Network – Qlogic – RAD – Ruijie Networks – Supermicro – Synology – Telco Systems – TP-Link – Trendnet – Ubiqui – WatchGuard – ZTE

Specifications
