Description

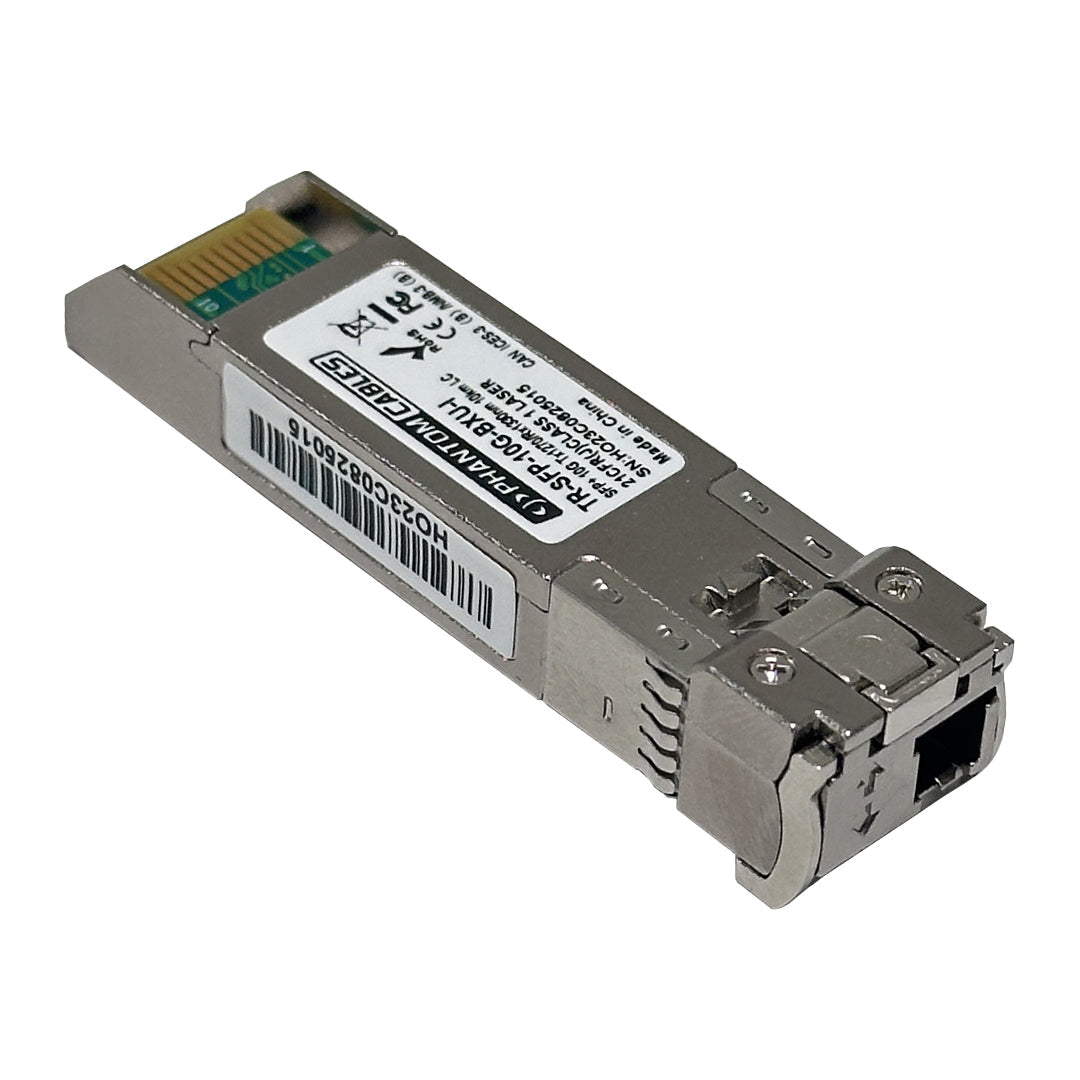

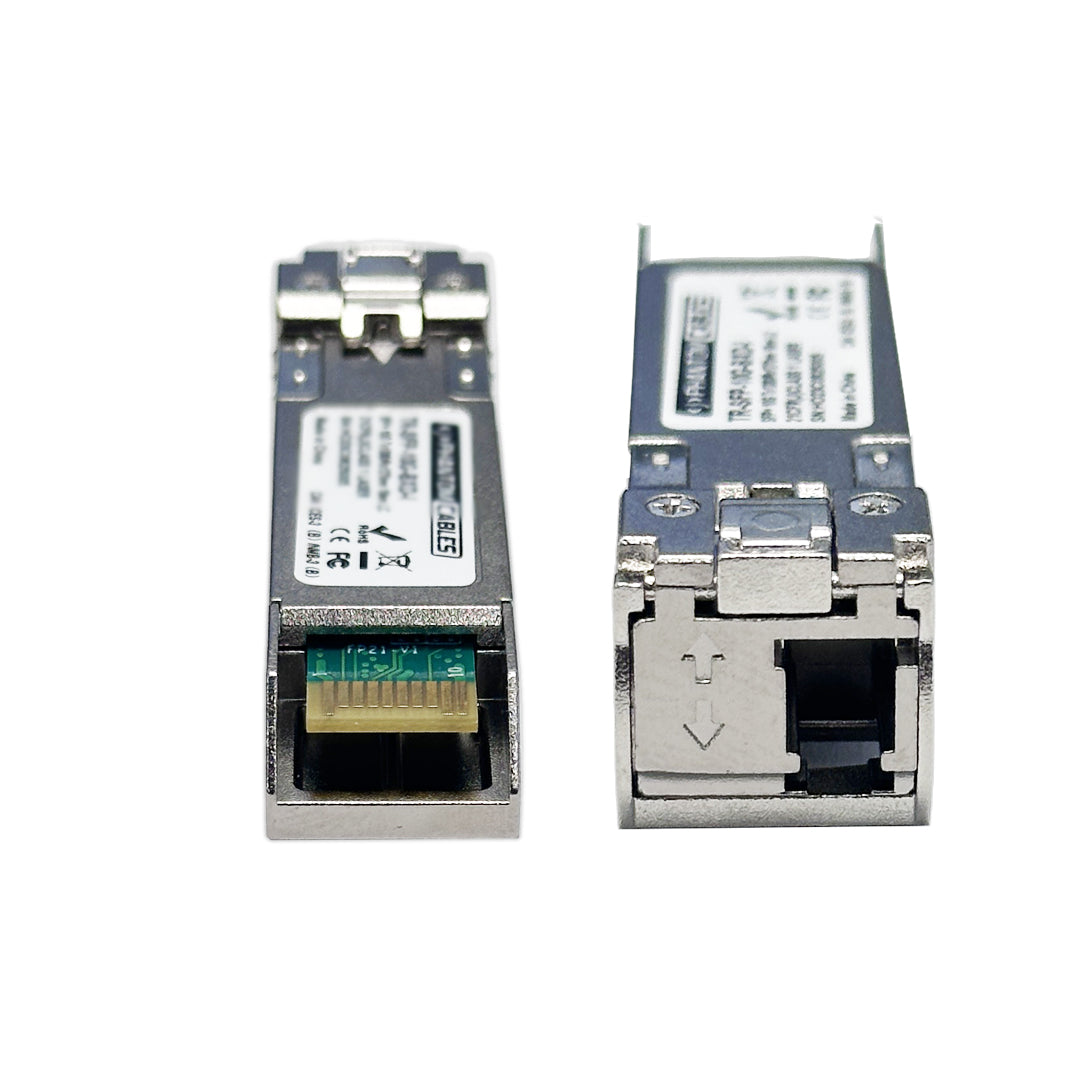

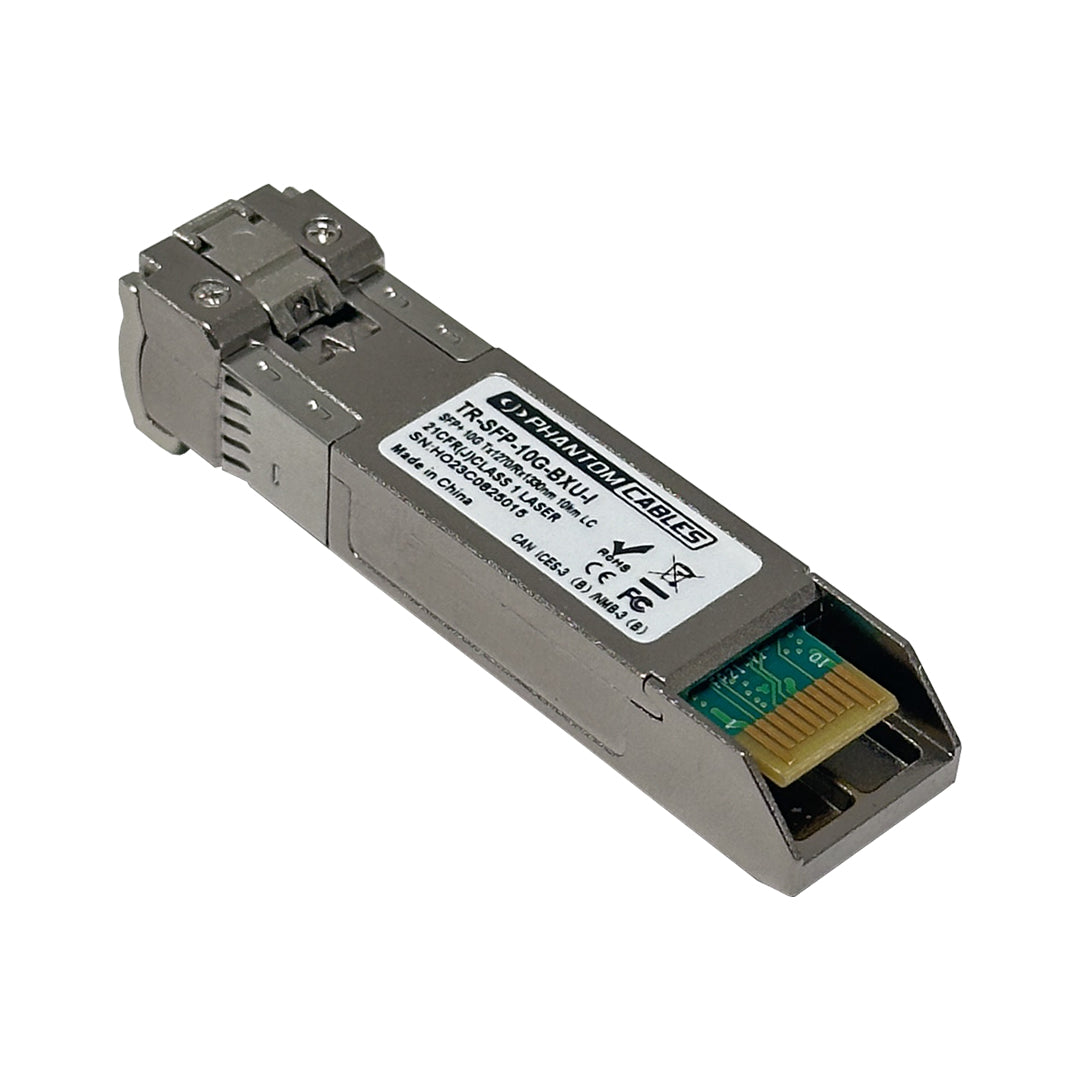

This is an Enhanced Small Form-factor Pluggable (SFP+) transceiver module with maximum data transfer rate of 10 Gbps up to 10km over singlemode fiber cable. It is used in network devices with an SFP+ slots. The transceivers are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
NOTE: Each network link needs to have a up transceiver and a down transceiver. Ex./ TR-SFP-10G-BXU-I should be purchased with TR-SFP-10G-BXD-I.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
Applications:
- Fiber connectivity where only one fiber core is available
- FTTx networks to reduce fiber deployment costs
- Networks with limited fiber infrastructure or where laying new fiber is not feasible
- High density applications to maximize data transmission capacity while minimizing physical space
- CCTV backhaul over long-distance, single-fiber links
- Last-mile connectivity in telecom applications
- Disaster recovery links using existing single-fiber routes
- Often used in data centers, campuses, metro systems, CCTV environments, telecom
|
Physical Characteristics
|
||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 80°C | |
| Laser Type | Class 1 | |
|
Connectors
|
||
| Connector | LC Simplex | |
|
Performance
|
||
| Media Supported | 10GBase-LR Singlemode Fiber | |
| Maximum Transmission Distance |
10km |
|
| Wave Length |
TX: 1270nm RX: 1310nm |
|
| DDM Support | Compliant | |
|
Compatible Product
|
||
| TR-SFP-10G-BXD-I | Cisco® 10G SFP+ Bi-Directional 1310nm/1270nm LC Transceiver – 10km | |
|
Certifications
|
||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
|
Packaging Information
|
||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
|
Warranty Information
|
||
| Warranty | 5 Year Warranty | |
