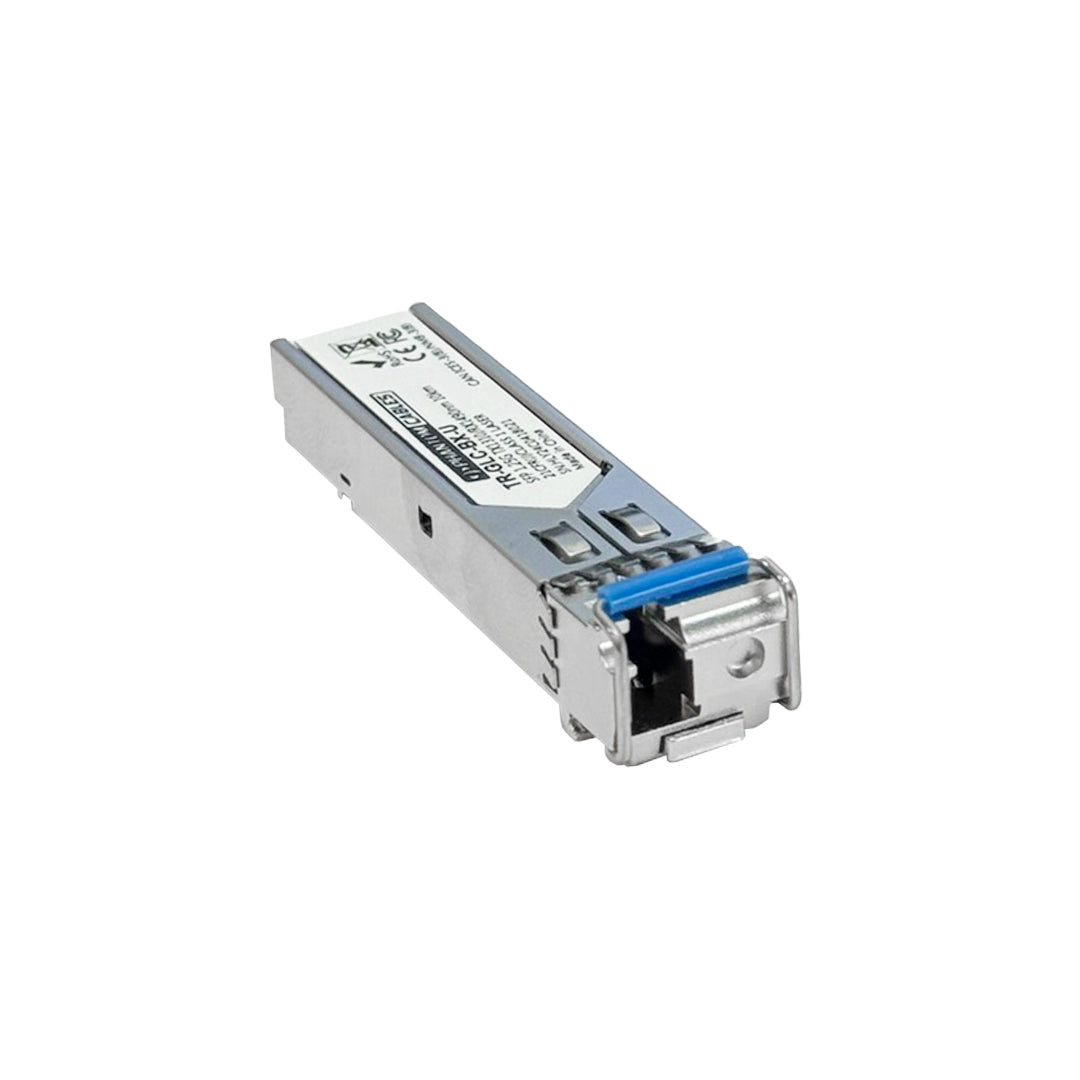

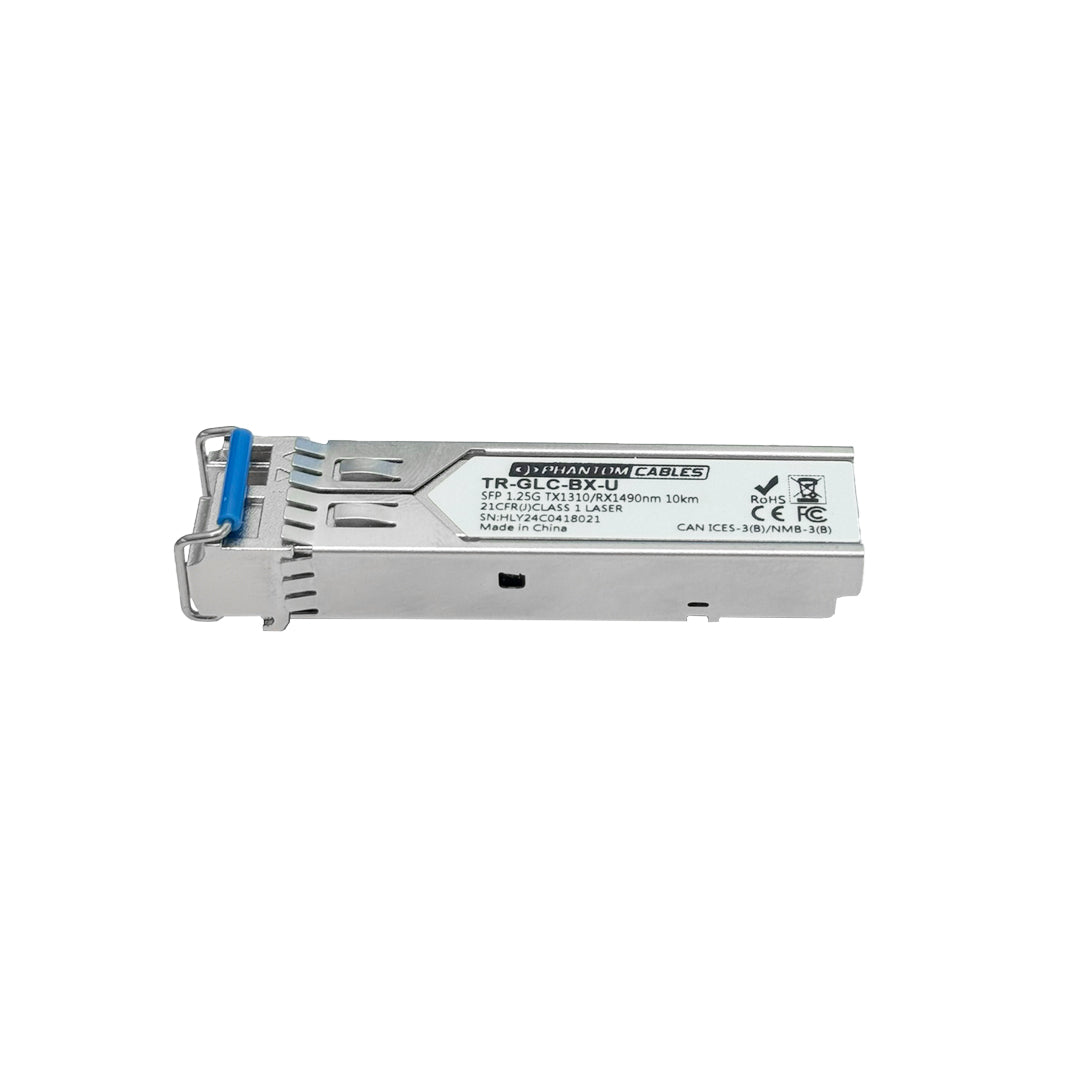

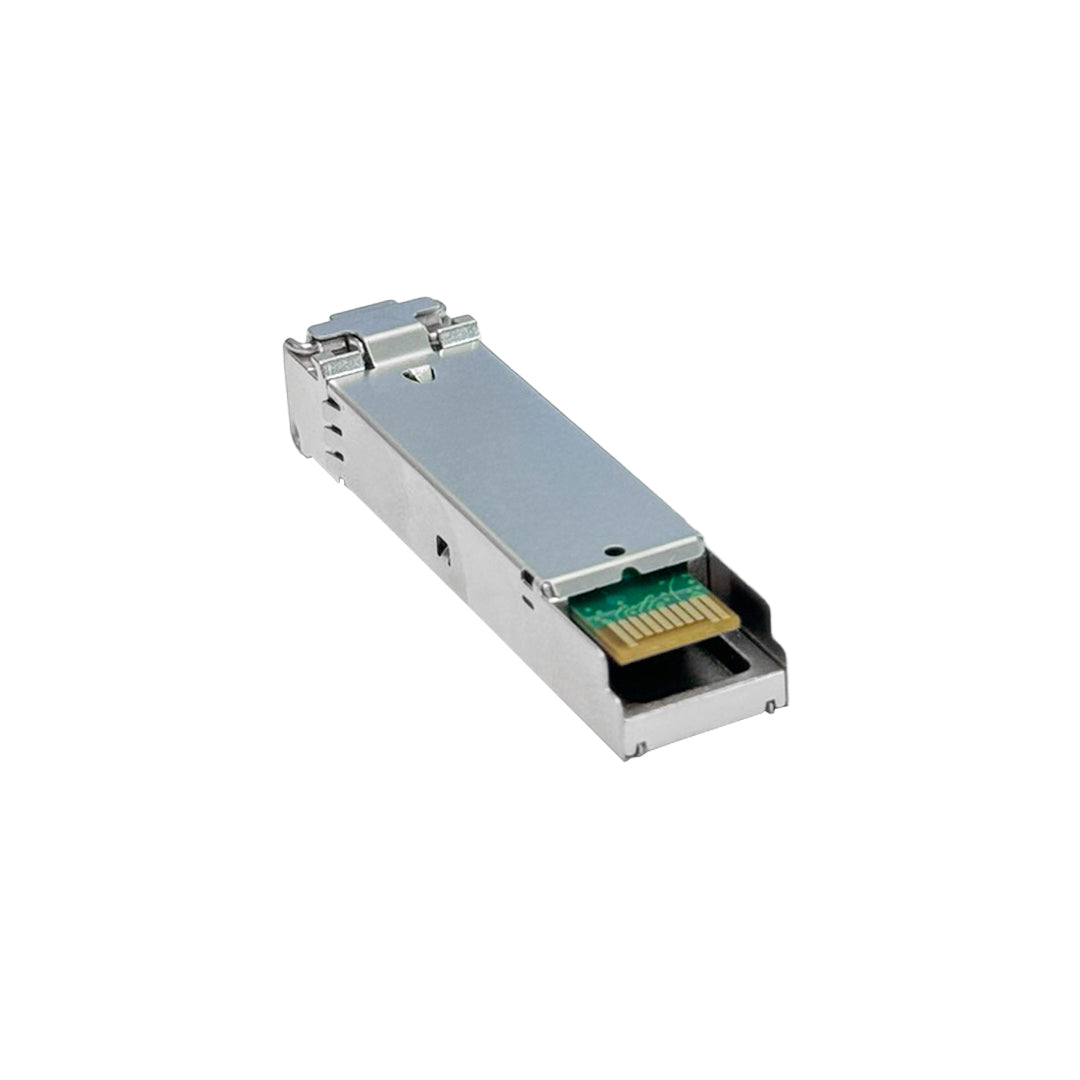

Cisco® Compatible 1000BASE-BX-U BiDi SFP 1310nm/1490nm LC Transceiver – 10km

Description

This is a bidirectional Enhanced Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 1.25 Gbps up to 10km over a simplex singlemode fiber cable. It is used in network devices with an SFP slots. The transceivers are Multi-Source Agreement (MSA) compliant and built to OEM specifications.

Features:

• Dual data-rate of 1.25Gbps/1.063Gbps operation

• Two types：

  A:1310nm FP Laser transmitter,1490nm PIN receiver

  B:1490nm DFB Laser transmitter,1310nm PIN receiver

• Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with RoHS
• Compatible with SONET OC-24-LR-1
• +3.3V single power supply

Applications:

• Fiber connectivity where only one fiber core is available
• FTTx networks to reduce fiber deployment costs
• Networks with limited fiber infrastructure or where laying new fiber is not feasible
• High density applications to maximize data transmission capacity while minimizing physical space
• CCTV backhaul over long-distance, single-fiber links
• Last-mile connectivity in telecom applications
• Disaster recovery links using existing single-fiber routes
• Often used in data centers, campuses, metro systems, CCTV environments, telecom

Specifications
