Description
Overview

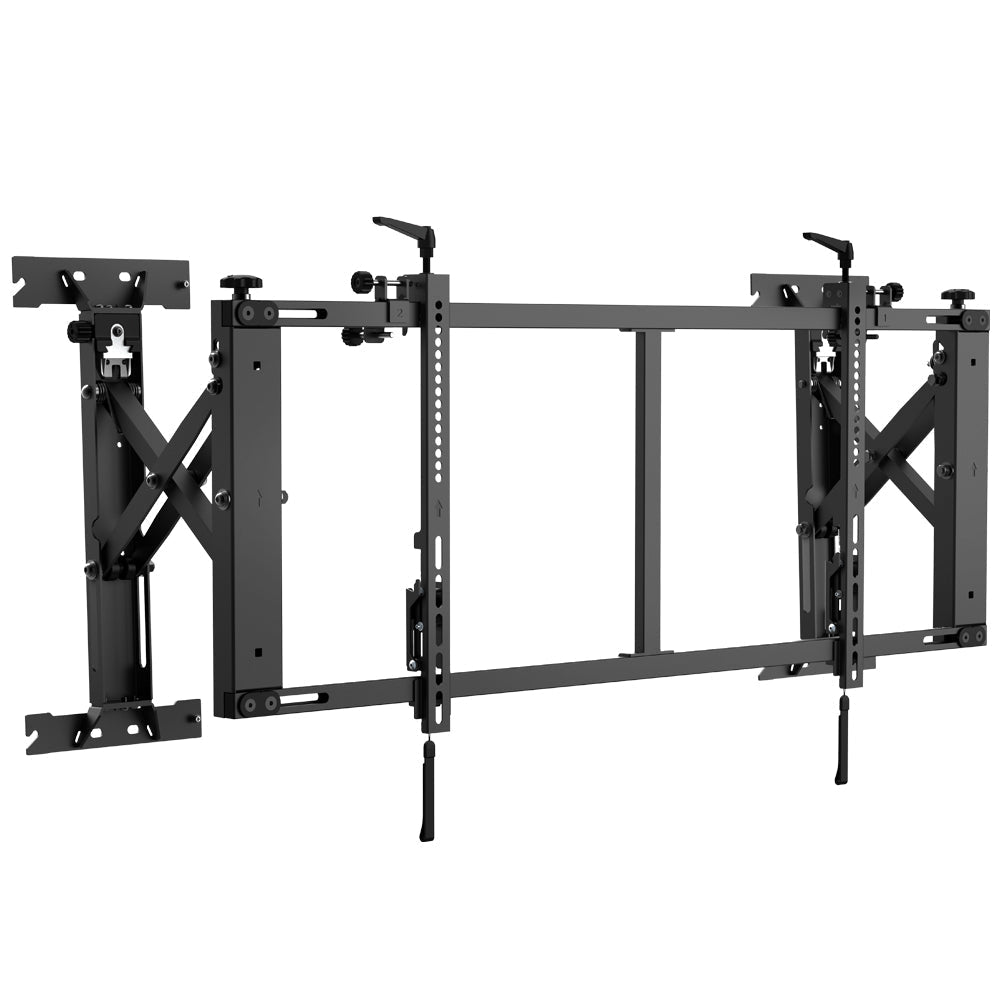

This pop-out video wall mount bracket is designed to hold most 50 inch to 55 inch flat screen displays with a maximum VESA hole pattern of 800×400. It is intended to be used in conjunction with additional mounts to create a video wall. The mount easily connects to the adjacent mount ensuring that they are level to each other.
 |
Pop-Out Extension for Easy AccessThere is a pop-out extension function on this bracket that allows easy rear access of the screen. Precise Display Alignment is Easy on the EyesThis allows for an ideal display alignment and level for a pleasurable viewing experience. Quick AssemblyThe mounts easily link together to ensure that all mounts are level with one another.
|
Features
Ease of Installation

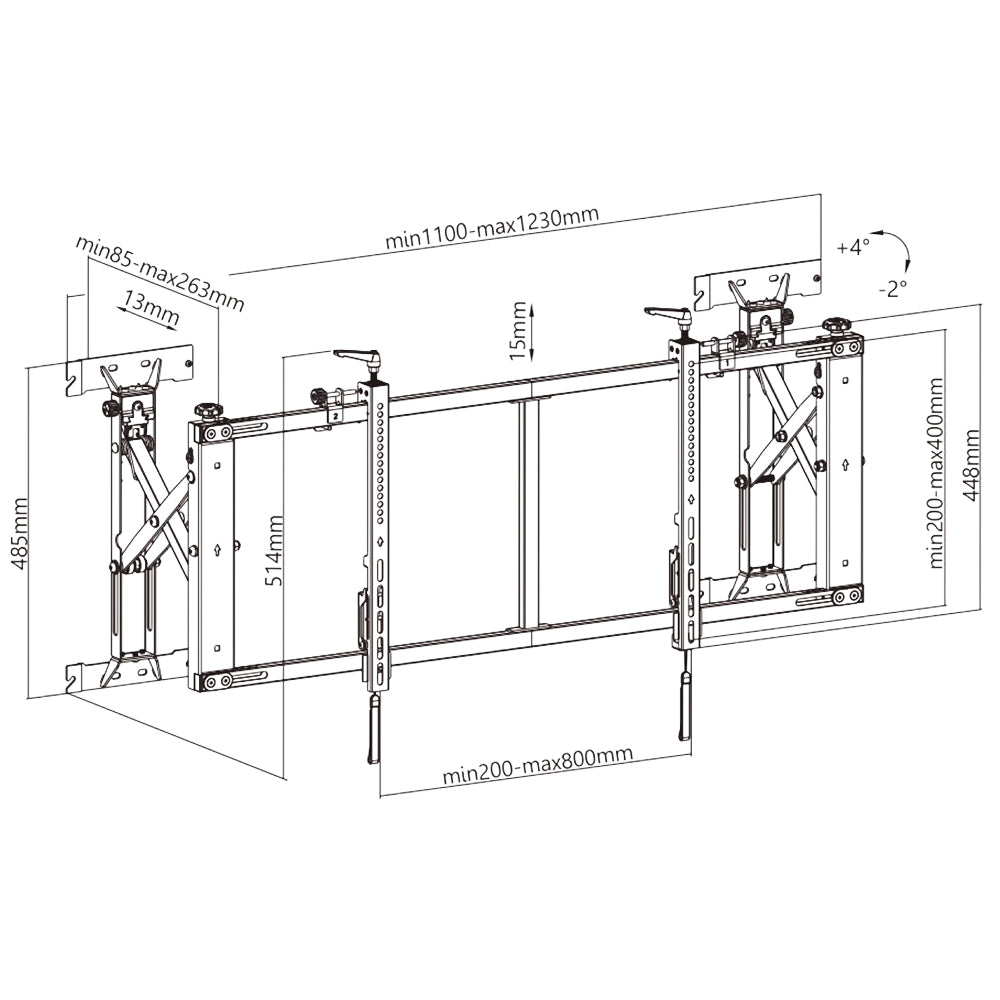

Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Video Wall Mount |
| Color | Durable Powder-Coated Black Finish |
| Material | Steel, Plastic |
| Metal Sheet Thickness | Wall Plate Thickness = 2.5mm Pickling Sheet Bracket Arm Thickness = 2mm Cold-Rolled Sheet |
| Mounting Pattern | VESA 200X200, 300×200, 300×300, 400×200, 400×400, 600×400, 800×400 |
| Screen Size | 50 – 55 inches [127 – 140cm] |
| Weight Capacity | 154lbs [70kg] |
| Profile | 85 ~ 263mm [3.3 ~ 10.4 inches] |
| Tilt | -2° ~ +4° |
| Installation | Solid Wall |
| Fine Adjustment (Depth/Height) | 13mm/15mm [0.51 inches/0.59 inches] |
| Direction Indicator | Compliant |
| Anti-Theft | Compliant |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x20 Screws 4 – M8x30 Screws 4 – Rectangular Washers 8 – Small Spacers 4 – Big Spacers 8 – ST6.3×55 Screws 8 – Concrete Anchors 8 – D6 Washers |
| Product Weight | 27.3 lbs [12.4 kg] |
|
Warranty Information
|
|
| Warranty | 5 Year Warranty |
