Description

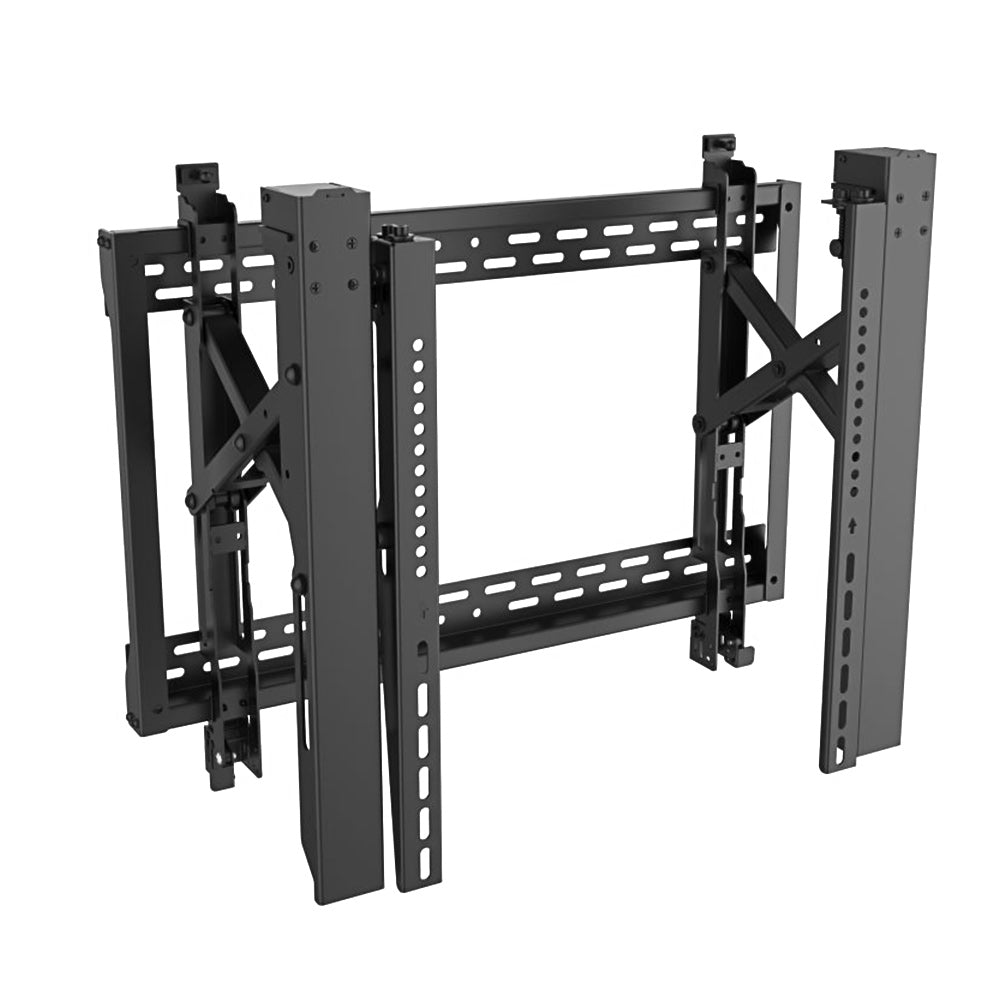

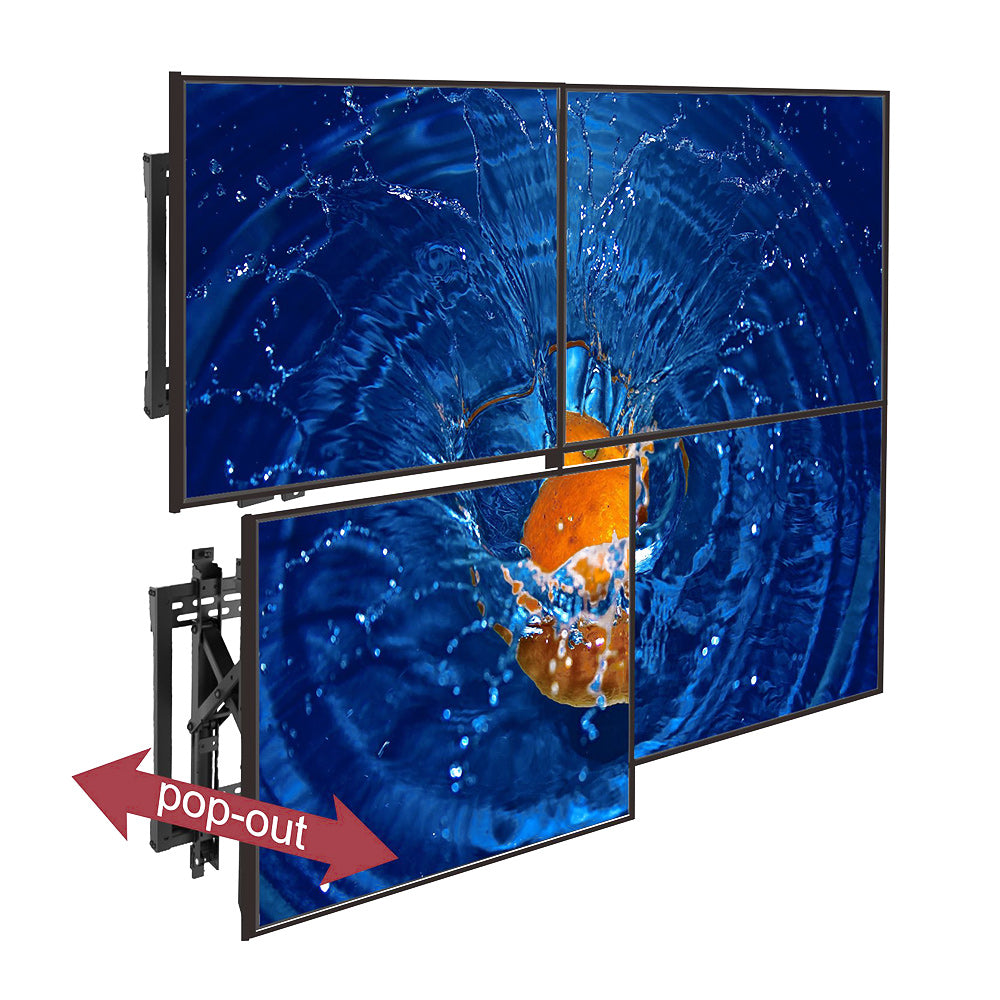

This pop-out video wall mount bracket is designed to hold most 45 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600×400. It can be used on a single TV or in conjunction with additional mounts to create a video wall.
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Micro Adjustment, Pop-out, Tilting |
| Color | Durable Powder-coated Black Finish |
| Material | Metal |
| Mounting Pattern | VESA 200X200, 400X200, 300×300, 400×400, 600×400 |
| Screen Size | 45 – 70 inches [114 – 178cm] |
| Weight Capacity | 154lbs [70kg] |

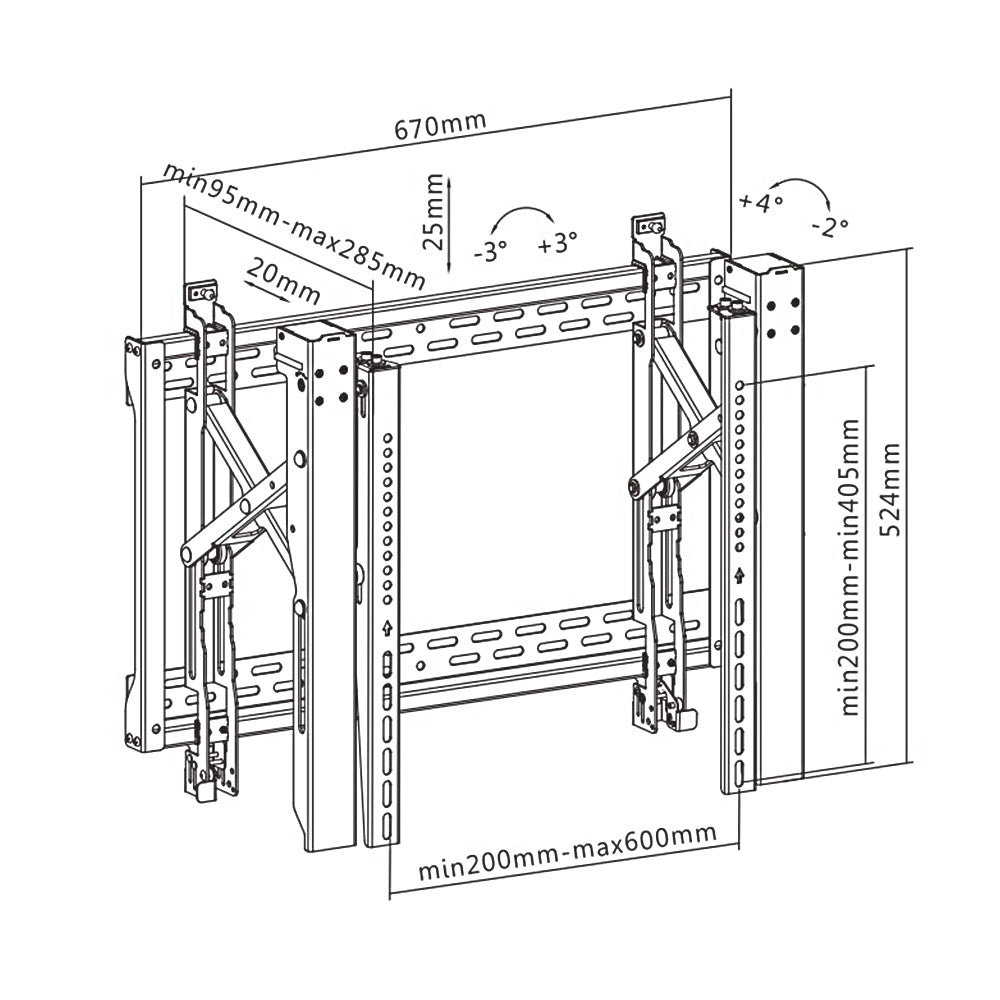

| Profile | 95 – 285mm |
| Level Adjustment | -3° ~ +3° |
| Tilt | -2° ~ +4° |
| Installation | Solid Wall or Double Stud |

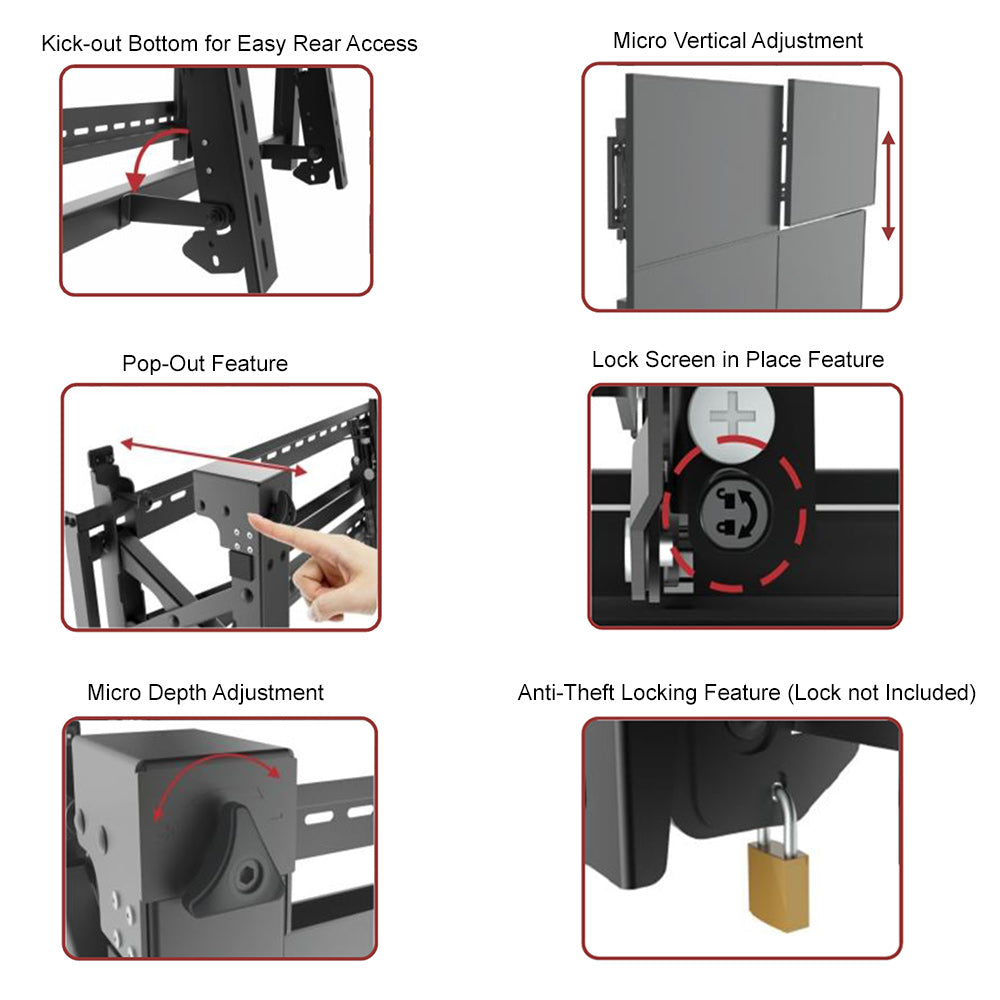

| Micro Adjustments | Up/Down 28mm, In/Out 18mm |
| Rear Access | Kick-out Bottom |
| Swivel | No |
| Rotating | No |
| Bubble Level | No |
| Anti-Theft | Compliant |
| Cable Management | No |
|
Approvals
|
|
| c(UL) | Compliant |
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x20 Screws 4 – M8x30 Screws 4 – Rectangular Washers 8 – Small Spacers 4 – Big Spacers 6 – ST6.3×55 Screws 6 – Concrete Anchors 6 – D6 Washers |
| Product Weight | 26.5 lbs [12 kg] |
