Description
Overview

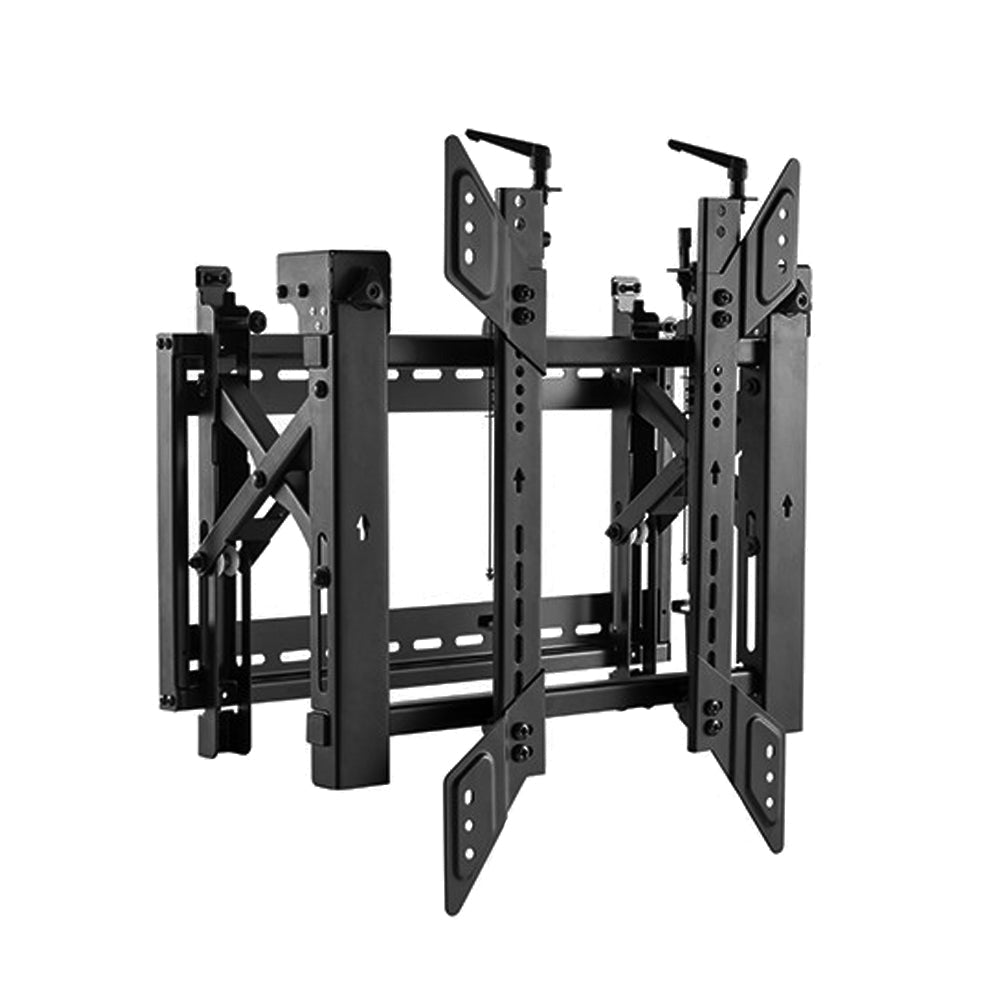

This pop-out video wall mount bracket is designed to hold most 45 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600×400. It allows portrait screen orientation and can be used on a single TV or in conjunction with additional mounts to create a video wall.
 |

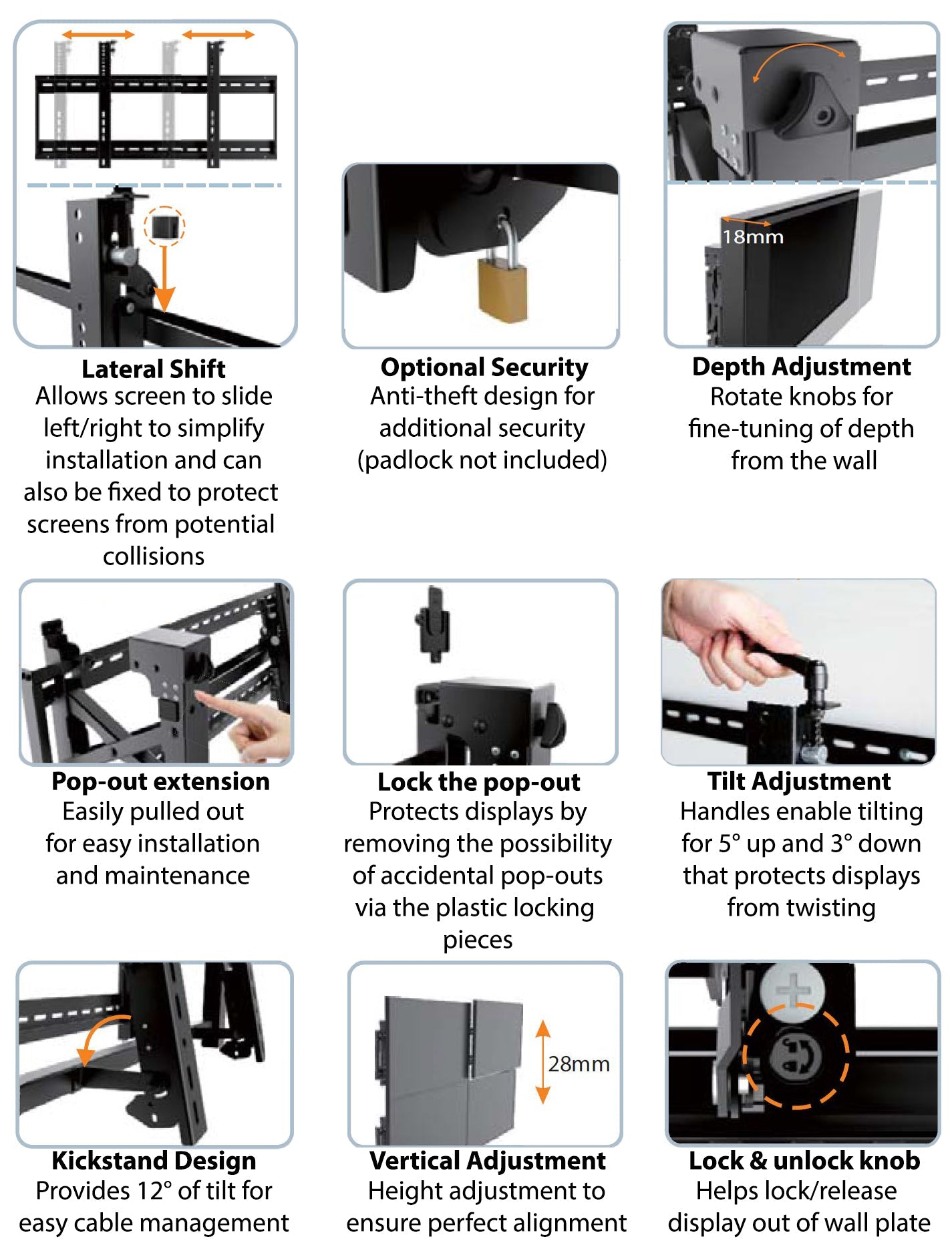

Effortless Maintenance and Cable ManagementThis portrait TV mount bracket has a kickstand that provides 12° of tilt for easy maintenance and cable management. Pop-Out Extension for Easy AccessThere is a pop-out extension function on this bracket that allows easy rear access of the screen. Display and Level Adjustment is Easy on the EyesThe micro adjustment on this bracket can be fixed at 6 different points. This allows for an ideal display alignment and level for a pleasurable viewing experience. Anti-Theft DesignThis bracket has an anti-theft design that is ideal for commercial settings (padlock not included).
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Micro Adjustment, Pop-out, Tilting |
| Color | Durable Powder-Coated Black Finish |
| Material | Metal |
| Mounting Pattern | VESA 200X200, 400X200, 300×300, 400×400, 600×400 |
| Screen Size | 45 – 70 inches [114 – 178cm] |
| Weight Capacity | 154lbs [70kg] |

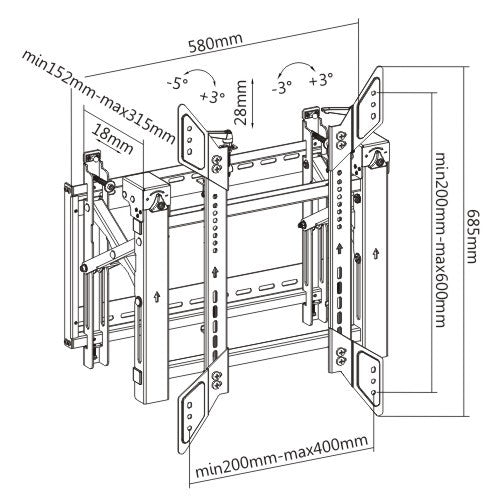

| Profile | 145 – 308mm |
| Level Adjustment | -3° ~ +3° |
| Tilt | -3° ~ +5° |
| Installation | Single Stud |
| Micro Adjustments | Up/Down 28mm, In/Out 18mm |
| Rear Access | Kick-out Bottom |
| Anti-Theft | Compliant |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x20 Screws 4 – M8x30 Screws 4 – Rectangular Washers 8 – Small Spacers 4 – Big Spacers 6 – ST6.3×55 Screws 6 – Concrete Anchors 6 – D6 Washers |
| Package Weight | 34.2 lbs [15.5 kg] |
| Product Weight | 30.4 lbs [13.8 kg] |
|
Warranty Information
|
|
| Warranty | 5 Year Warranty |
