Description
This converter consists of a HDMI input, a VGA output and a component RCA audio output. It is used to convert a HDMI digital video signal to a analog VGA video signal and a analog audio signal. A typical application would be to connect a DVD or Blu-Ray player to a projector or monitor with a VGA connection.
Key Features:
- Easy to Use: Install in seconds, no need of setting
- Conversion: It could convert complete HDMI into VGA video and R/L audio output
- Support HDCP 1.2
- Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input
- Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal |
| Power | |
| Power Supply | DC 5V 700mA Adapter |
| Connector(s) | |

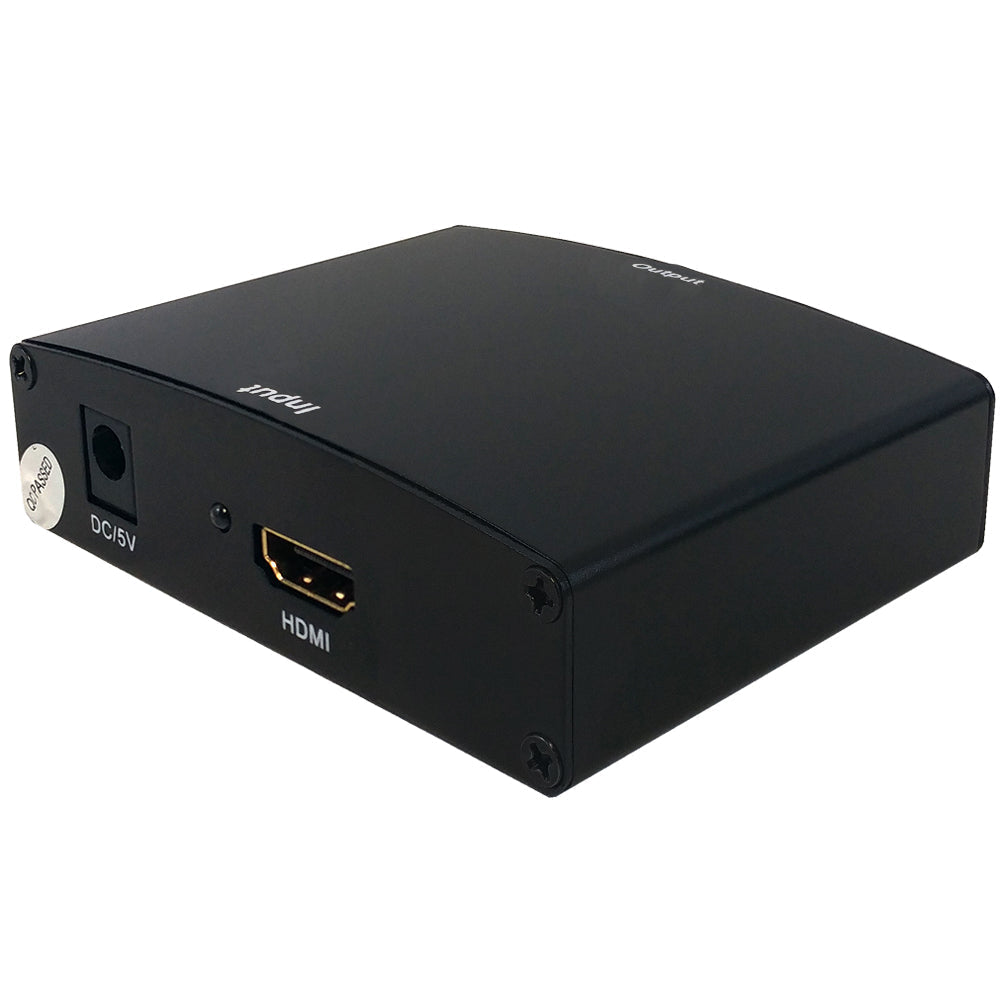

| Input | 1 – HDMI Female |

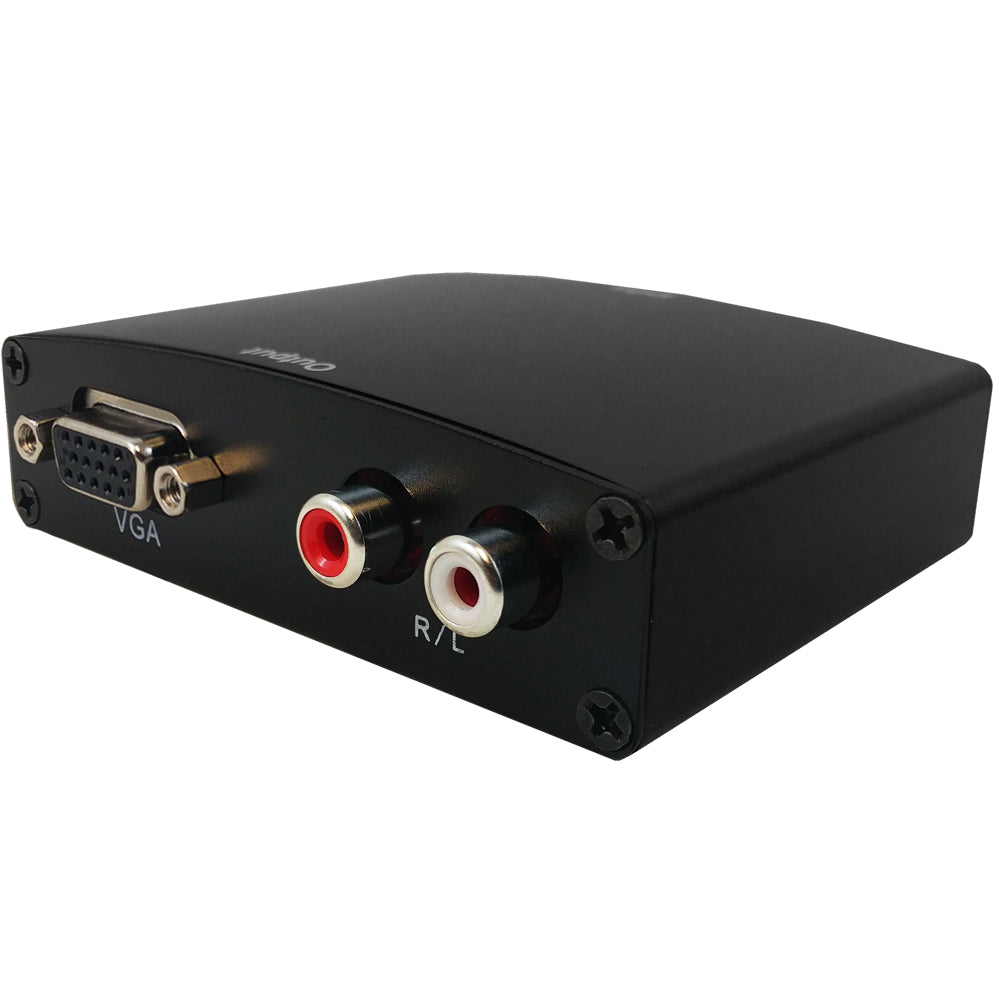

| Output | 1 – HD15 VGA Female 1 – Component RCA Audio Female (Red & White) |
| Operating Frequency | |
| Vertical Frequency Range | 50/60Hz |
| Input Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
| Performance | |
| Resolution | up to 1080p |
| Supports | Projector/Monitor |
| Audio | 2 Channel Audio |
| Approvals | |
| Power Adapter | cETLus |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.3 lbs [0.1kg] |
| Package Weight | 0.8 lbs [0.4kg] |
| Contents | |
| Included in Package | 1 – Converter |

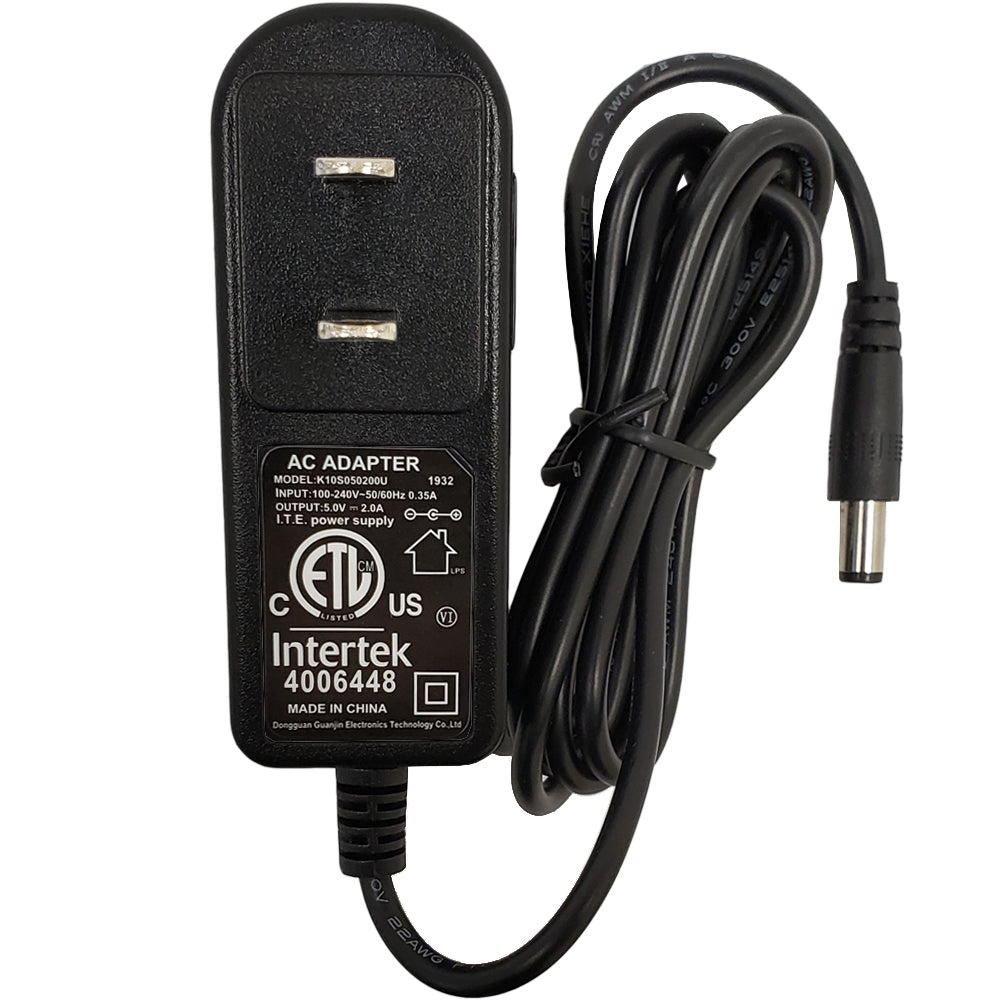

| 1 -DC Adapter | |
