Description

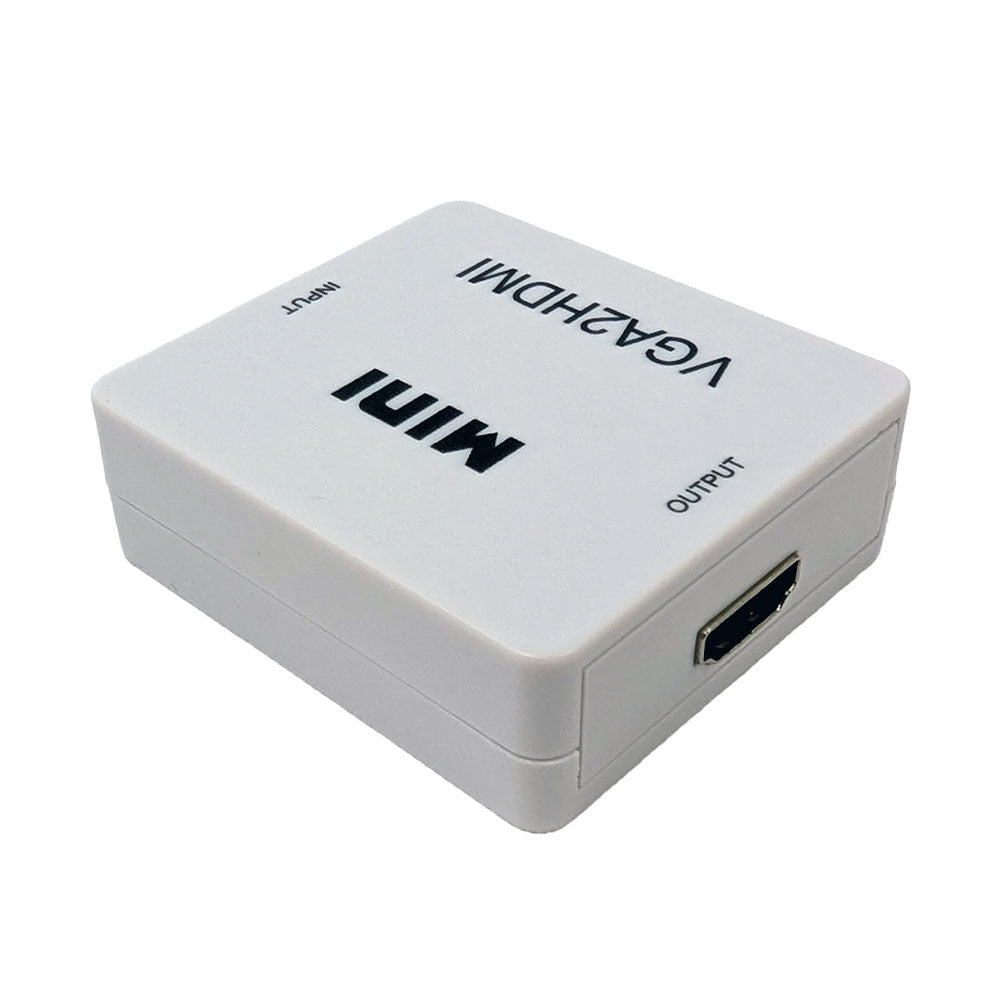

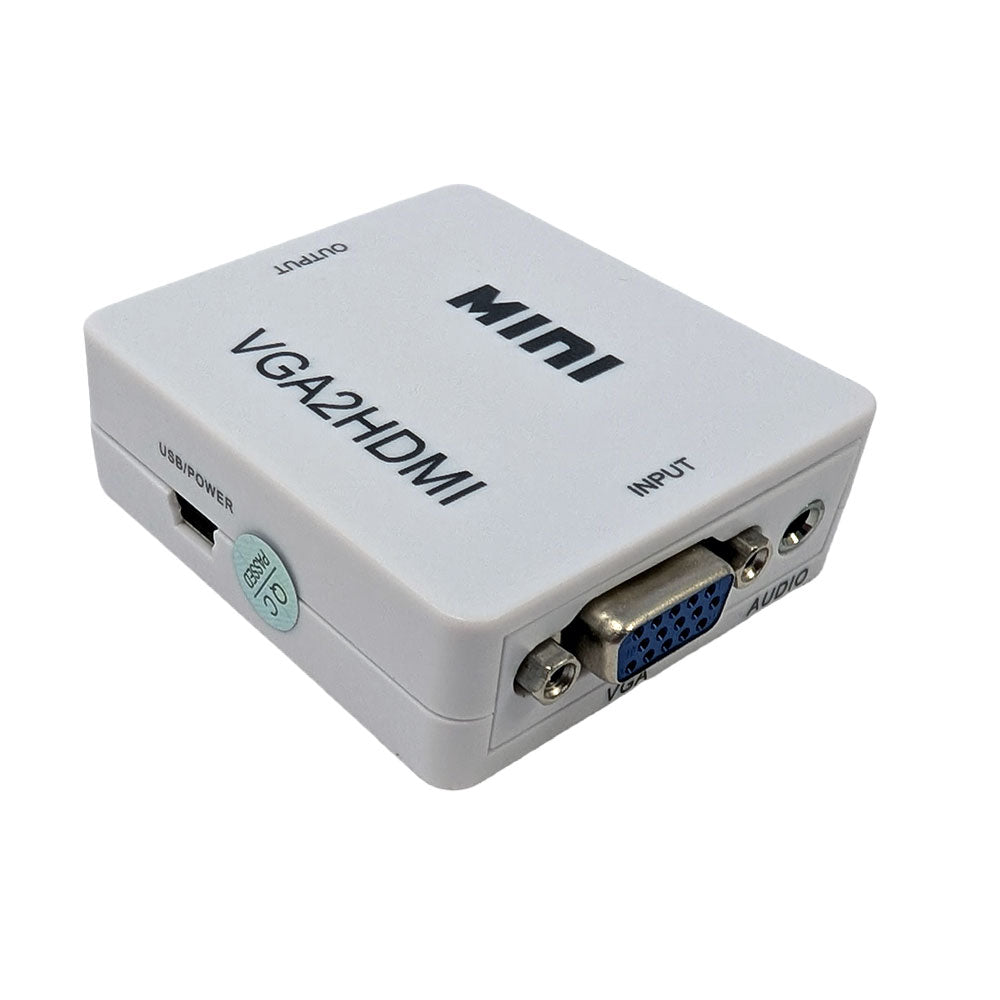

This converter consists of a VGA and stereo audio input and a HDMI output. It is used to convert an analog video and audio signal to a digital HDMI signal. A typical application would be to connect a computer or laptop with an analog video card to a HDMI display.
Features：
- Scales general PC resolutions to HDMI 1080p output.
- Provides advanced signal processing with great precision.
- High quality scaling technology for progressive input resolutions, VGA input supports up to 1920×1080@60Hz.
Application
Specification
|
Physical Characteristics
|
|
|---|---|
| Color | White |
| Dimension (DxWxH) | 66x55x20 mm |
|
Connector(s)
|
|
| Input |

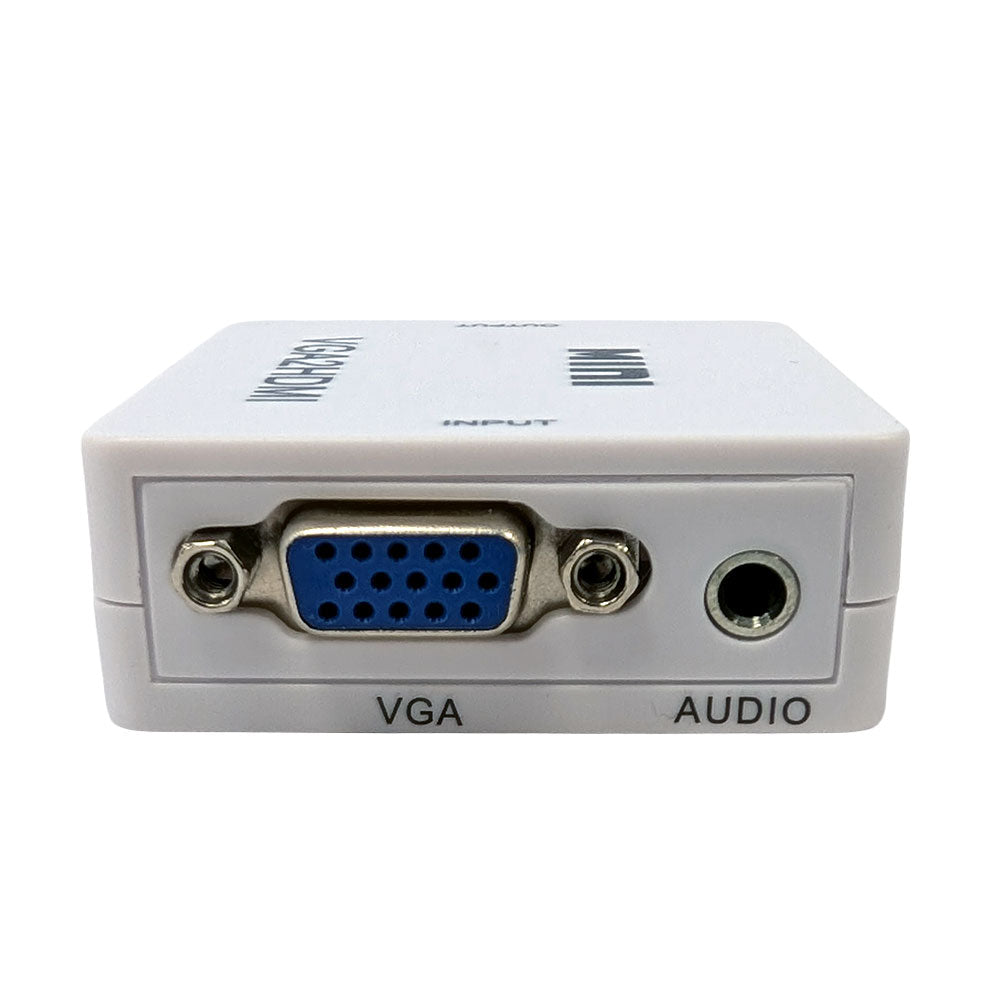

1 – VGA Female 1 – 3.5mm Female |

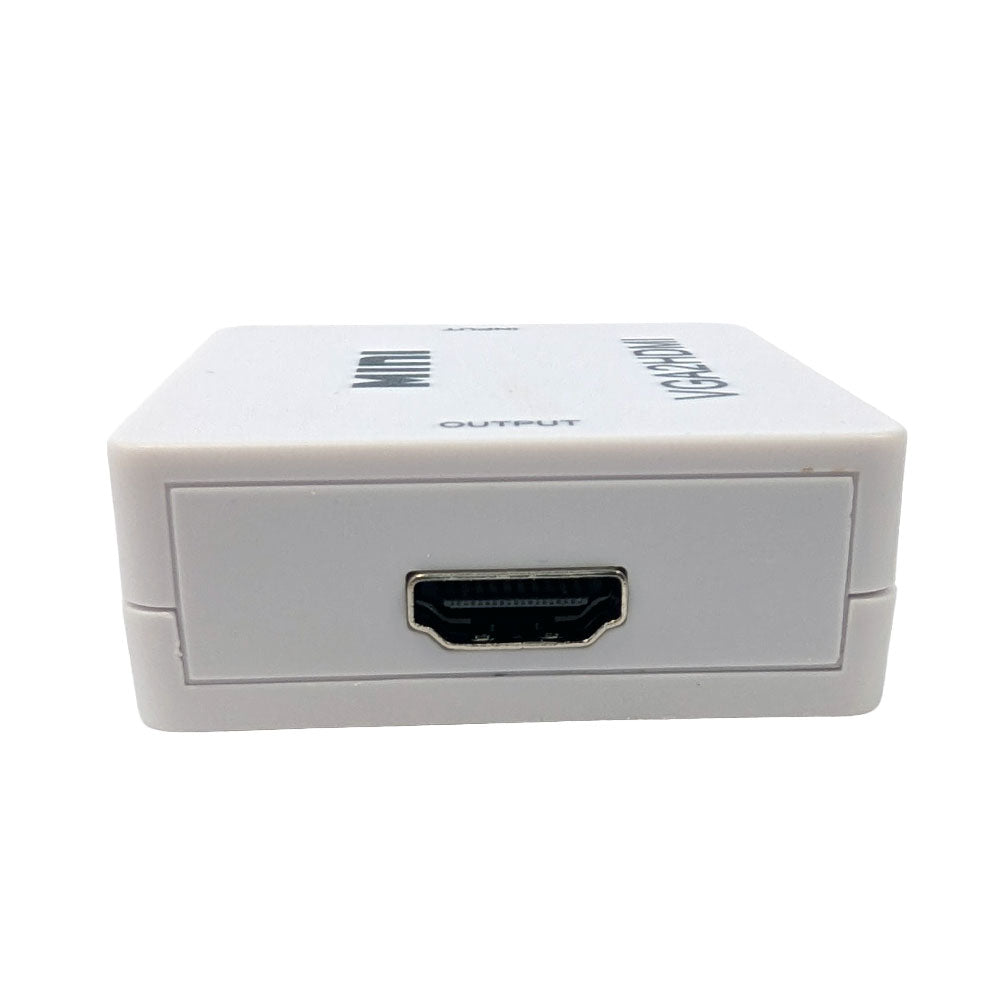

| Output | 1 – HDMI Female |
|
Performance
|
|
| Input Resolution |
640×480@60Hz, 800×600@60Hz, 1024×768@60Hz, 1280×720@60Hz, 1280×768@60Hz, 1280×800@60Hz, 1280×960@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1440×900@60Hz, 1600×1200@60Hz, 1920×1080@60Hz |
| Output Resolution |
1080p/60Hz, 720p/60Hz |
| TV Format Input |
PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N |
|
Environmental
|
|
| RoHS | Compliant |
| CE | Compliant |
| FCC | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Package Weight | 0.08 lbs |
|
Contents
|
|
| Included in Package | 1 – VGA to HDMI converter |
| 1 – USB-A to mini-B Cable | |
| 1 – User Manual | |
