Description

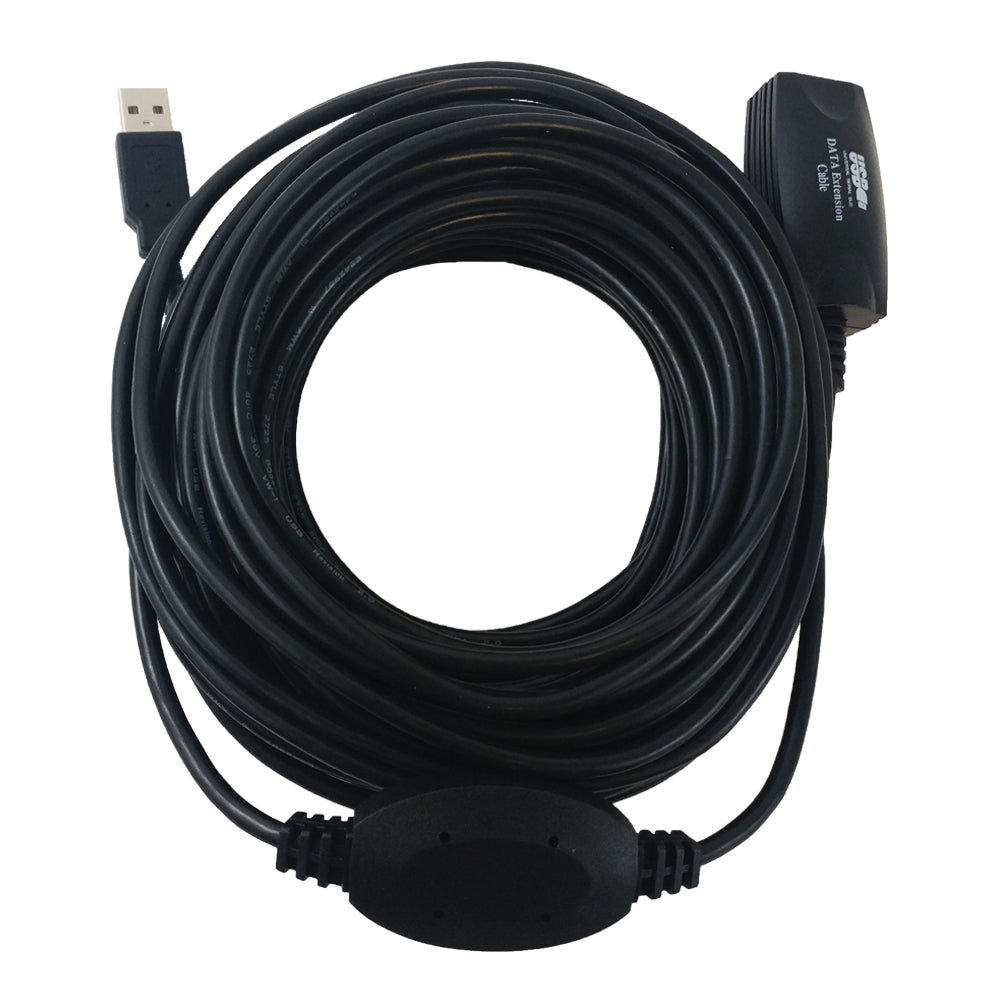

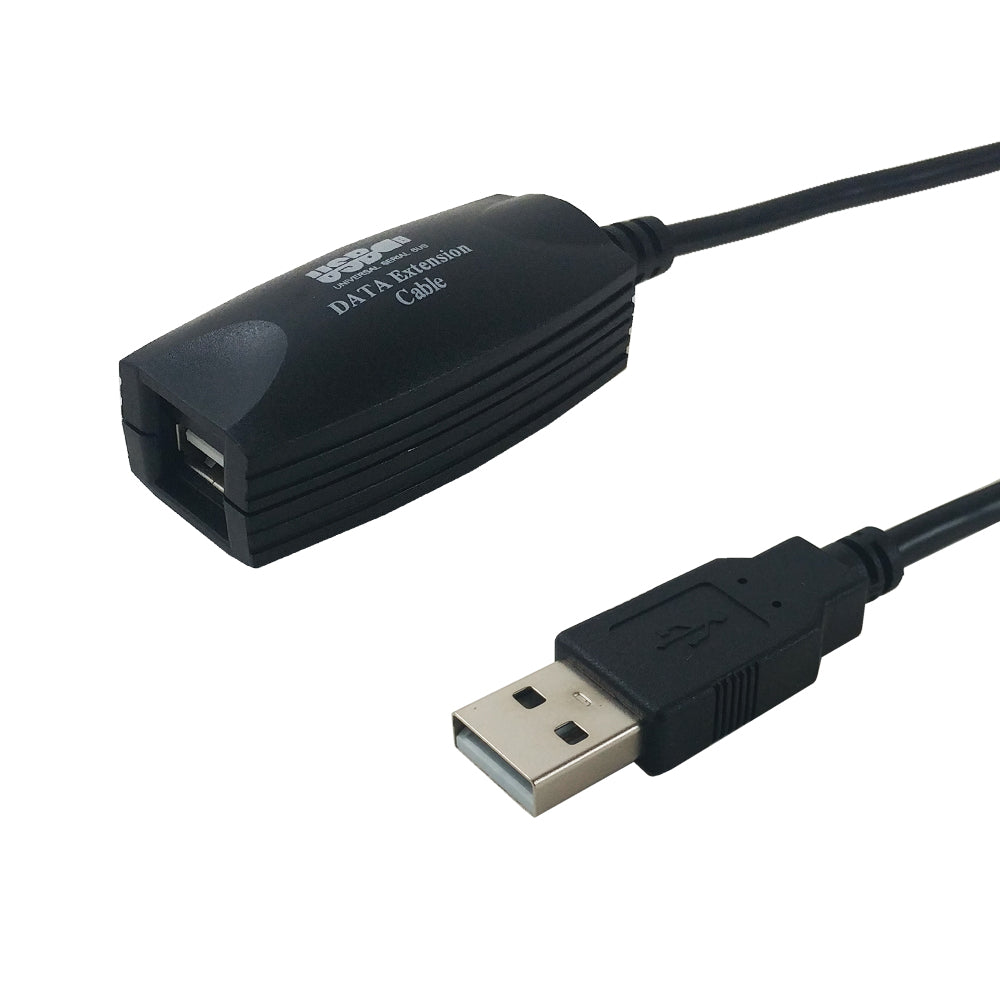

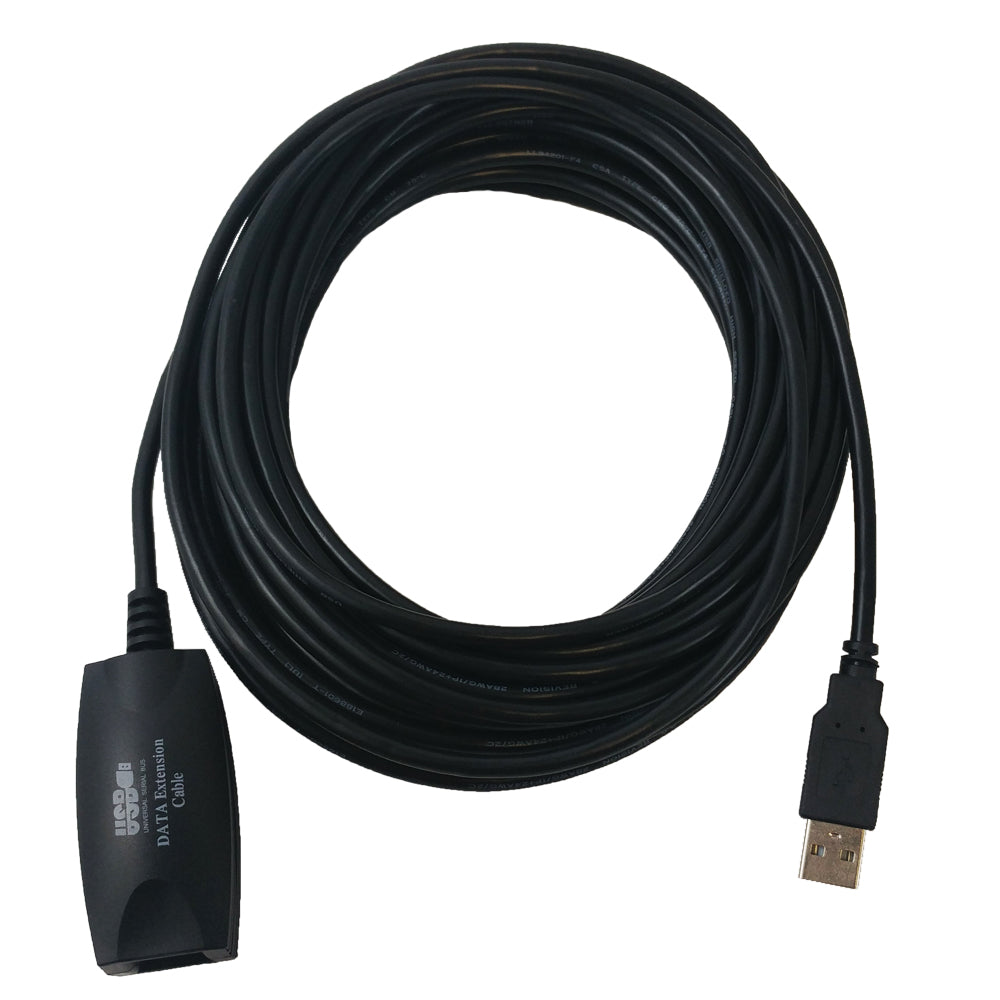

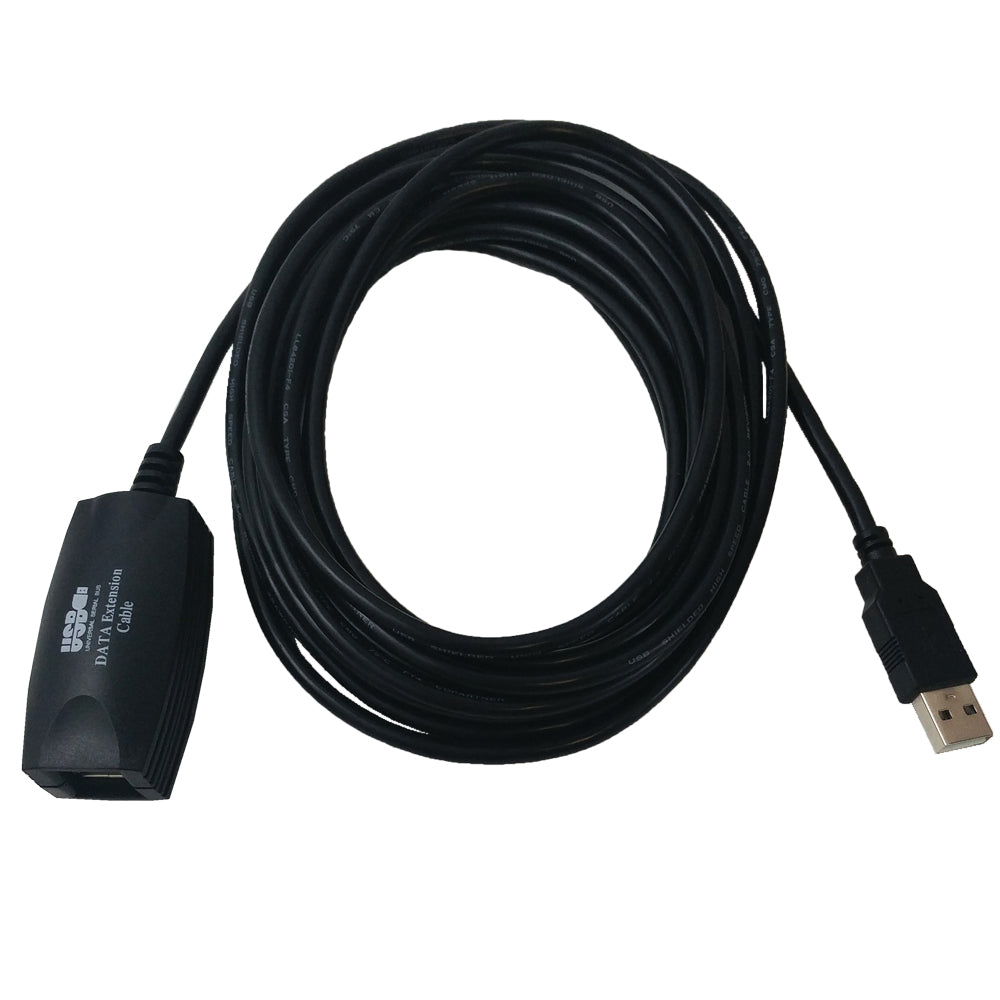

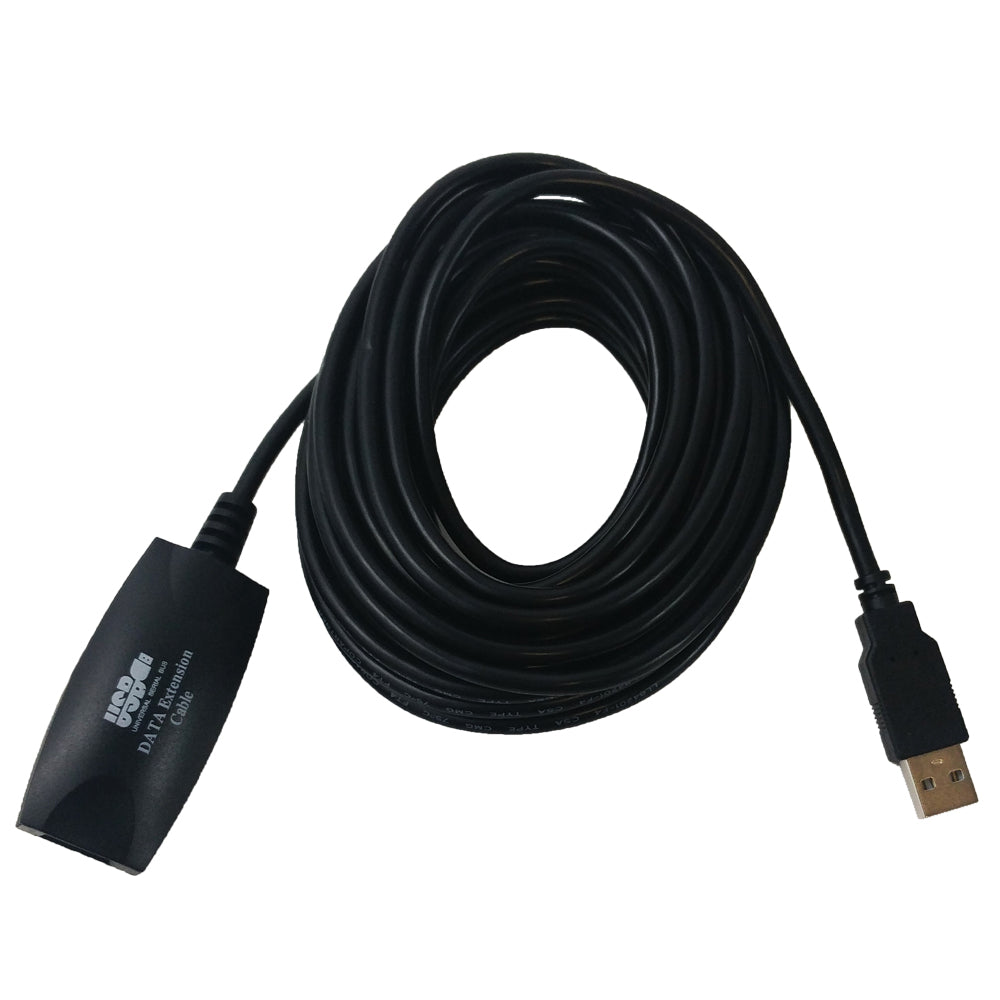

This active USB extension cable consists of a USB A male on one end and a USB A female on the other end. It is used to extend the distance between a USB 2.0 device and a computer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.
This cable is directional and will only work when the male end is connected to the computer and the female end is connected to the device.
NOTES:
- Only the 16ft cable supports cascading with 1×1 connection.
- Not suitable for device that require high power draw or charging.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 28AWG Data, 24AWG Power |
| Jacket Material | PVC – Polyvinyl Chloride |
| Jacket Rating | CMG, FT4 Riser |
| Cable Shielding | 100% Aluminum-Mylar Foil, 65% Tinned Copper Braid |
| Strain Relief | Molded PVC |
| Temperature Rating | 75℃ |
| Connector(s) | |
| Connector A | USB 2.0 Type A Hi-Speed Male |
| Connector B | USB 2.0 Type A Hi-Speed Female |
| Repeater (USB-E50) | Located directly in middle of cable – 25ft from either end |
| Performance | |
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Windows 98, ME 2000/XP, Vista, 7, 8, 10 Apple Mac OX 9 and OS X Linux, Unix Compliant |
| Power Consumption | 0.4W |
| Approvals | |
| UL | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3-Years Limited Warranty |
