Description

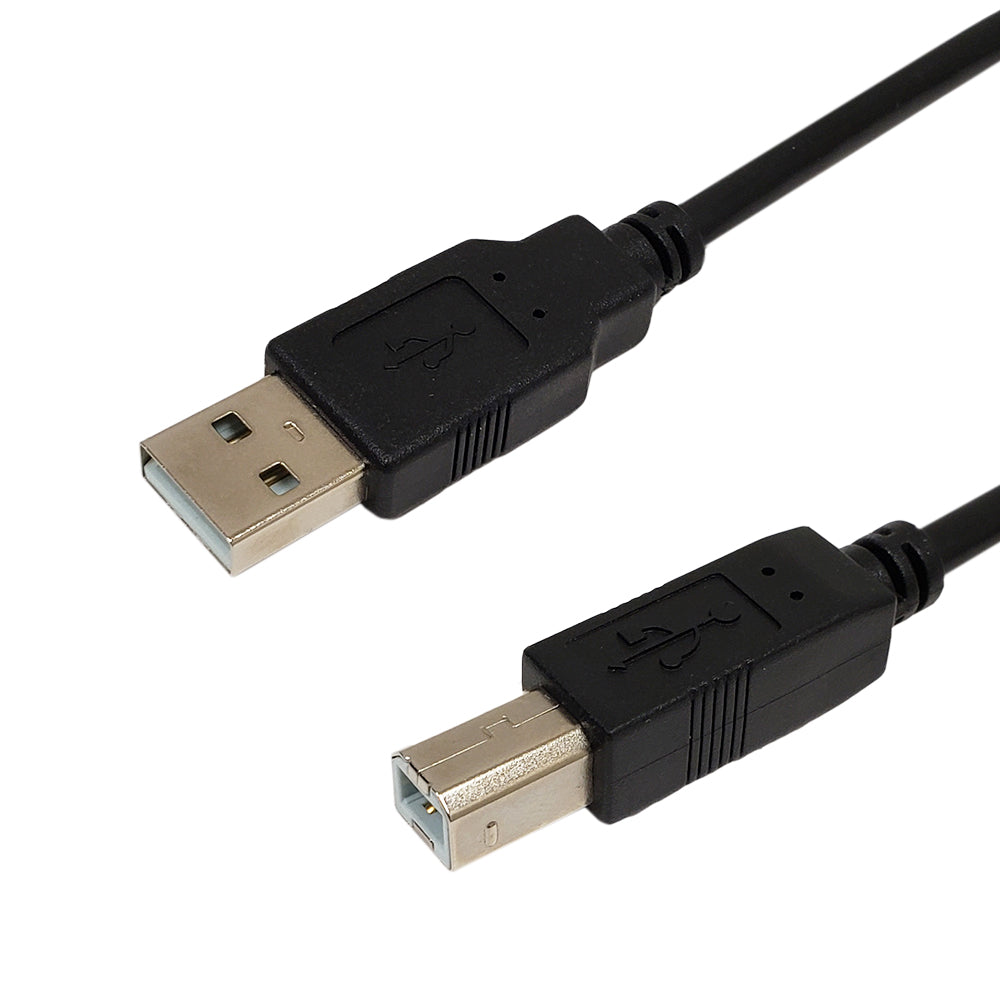

This active USB extension cable consists of a USB A male on one end and a USB B male on the other end. It is typically used to connect a PC/laptop to a printer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 28AWG Data, 24AWG Power |
| Jacket Material | PVC – Polyvinyl Chloride |
| Jacket Rating | CMG, FT4 Riser |
| Strain Relief | Molded PVC |
|
Connector(s)
|
|
| Connector A | USB 2.0 Type A Hi-Speed Male |
| Connector B | USB 2.0 Type B Hi-Speed Male |
|
Performance
|
|
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible with 1.0 |
|
System Requirements
|
|
| Windows | Windows 98, ME 2000/XP, Vista, 7, 8, 10 |
| Apple Mac | OX 9 and OS X |
| Linux, Unix | Compliant |
|
Approvals
|
|
| UL | Compliant |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3-Years Limited Warranty |
