Description

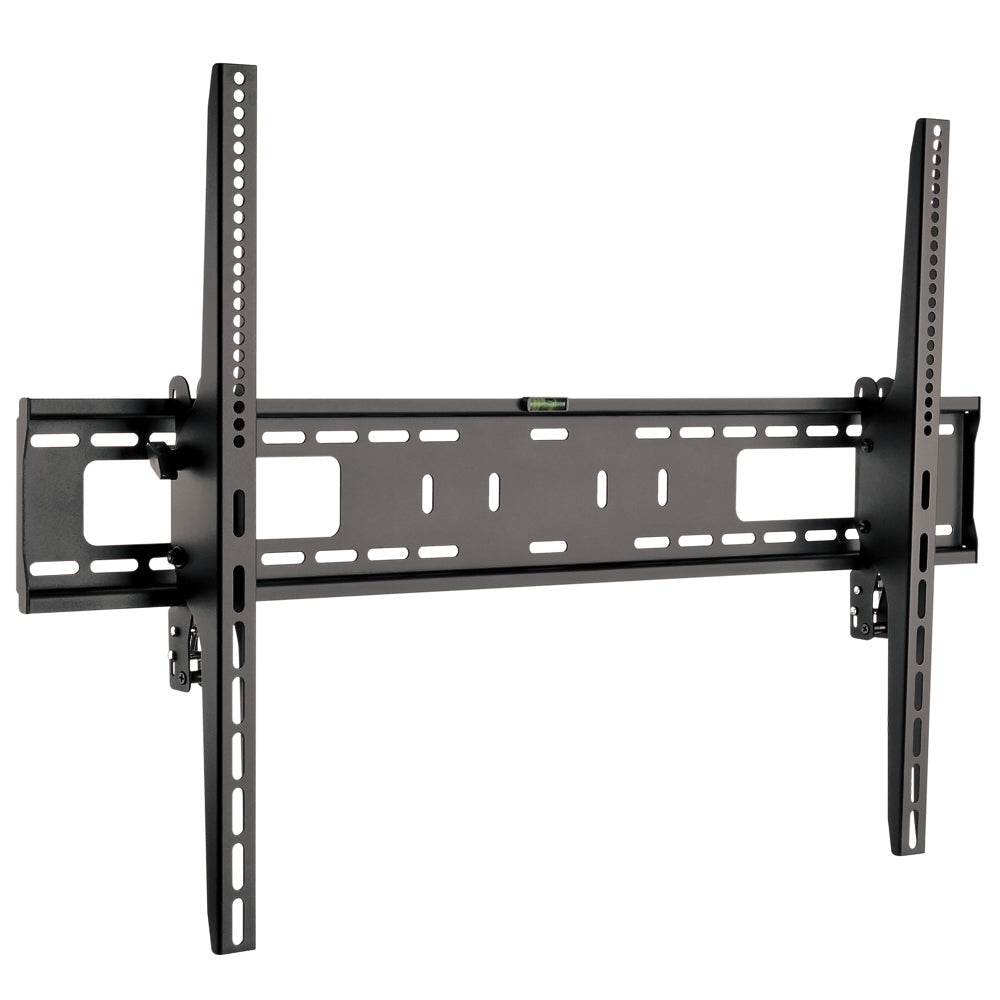

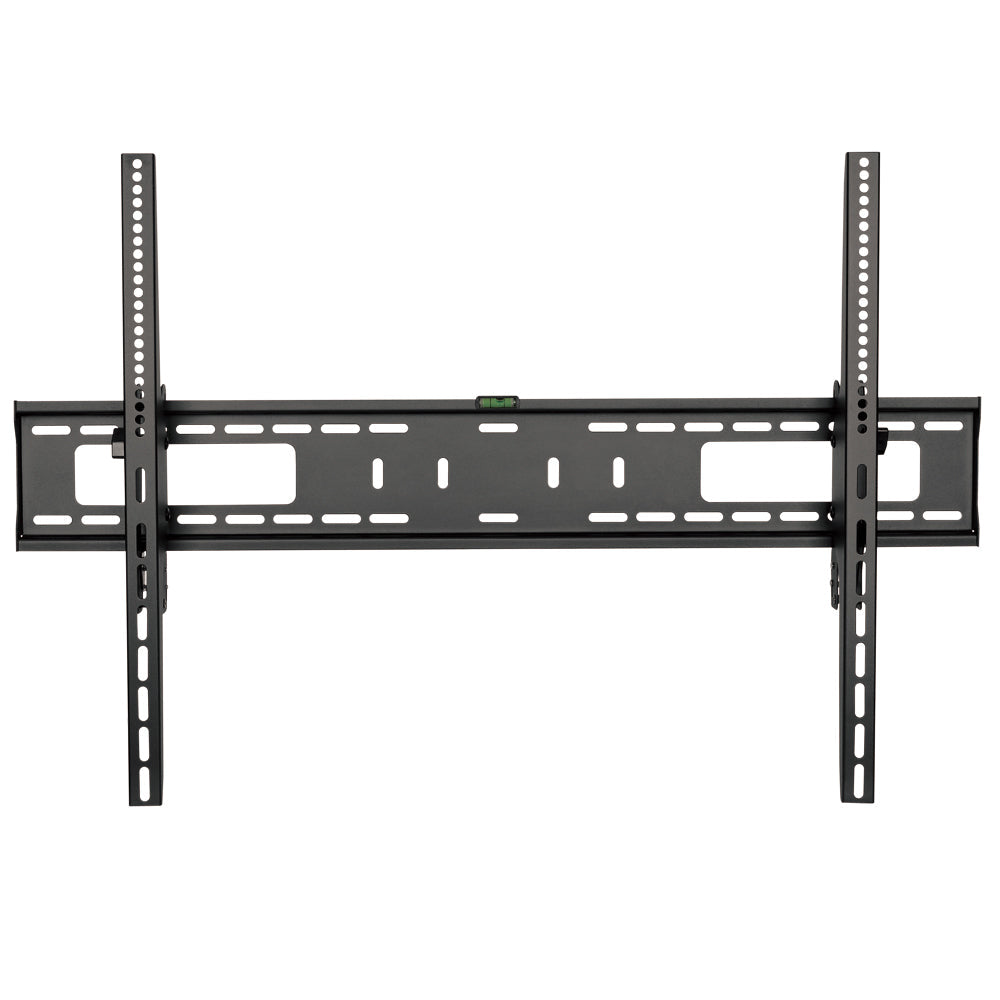

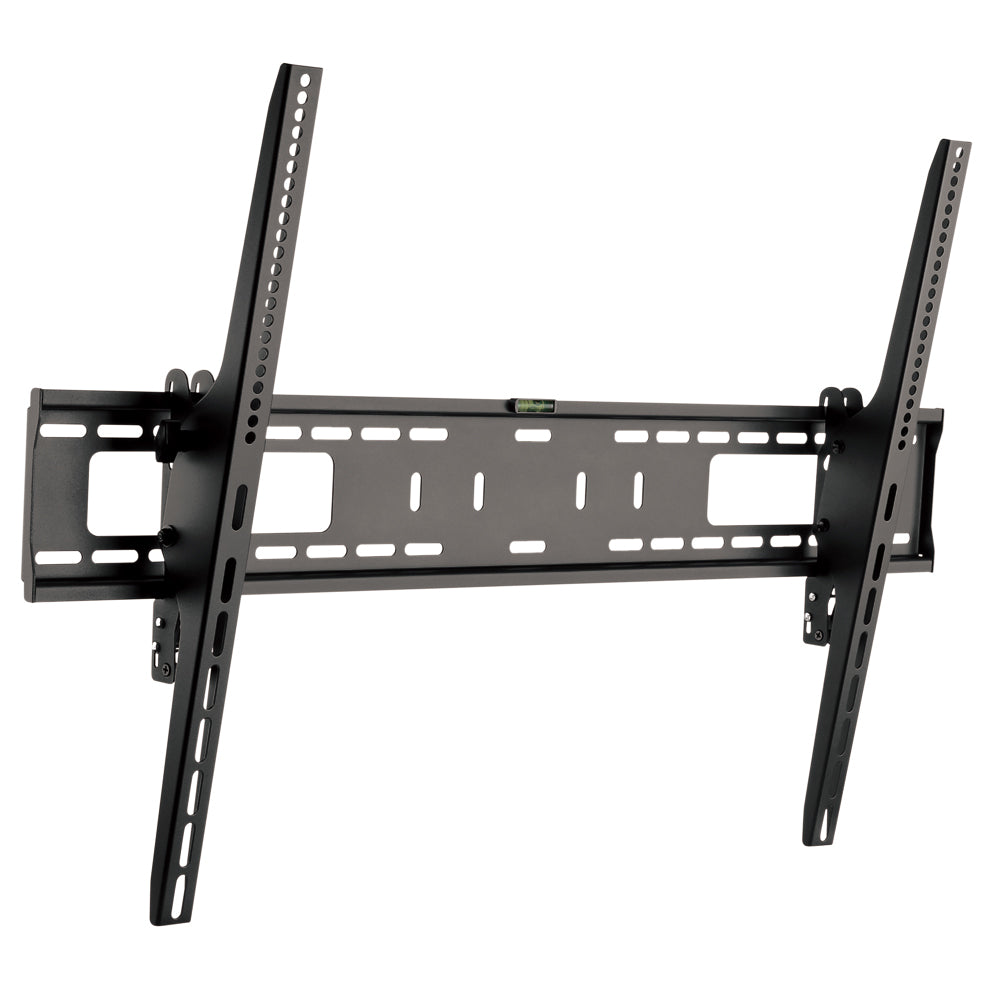

This LCD/LED tilting wall mount bracket is designed to hold most 60 inch to 100 inch LCD/LED displays with a maximum VESA hole pattern of 900×600. It offers up to a +5° to -10° tilt. Its easy to install and can be used in both residential and commercial environments.
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Black |
| Material | Steel, Plastic |

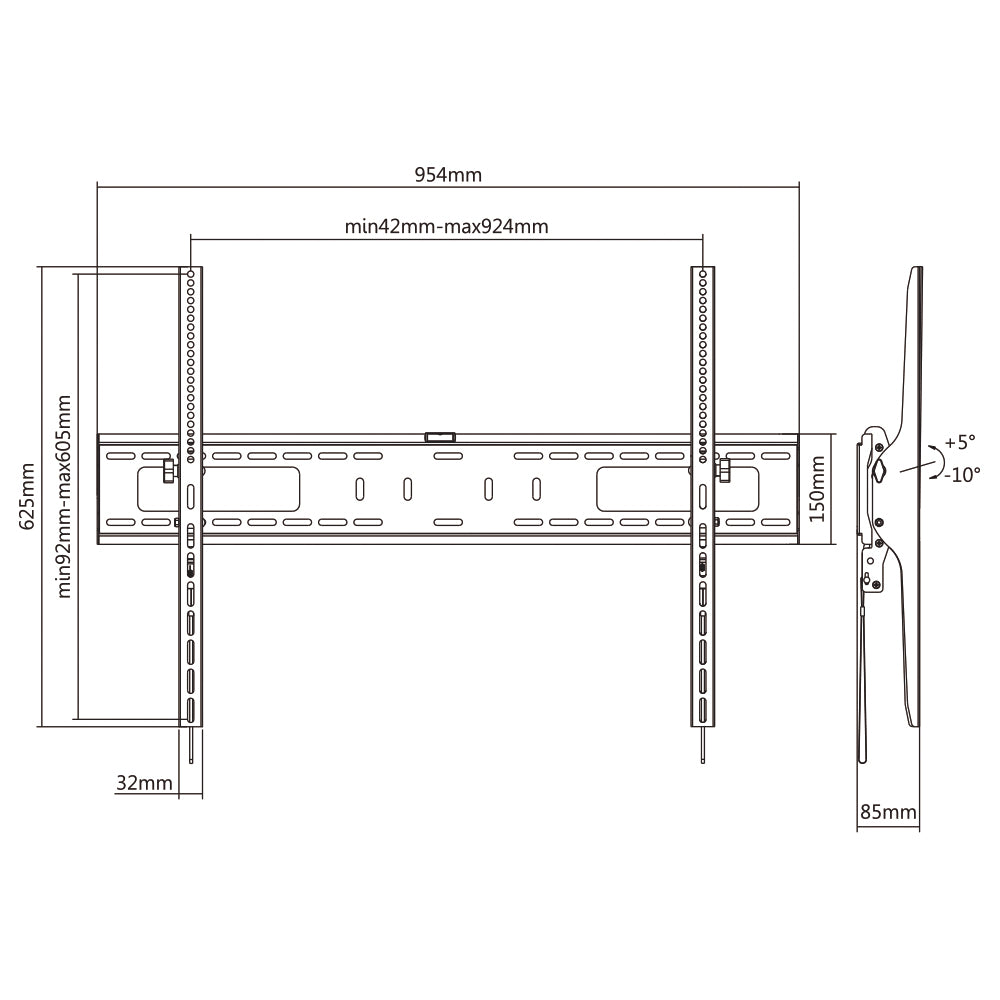

| Mounting Pattern | VESA 200×200,300×200,300×300,400×200,400×300,400×400,600×400,600×600,800×600,900×600 |
| Screen Size | 60 – 100 inches [152.4 – 254cm] |
| Weight Capacity | 165lbs [75kg] |

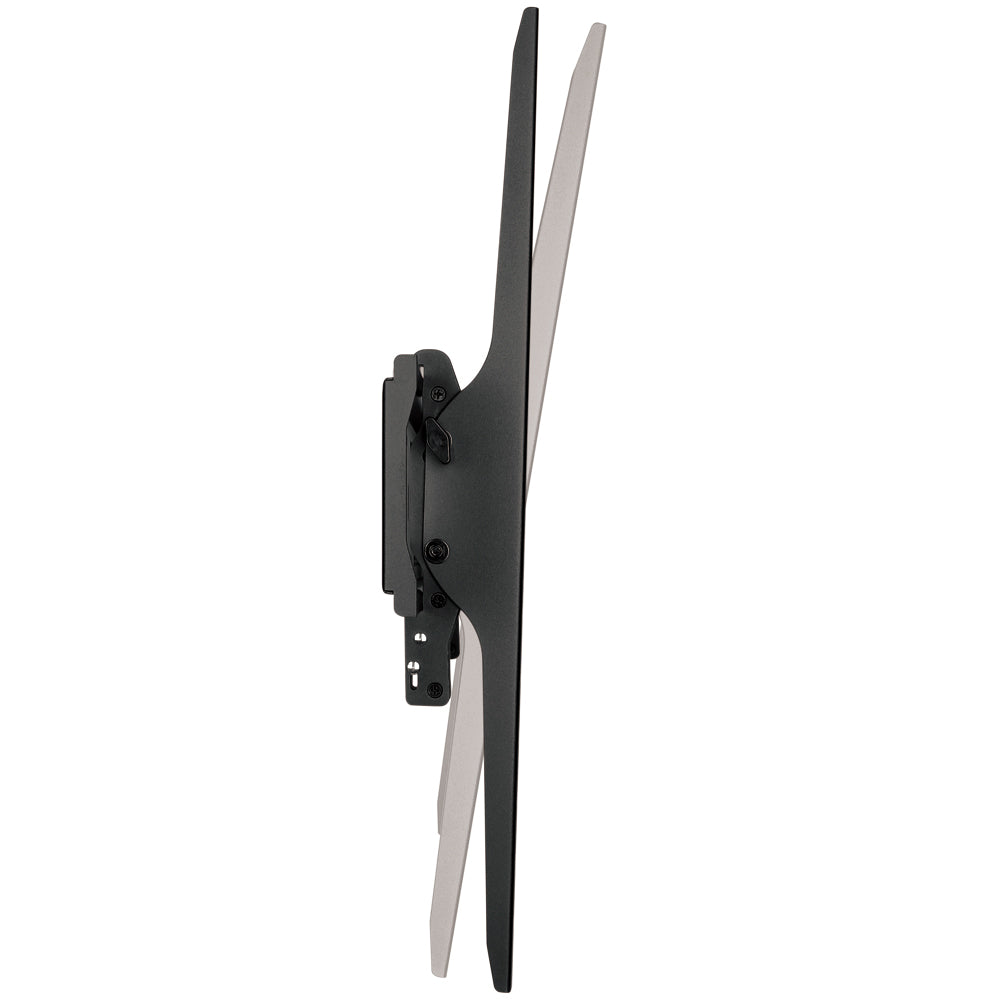

| Tilt | +5° to -10° |
| Profile | 85 mm |
| Bubble Level | Compliant |
| Installation | Solid Wall or Double Stud |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacers 8 – Big Spacers 6 – ST6.3×55 Screws 6 – Concrete Anchors 6 – D6 Washers |
| Product Weight | 10.4 lbs [4.7kg] |
