Description
Overview

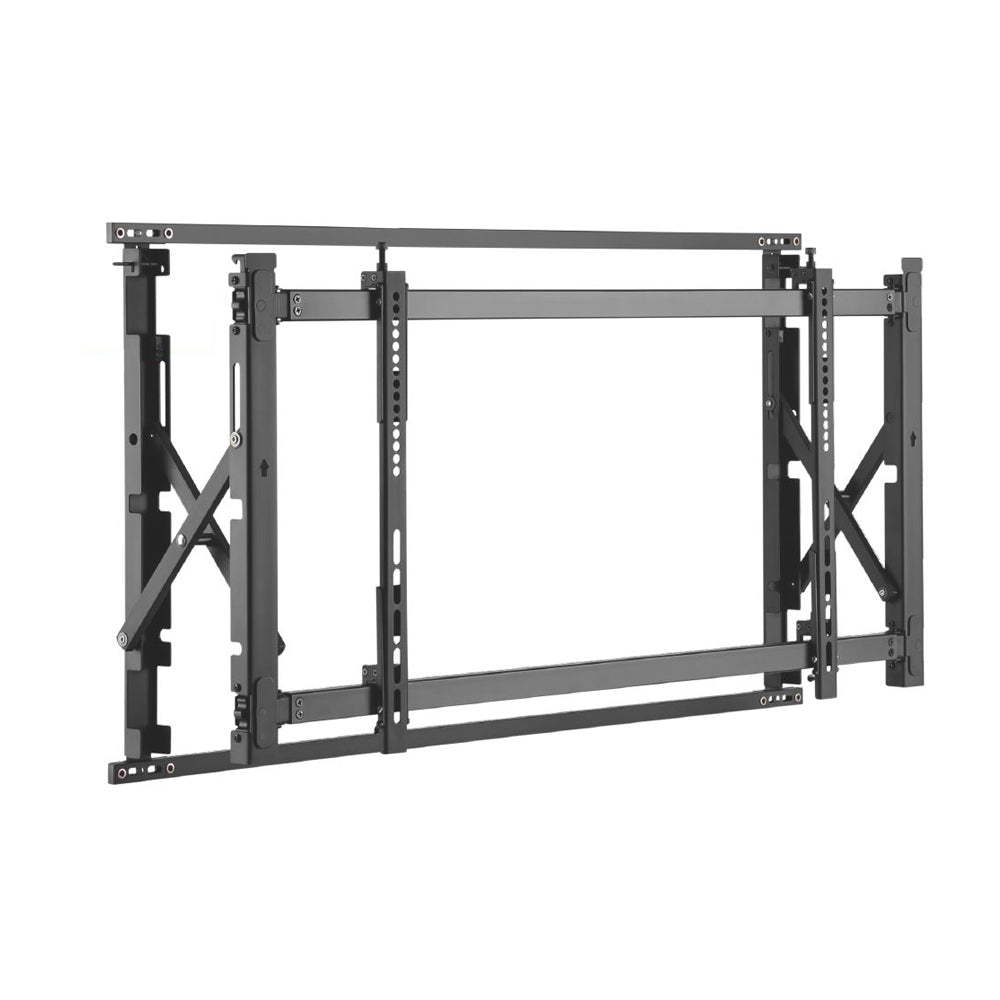

This super slim video wall mount bracket is designed to hold most 46 inch to 52 inch flat screen displays with a maximum VESA hole pattern of 600×400. It allows portrait or landscape screen orientation and can be used on a single TV or in conjunction with additional mounts to create a video wall.
 |
Mountable in any OrientationThis video wall TV mount bracket can be used in either portrait or landscape orientation. Slim DesignThis portrait TV mount bracket provides a low profile and is very slim in design in comparison to other brackets. Precision AlignmentDue to the multi-dimensional micro adjustments that can be made to the bracket, it allows for an ideal display alignment for a pleasurable viewing experience.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Micro Adjustment |
| Color | Durable Powder-Coated Black Finish |
| Material | Metal |

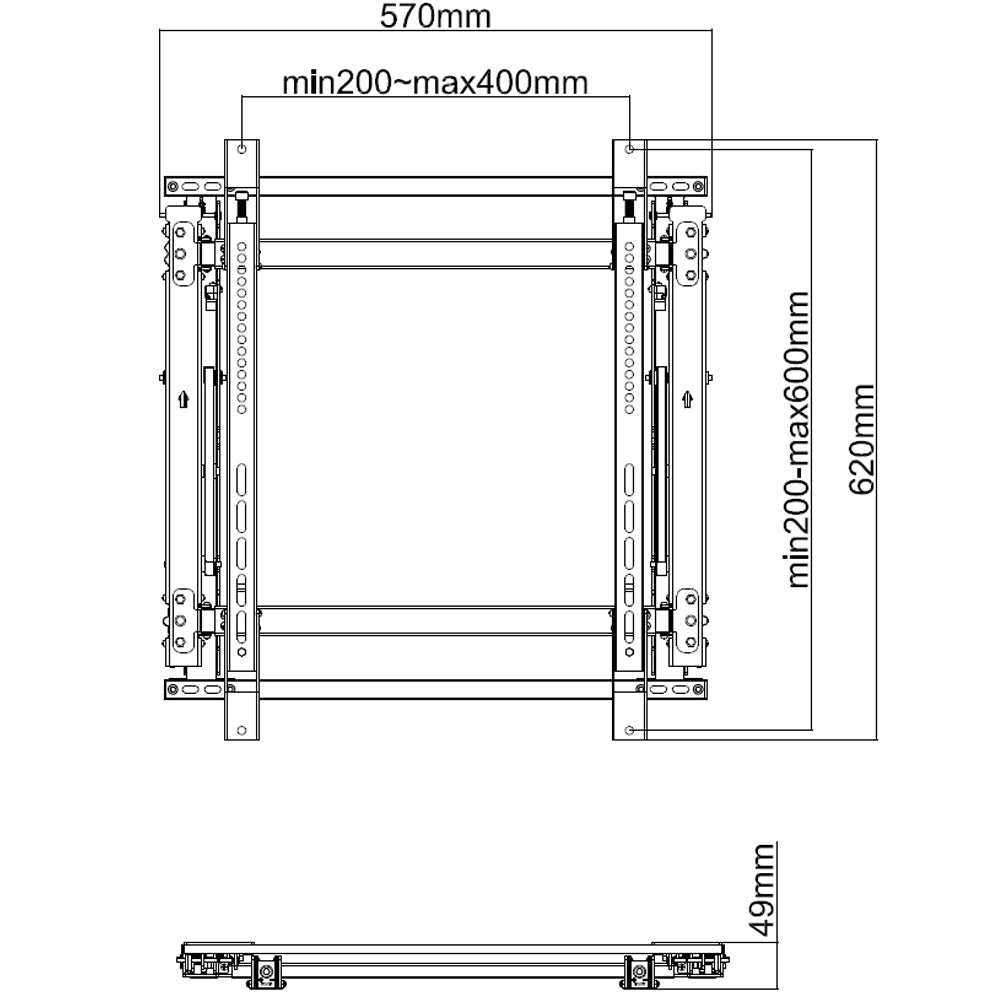

| Mounting Pattern | VESA 200×200, 300X200, 300X300, 400×200, 400X300, 400×400, 600×400 |
| Screen Size | 46 – 52 inches [116 – 157cm] |
| Weight Capacity | 77lbs [35kg] |

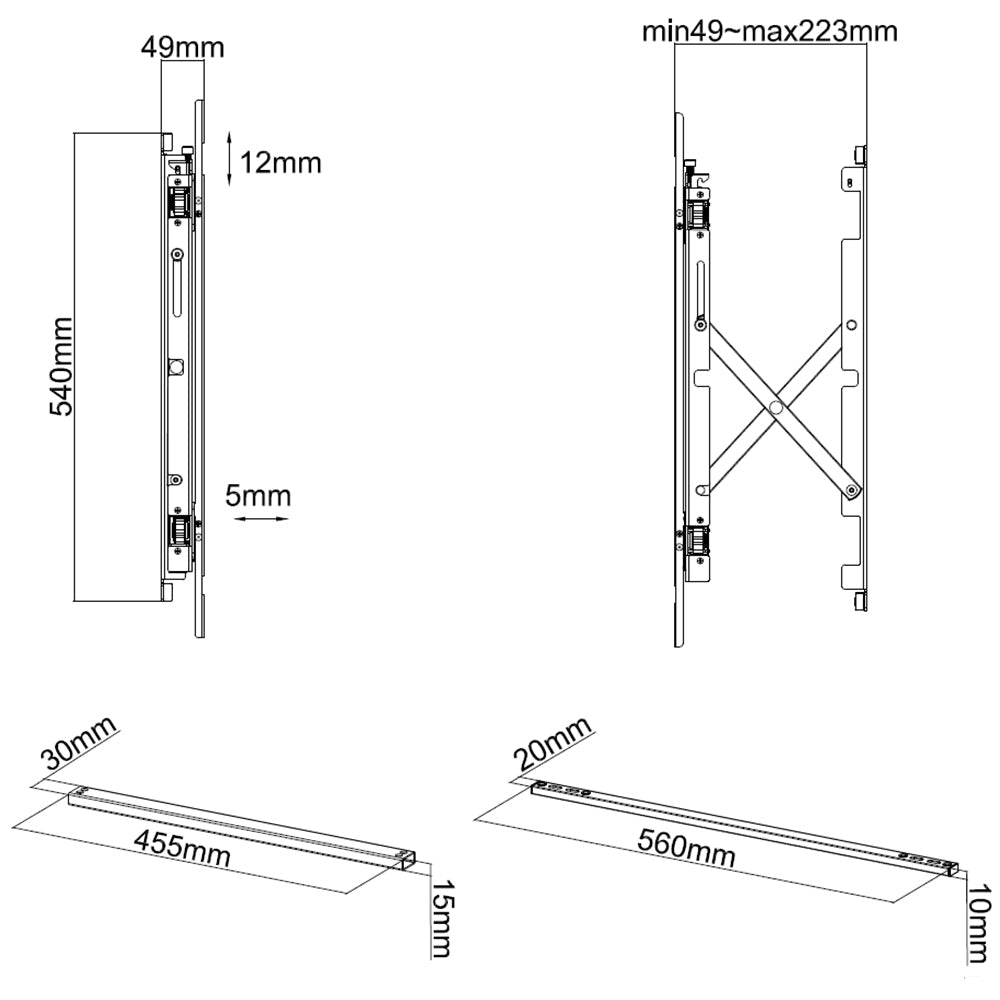

| Profile | 49 – 223mm |
| Installation | Solid Wall |

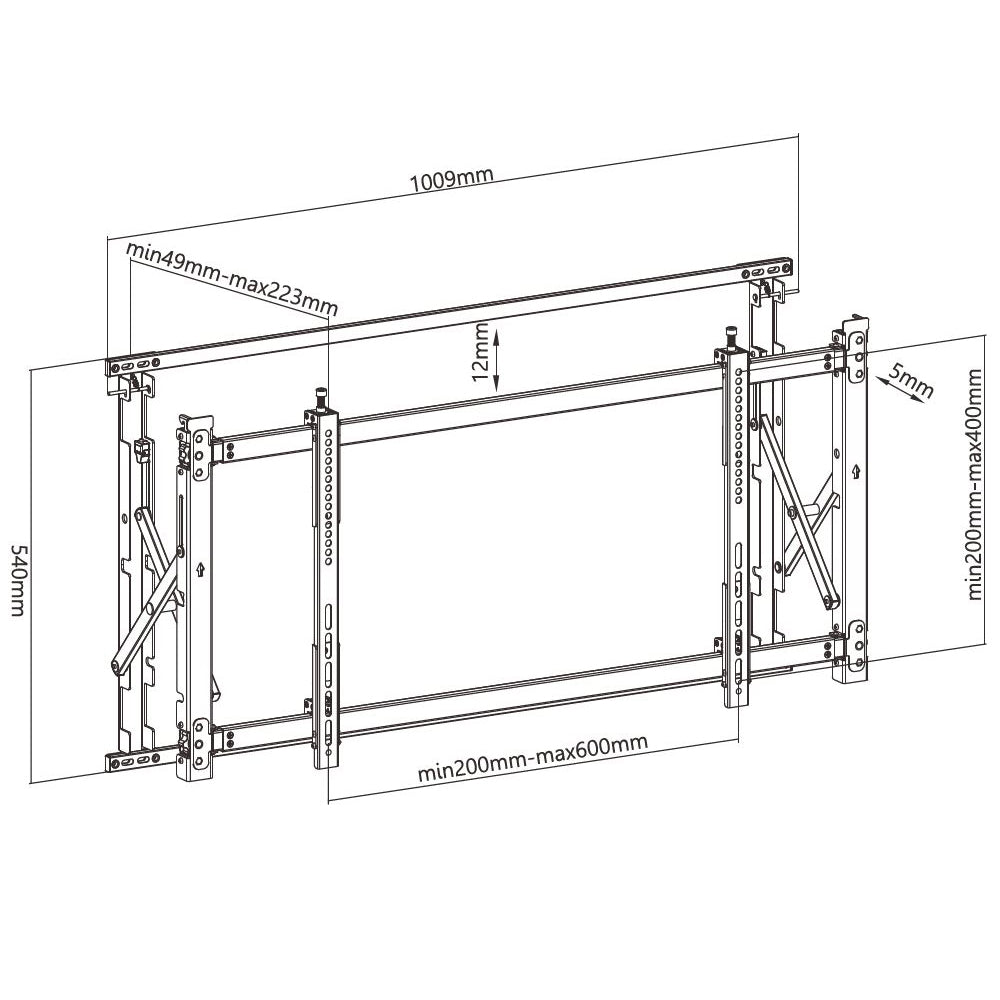

| Micro Adjustments | Depth 5mm / Height 12mm |
| Direction Indicator | Compliant |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M5x14 Screws 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacers 8 – Big Spacers 4 – ST6.3×55 Screws 4 – Concrete Anchors 4 – D6 Washers |
| Package Weight | 25.3 lbs [11.5 kg] |
| Product Weight | 20.5 lbs [9.3 kg] |
|
Warranty Information
|
|
| Warranty | 5 Year Warranty |
