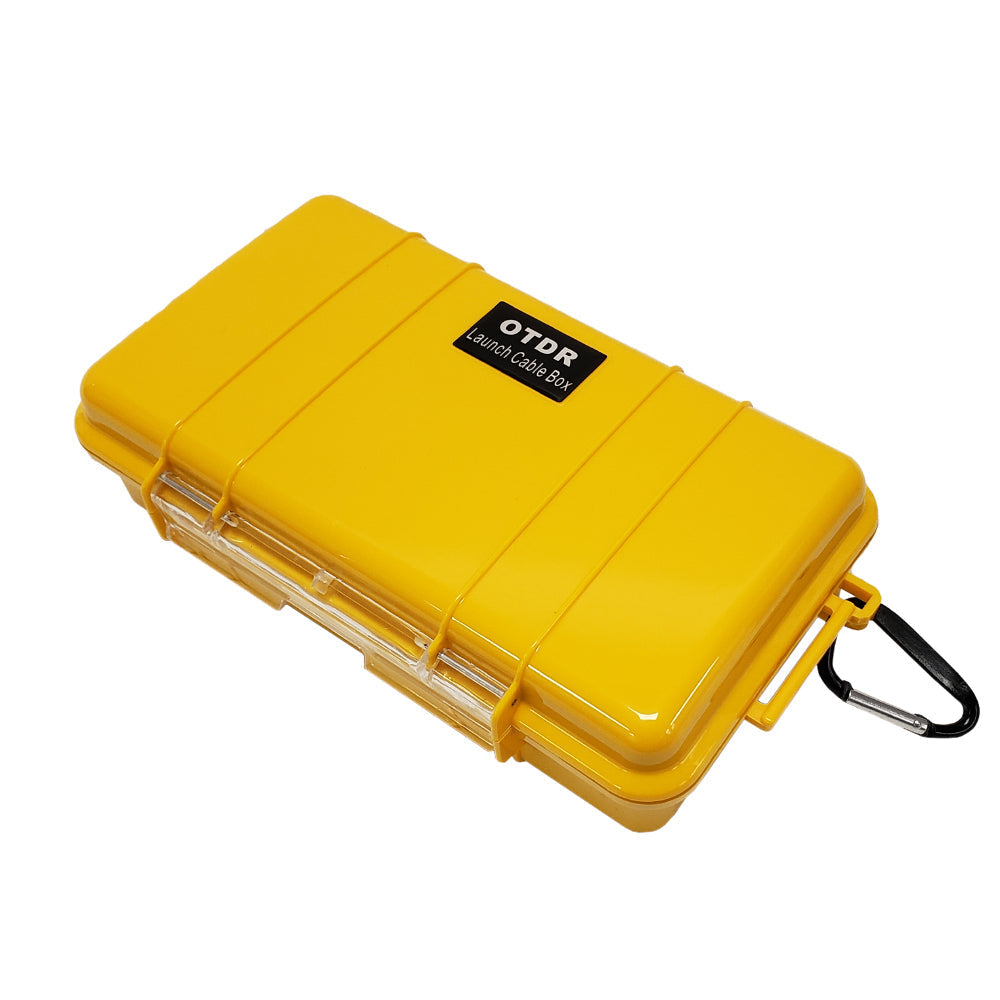

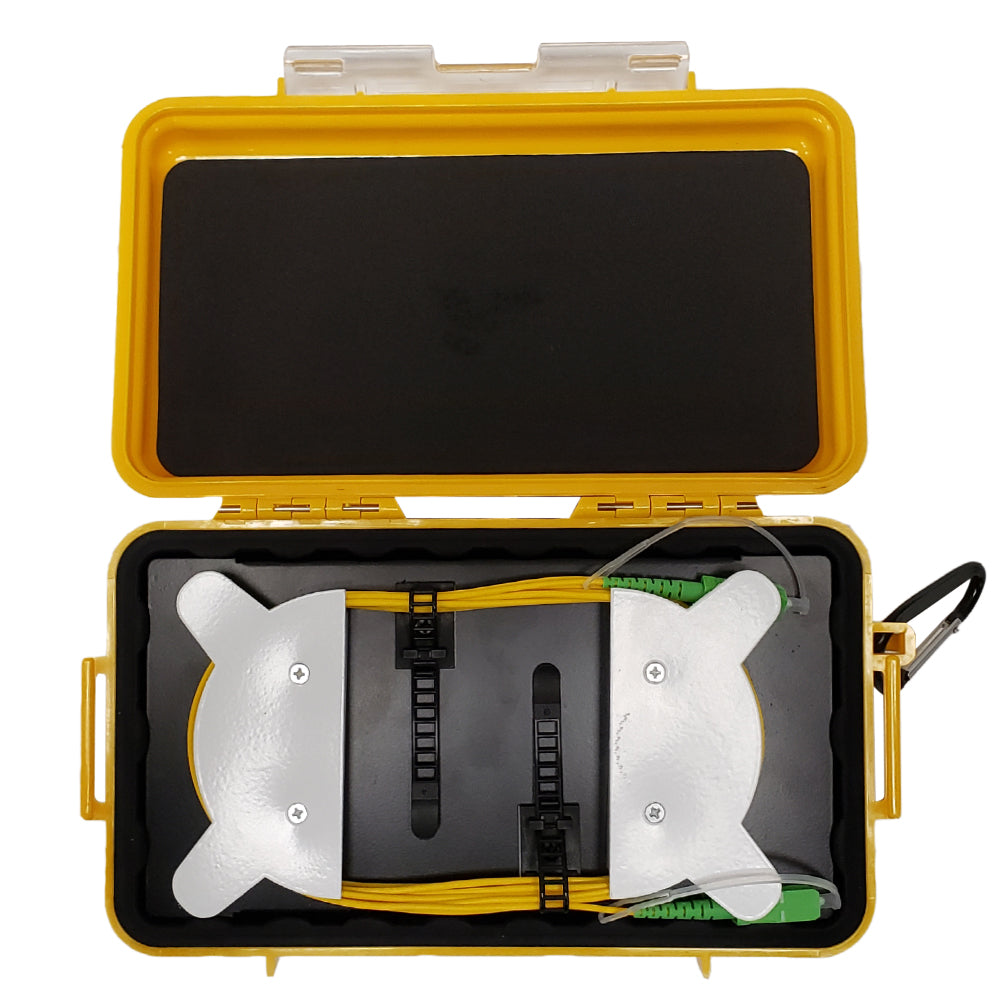

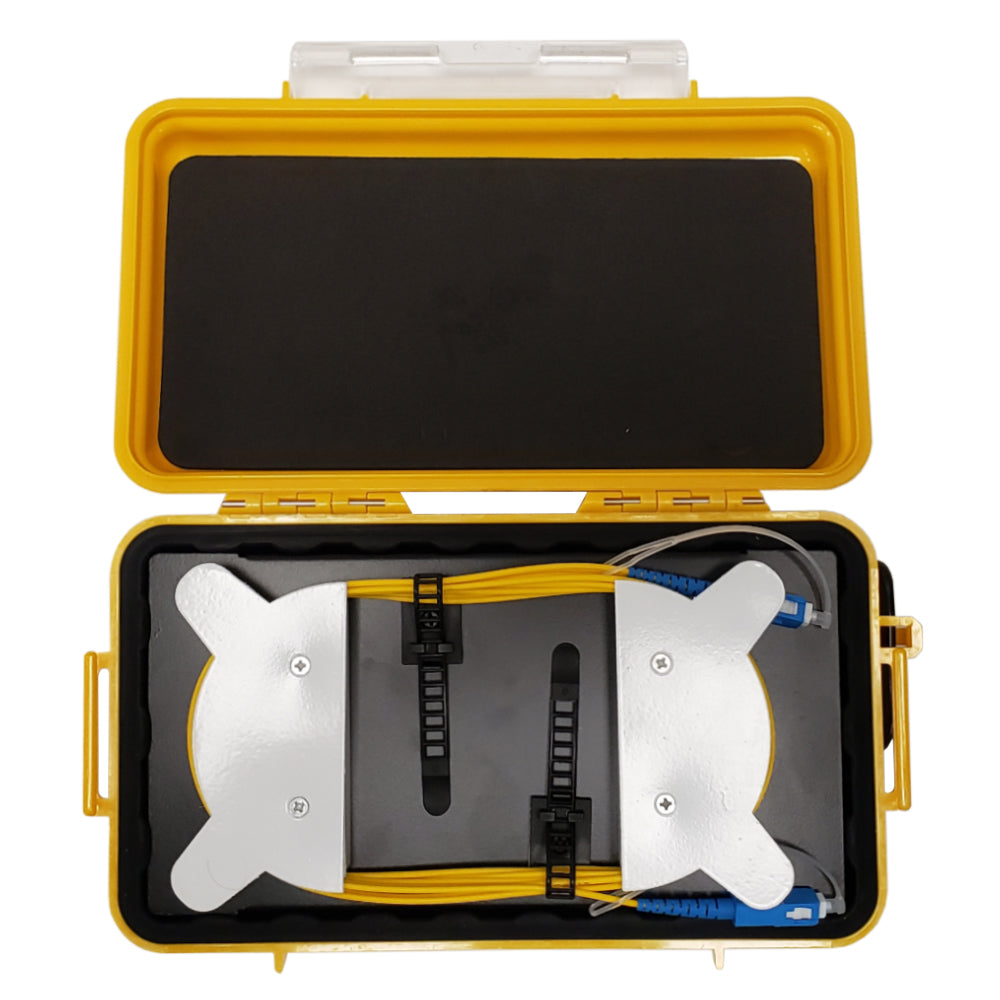

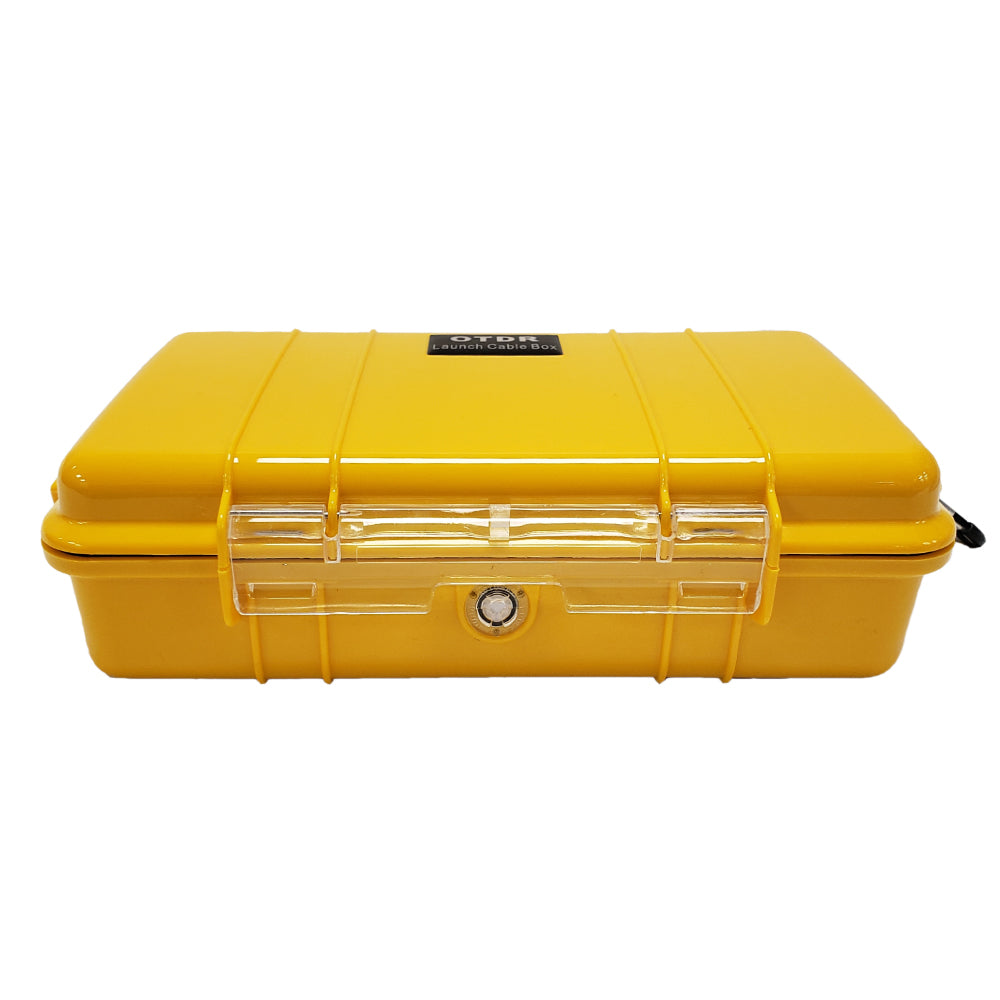

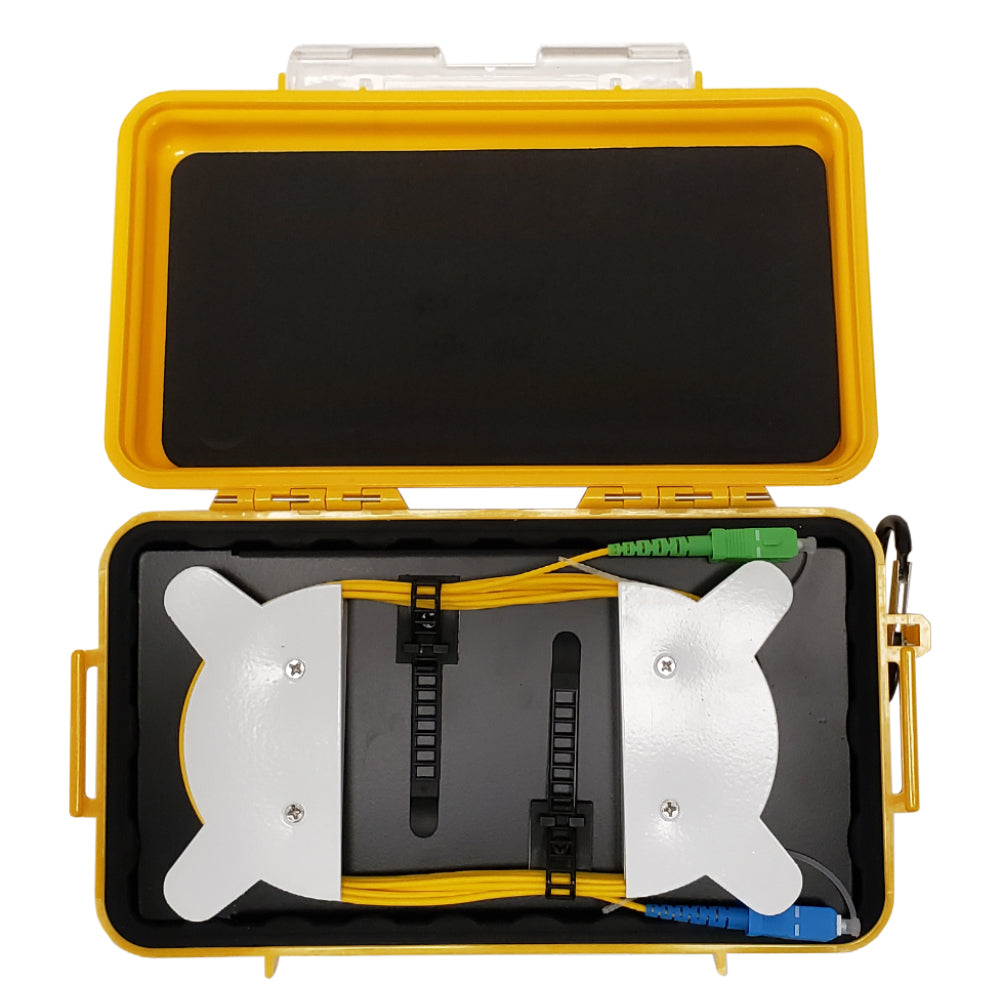

This launch box holds a coil of terminated fiber cable which is placed in a hard case. It is typically used for installation between an OTDR tester and a fiber line for testing, training and calibration.
 |
Robust Metal RetractorThe robust metal retractor makes the launch box easy to carry. Auto Purge ValveThe auto purge valve regulates the pressure automatically. Built-in Cable ManagementThe built-in cable management helps reduce cable stress and saves space.
|
Features
| Physical Characteristics | |
|---|---|
| Box Color | Yellow |
| Box Size | 23.8 x 14.1 x 6.7 cm |
| Fiber Types | Singlemode 9/125um G.657A2 |
| Insertion Loss | ≤0.3dB (Singlemode) |
| Return Loss | UPC≥50dB APC≥60dB |
| Connectors | |
| Connector A | Connector B |
| LC-UPC Simplex Male | LC-UPC Simplex Male |
| LC-UPC Simplex Male | SC-UPC Simplex Male |
| LC-UPC Simplex Male | SC-APC Simplex Male |
| SC-UPC Simplex Male | SC-UPC Simplex Male |
| SC-UPC Simplex Male | SC-APC Simplex Male |
| SC-APC Simplex Male | SC-APC Simplex Male |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.5 lbs [0.68kg] |
