Description
Overview

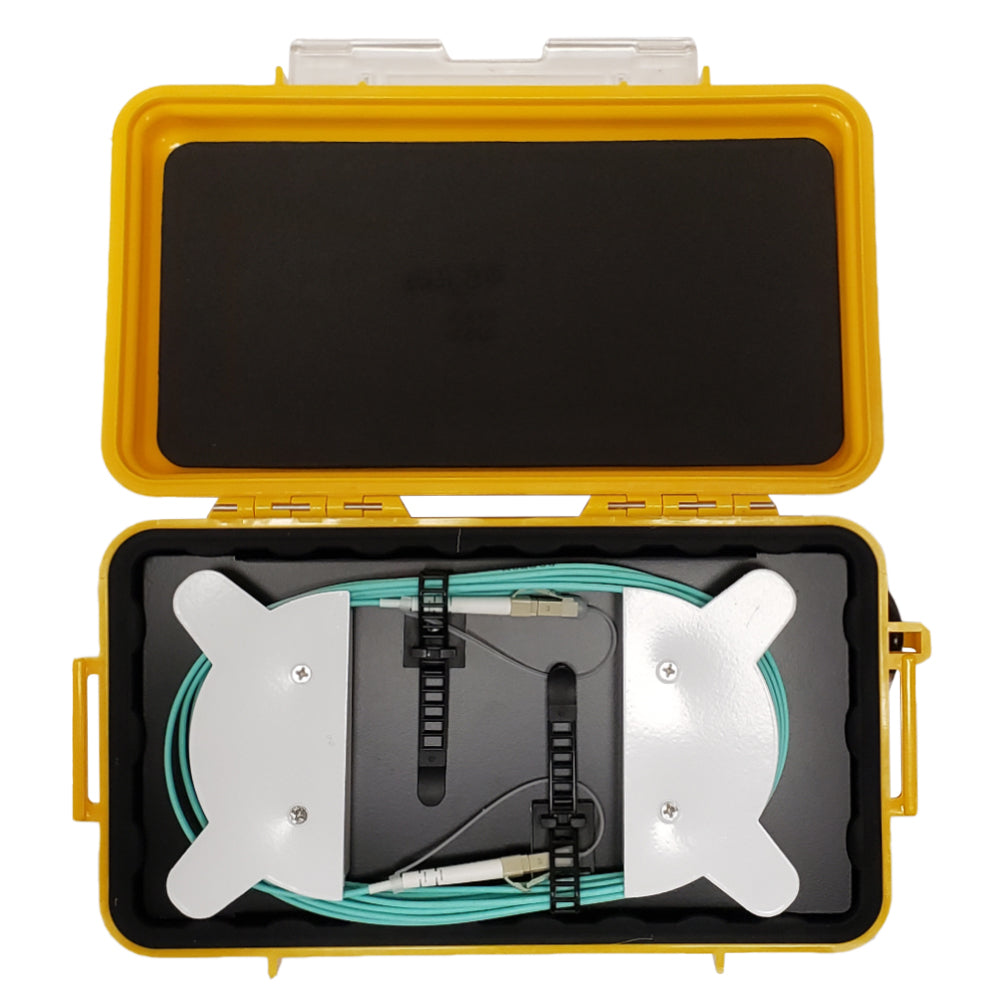

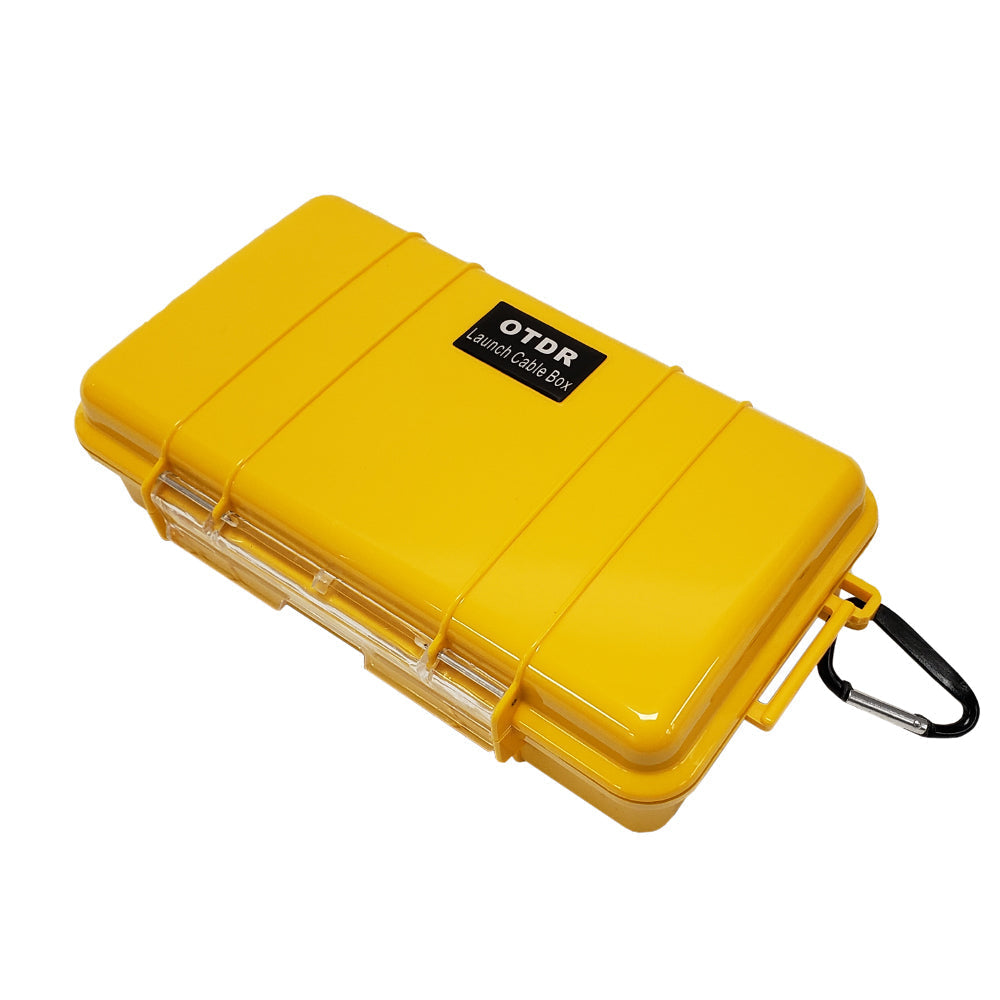

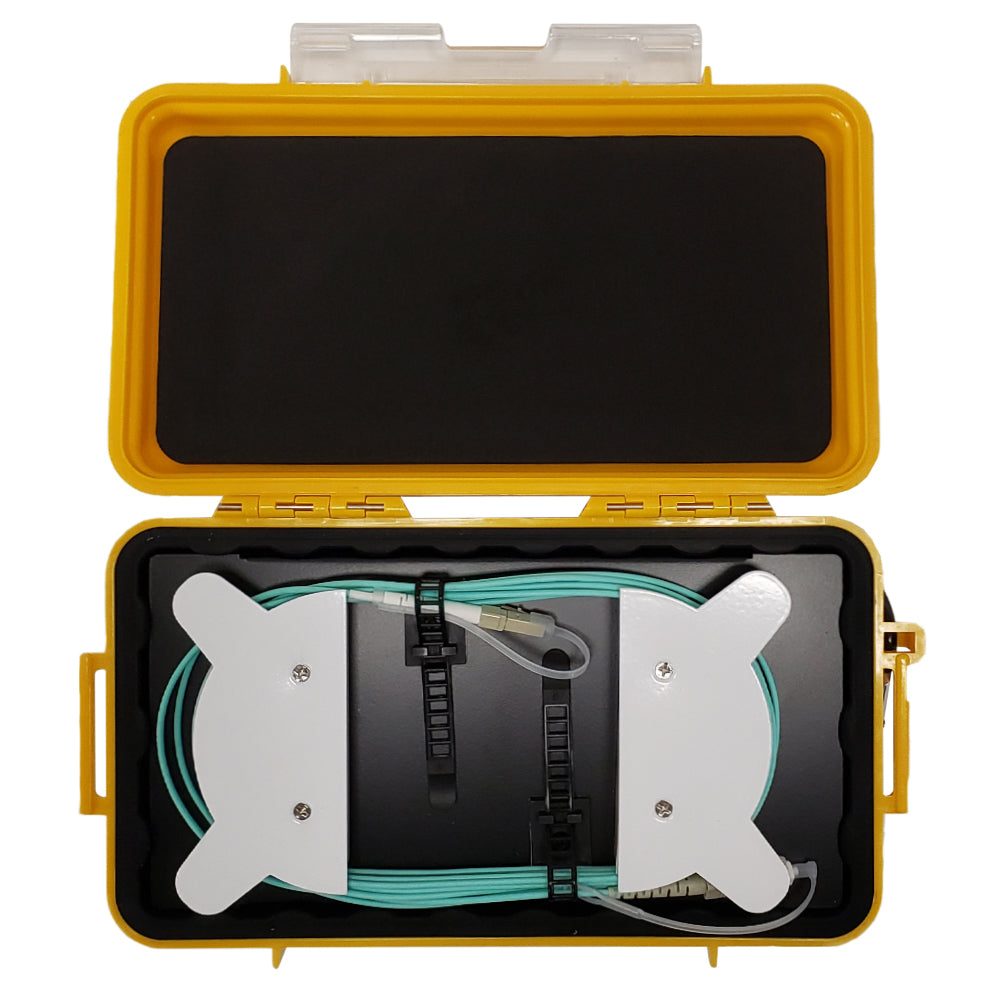

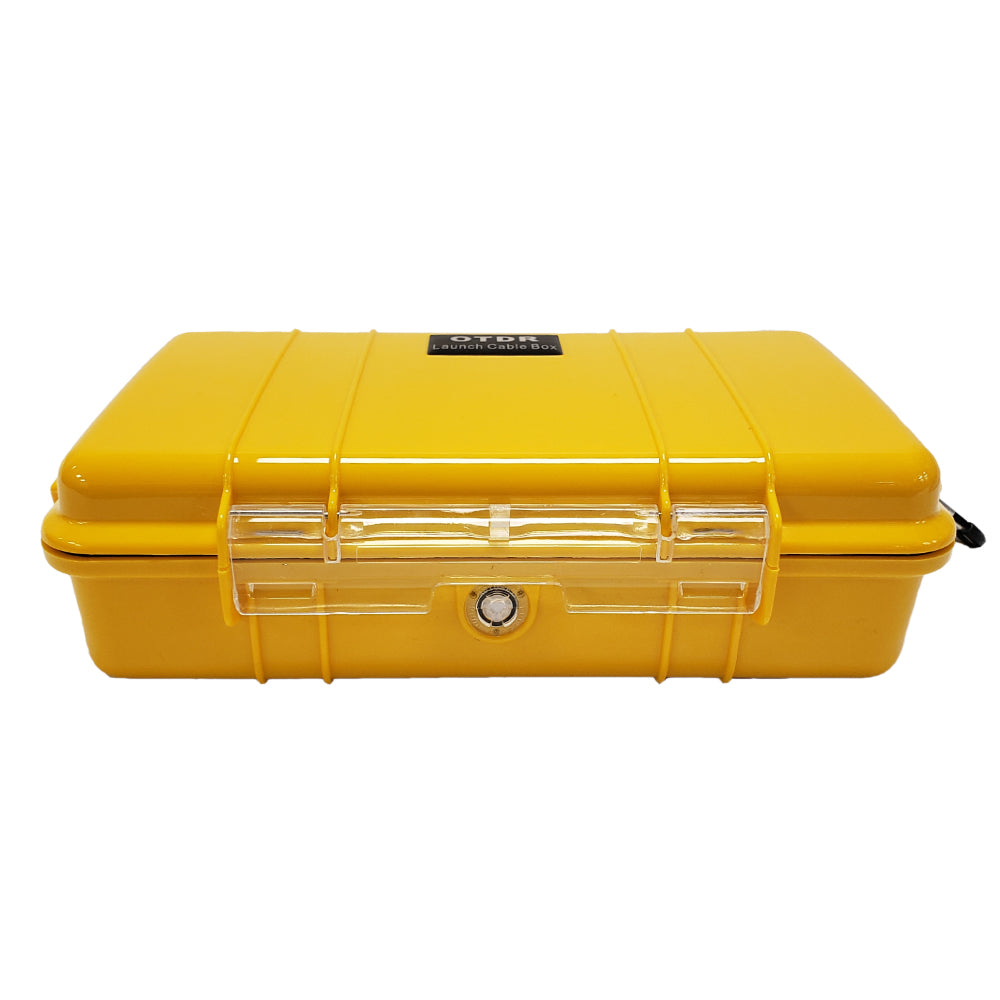

This launch box holds a coil of terminated fiber cable which is placed in a hard case. It is typically used for installation between an OTDR tester and a fiber line for testing, training and calibration.
 |
Robust Metal RetractorThe robust metal retractor makes the launch box easy to carry. Auto Purge ValveThe auto purge valve regulates the pressure automatically. Built-in Cable ManagementThe built-in cable management helps reduce cable stress and saves space.
|
Features
| Physical Characteristics | |
|---|---|
| Box Color | Yellow |
| Box Size | 23.8 x 14.1 x 6.7 cm |
| Fiber Types | Multimode 50/125um OM4 |
| Insertion Loss | ≤0.5dB (Multimode) |
| Return Loss | PC≥36dB |
| Connectors | |
| Connector A | Connector B |
| LC-PC Duplex Male | LC-PC Simplex Male |
| LC-PC Duplex Male | SC-PC Simplex Male |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.5 lbs [0.68kg] |
