Description
Overview

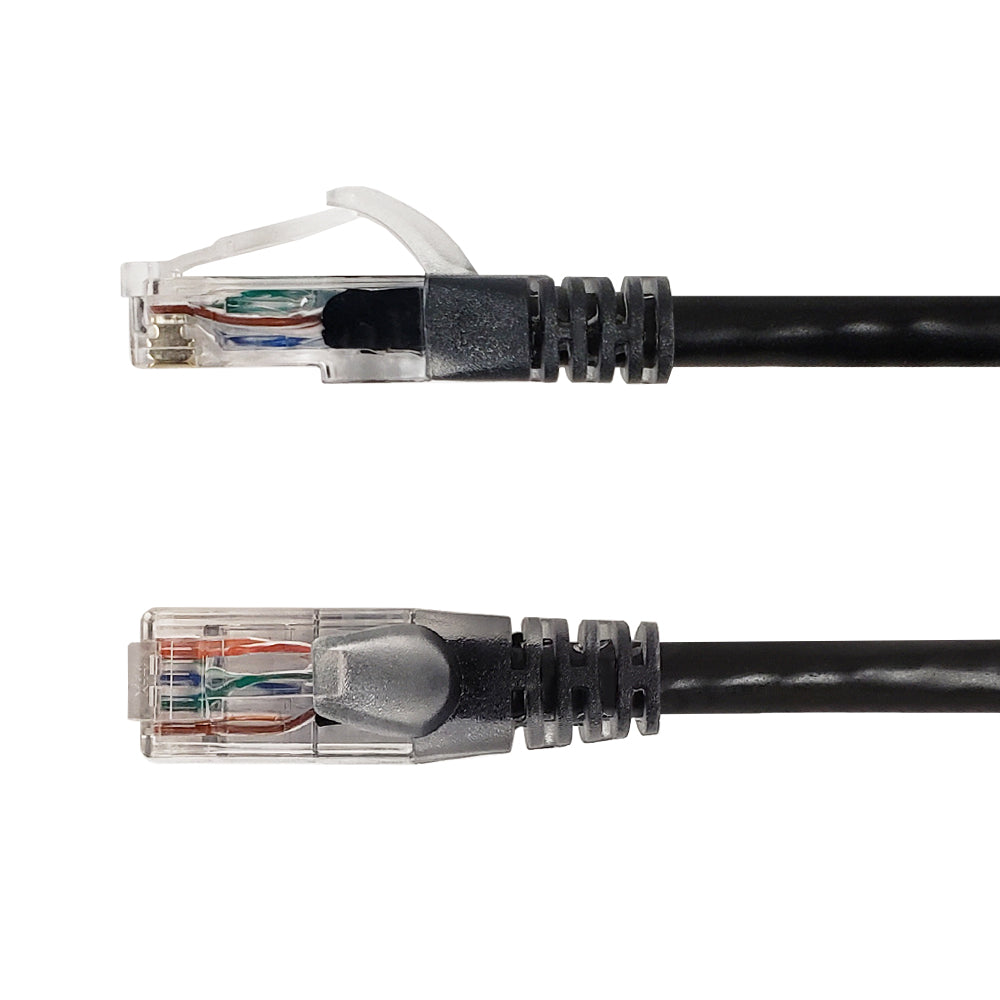

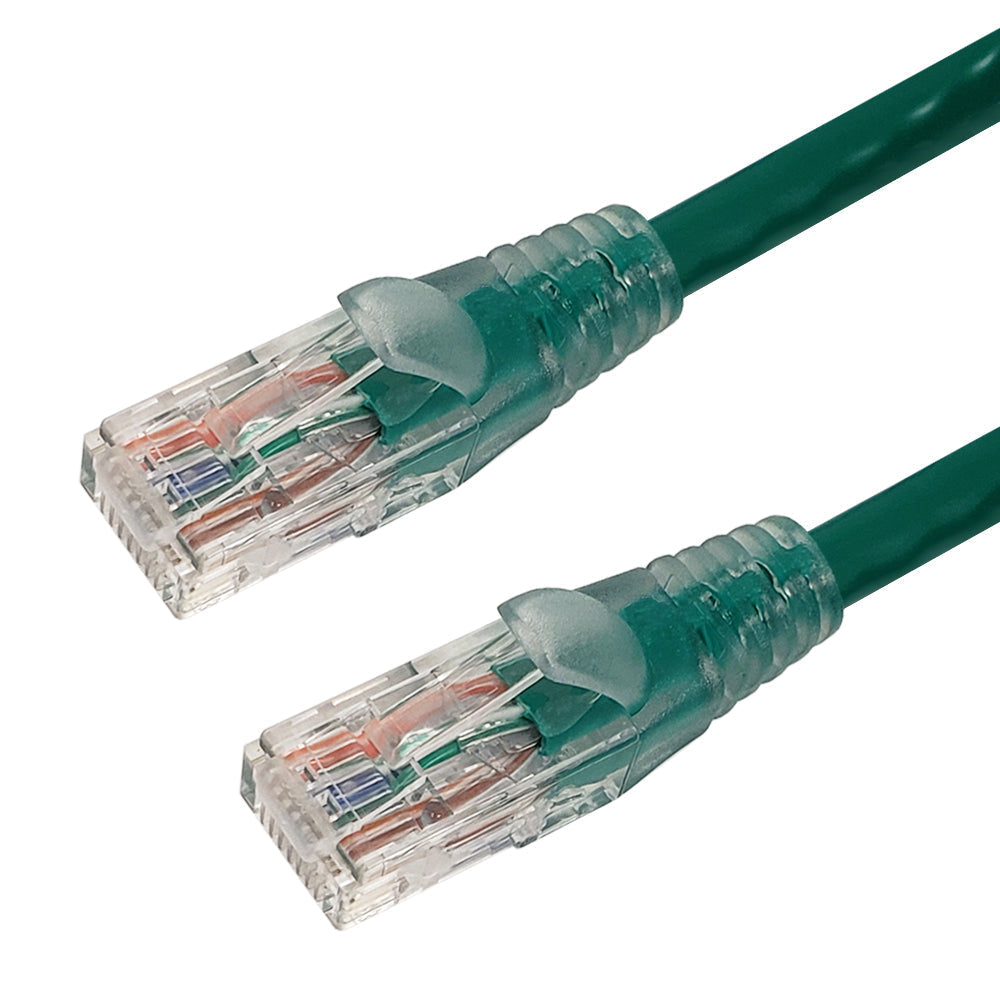

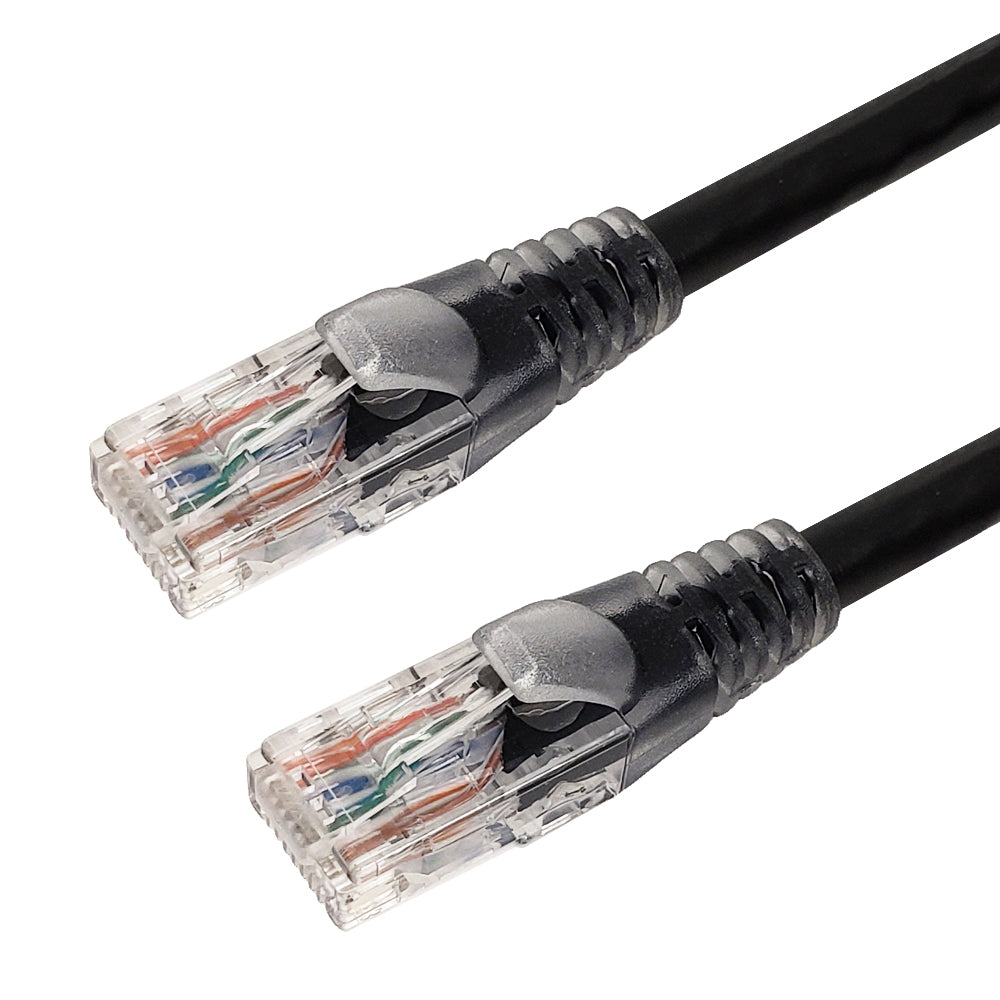

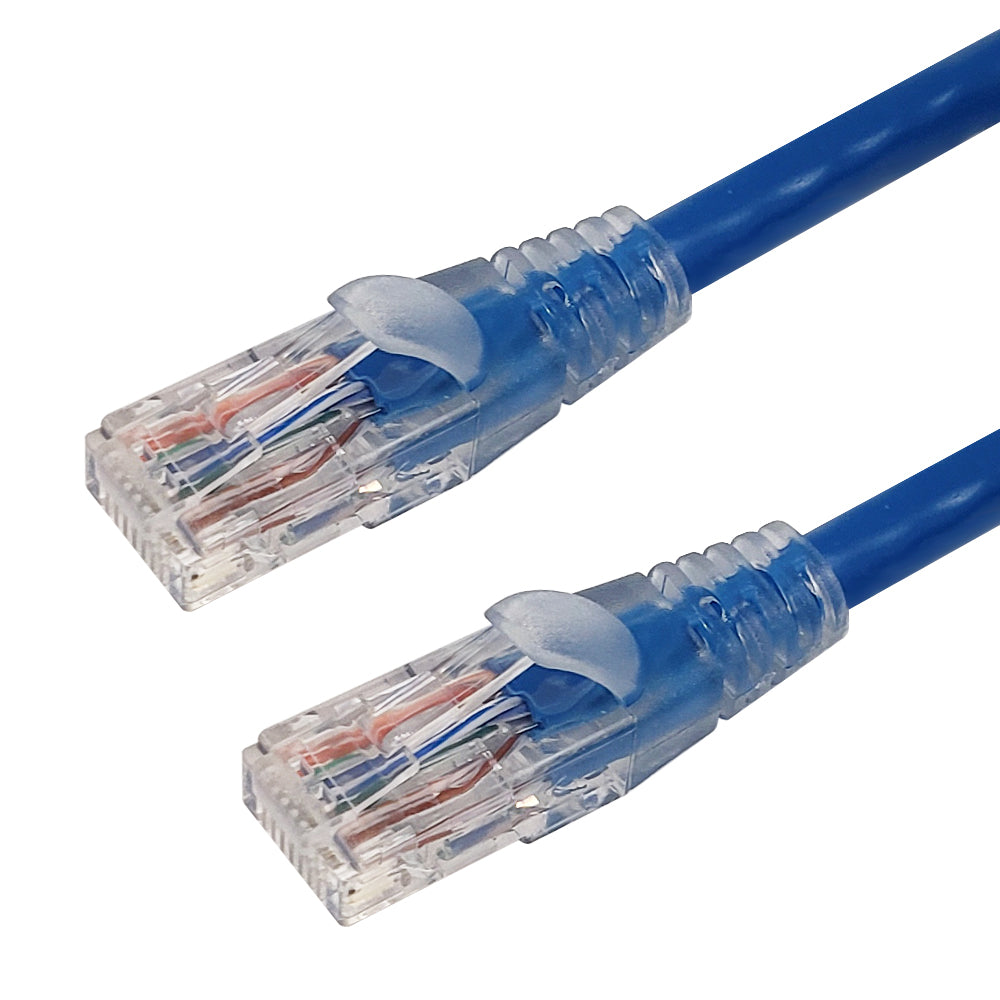

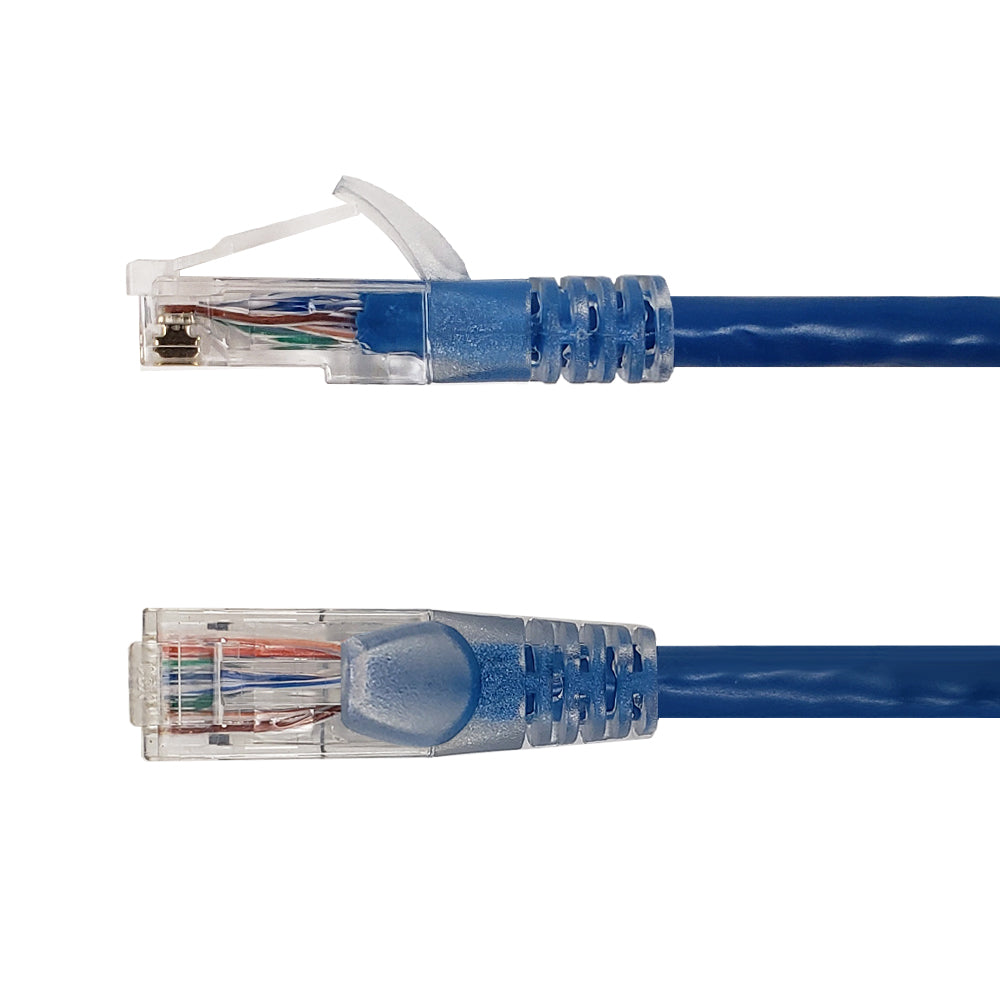

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50µ-in Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Fluke Patch Cable TestedOur cables are 100% continuity tested and batch tested to pass a CAT6 fluke patch cable test.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Connector Plating | Gold Plated 50 µ-inches |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CM |
| Color Code | 568B |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | +75 deg C |
| Jacket Type | PVC |
|
Connectors
|
|
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
|
Performance
|
|
| CAT6 Fluke Patch Cable Test | Yes |
| Frequency | 550 MHz |
|
Approvals
|
|
| c(UL)us | Yes – Cable |
| ETL Verified | Yes |
| TIA/EIA – 568 – C.2 | Yes |
|
Product Support
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Country of Origin | Vietnam |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
