Description
Overview

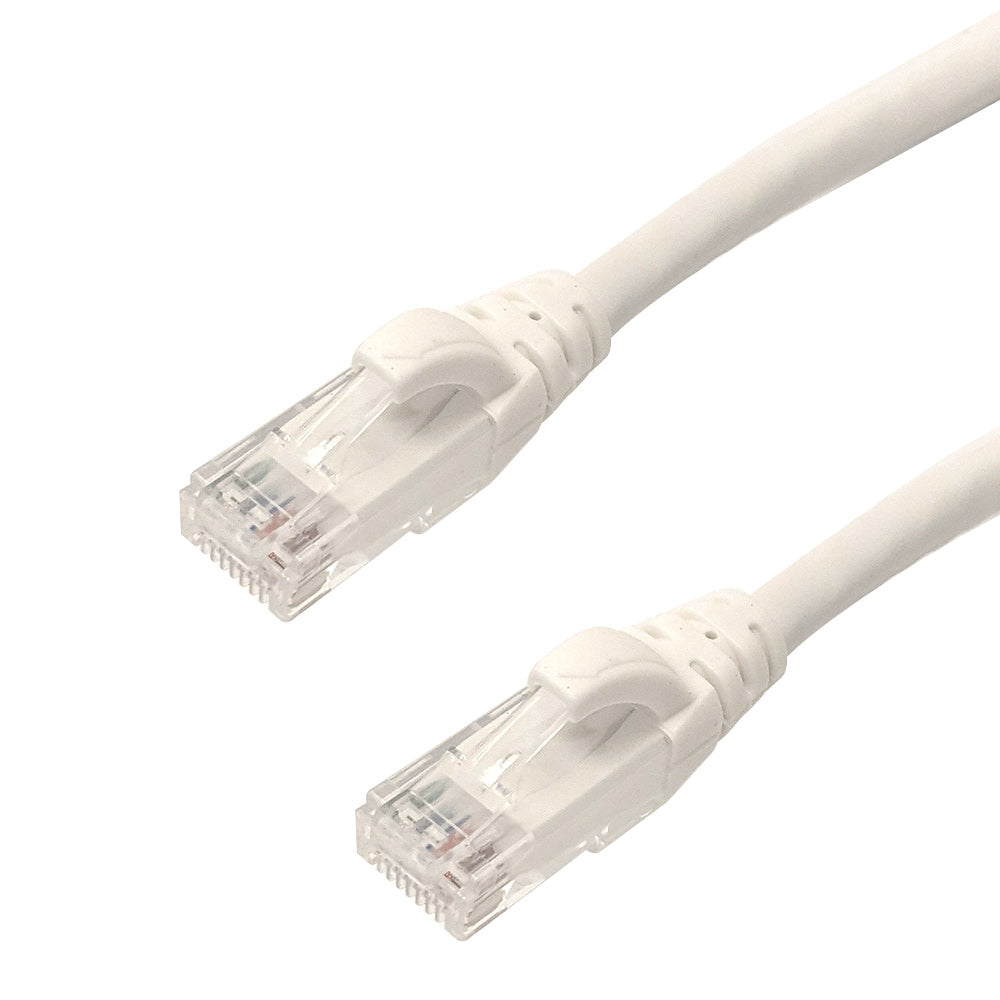

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are Fluke® Cat6 patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | White |
| Connector Plating | Gold Plated 50 µ-inches |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568A |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | -10C to +75C |
| Jacket Type | PVC |
|
Connectors
|
|
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
|
Performance
|
|
| Fluke® CAT6 Patch Cable Test | Compliant |
| Frequency | 600 MHz |
|
Approvals
|
|
| c(UL)us | Compliant – Cable |
| ETL Verified | Compliant |
| ANSI/TIA – 568 – C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
