Description

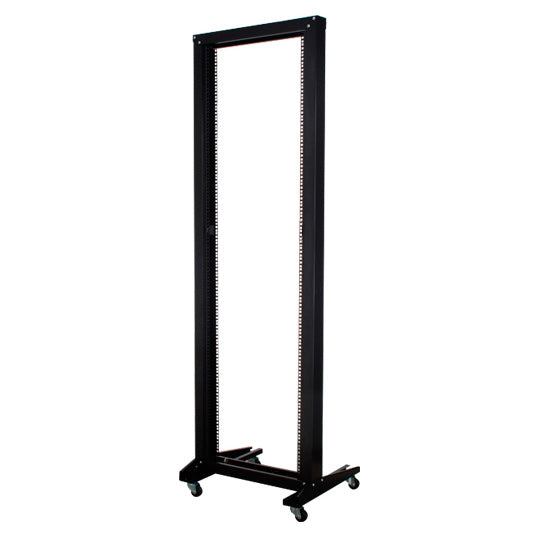

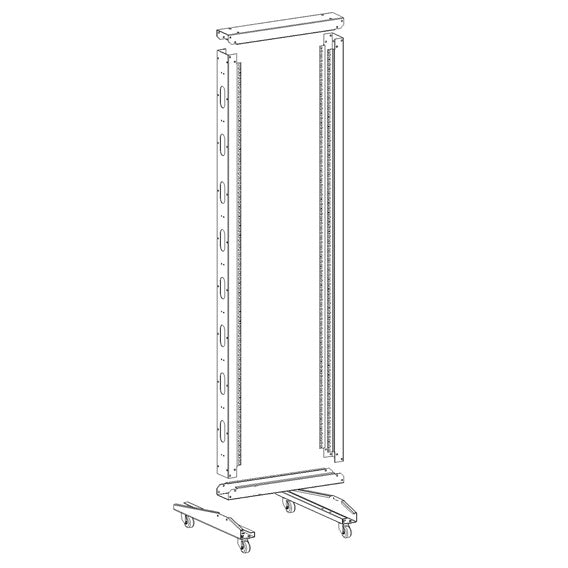

This 2-post relay rack is 19 inches wide, and 42U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
| Physical Characteristics | |
|---|---|
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 300kg |
| Mounting Rails | 2 x 19″-Mounting Rail Posts (square hole knockouts on both sides) |
| Mounting Rail Thickness | 1.9mm |
| Product Dimensions | 78.75″H x 23.6″W x 23.6″D [200cmH x 60cm W x 60cm D] |
| Compatibility | |
| Compatible Vertical Cable Managers |
RM-450-42U – Vertical Cable Manager for Relay Rack – 42U RM-455-42U – 42U Vertical Cable Manager – Front Facing |
| Approvals | |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 – Relay Rack 42U (78 inch) – Knock Down Style (Unassembled) |
| 4 – Casters (use of casters is optional) | |
| Assembly Hardware | |
| M6 Screws and Cage Nuts | |
| Product Weight | 45.1 lbs [20.5kg] |
| Package Dimensions | 78″H x 6.5″W x 7″D [198cmH x 16.5cm W x 17.8cm D] |
