Description

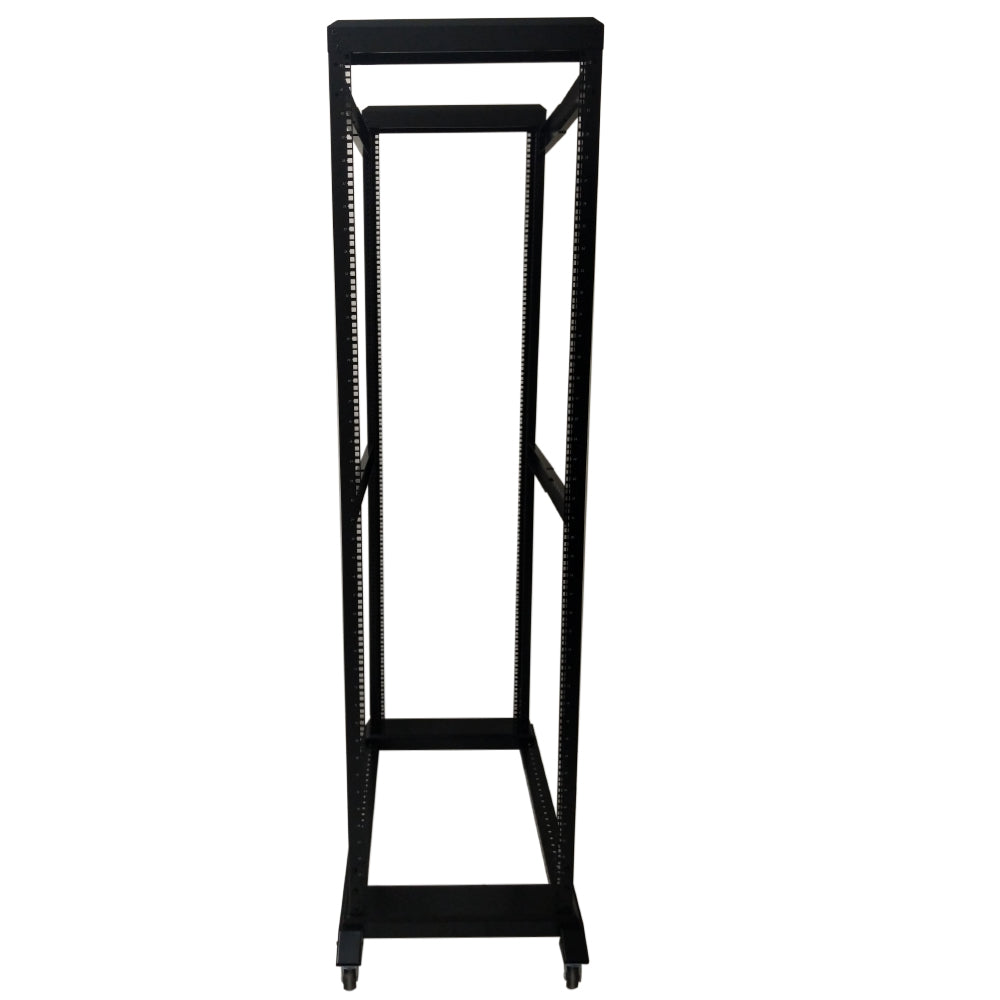

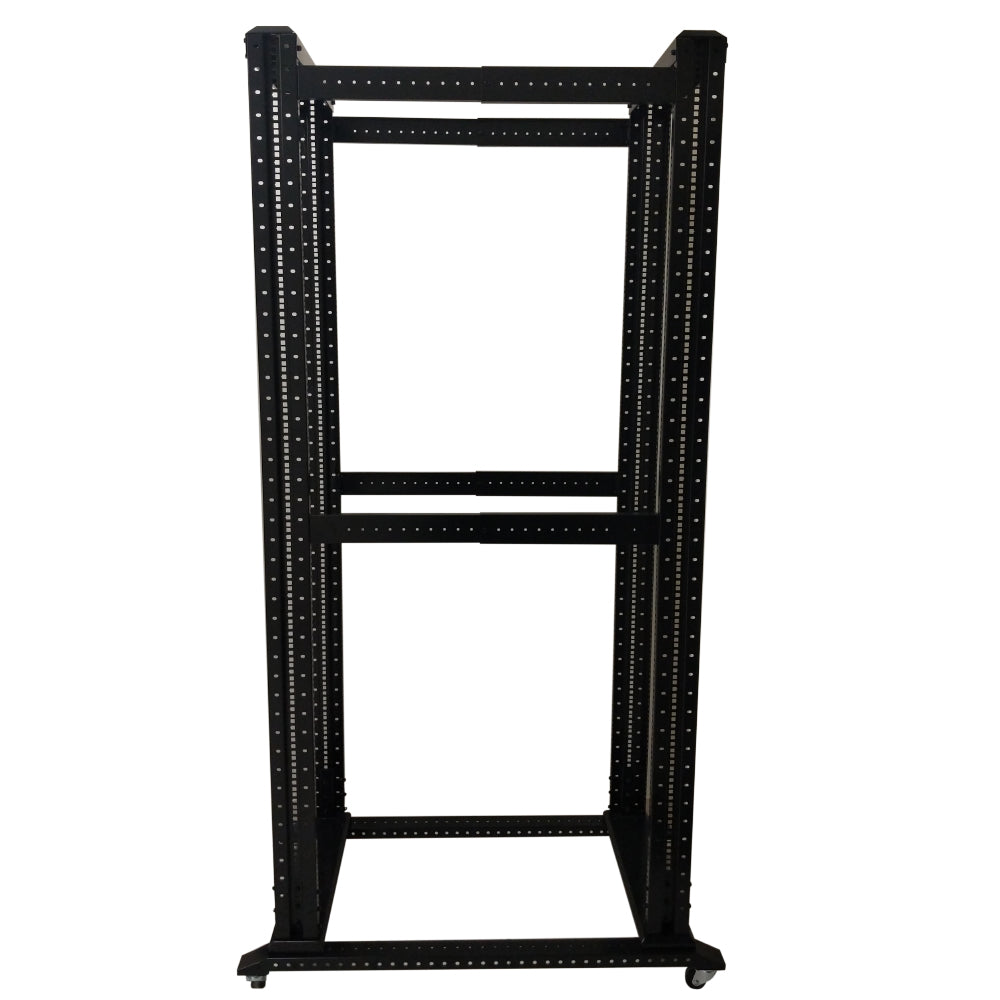

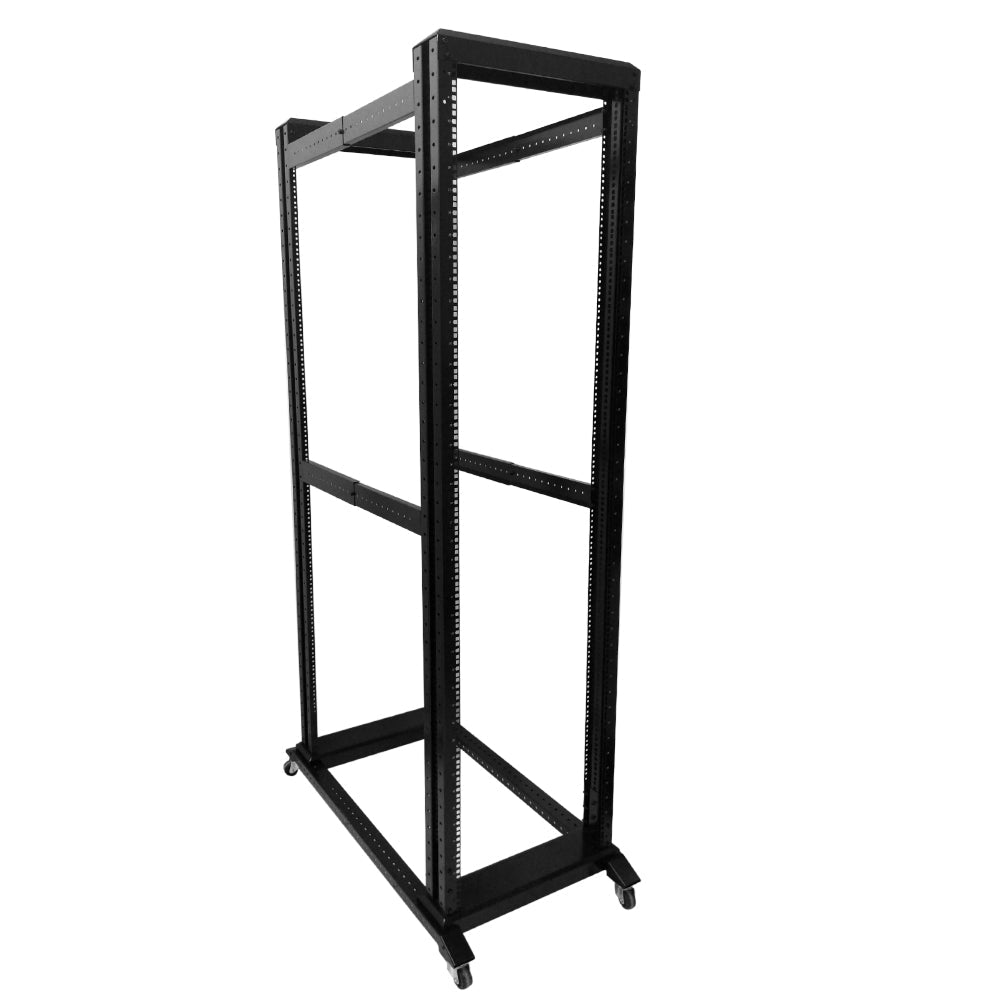

This 4-post relay rack is 19 inches wide, 42U in height and can be adjusted from 24 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
| Physical Characteristics | |
|---|---|
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 800kg |

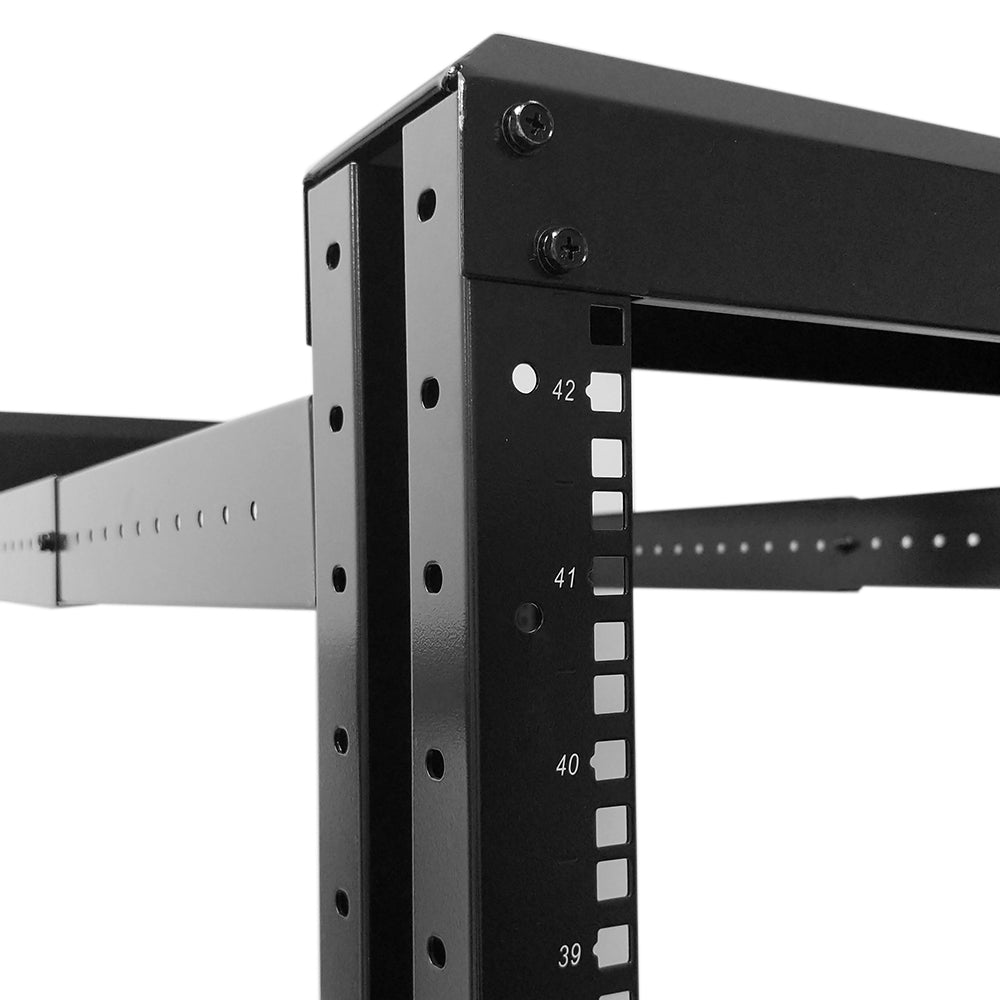

| Mounting Rails | 2 Pairs of Square Hole Rails |
| Mounting Rail Thickness | 1.7mm |
| Product Dimensions | 85Hx24Wx46D inches [316Hx61Wx117D cm] |
| Usable Mounting Dimensions | 42U, 19″ Wide, Adjustable Depth from 24 to 36 inches |

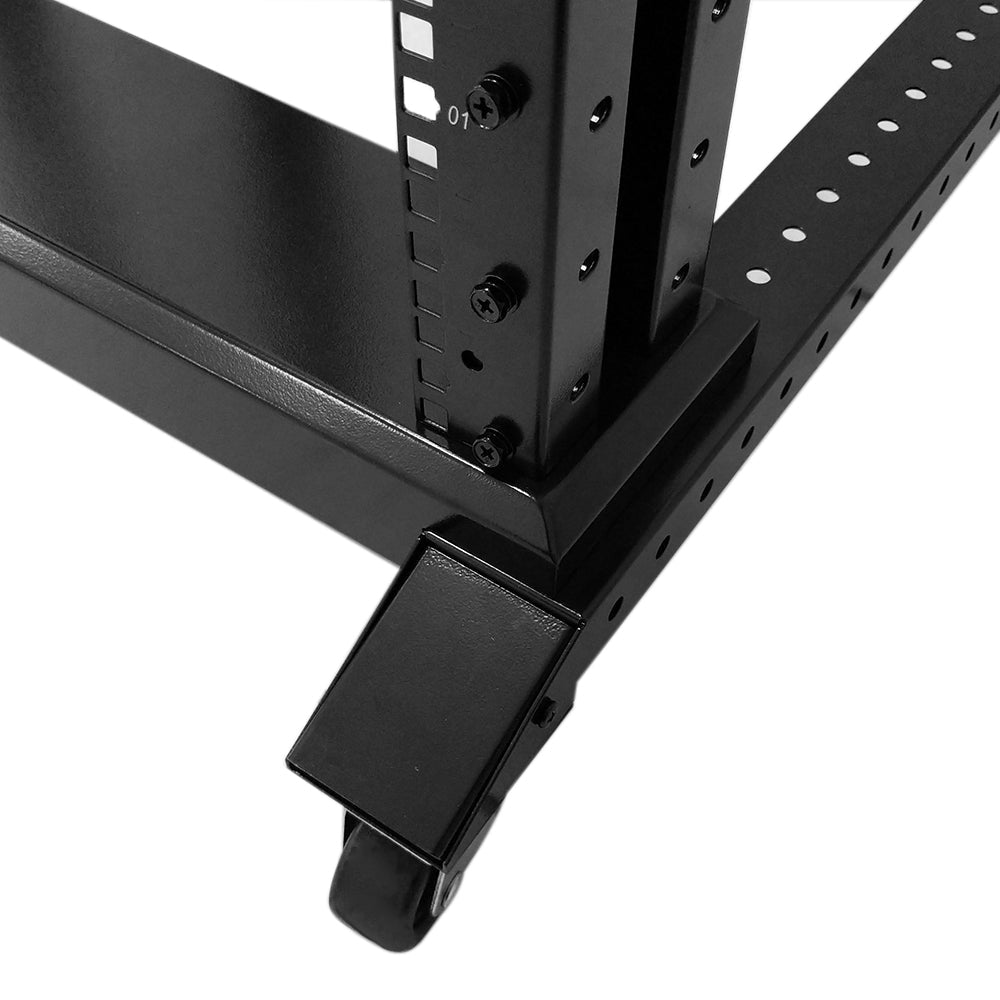

| Casters | Included – Optional Use |
| Compatibility | |
| Compatible Vertical Cable Managers |
RM-450-42U – Vertical Cable Manager for Relay Rack – 42U RM-455-42U – 42U Vertical Cable Manager – Front Facing |
| Approvals | |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 – 4-post Relay Rack – 19in 42U (Unassembled) |
| 40 – M6 Screws and Cage Nuts | |
| Assembly Hardware | |
| Product Weight | 86 lbs [39 kg] |
