Description

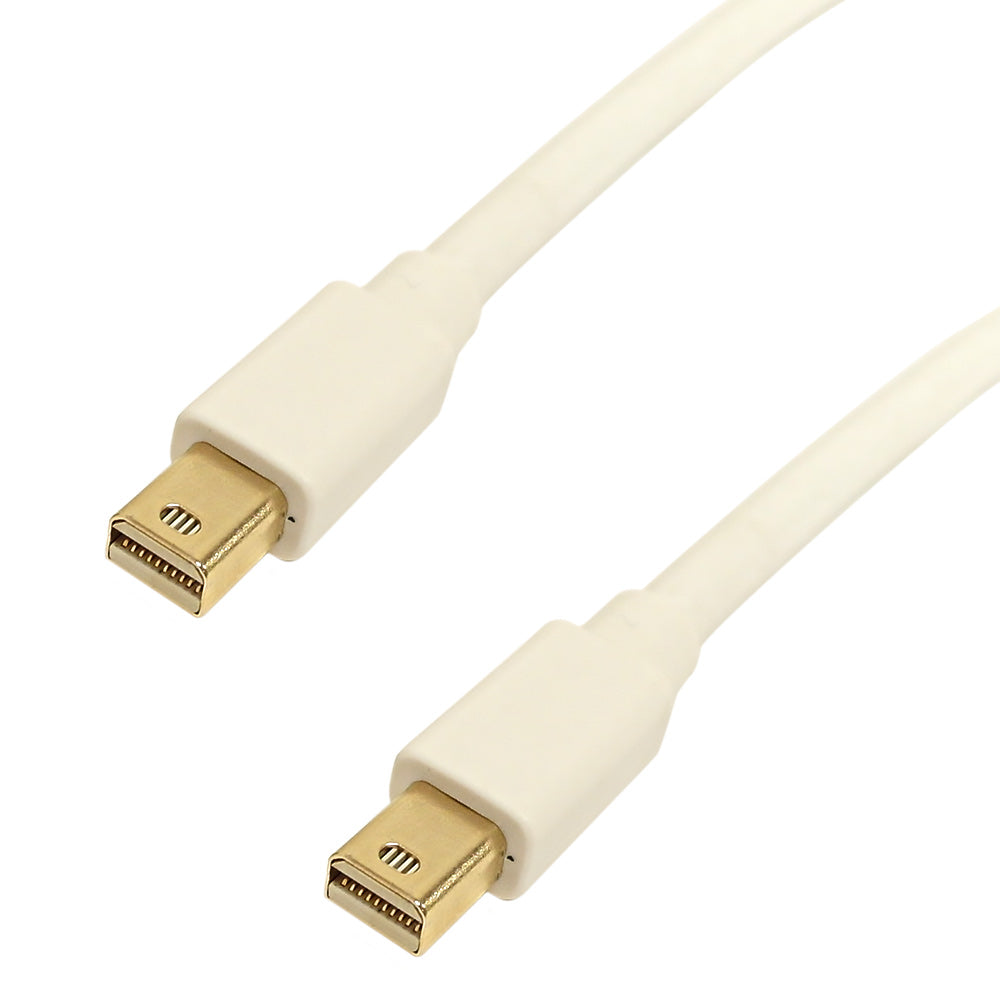

This cable has a Mini DisplayPort male on one end and a Mini DisplayPort male on the other. It is used to connect a Mini DisplayPort source to a Mini DisplayPort monitor. It can also be used to connect a Thunderbolt™ source to a Mini DisplayPort monitor.
|
Physical Characteristics
|
|
|---|---|
| Color | White |
| Connector Plating | Nickel |
| Wire Gauge | 32 AWG |
| Jacket Fire Rating | CL3/FT4 |
| Jacket Material | PVC |
|
Connectors
|
|
| Connector A | Mini DisplayPort male |
| Connector B | Mini DisplayPort male |
|
Performance
|
|
| Maximum Resolution | 4Kx2K (3840x 2160) |
| Maximum Frequency | 60Hz |
| Maximum Bandwidth | 21.6 Gbps (5.4Gbps * 4 lanes) |
| Supports 3D | Compliant |
| Audio Support | Compliant |
| DP Version | DP1.2 |
| Version | v1.2 Backwards Compatible with v1.1a |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Standards
|
|
| c(UL)us | Compliant |
|
Packaging Information
|
|
| Packaging Quantity | 1 |
|
Warranty
|
|
| Warranty | Lifetime Limited |
