Description
Overview

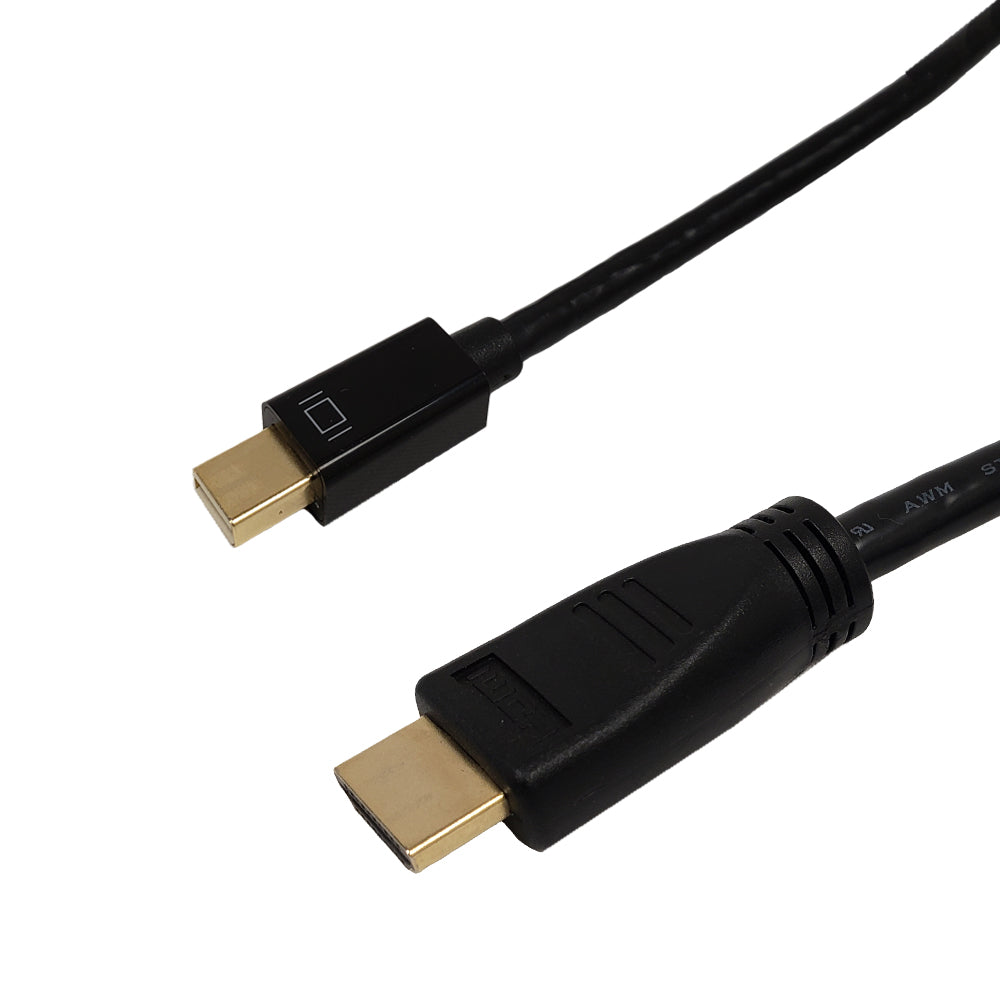

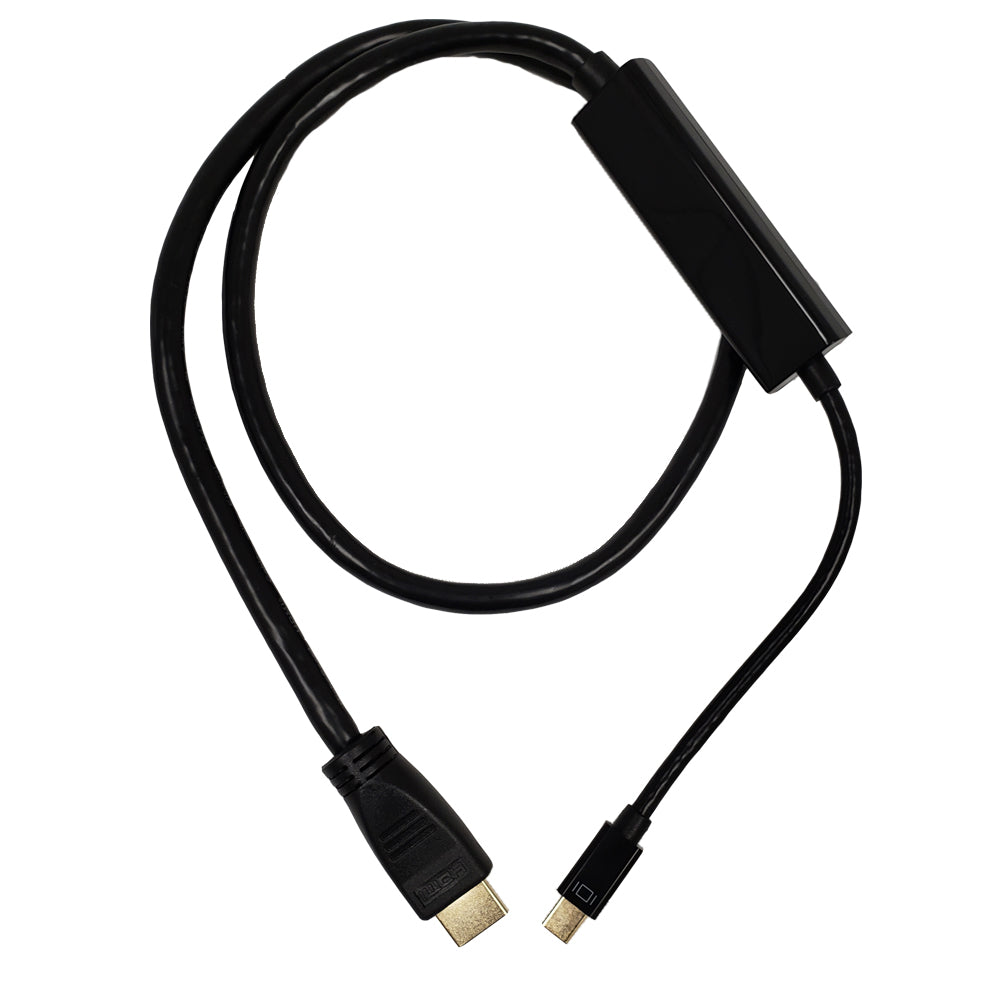

This Mini DisplayPort male to HDMI male cable supports resolutions of Ultra HD 4K x 2K at 60Hz. It is typically used to connect a Mini DisplayPort source (MacBook Pro, MacBook Air, etc.) to a HDMI display ( 4K HD TVs, Projectors, etc.). This cable in uni-directional, therefore it will only work from a DisplayPort source to a HDMI display and not in the reverse direction.
|
|
Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 4K x 2K (4096 x 2160) @ 60Hz. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Used in Common InstancesThis cable can be used in common instances – for example, connecting a MacBook to a TV, at the highest possible resolution available.
|
Application
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge | 28 AWG |
| Jacket Fire Rating | CL3/FT4 |
| Cable Type | Active |
| Temperature Rating | 80ºC |
|
Connectors
|
|
| Connector A | HDMI Male |
| Connector B | Mini DisplayPort Male |
|
Performance
|
|
| Bandwidth | 18 Gbps |
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz 1080p@75-144hz 1440p @75-144hz |
| 3D Support | Compliant |
| DP Version | v1.2 |
| HDMI Version | v2.0 |
| Content Protection | HDCP2.2 Compliant |
| Built in Ethernet Channel | Compliant |
|
Approvals
|
|
| c(UL)us | Approved Cable |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Packaging Quantity | 1 |
|
Warranty
|
|
| Warranty | Lifetime Limited |
