Description

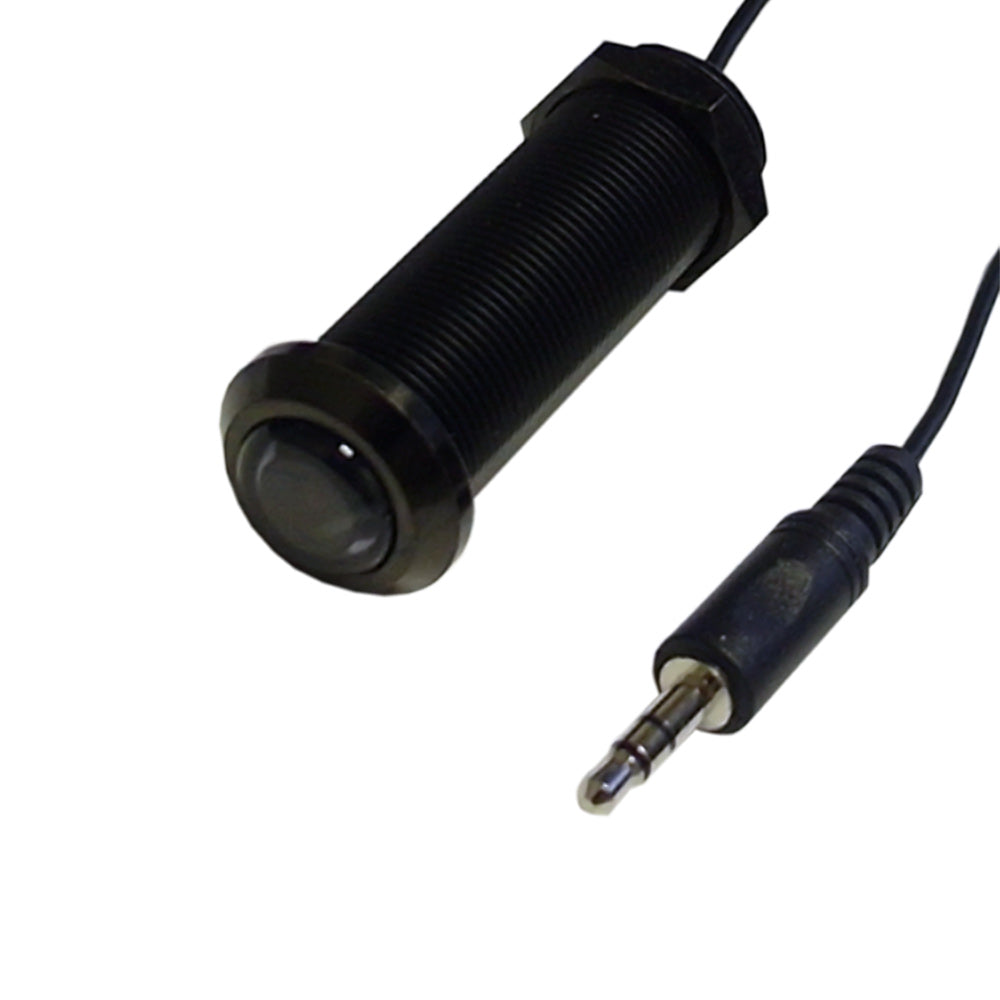

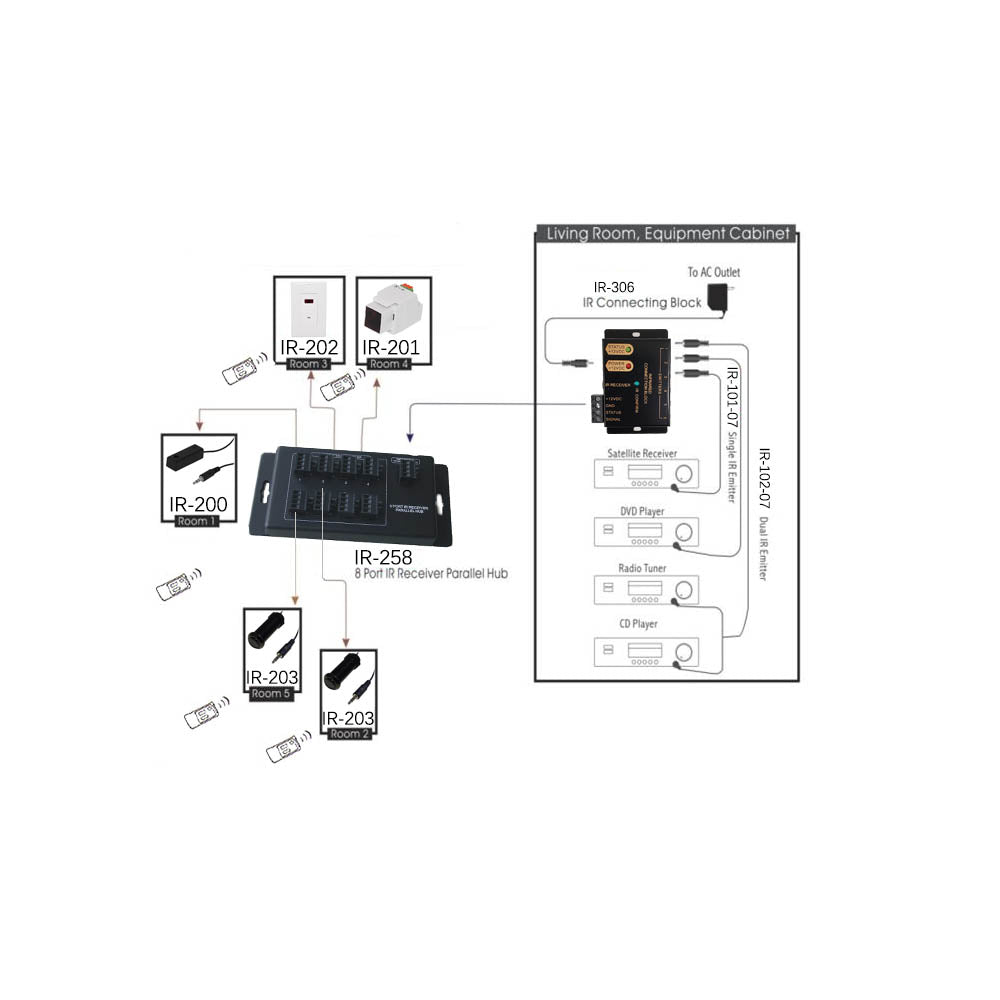

This dual band IR peep hole receiver consists of a IR peep hole receiver on one end and a 3.5mm stereo male plug on the other end. It is meant to receive remote control commands and be connected to an IR connecting block.
| Physical Characteristics | |
|---|---|
| Cable Length | 10 foot [3m] |
| Color | Black |
| Dimensions | 52.5mm x 16.5 mm |
| Cut Out Hole Dimensions | 17 mm |
| Connector(s) | |
| Connector A | IR Receiver |
| Connector B | 3.5mm Stereo Male |
| Performance | |
| IR Frequency Range | 30 KHz to 60 KHz |
| Range | 40ft. @ 38 KHz 25ft. @ 56 KHz |
| Power | 12VDC, 30mA Max. |
| CFL Friendly | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.06kg] |
| Contents | |
| Included in Package | 1 – IR Peep Hole Receiver |
