Description

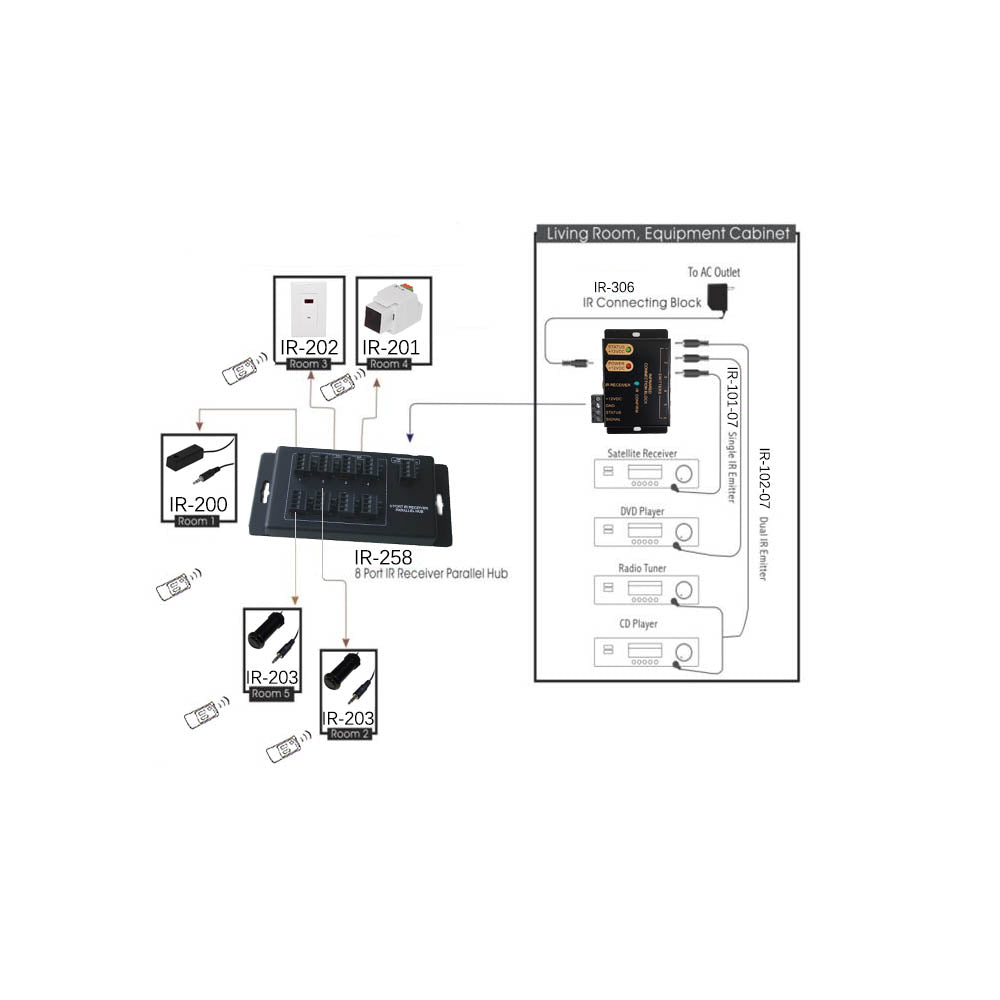

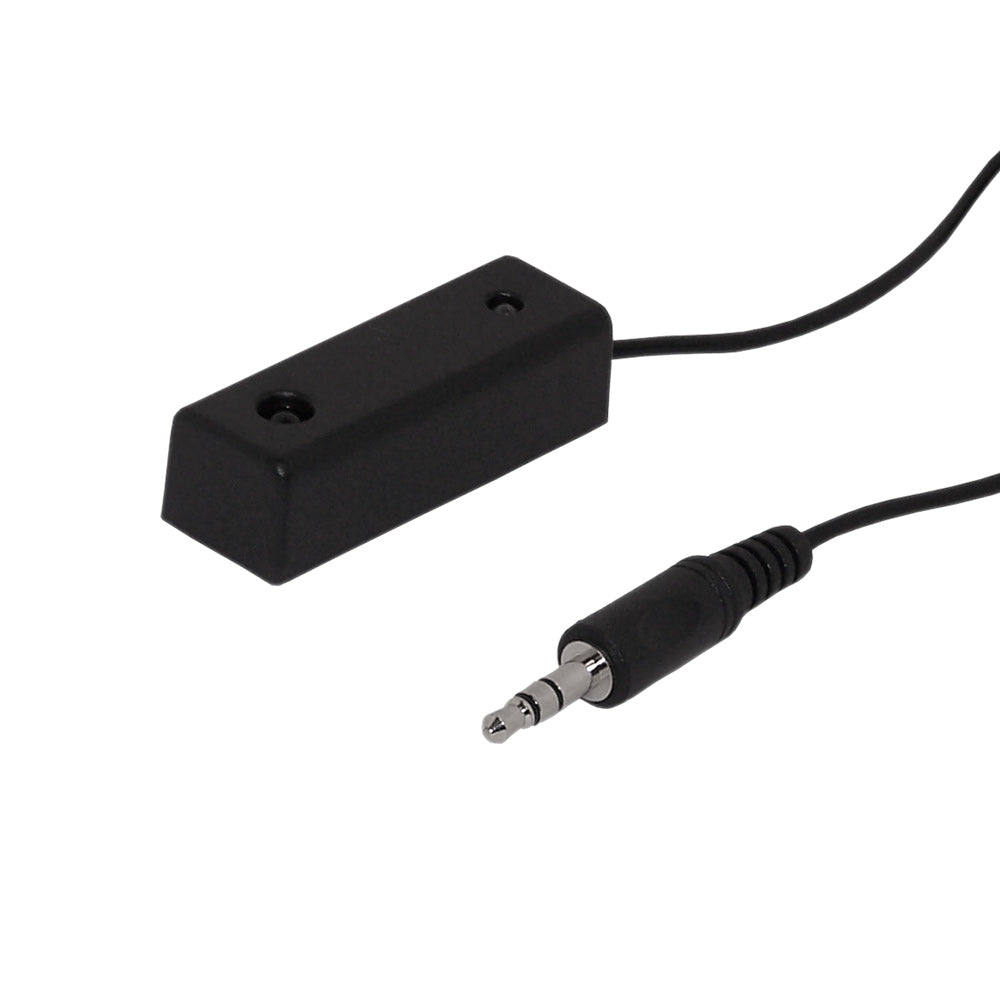

This IR surface mount receiver consists of a dual band surface mount receiver on one end and a 3.5mm stereo male plug on the other end. It is meant to receive remote control commands and be connected to an IR connecting block.
| Physical Characteristics | |
|---|---|
| Cable Length | 10 foot [3m] |
| Color | Black |
| Dimensions (LxWxH) | 45 x 14 x 13 mm |
| Connector(s) | |
| Connector A | Dual Band IR Receiver |
| Connector B | 1/8″ (3.5mm) TRS Mini-Plug |
| Performance | |
| IR Frequency Range | 30 KHz to 60 KHz |
| IR Pickup Range | 40ft at 38 KHz |
| IR Confirmation LED | Compliant |
| CFL Friendly | Compliant |
| Power | 12VDC, 30mA max |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.1 lbs [0.04kg] |
| Contents | |
| Included in Package | 1 – IR Dual Band Surface Mount Receiver 1 – Self-Adhesive Tape |
