Description

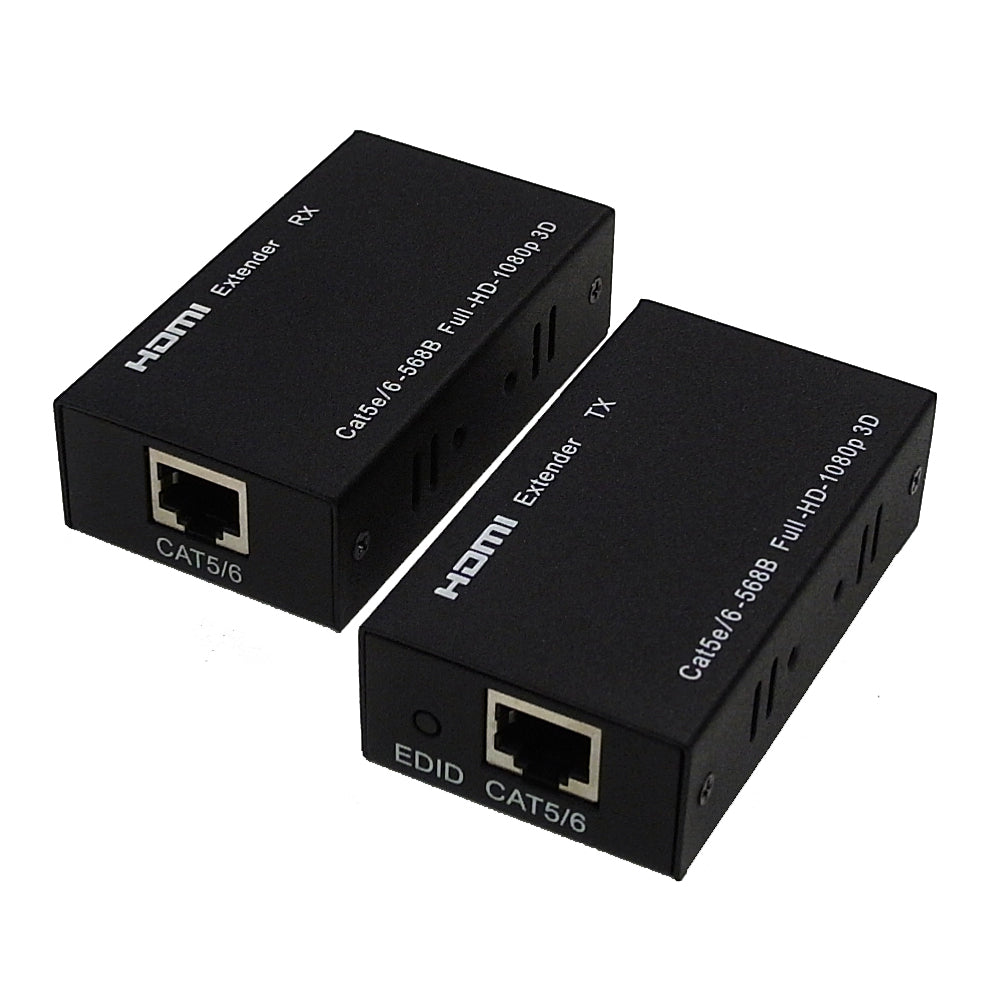

This HDMI video extender allows you to extend your display up to 40 meters at a resolution of 4K@30Hz or 70 meters at a resolution of 1080p away from your source device over a single CAT6.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -15℃ ~ 55℃ |
| Power | |
| Input Voltage | 125V |
| Power Supply | 2 x 5 volt, 1 amp DC Converter |
| Compatibility | |
| PC to Monitor | Compliant |
| PC to TV | Compliant |
| DVD to Monitor | No |
| DVD to TV | Compliant |
| Connector(s) | |

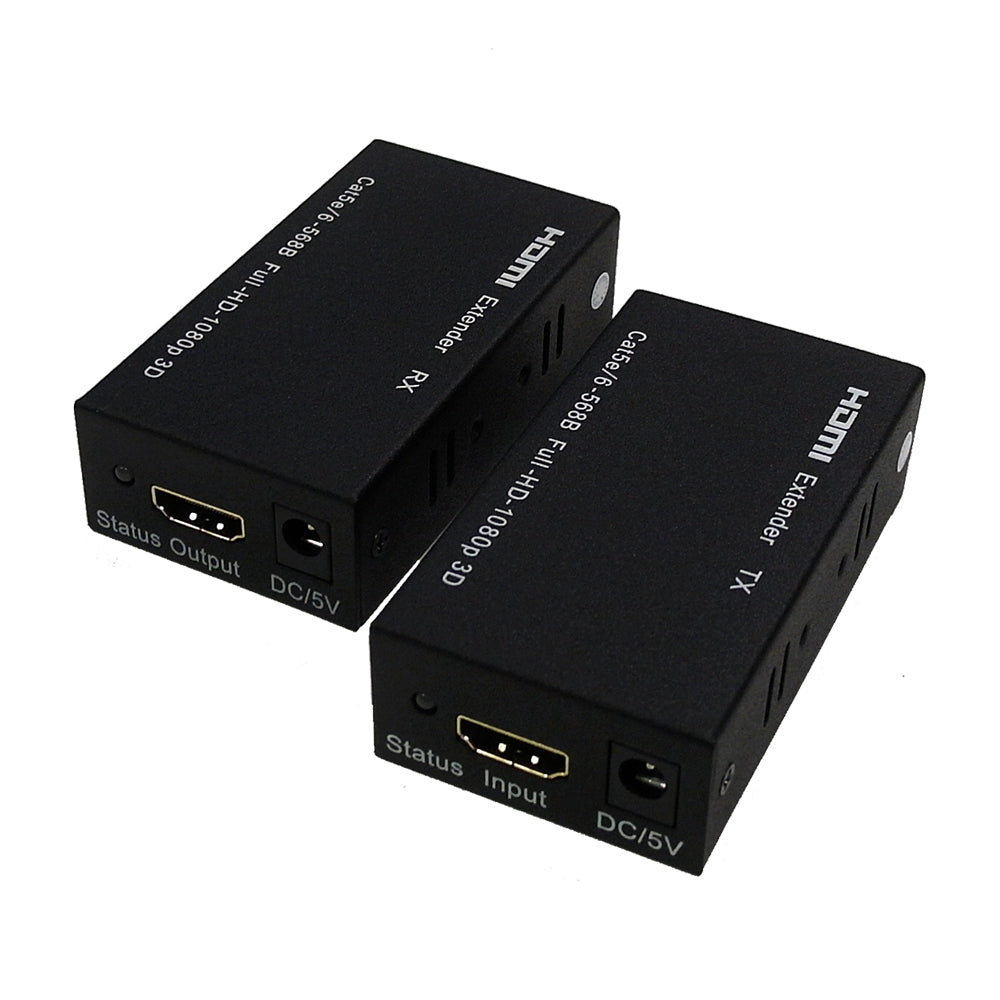

| Transmitter | HDMI Input Female, RJ45 Female |
| Receiver | HDMI Output Female, RJ45 Female |
| Performance | |
| Video | 480i/ 480p/ 720p/ 1080i/ 1080p@60Hz/ 1080p/ 4K@30Hz |
| Video Bandwidth | 165MHz Max |
| Transmission Range | Single CAT-6 cables up to 70 meters, Max resolution 1080p Single CAT-6 cables up to 40 meters, Max resolution 4K@30Hz |
| Audio | DTS-HD, Dolby-true HD, DTS, Dolby-AC3, DSD |
| HDCP Compliant | Compliant |
| Supports EDID 2D, 3D | Compliant |
| Compatibility | |
| Sync Device and Display | Set the resolution of the source device to match the display resolution. The extender will not work if the source devices resolution is set higher than the displays capabilities |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.5 lbs [0.2kg] |
| Package Weight | 1 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 – Transmitter |
| 1 – Receiver | |

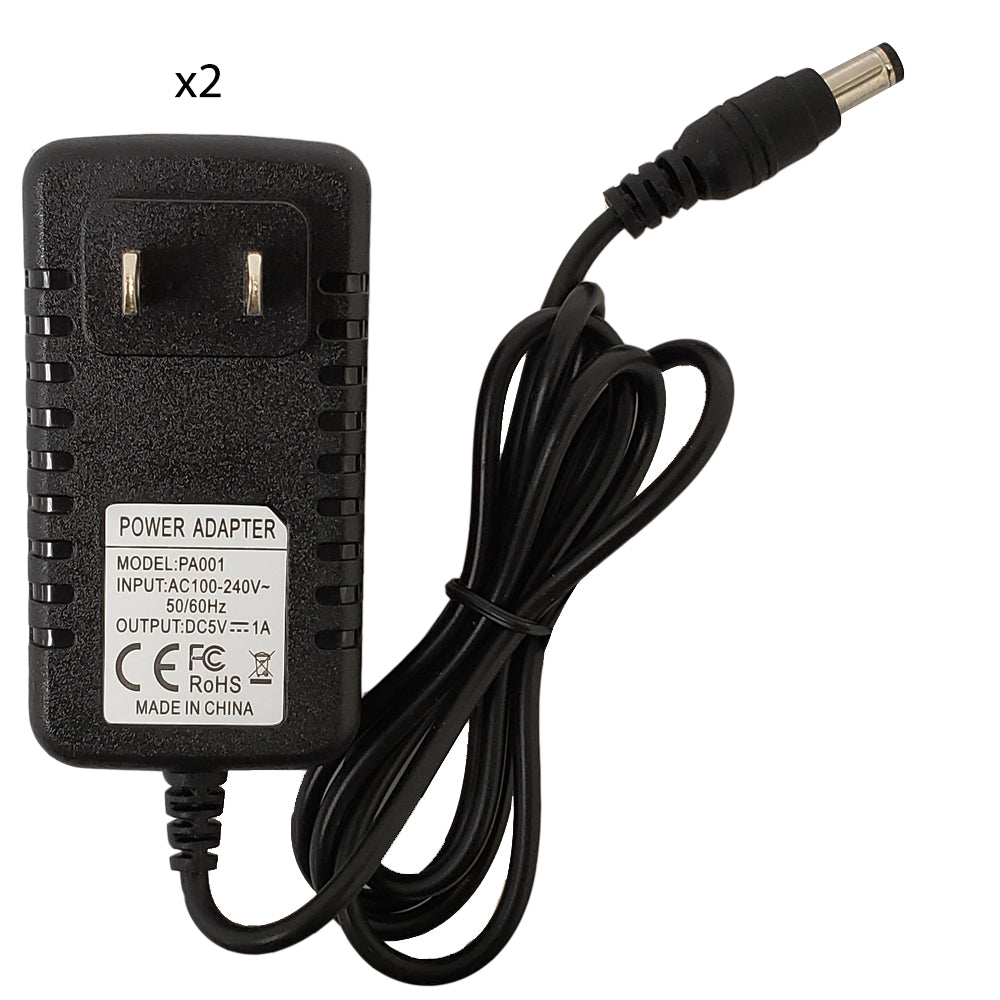

| 2 – DC5V Power Adapter | |
| 1 – Manual | |
