Description
This 8 port HDMI video extender allows you to extend a maximum of eight 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4Kx2K@30Hz. It also has a single HDMI output for a local monitor.
*Please note that the transmitter must be placed in a well ventilated area to avoid overheating.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | Transmitter: 295 x 82 x 18mm (W x D x H) Receiver: 79.5 x 69 x 16.5mm (W x D x H) |
| Operating Temperature | 0C to +40C (+32F to +104F) |
| Storage Temperature | -20C to +60C (+-4F to +140F) |
| Relative Humidity | 20~90% RH (non-condensing) |
| Power | |
| Power Supply | 12V/2.5A DC Power (US/EU Standards, CE/FCC/RoHS Certified) |
| Power Consumption | 19.2W |
| Connector(s) | |

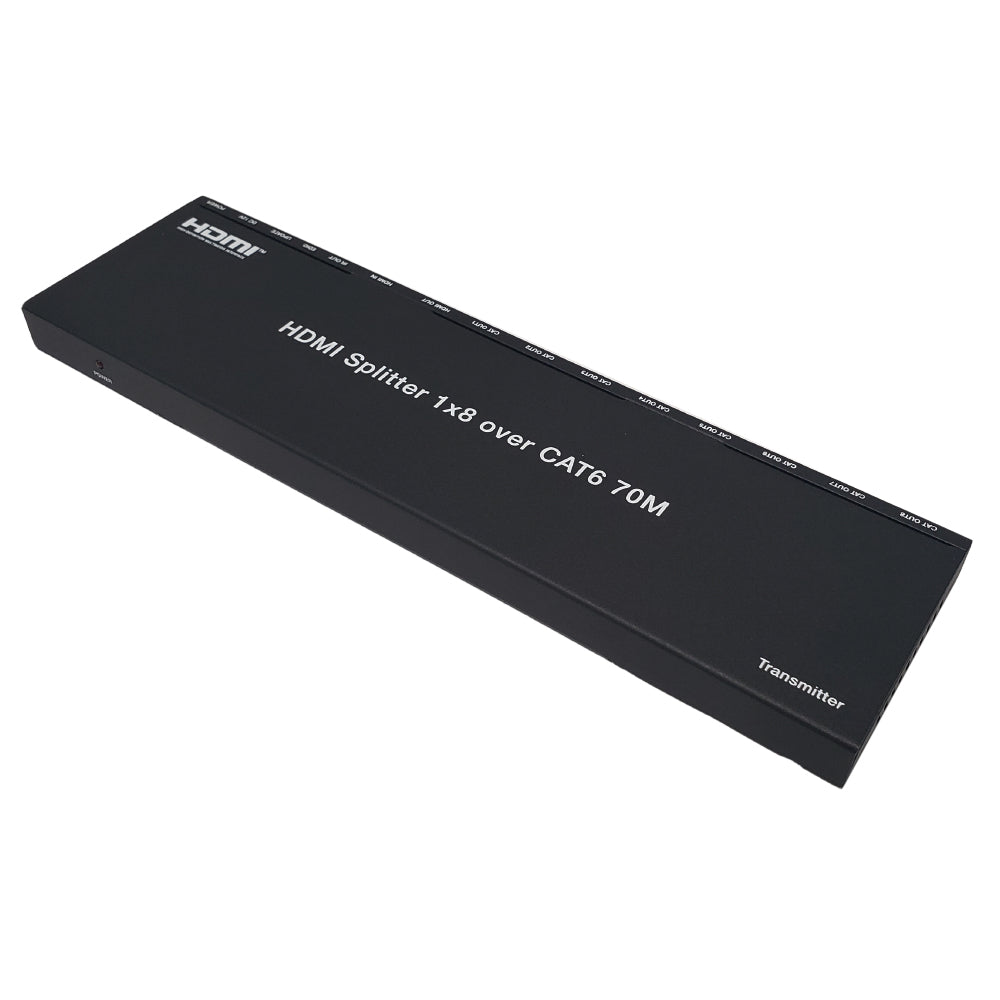

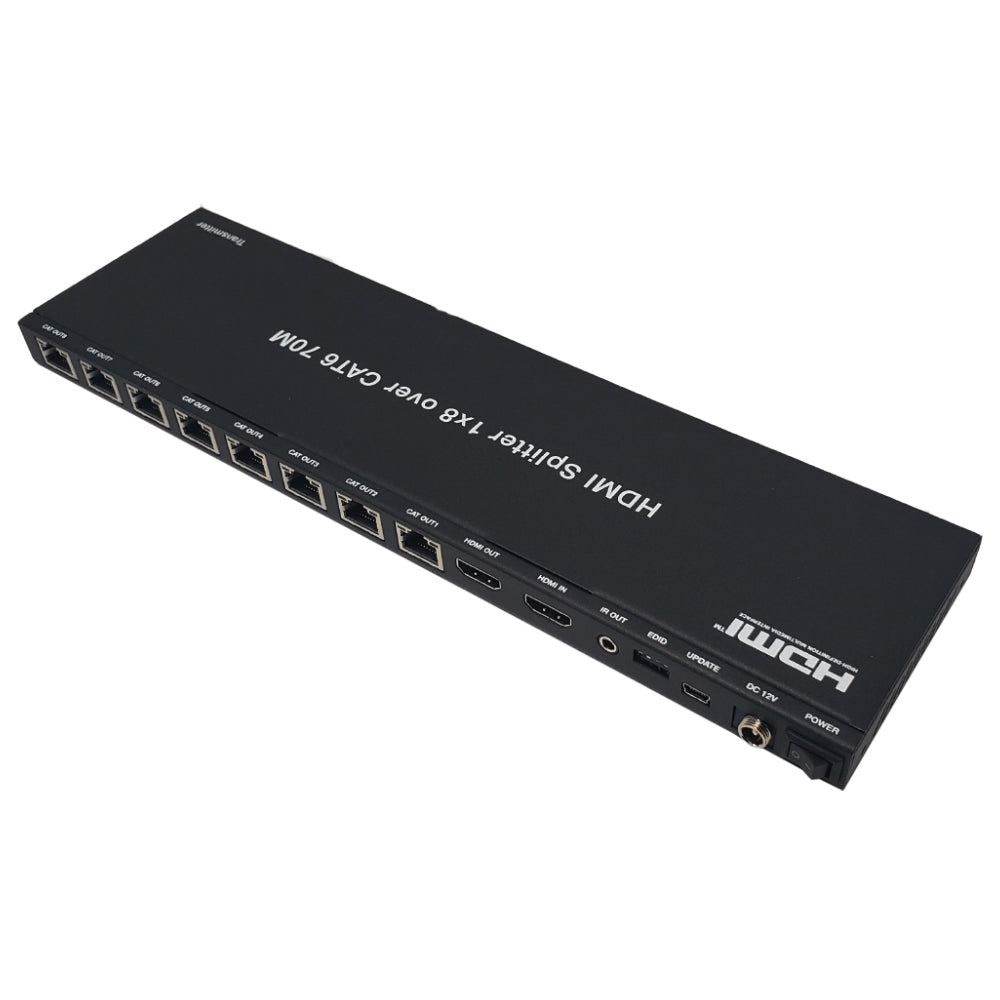

| Transmitter x 1 | 1 – HDMI Female Input 1 – HDMI Female Output 8 -RJ45 Female Output 1 – IR Output 1 – EDID Dip Switch 1 – Micro USB Update Port |

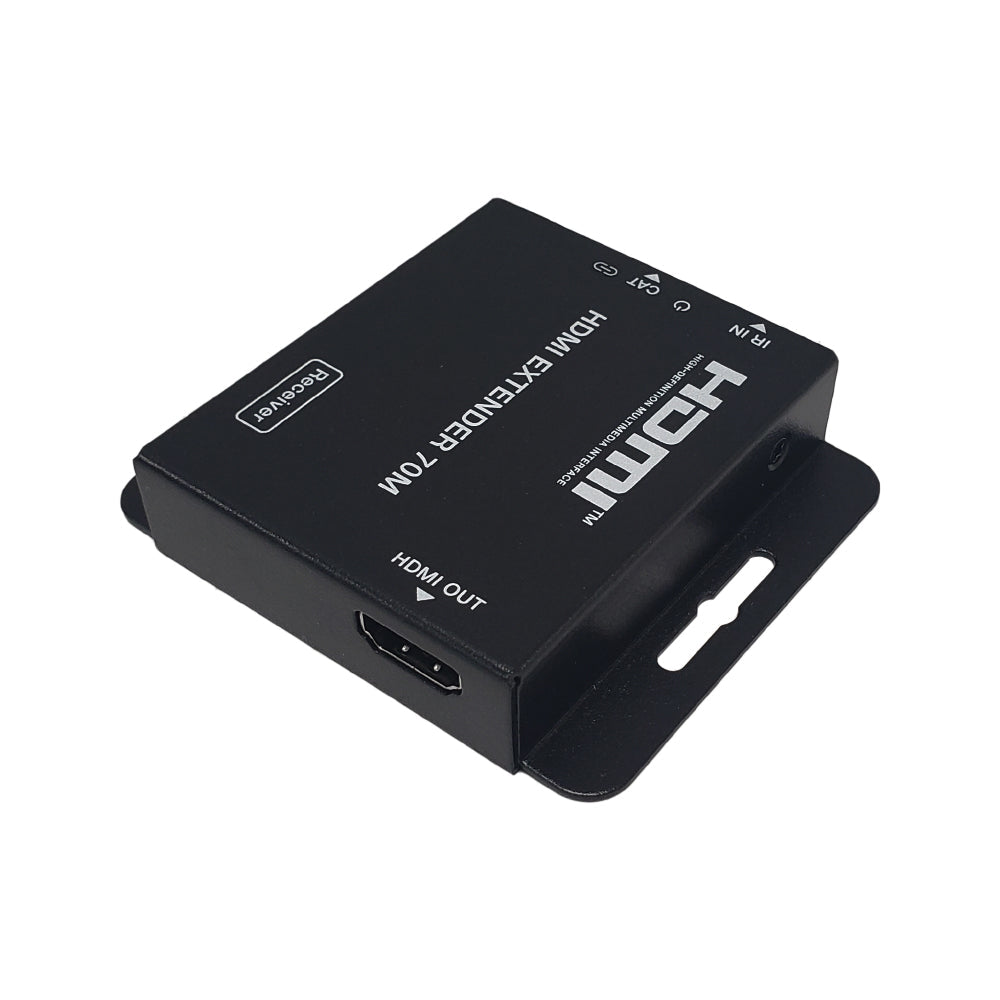

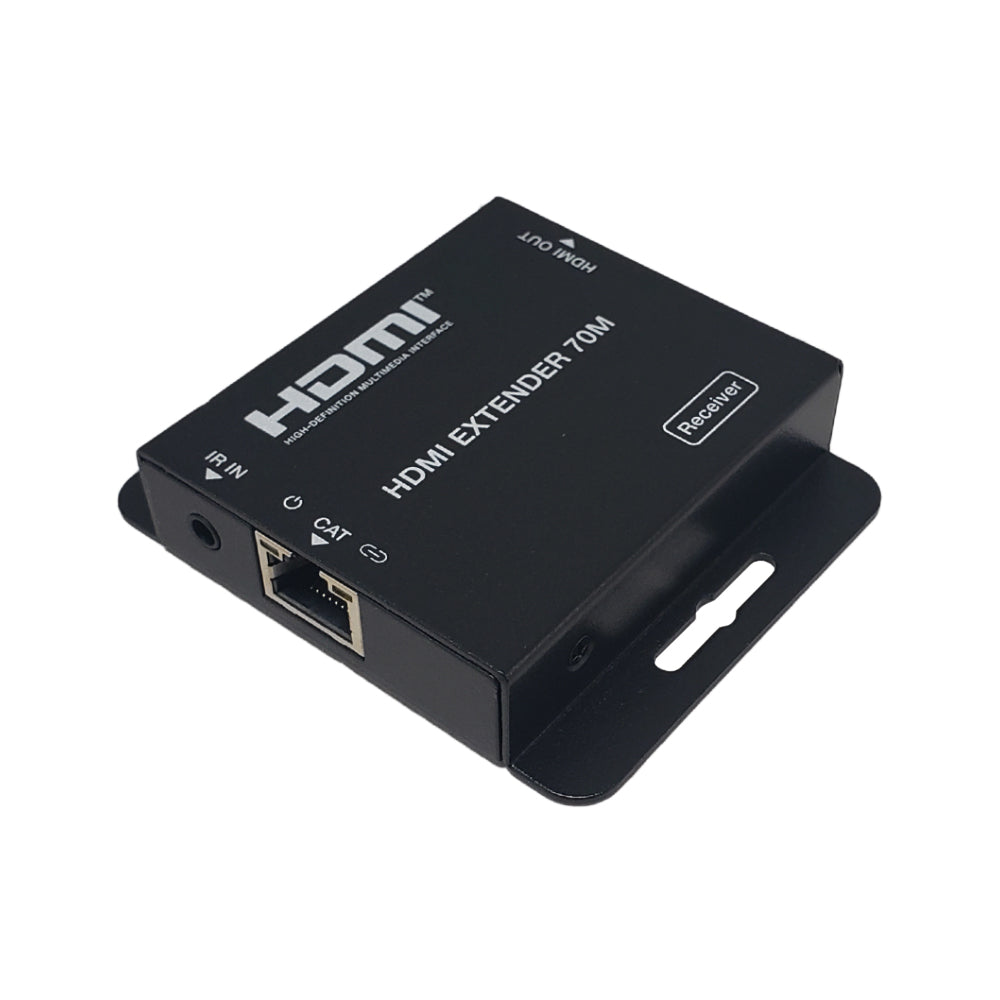

| Receiver x 8 | 1 – HDMI Female Output 1 – RJ45 Female Input 1 – IR Input |
| Performance | |
| Video Bandwidth | 297MHz/10.2Gbps |
| Video Resolution | 480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4) |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz) |
| Color Space | RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0 |
| Audio Formats | LCPM 7.1CH, Dolby True HD and DTS-HD Master Audio |
| Transmission Distance | 1080p@60Hz – 70m 4K@30Hz – 40m |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Supports | Advanced EDID management 12V POC function (only from transmitter to receiver) |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 5.07 lbs [2.30kg] |
| Contents | |

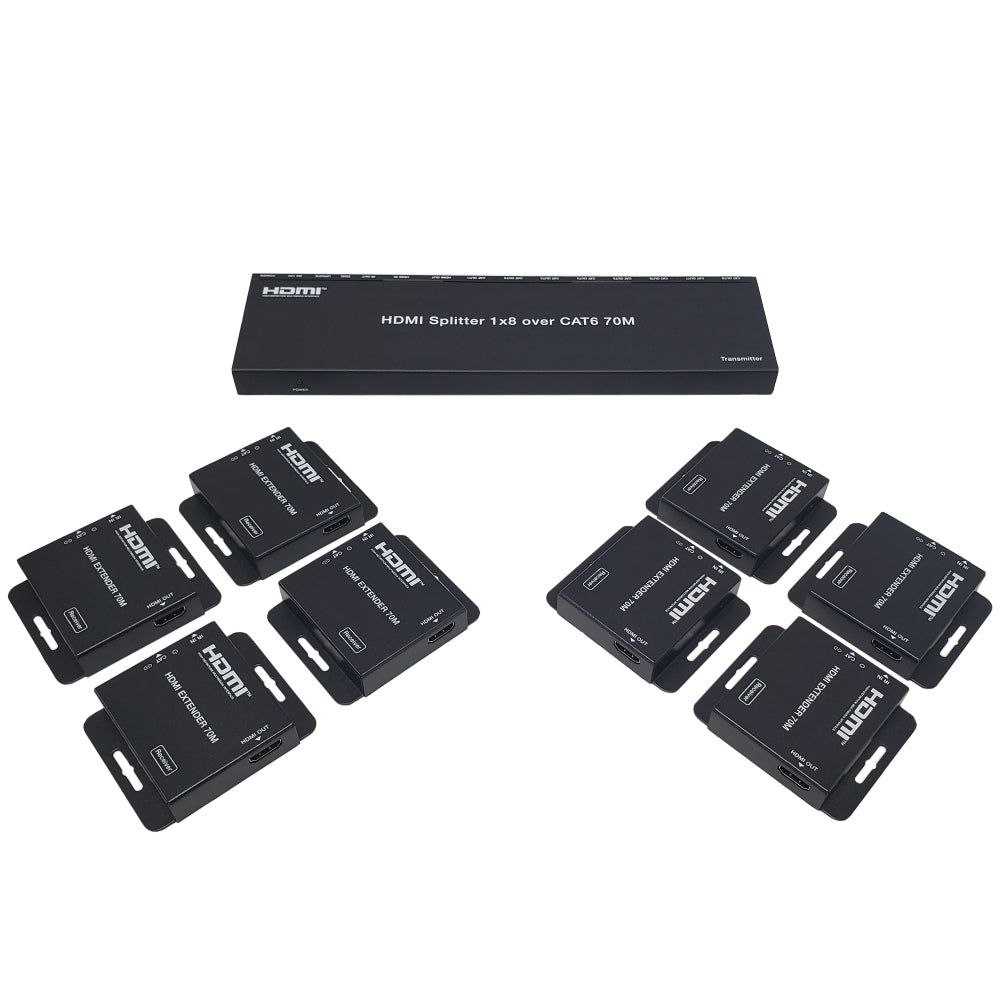

| Included in Package | 1 – HDMI 1×8 Splitter 8 – Receivers 1 – IR Blaster 8 – IR Receiver 2 – Mounting Ears 1 – 12V/2.5A DC Locking Power Adapter 8 – Machine Screws (KM3*4) 1 – User Manual |
