Description
Overview

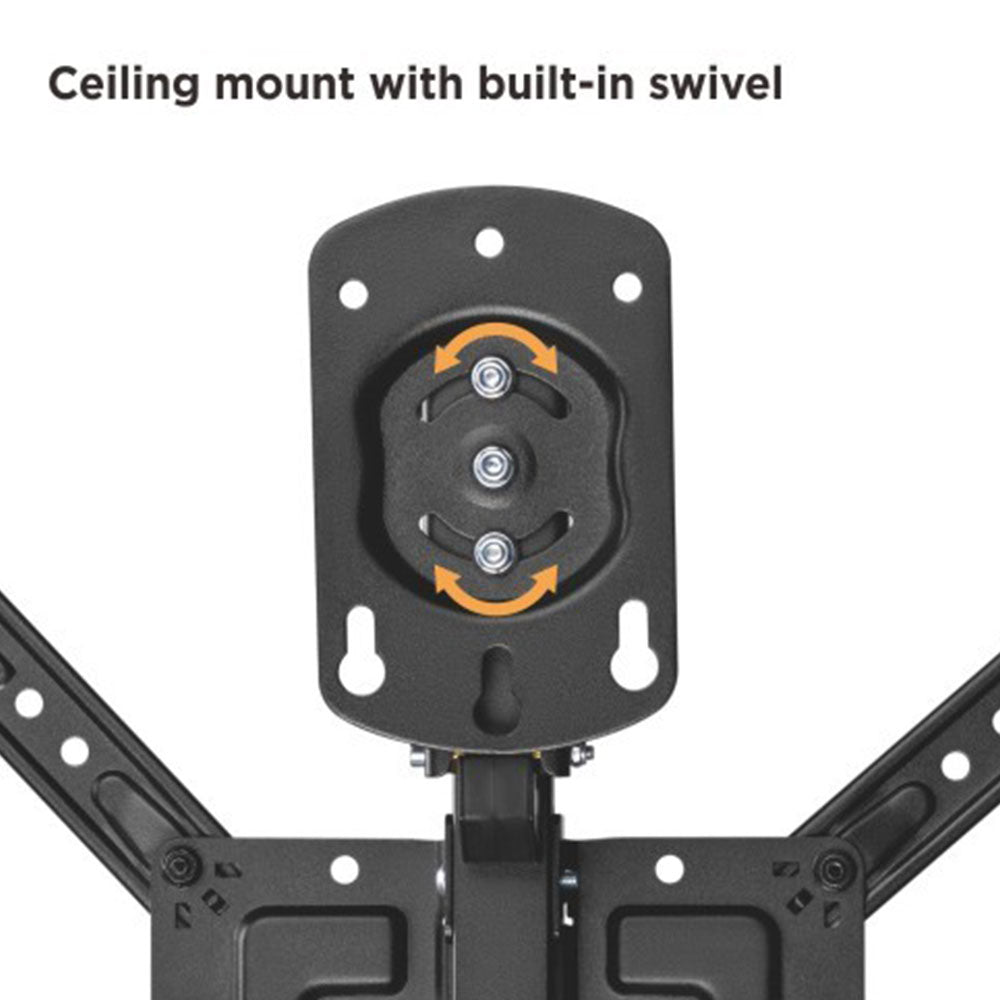

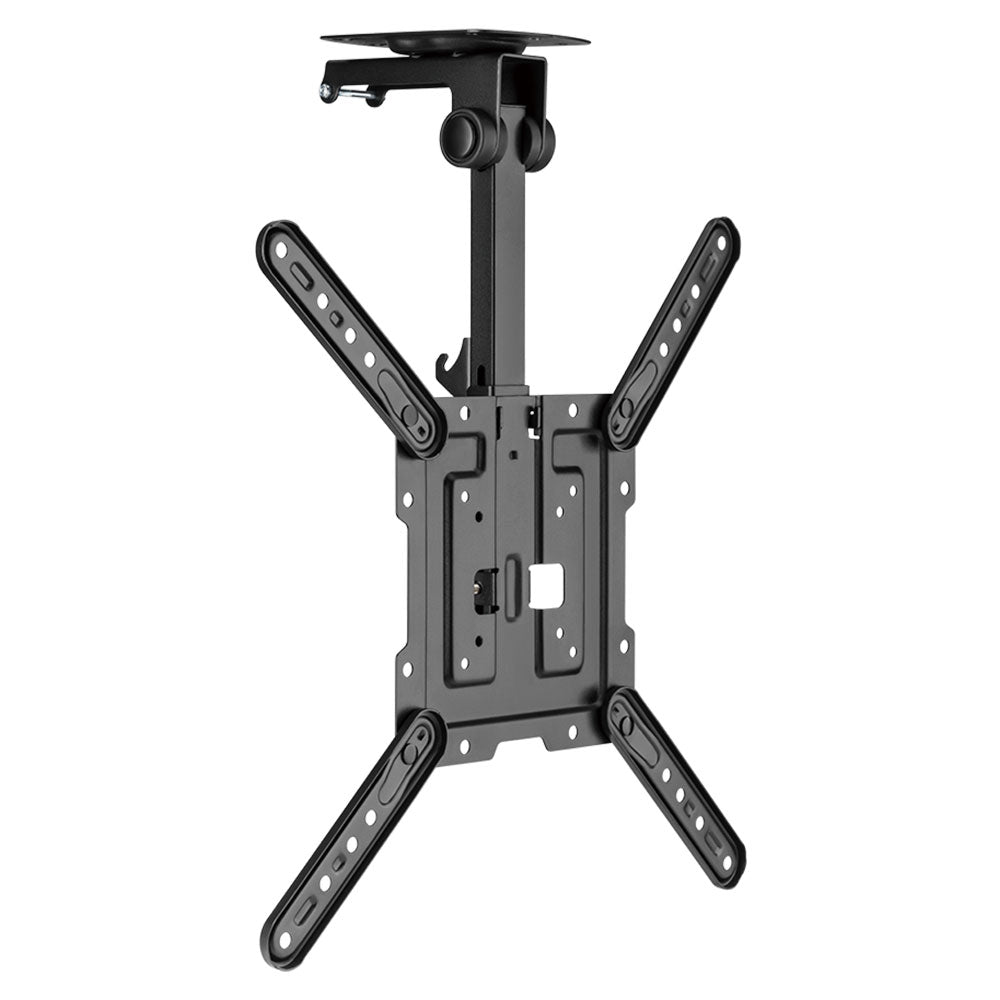

This folding ceiling mount bracket is designed to hold 23 inch to 55 inch flat screen displays with a maximum VESA hole pattern of 400×400. It can be mounted on a flat or beveled ceiling. It features Lightweight aluminum and steel construction with ample adjustability that includes a 360° swivel. It is typically used in retail and commercial settings.
 |

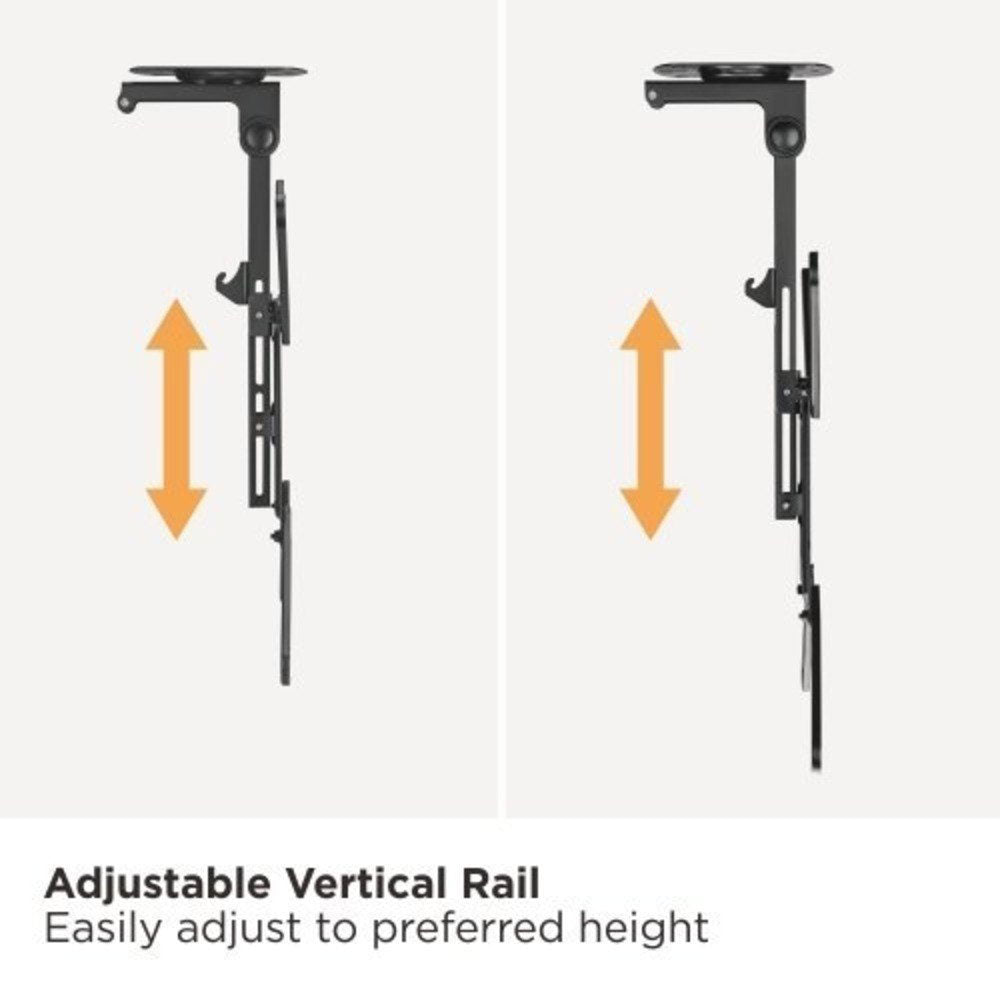

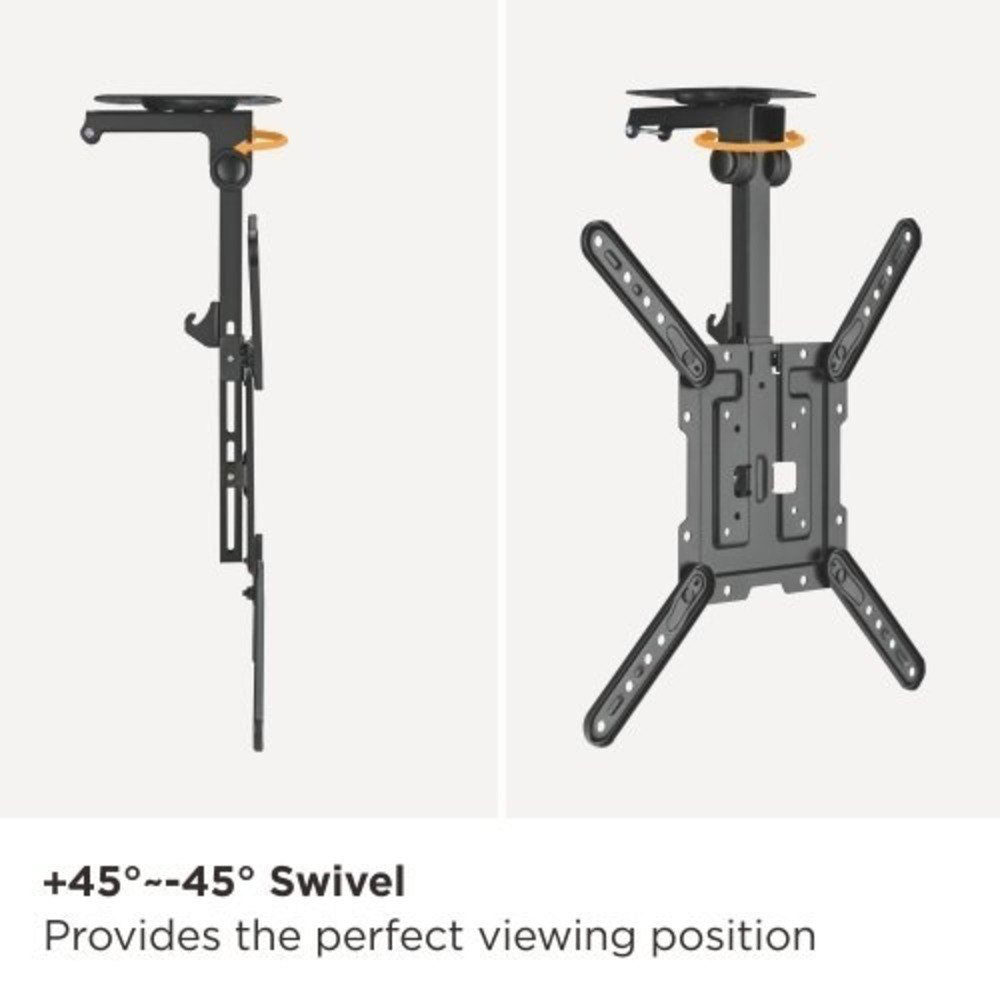

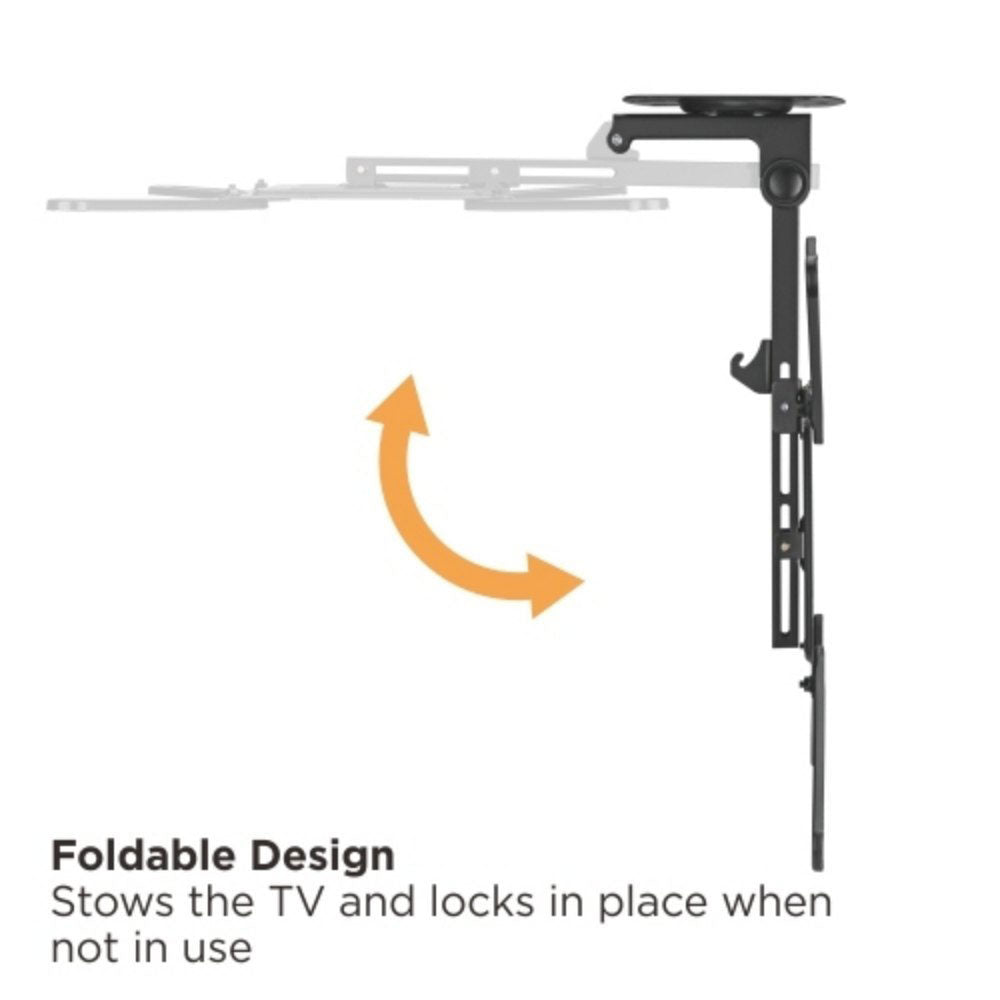

Space-Saving Folding MechanismThe mount features a fold-up locking design, allowing the TV and arm to tuck flush against the ceiling or cabinet when not in use. This is ideal for maximizing floor space in work areas, kitchens, or compact rooms. Wide Swivel RangeThe unit provides a ±45° swivel range, allowing users to pivot the screen to find the optimal viewing angle from multiple locations in a room. Height-Adjustable Vertical RailUsers can easily customize the vertical positioning of the screen, ensuring the TV sits at the perfect eye level regardless of ceiling height or cabinet depth.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Ceiling Mount |
| Color | Black |
| Material | Steel |
| Surface Finish | Powder Coating |
| Pipe Size | 30x20x1.5mm (1.2″x0.79″x0.059″) Square Steel Tube |
| Dimensions | 614x435x165mm (24.2″x17.1″x6.5″) |
| Mounting Pattern | VESA 75×75, 100×100, 100×200, 200×100, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 400×400 |
| Screen Size | 23″-55″ |
| Fit Curved TV | Yes |
| Weight Capacity | 20kg (44lbs) |
| Strength Tested | 3 Times Approved |
| Tilt | 0/-80° |
| Swivel | +45°~-45° |
| TV Height Range | min520~max614mm (min20.5″~max24.2″) |
| Profile | 83mm (3.3″) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 – M6x12 Screws 4 – M6 Nuts 4 – M6x14 Screws 4 – M6x30 Screws 4 – M8x16 Screws 4 – M8x35 Screws 4 – D8 Washers 4 – Φ15x8x5 Washers 4 – Φ15x8x15 Washers 4 – ST6.3×55 Screws 4 – Concrete Anchors 4 – D6 Washers |
| Product Weight | 5.24lbs |
|
Warranty Information
|
|
| Warranty | 5 Year Warranty |
