Description
Overview

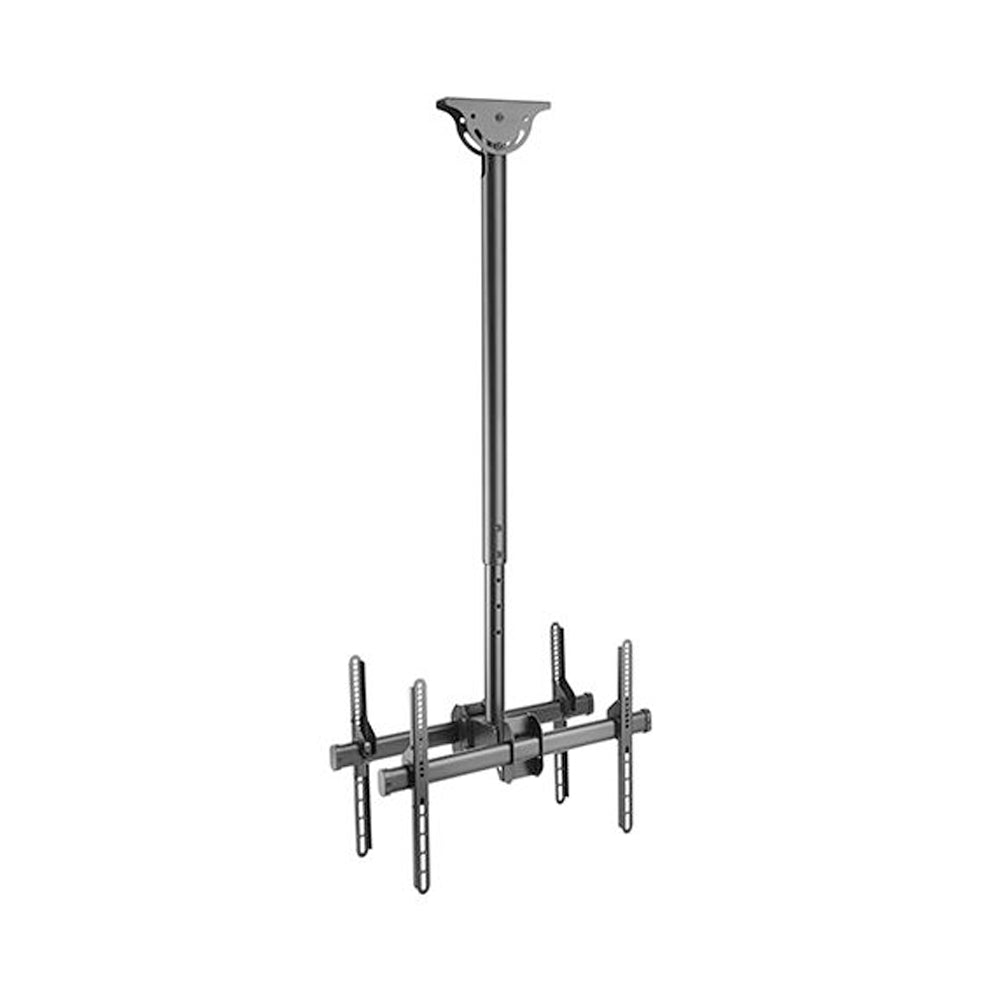

This dual ceiling mount bracket is designed to hold 37 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600×400. It can be mounted on a flat or beveled ceiling. It allows two screens to be placed back-to-back. It offers a 20° downward tilt, a 5° upward tilt and can swivel 180° in either direction. It also has built in cable management. It is typically used in retail and commercial settings.
 |
Full Motion Makes any Seat, the Best SeatThe tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swivel to the left or right direction at 180°, has a downward tilt of 20° and an upward tilt of 5°. Level Adjustment is Easy on the EyesThe built-in level adjustment ensures perfect positioning for a pleasurable viewing experience. It offers 3° clockwise and counter-clockwise turning to ensure a perfect level. Built-in Cable ManagementThis bracket comes with integrated cable management. This allows easy maintenance of cables and accessories.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Ceiling Mount |
| Color | Black |
| Material | Steel |
| Mounting Pattern | VESA 200×200, 400X200, 300X300, 400X400, 600×400 |
| Screen Size | 37 – 70 inches [94 – 178cm] |
| Weight Capacity | 45kg [99lbs] per TV |
| Tilt | -20° ~ +5° |
| Swivel | -180° ~ +180° |
| Level Adjustment | -3° ~ +3° |
| Profile | 1060 – 1560mm |
| Cable Management | Compliant |
| Motorized | Compliant |
| Bubble Level | Compliant |
|
Compatibility
|
|
| Extension Bar |
MT-213-BK – TV Ceiling Mount Extension Pole – 23 inch Length – Black MT-214-BK – TV Ceiling Mount Extension Pole – 46 inch Length – Black |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 8 – M5x14 Screws 8 – M6x14 Screws 8 – M6x30 Screws 8 – M8x30 Screws 8 – M8x50 Screws 8 – Rectangular Washers 16 – Small Spacers 16 – Big Spacers 4 – ST6.3×55 Screws 4 – Concrete Anchors 4 – D6 Washers |
| Product Weight | 20.6lbs [9.3kg] |
|
Warranty Information
|
|
| Warranty | 5 Year Warranty |
