Description

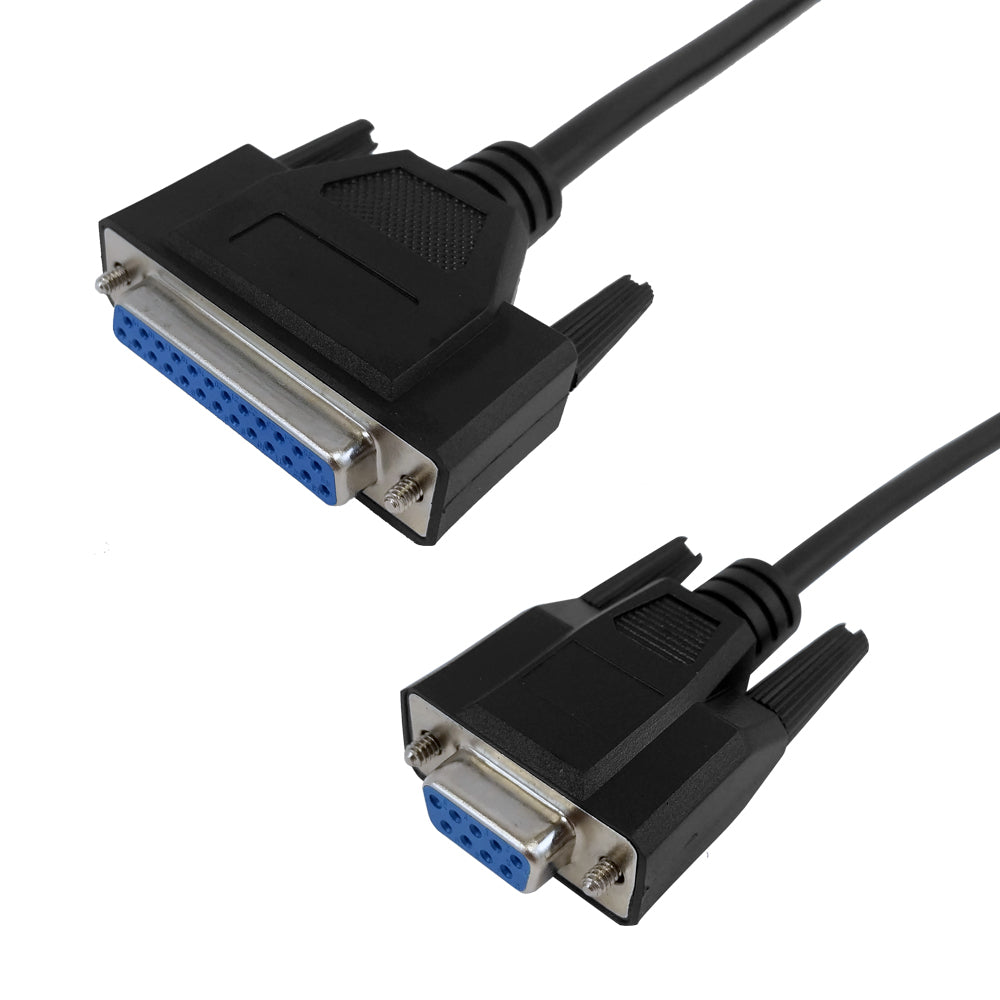

This null-modem serial cable consists of a DB9 female on one and a DB25 female on the other. It is commonly used in serial RS-232 null-modem applications.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Wire Gauge | 28AWG Stranded |
| Jacket Material | PVC – Polyvinyl Chloride |
| Cable Shielding | 100% Aluminum Mylar Foil Shield |
|
Connectors
|
|
| Connector A | DB9 Female |
| Connector B | DB25 Female |
|
Pin Out
|
|
| DB9 Female – DB25 Female | |
| 1 – 4 + 5 | |
| 2 – 2 | |
| 3 – 3 | |
| 4 – 6 | |
| 5 – 7 | |
| 6 – 20 | |
| 7 + 8 – 8 | |
| 9 – 22 | |
| Shell – Shell | |
|
Environmental
|
|
| RoHS | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.35 lbs [0.1kg] |
