Description

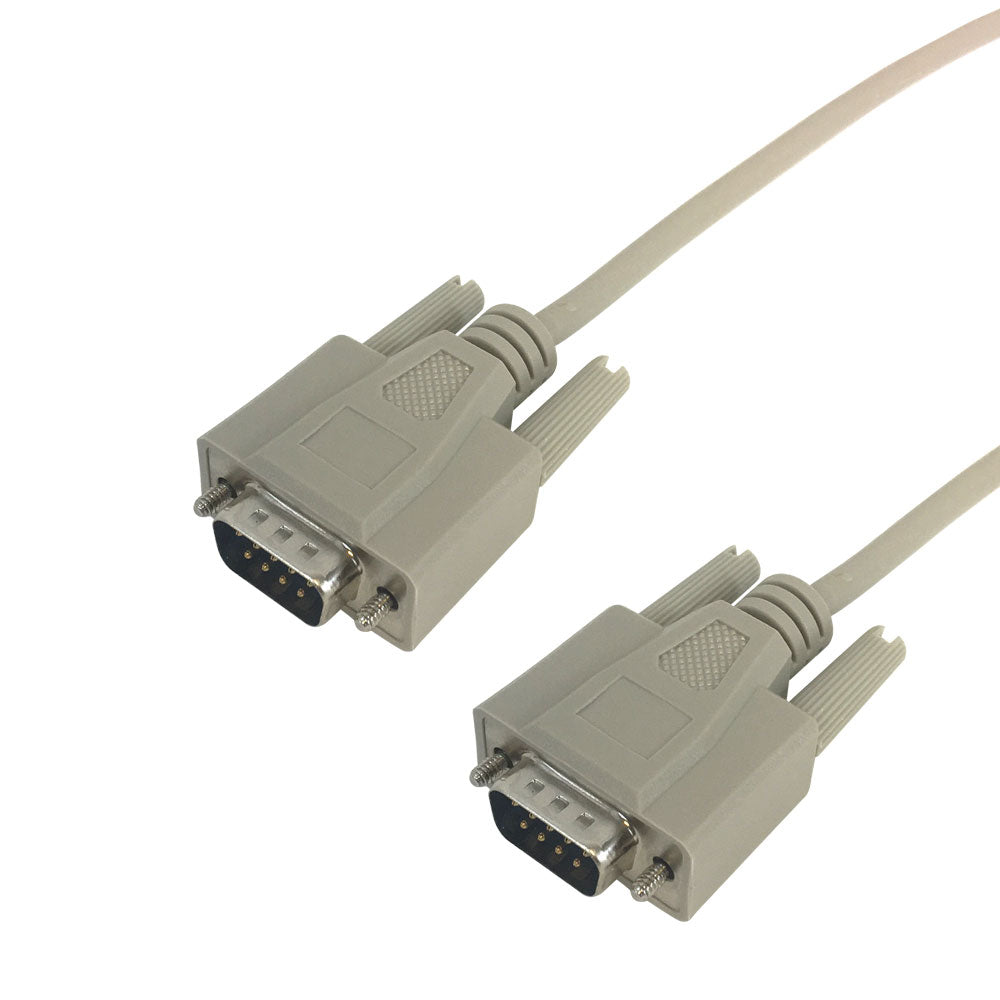

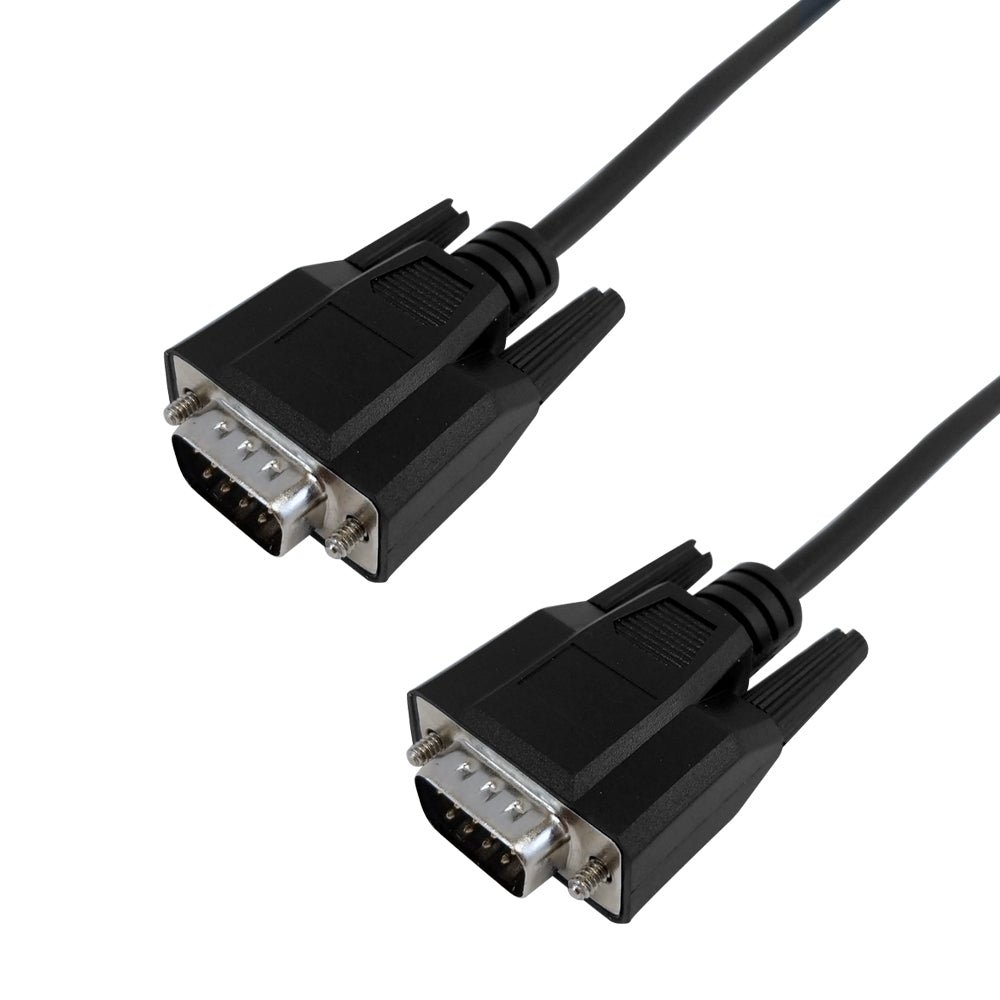

This DB9 serial cable consists of a DB9 male on both ends. It is commonly used in serial RS-232 data applications.
|
Physical Characteristics
|
||
|---|---|---|
| Color | Beige/Black | |
| Number of Conductors | 9 Conductors | |
| Wire Gauge | 28AWG Stranded | |
| Jacket Material | PVC – Polyvinyl Chloride | |
| Cable Shielding | 100% Aluminum Mylar Foil Shield | |
|
Connectors
|
||
| Connector A | DB9 Male | |
| Connector B | DB9 Male | |
|
Pin Out
|
||
| DB9 Male – DB9 Male | ||
| 1 – 1 | ||
| 2 – 2 | ||
| 3 – 3 | ||
| 4 – 4 | ||
| 5 – 5 | ||
| 6 – 6 | ||
| 7 – 7 | ||
| 8 – 8 | ||
| 9 – 9 | ||
| Shell – Shell | ||
|
Environmental
|
||
| RoHS | Compliant | |
|
Packaging Information
|
||
| Package Quantity | 1 | |
|
Warranty Information
|
||
| Warranty | Limited Lifetime | |
