Description
Overview

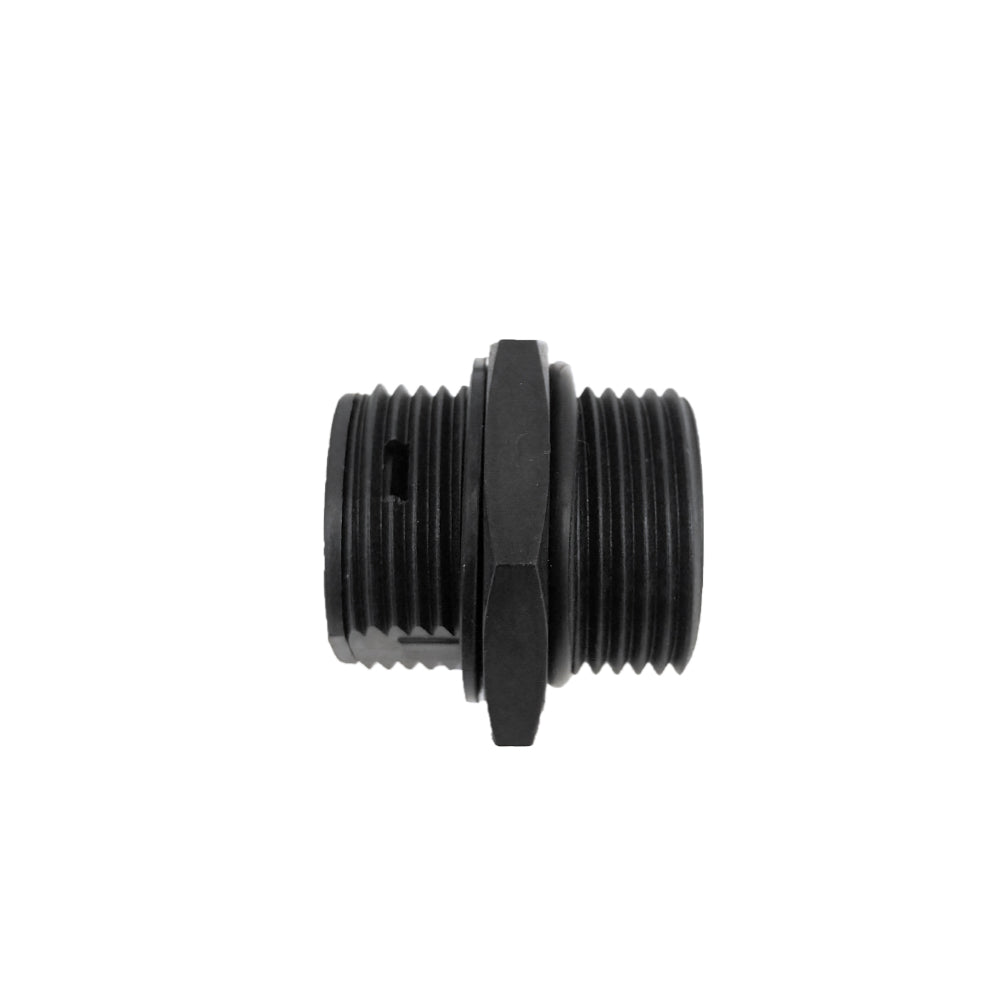

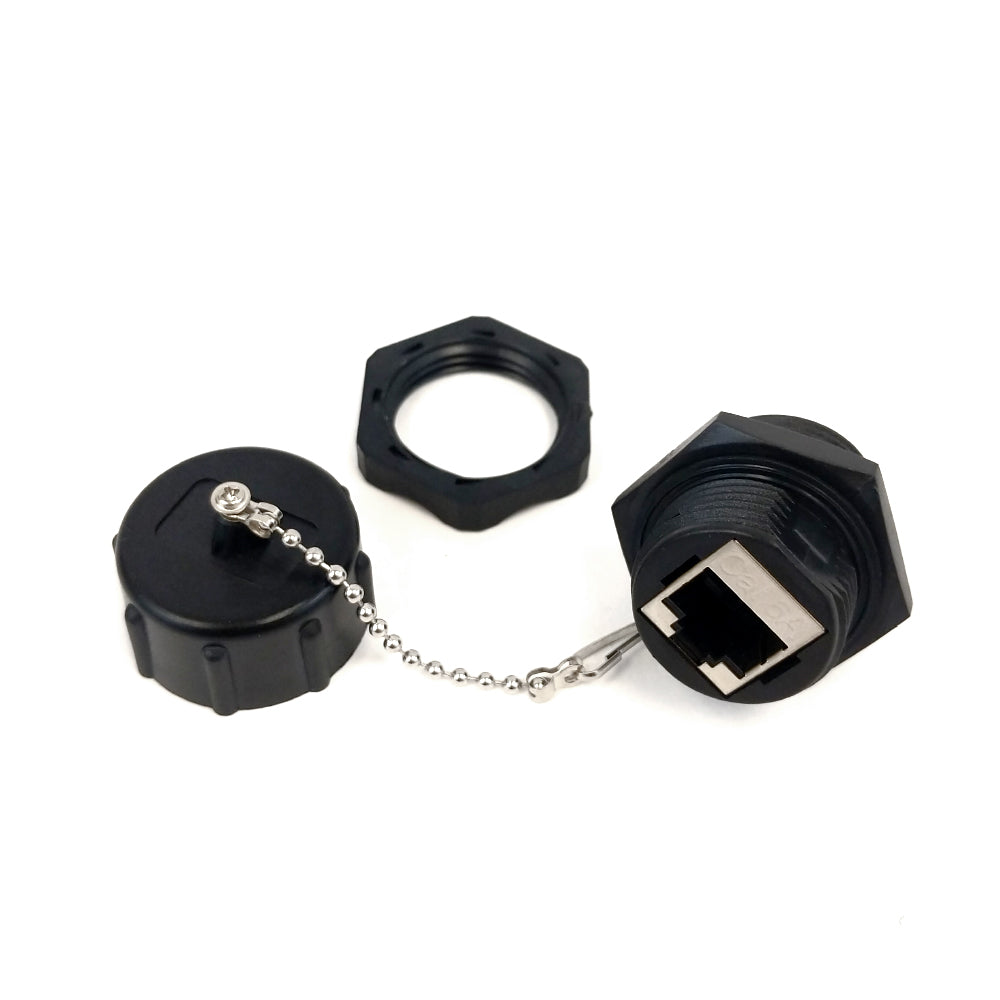

This Cat6A shielded bulkhead coupler consists of
a RJ45 female on both ends. It is typically used to connect two RJ45 male
outdoor network cables where dust, water and protection from the elements is
required. Creates a IP68 rating when used in conjunction with our matting RJ45
male shroud. It is suitable for outdoor or industrial applications.
|
Waterproof RJ45 Bulkhead Coupler for Outdoor CableThis Cat6A coupler is IP68 compliant to help protect your outdoor network cabling against Use as Part of a
|
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Body Material | PBT+GF,UL94V-0 | |
| Coupler Housing | ABS,UL94V-0 | |
| Connector Plating | Gold Plated | |
| Shielded Case | Brass, Nickel Plated | |
| Thread Pattern |
3/4″ -14 |
|
| Operating Temperature | -10°C to 60°C | |
| Storage Temperature | -40°C to 68°C | |
| Humidity | 10% ~ 90% RH | |
| Connector(s) | ||
| RJ45 – 8P8C | Female to Female | |
| Performance | ||
| Insertion Life | 750 Mating Cycles | |
| Contact Force | 100 Grams | |
| Plug Retention Force | 11 LBF MIN | |
| Electrical Features | ||
| Insulation Resistance | 500 M? | |
| Dielectric Withstanding Voltage | 1000 V AC | |
| DC Current Rating | 1.5 Amps | |
| DC Resistance | 0.1? | |
| Contact Resistance | 20m? | |
| Compatible Items | ||
| SB-EBH2-WH | Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts – Waterproof IP68 Rated – White | |
| WP-EBH1-SS | Single Gang Wall Plate – 1x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| WP-EBH2-SS | Single Gang Wall Plate – 2x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| WP-EBH4-SS | Double Gang Wall Plate – 4x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| CN-BT-IP68-BK | RJ45 IP68 Waterproof Shroud for RJ45 Male Cable – Fits Cable OD of 5mm to 10mm – Black | |
| Environmental | ||
| IP Rating |
IP68 Rated When Used in Conjunction with RJ45 shroud |
|
| RoHS | Yes | |
| Packaging Information | ||
| Product Weight | 0.07 lbs [0.03 kg] |
|
