Description
Overview

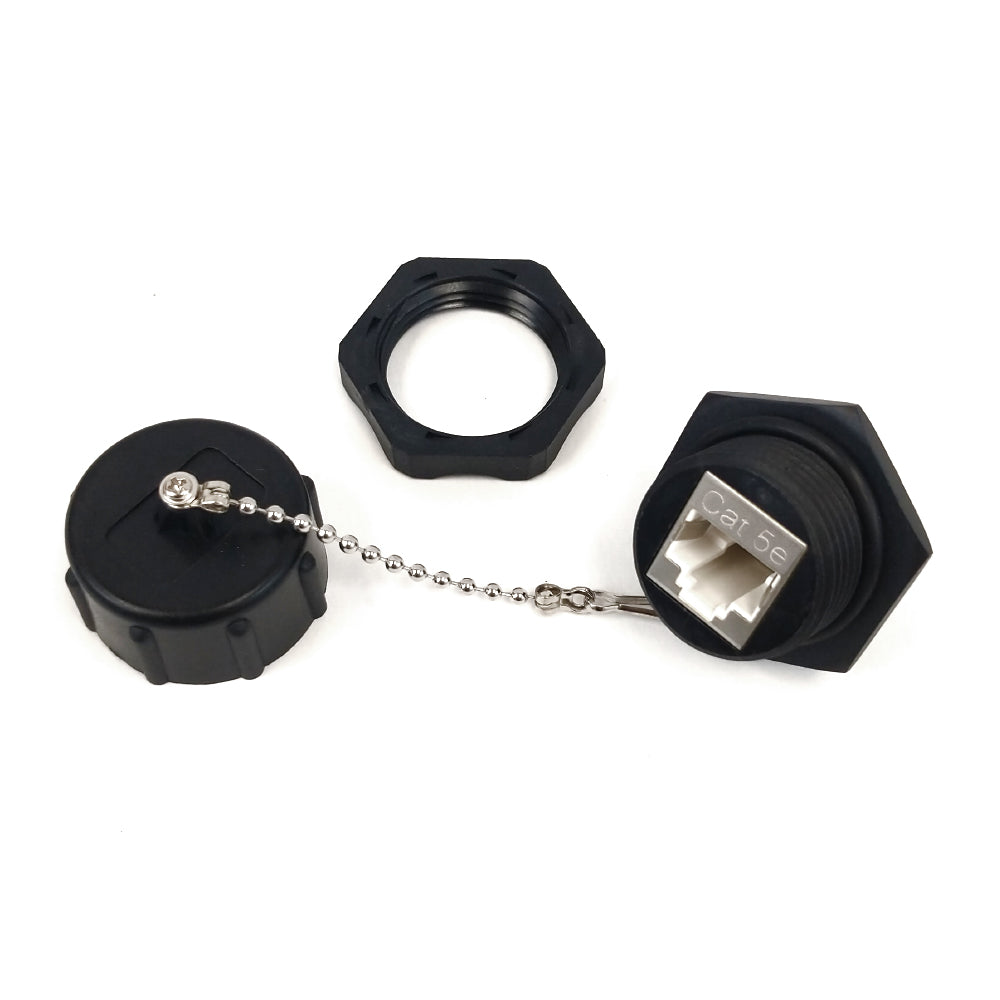

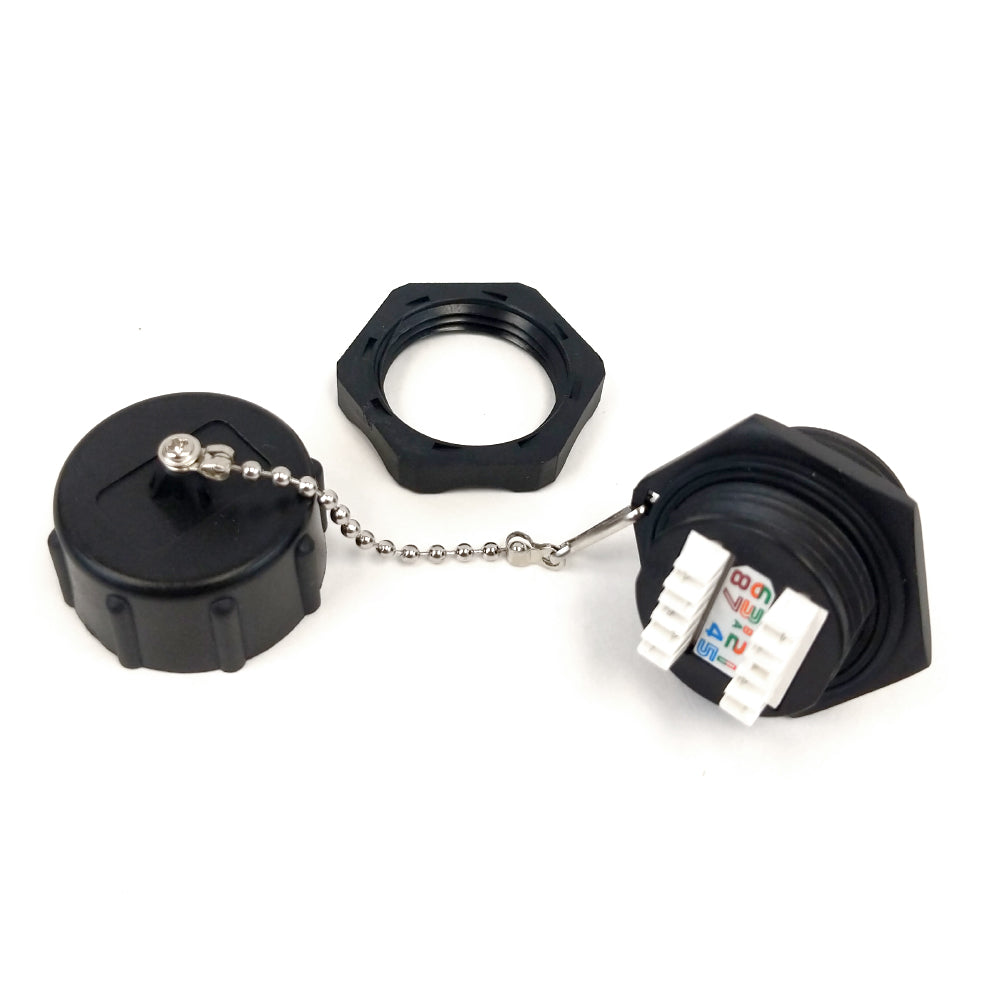

This Cat5e shielded bulkhead coupler consists of a RJ45 female on one end and a standard 110 punch down on the other end. It is typically used to connect a RJ45 male outdoor network cable where dust, water and protection from the elements is required. Creates a IP68 rating when used in conjunction with our matting RJ45 male shroud. It is suitable for outdoor or industrial applications.
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Body Material | PBT+GF,UL94V-0 | |
| Jack Housing | PC,UL94V-0 | |
| Connector Plating | Gold Plated | |
| Shielded Case | Brass, Nickel Plated | |
| Thread Pattern | ¾”-14 | |
| Operating Temperature | -10℃ to 60℃ | |
| Storage Temperature | -40℃ to 68℃ | |
| Humidity | 10% ~ 90% RH | |
| Connector(s) | ||
| RJ45 Cat5e | Female | |
| Standard 110 | Terminate | |
| Performance | ||
| Insertion Life | 750 Mating Cycles | |
| Contact Force | 100 Grams | |
| Plug Retention Force | 11 LBF MIN | |
| Durability | 200 Termination Cycles | |
| Contact Compatibility | Accommodates 22 to 24 AWG Solid | |
| Electrical Features | ||
| Insulation Resistance | 500 M٦ | |
| Dielectric Withstanding Voltage | 1000 V AC | |
| DC Current Rating | 1.5 Amps | |
| DC Resistance | 0.1Ω¦ | |
| Contact Resistance | 20m٦ | |
| Compatible Items | ||
| SB-EBH2-WH | Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts – Waterproof IP68 Rated – White | |
| WP-EBH1-SS | Single Gang Wall Plate – 1x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| WP-EBH2-SS | Single Gang Wall Plate – 2x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| WP-EBH4-SS | Double Gang Wall Plate – 4x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| CN-BT-IP68-BK | RJ45 IP68 Waterproof Shroud for RJ45 Male Cable – Fits Cable OD of 5mm to 10mm – Black | |
| Environmental | ||
| IP Rating | IP68Rated When Used in Conjunction with RJ45 shroud | |
| RoHS | Compliant | |
| Packaging Information | ||
| Product Weight | 0.07 lbs [0.03 kg] | |
