Description
Overview

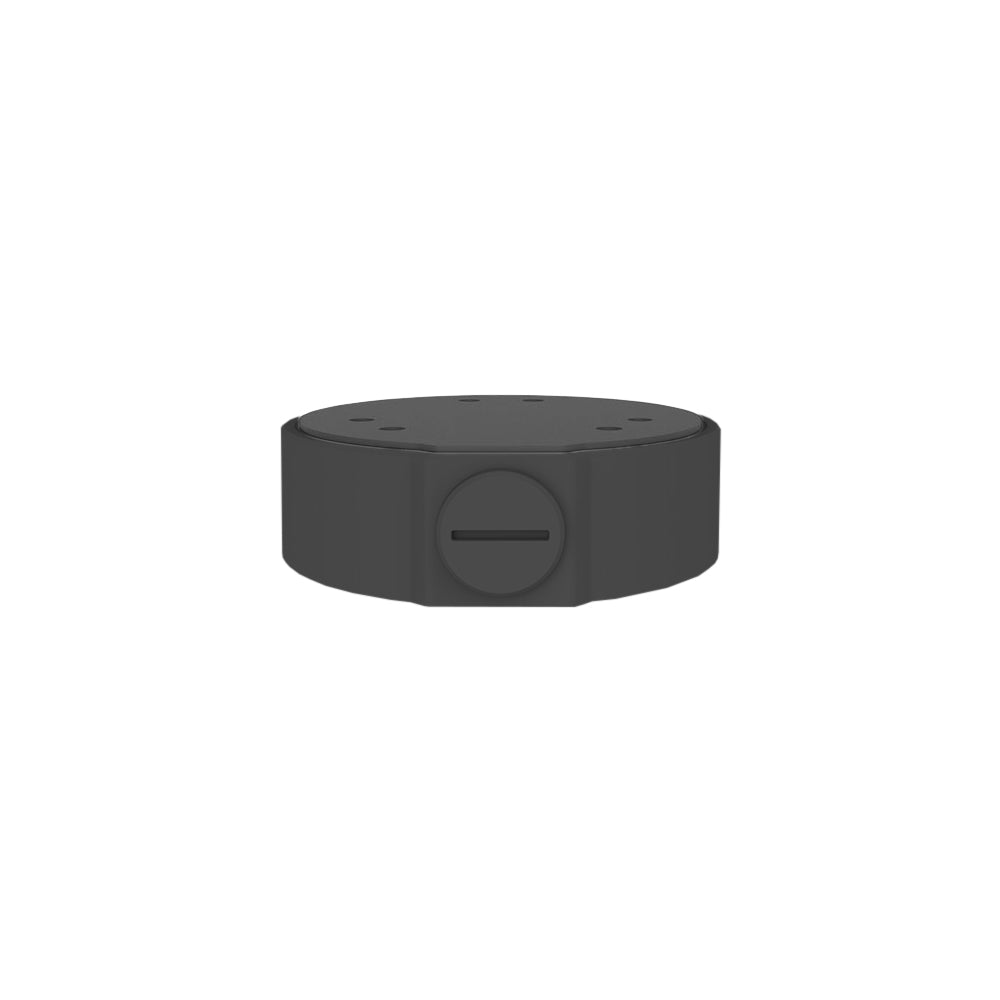

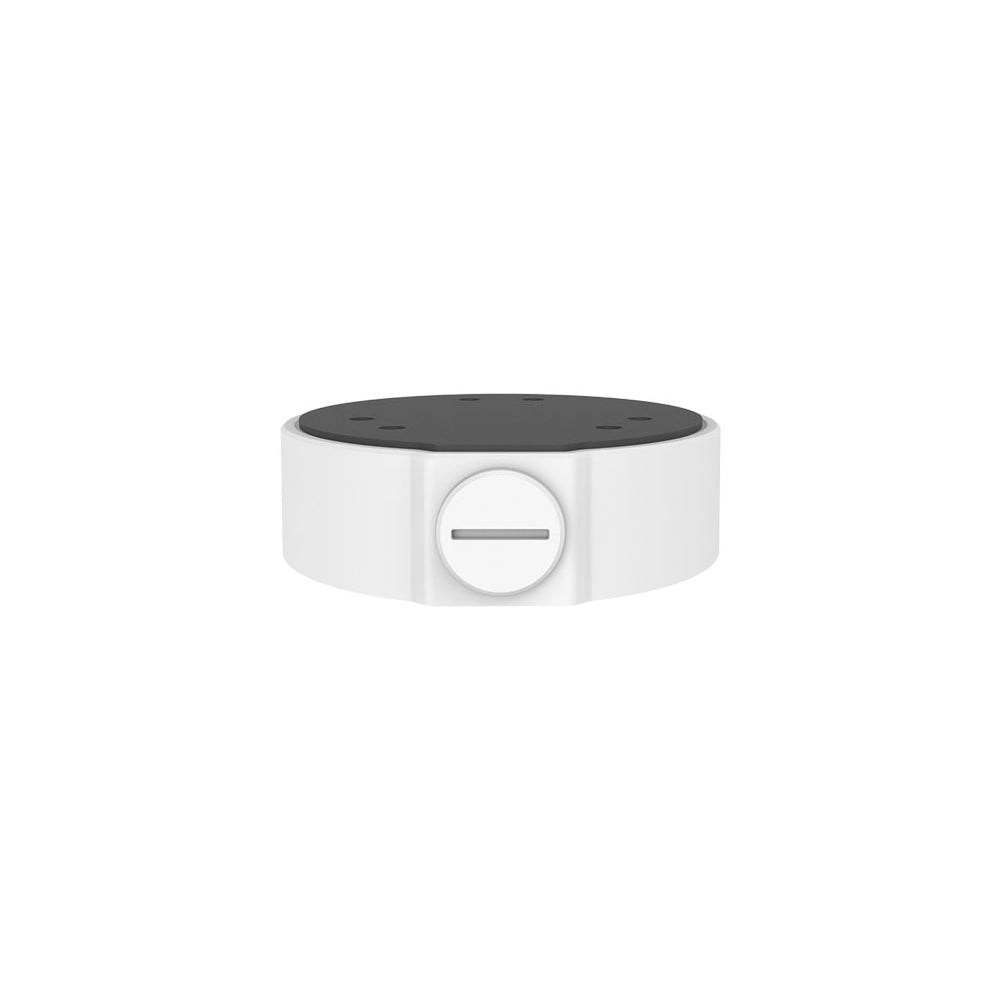

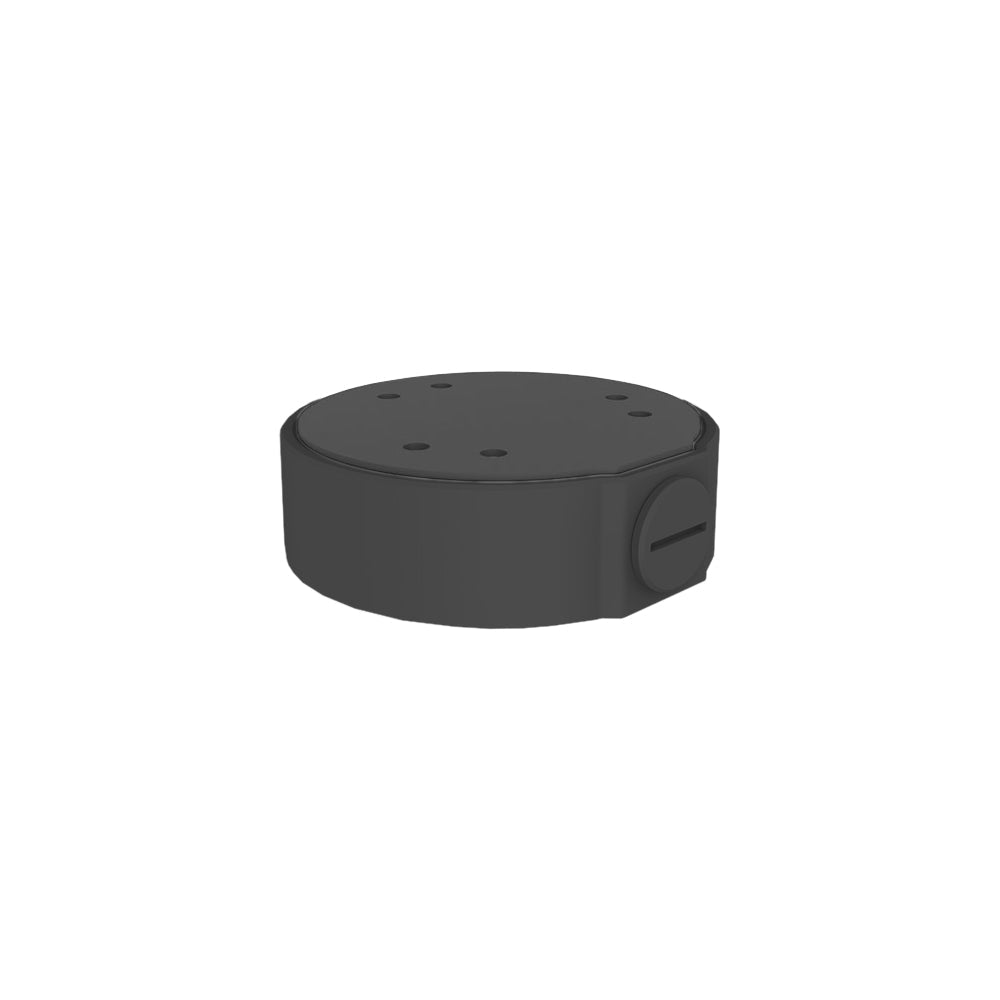

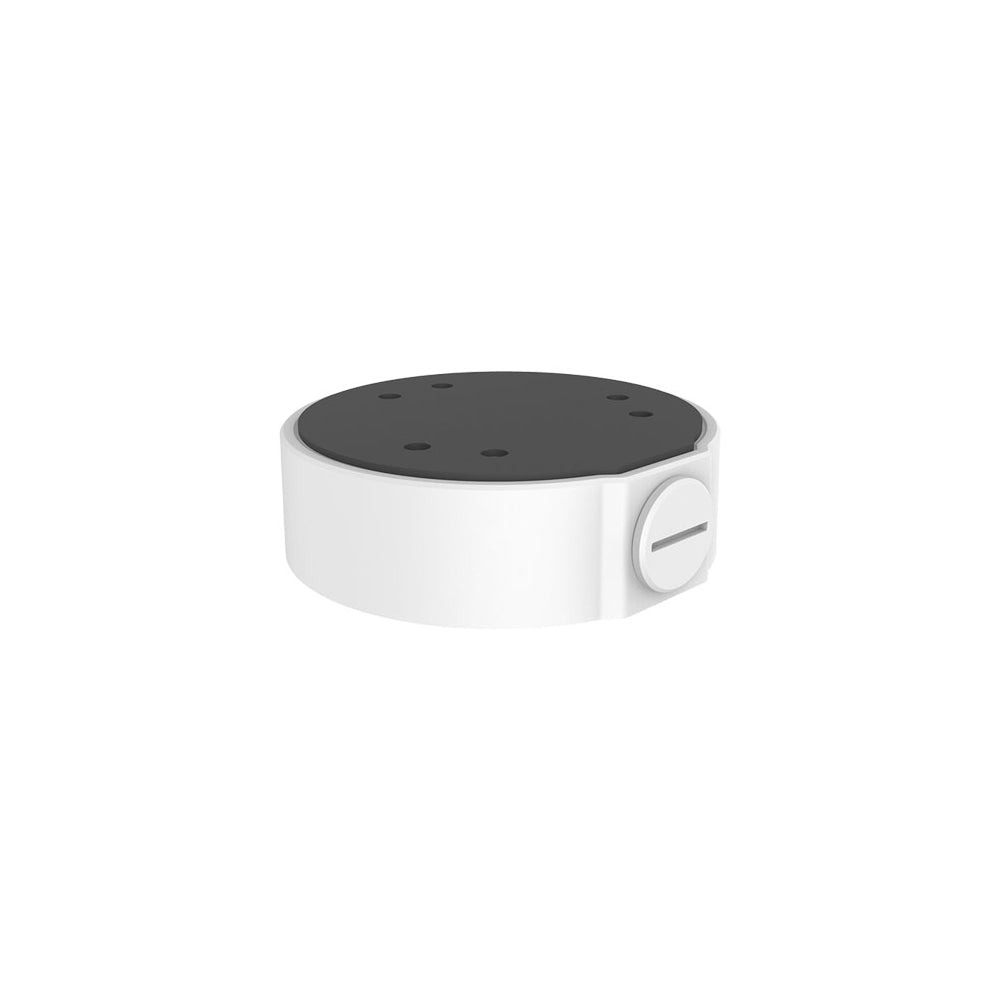

This junction box mounting bracket is designed to mount an IP dome camera. It has side and bottom inlets for easier installation. It is constructed of treated aluminum alloy material for better protection against the elements in outdoor applications.
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Black / White |
| Material | Aluminum alloy |

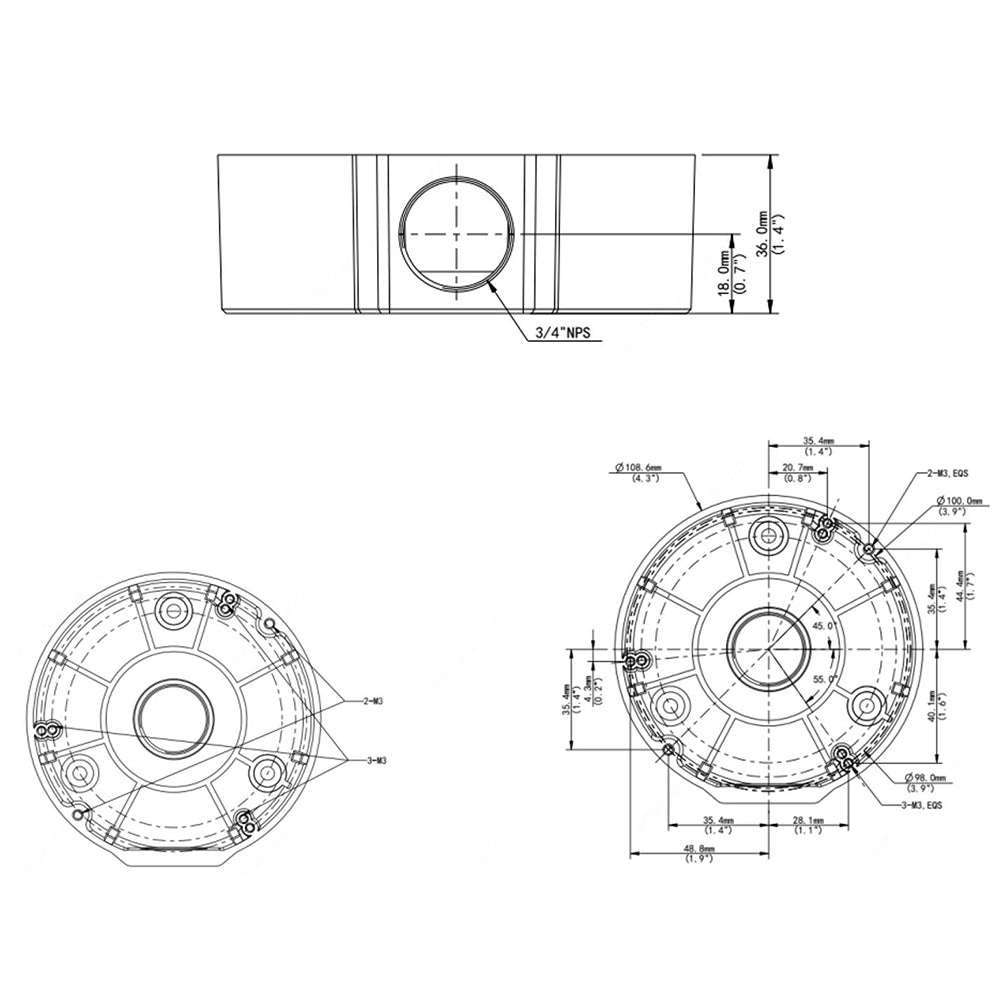

| Dimensions | ‚¬ 108.6 mm x 36.0 mm (4.3″ x 1.4″) |
|
Compatibility
|
|
| SCD-4DM100-xx | 4MP Dome IP Camera – Fixed Lens – Smart IR – HLC – IK10 IP67 Rated |
| SCD-4DM200-xx | 4MP Dome IP Camera – Fixed Lens – WDR – Low Light – IR – IK10 IP67 Rated |
| SCD-8DM100-xx | 8MP Dome IP Camera – Fixed Lens – IR – Microphone – IK10 IP67 Rated |
| SC-3145AWD-10-F28 | 4MP Mini Dome IP Camera + Audio – Fixed Lens – Smart IR – IK10 IP67 Rated |
| CG-NPT075-xx | Cable Gland 3/4 inch NPT Thread – Cable OD 13~18mm – IP68 |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.44 lbs [0.2 kg] |
