Description
Overview

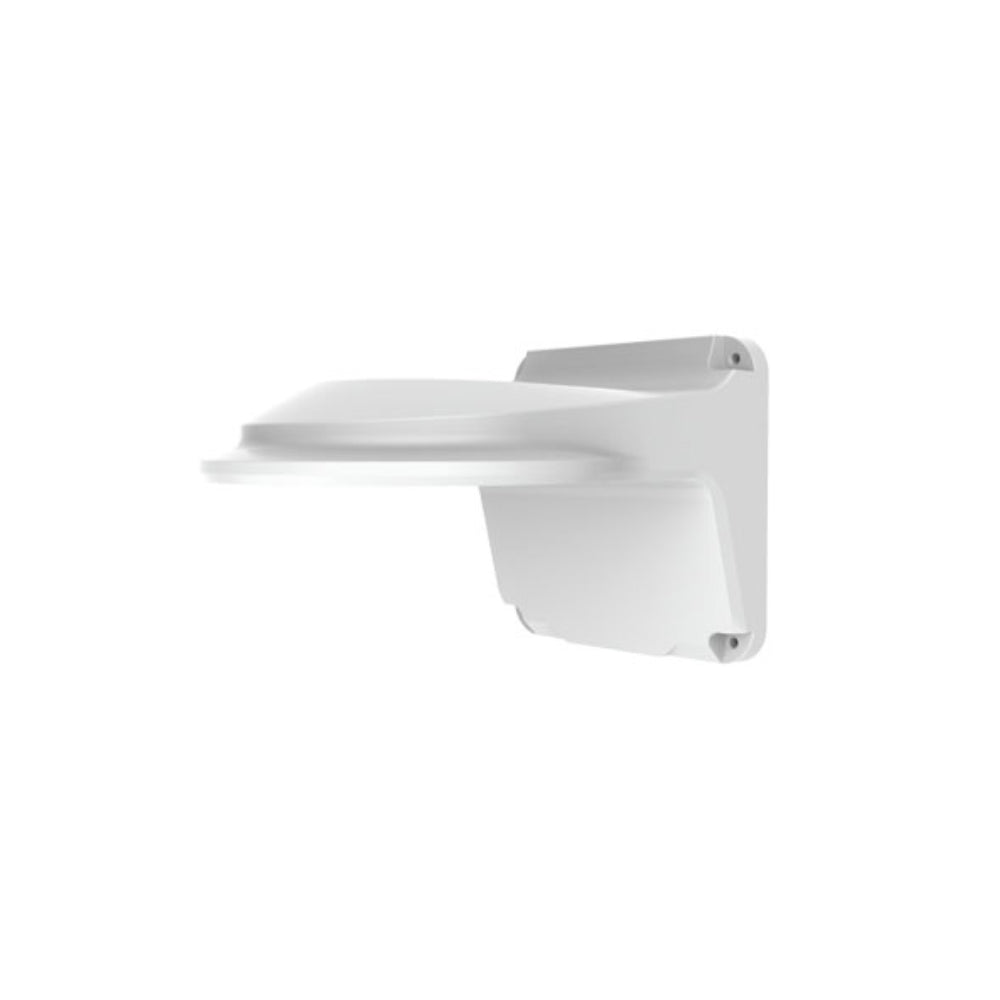

This wall mounting bracket is designed to hold a dome IP camera. It is constructed of treated aluminum alloy material for better protection against the elements in outdoor applications.
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | White |
| Material | Aluminum alloy |

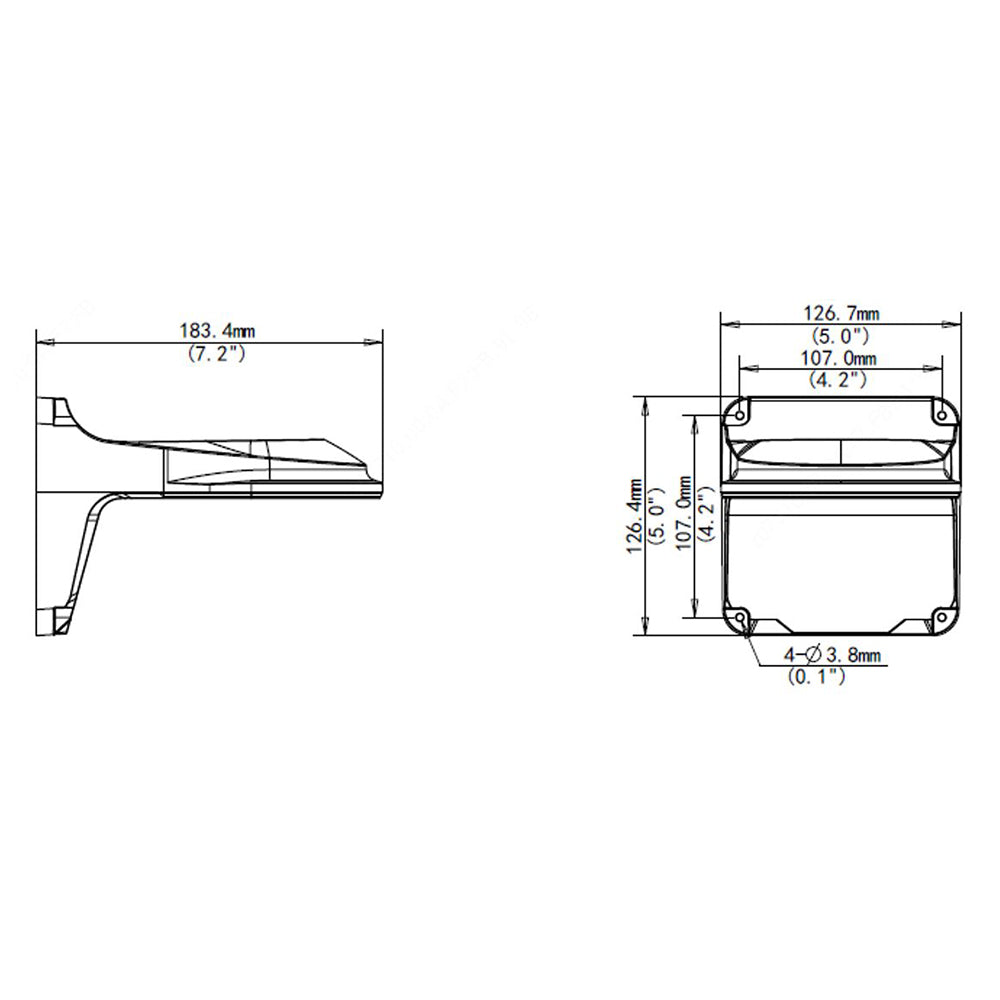

| Dimensions | ϕ 183.4 mm x 126.7 mm x 126.4 mm (7.20″ x 5″ x 4.96″) |
|
Compatibility
|
|
| SCD-4DM200-xx | 4MP Dome IP Camera – Fixed Lens – WDR – Low Light – IR – IK10 IP67 Rated |
| SCD-8DM100-xx | 8MP Dome IP Camera – Fixed Lens – IR – Microphone – IK10 IP67 Rated |
| SC-3145AWD-10-F28 | 4MP Mini Dome IP Camera + Audio – Fixed Lens – Smart IR – IK10 IP67 Rated |
| SCD-5TR300-xx | 5MP Turret IP Camera – Fixed Lens – AI – WDR – Color Night Vision – Microphone – IP67 Rated |
| CG-NPT075-xx | Cable Gland 3/4 inch NPT Thread – Cable OD 13~18mm – IP68 |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 2.20 lbs [1 kg] |
