Description

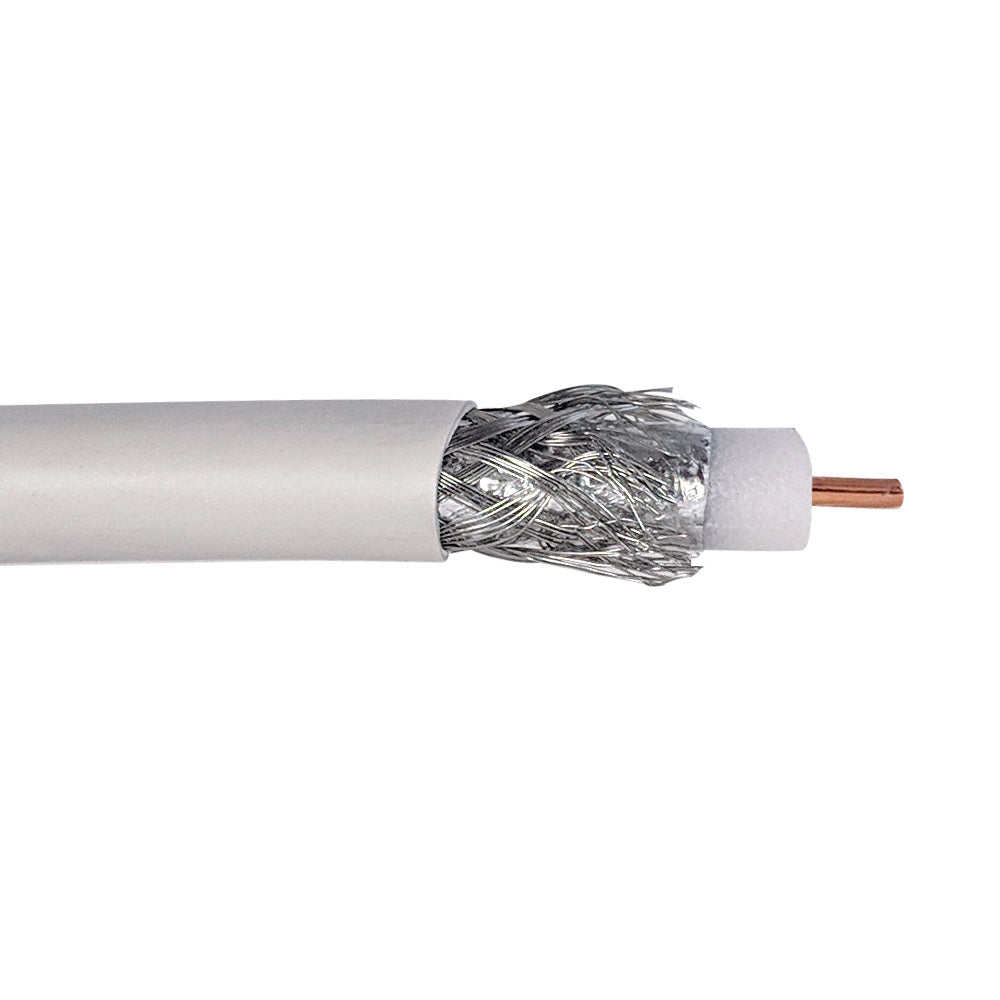

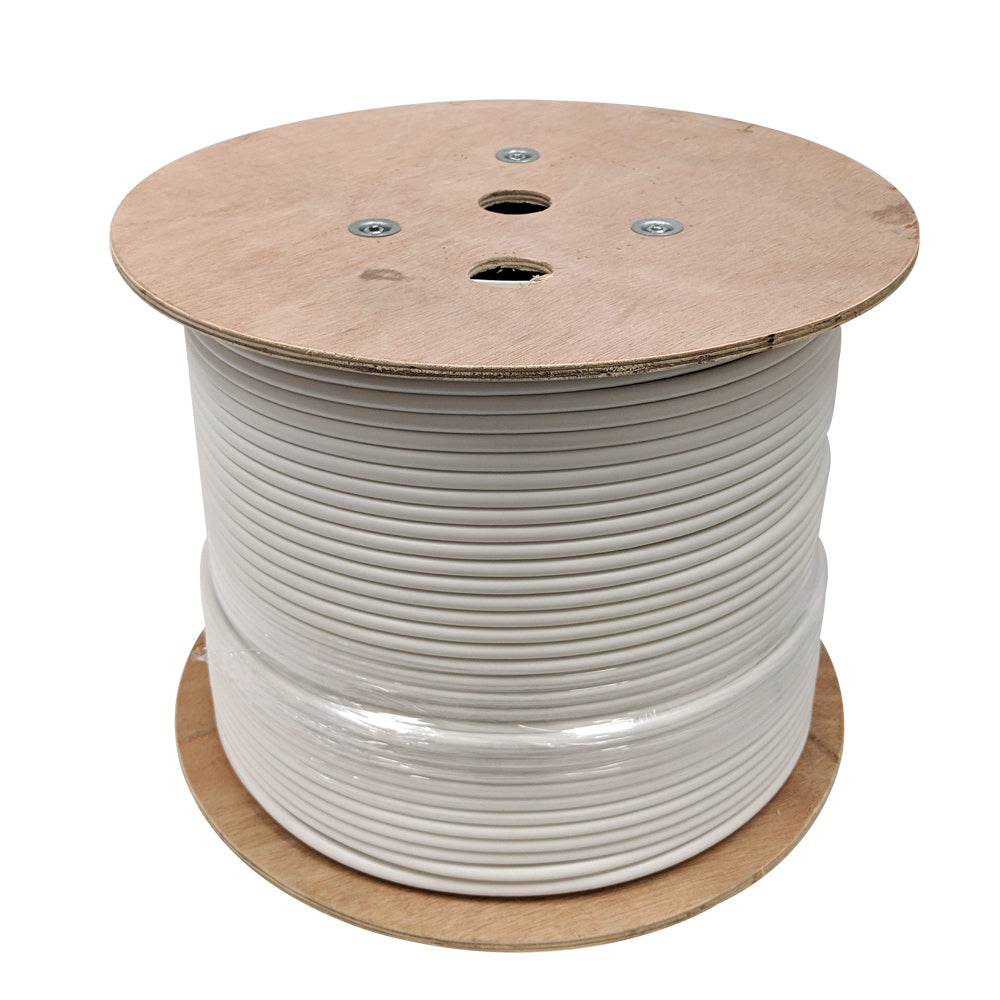

This bulk plenum RG11 cable is 1000 feet in length and consists of a 14AWG solid center conductor. It is ideal for long run CATV video applications.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | White |
| Temperature Rating | -20℃ to +60℃ |
| Cable Diameter | 8.90mm |
| Wire Gauge | 14AWG |
| Conductor Material | Copper Covered Steel |
| Jacket Material | PVC – Polyvinyl Chloride |
| Jacket Rating | CMP/FT6 [Plenum Rated] |
| Cable Shielding | 60%Braid + 100% Bonded Aluminum Foil |
| Insulation | Foamed FEP |
| Performance | |
| Impedance | 75±3 Ohm |
| Max. Attenuation | 3GHz |
| Capacitance | 16pF/ft |
| Approvals | |
| (UL) | Compliant |
| c(UL) | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 72 lbs |
