Description

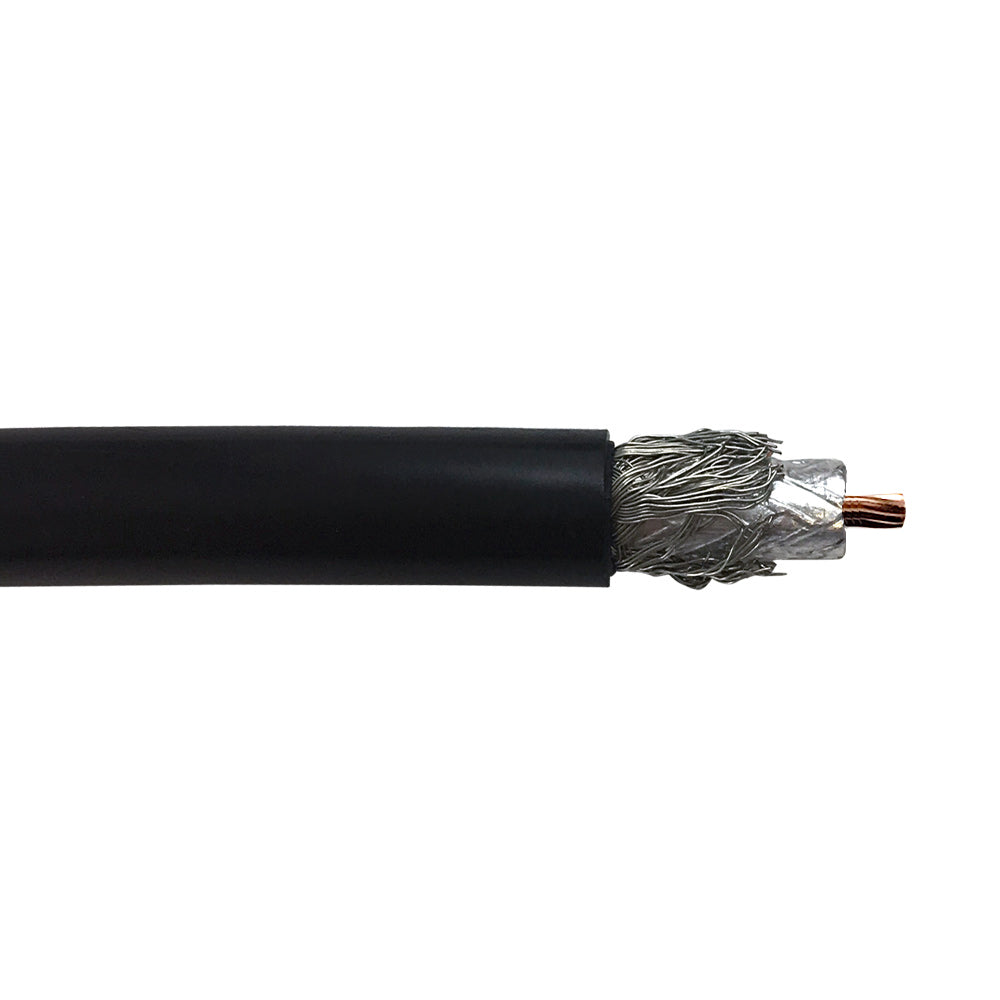

This low loss bulk flexible RF-400 cable is 1000 feet in length and consists of a 2.74mm stranded bare copper wire. It is ideal for jumper assemblies in wireless communication systems, antenna feeder runs, GPS and mobile antenna applications.
| Physical Characteristics | |
|---|---|
| Color | Stranded Black |
| Inner Conductor Material | Bare Copper |
| Inner Conductor Diameter | 2.74mm (7×0.93) |
| Dielectric Material | Foam PE |
| Dielectric Diameter | 7.24mm |
| First Shield Material | Bonded Aluminum Foil |
| First Shield Diameter | 7.39mm |
| Second Shield Material | Tinned Copper Wire Braid (168*0.16) 90% Coverage |
| Second Shield Diameter | 8.13mm |
| Jacket Material | TPE |
| Jacket Diameter | 10.29mm |
| Performance | |
| Impedance | 50±3Ω |
| Capacitance | 78pF/m |
| Velocity of Propagation | 85% |
| Shielding Effectiveness | ≥90dB |
| Voltage With Stand | 2500V |
| Installation Temperature | -40℃ ~ +85℃ |
| Operating Temperature | -40℃ ~ +85℃ |
| Max. Operating Frequency | 8.0Ghz |
| Attenuation (@20℃ ) | ||||||||
|---|---|---|---|---|---|---|---|---|
| 150Mhz | 220Mhz | 450Mhz | 900Mhz | 1500Mhz | 1800Mhz | 2000Mhz | 2500Mhz | 5800Mhz |
| 6.1dB/100m | 7.4dB/100m | 10.7dB/100m | 15.4dB/100m | 20.2dB/100m | 22.3dB/100m | 23.6dB/100m | 26.6dB/100m | 42.6dB/100m |
| Packaging Information | |
|---|---|
| Package Quantity | 1 spool |
| Product Weight | 74.6 lbs |
