Description

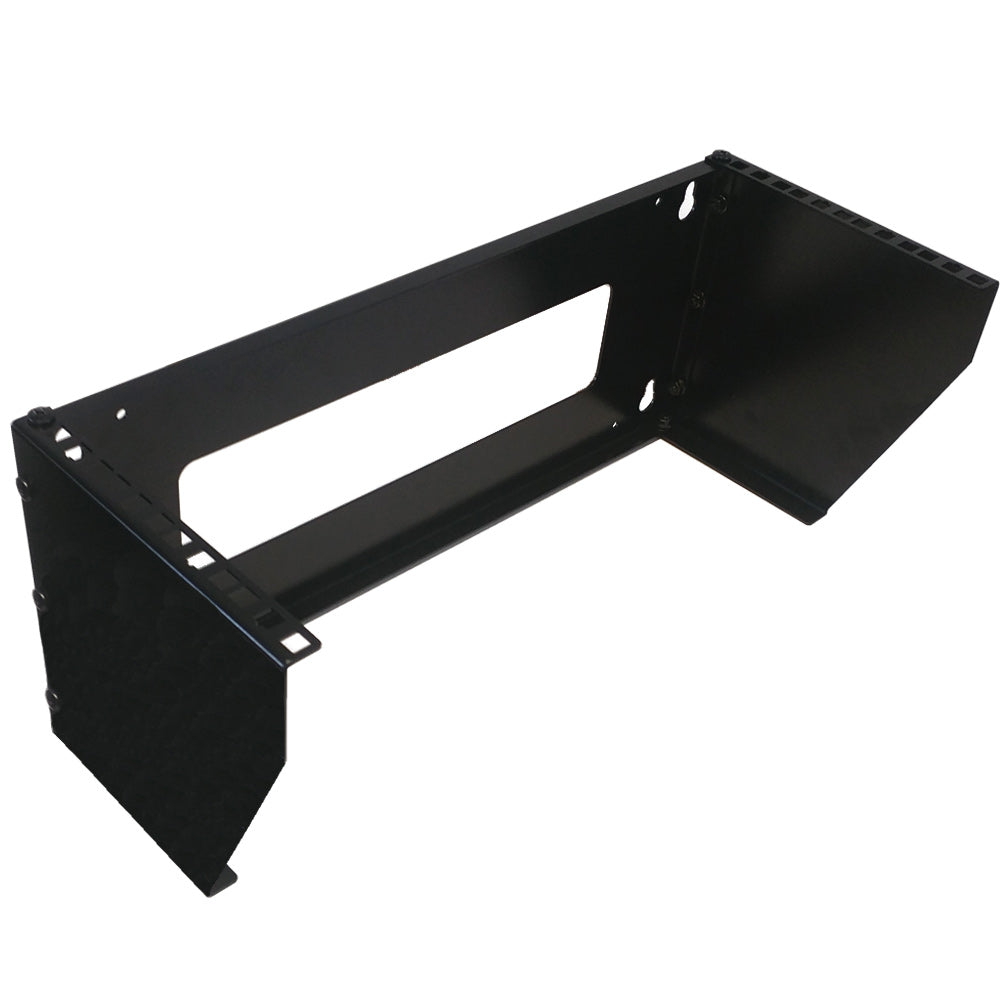

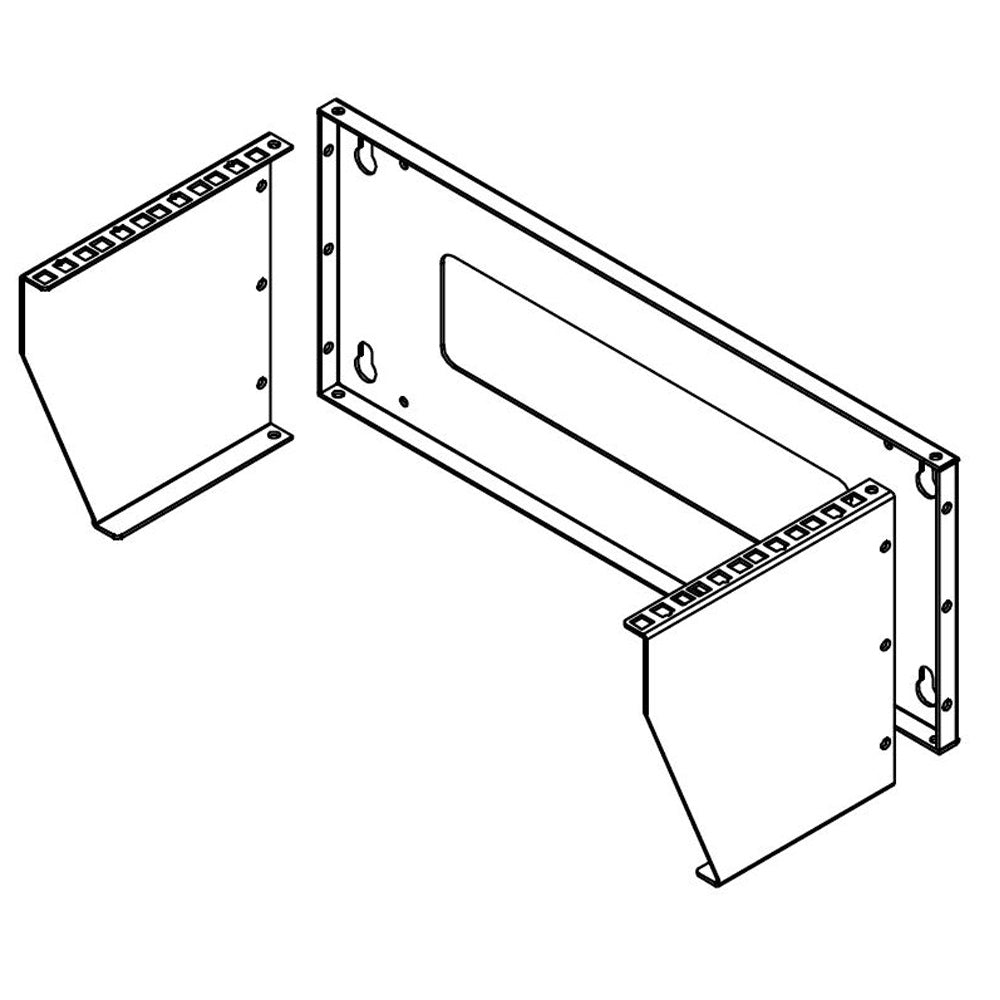

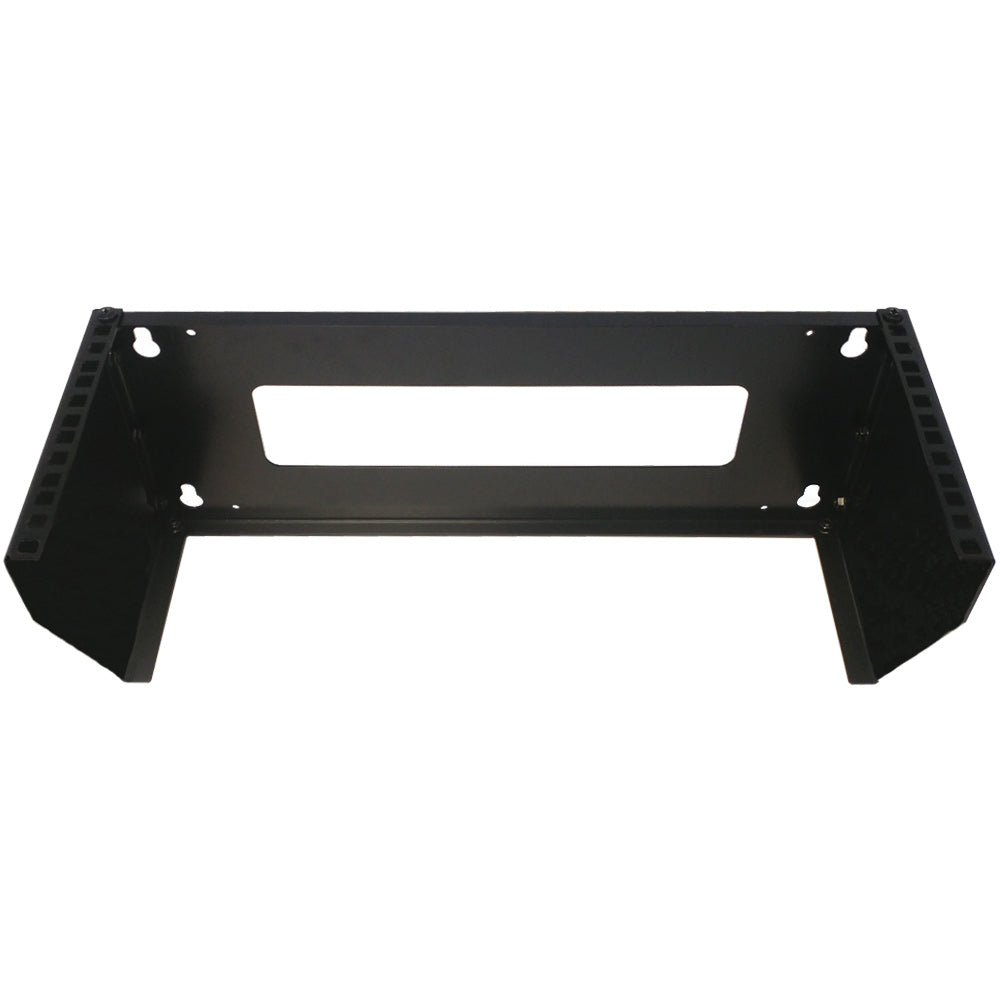

This vertical wall mount rack is 4U in depth. It is used for mounting 19″ wide networking equipment vertically. Works well in a small office or home where space is limited.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | 2.0mmSPCC Cold Rolled Steel |
| Depth in units | 4U |
| Height in inches | 7.8 inches [198mm] |
| Rail Mounting Style | Square Hole Punched Rails |
| Mounting Rail Thickness | 2.2mm |
| Mounting Width | 19 Inches |
| Overall Dimensions | 7.8Hx 19.2W x 7.7D Inches |
| Rear Wire Access Hole | 1 (15.6 x 3 inches) |
| Load Capacity | 66lbs(30kg) |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware | Included |
| Approvals | |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 7 lbs [3.18kg] |
| Content | |
| Included in Package | 1 -Vertical Wall Mount Rack |
| 10 – M6 Black Screws with Washers and Clip Nuts | |
| 10 – M6 Clip Nuts | |
