Description

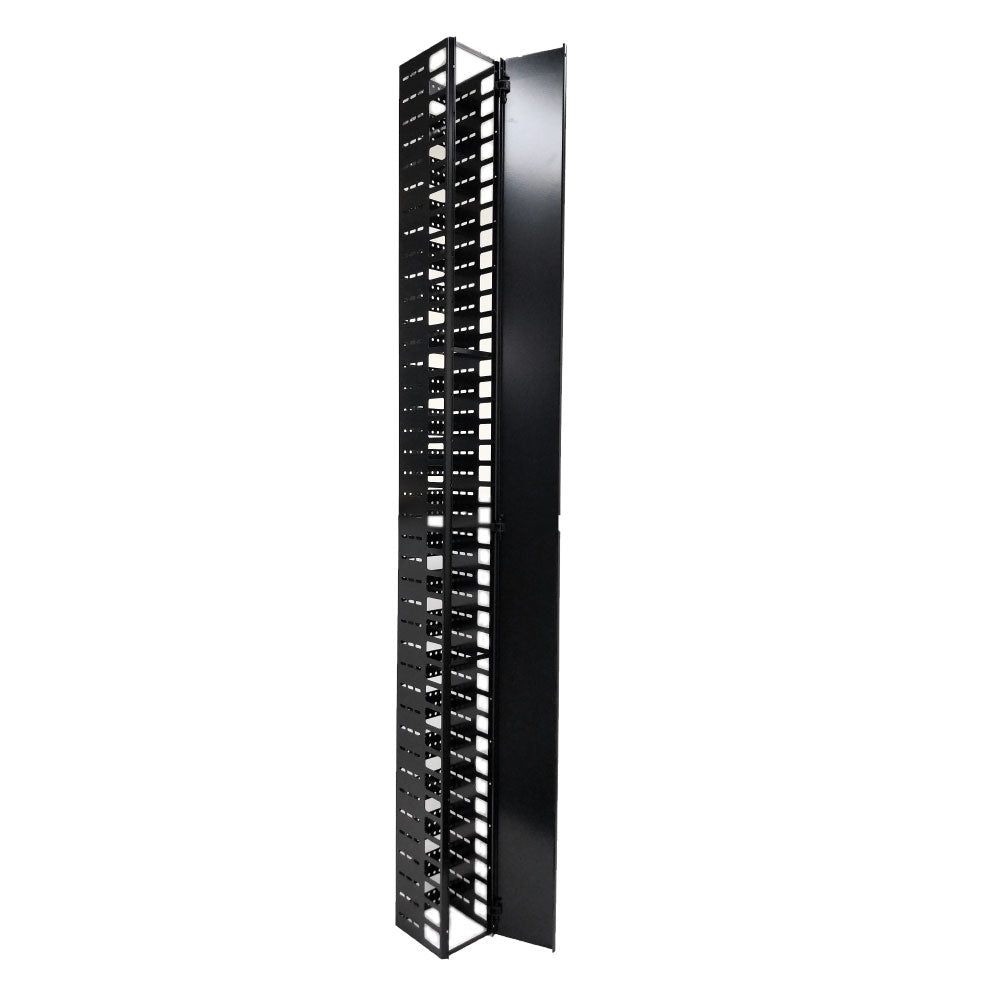

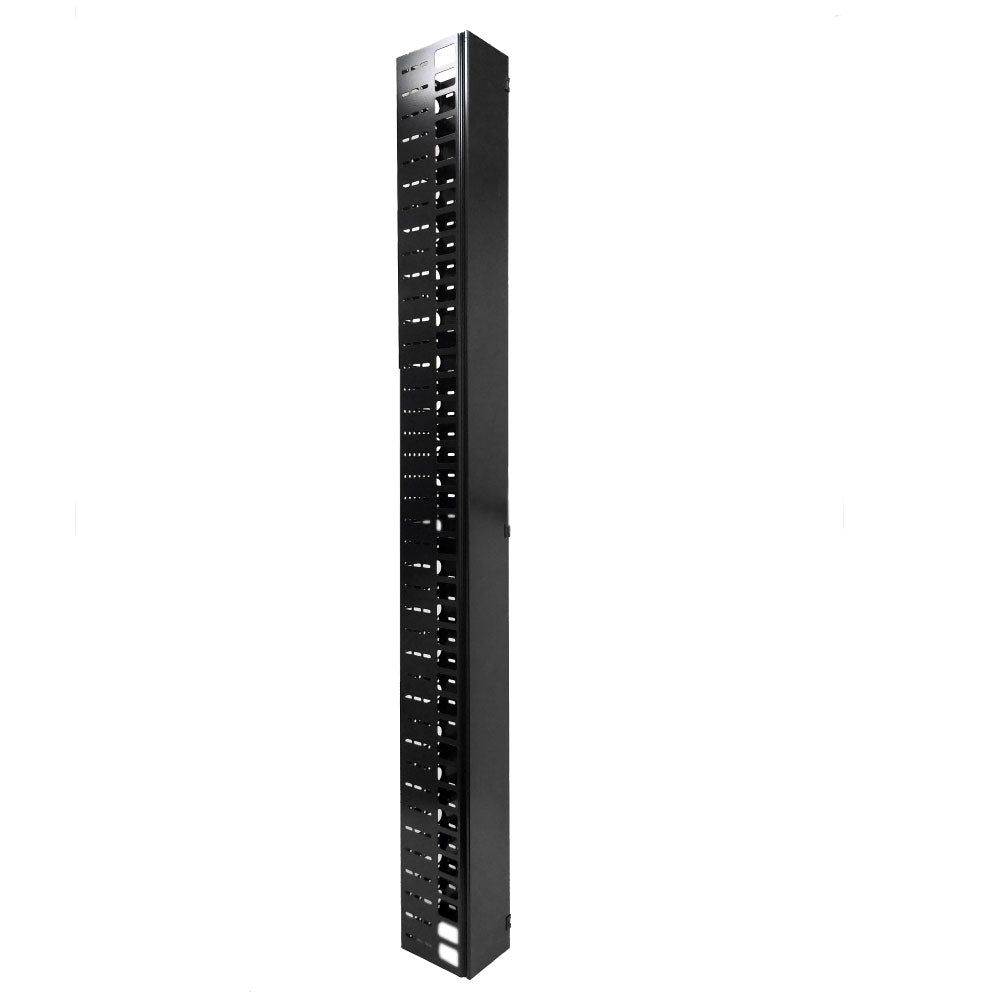

This vertical cable manager is 70.91 inches in height and intended for use with 42U relay racks. It is used to organize cables on a relay rack which helps maintain proper airflow. Forward facing and equipped with a hinged front cover, it makes cable access quick and easy. The manager can also be used as a link for joining multiple relay racks together.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Cable Management Type | Duct |
| Finish | Powder Coated |
| Material | 1.5 mm Thick Steel |
| Height in Units | 42U |
| Height | 70.91 inches [1801.1mm] |
| Width | 5.39 inches [137mm] |
| Depth | 6.88 inches [175mm] |
| Mounting Hardware | Included |
|
Compatibility
|
|
| Compatible Racks |
RM-105 – Relay Rack 42U (78 inch) – Knock Down Style RM-115 – 2-Post Relay Rack – 19 inch 44U, 10-32 Tapped Rails RM-125 – Four Post Relay Rack – 19 inch 42U, Square hole, Depth 23-36 inch RM-135 – Four Post Relay Rack – 19 inch 42U, Square hole, Depth 24-36 inch |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 6 Pcs – M6 Screws – Black 6 Pcs – Flange Nuts – Black |
| Product Weight | 19.8 lbs |
| Box Dimensions in Inches | 72 x 6.6 x 7.8 |
