Description
Overview

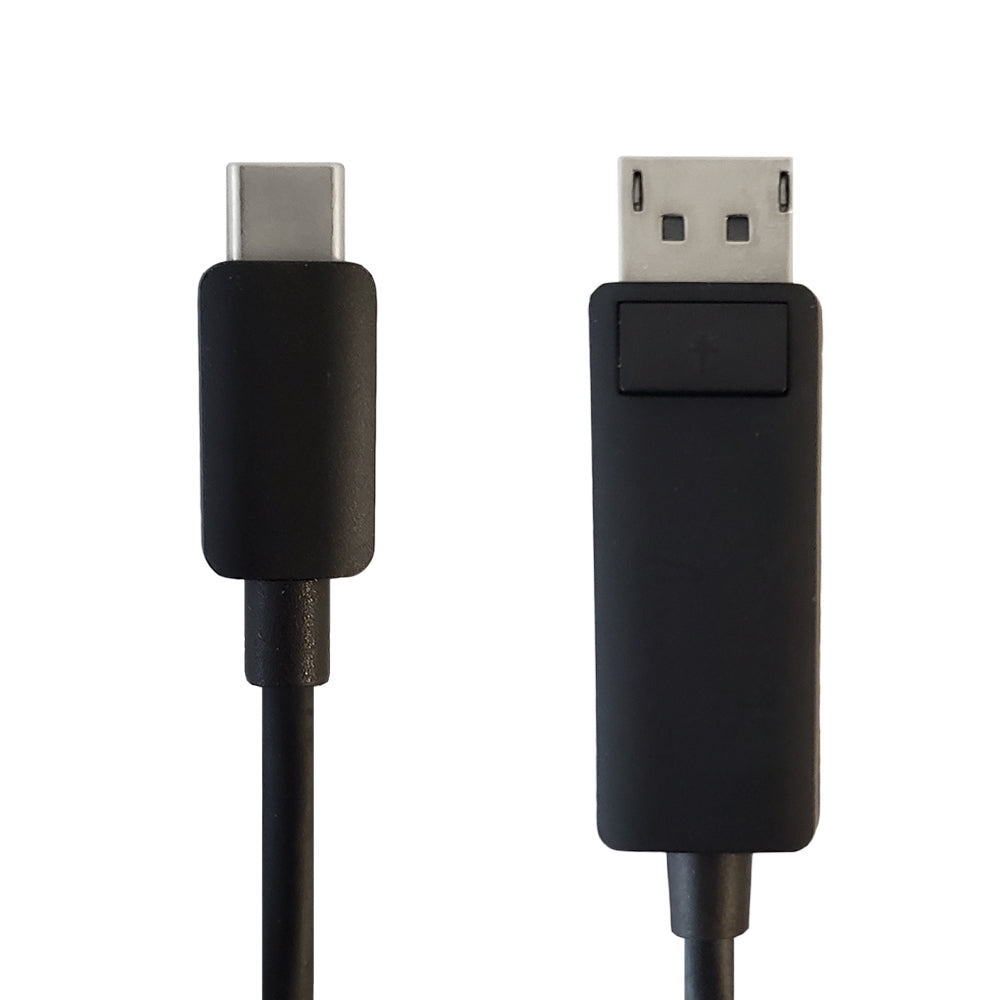

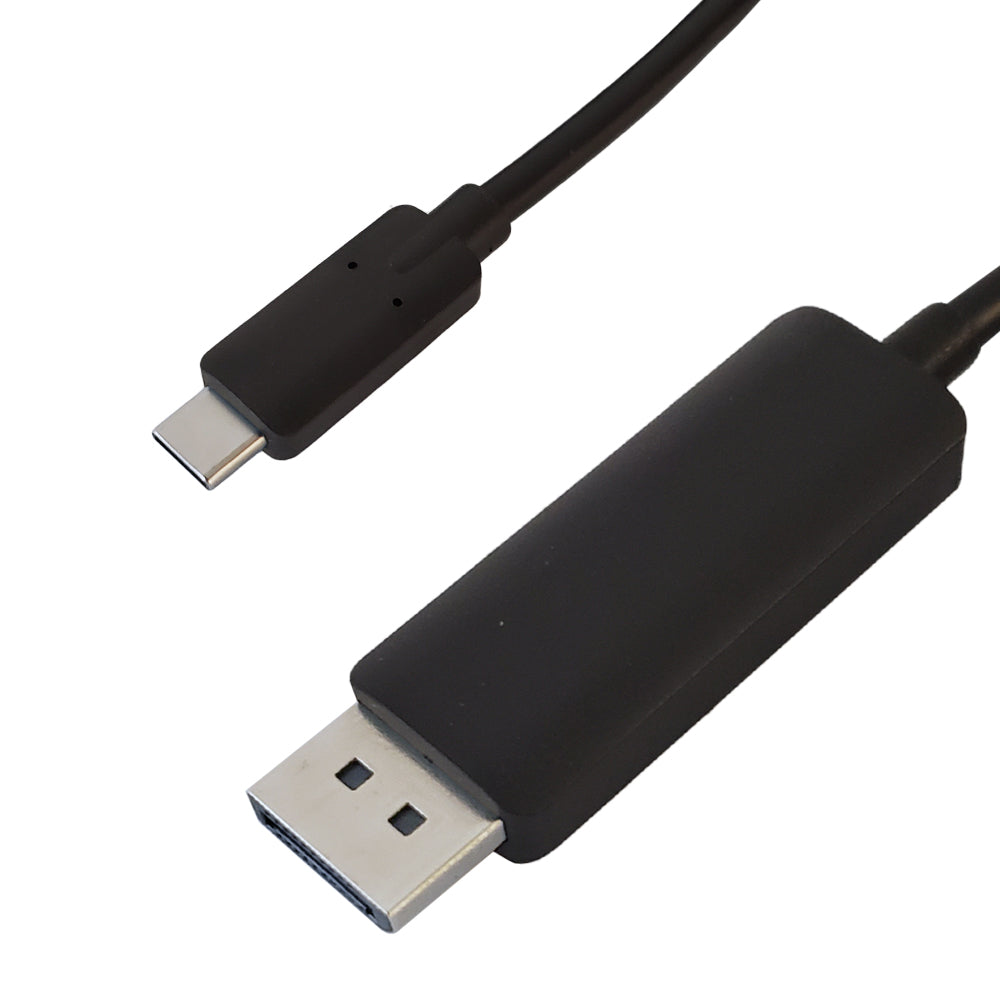

This Type-C male to DisplayPort male cable supports resolutions of Ultra HD 8K x 4K at 30Hz. It is typically used to connect a Type-C source (PC, Laptop, Mac Computer, Mac Laptop, etc.) to a DisplayPort display (monitors, etc.). This cable is uni-directional, therefore it will only work from a Type-C source to a DisplayPort display and not in the reverse direction.
Features
- Supports Type-C input and DisplayPort output
- Supports DisplayPort 1.4/1.2 Alt mode
- Supports per lane data rates of 8.1Gbps(HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and
- 1.62Gbps (RBR)
- Support up to 48 bit deep color
- Supports DisplayPort resolution up to 7680*4320@30Hz
- USB bus power (no external power supply)
- HDR bypass
- HDCP bypass
|
|
Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 8K x 4K (7680 x 4320) @ 30Hz. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Works Like an External Video CardThis cable can be used for various input devices – for example, connecting your PC to a monitor, in order to extend your PC, laptop, Mac computer or MacBook onto another display.
|
Application
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge | 28 AWG |
| Cable Type | Active |
| Temperature Rating | 0 ℃ to +45℃ |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10℃ to +70℃ |
| Storage Humidity | 5% to 90% RH (no condensation) |
| Power Supply | USB-C port Bus power |
|
Connectors
|
|
| Connector A | Type-C Male |
| Connector B | DisplayPort Male |
|
Performance
|
|
| Bandwidth | 18 Gbps |
| Resolution | Ultra HD 8k x 4k (7680 x 4320) @ 30Hz |
| 3D Support | No |
| DP Version | 1.4/1.2 Alt mode |
| Type-C Version | v3.0 |
|
Approvals
|
|
| c(UL)us | Approved Cable |
|
Certifications
|
|
| FCC | Compliant |
| CE | Compliant |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Packaging Quantity | 1 |
|
Warranty
|
|
| Warranty | Lifetime Limited |
