Description
Overview

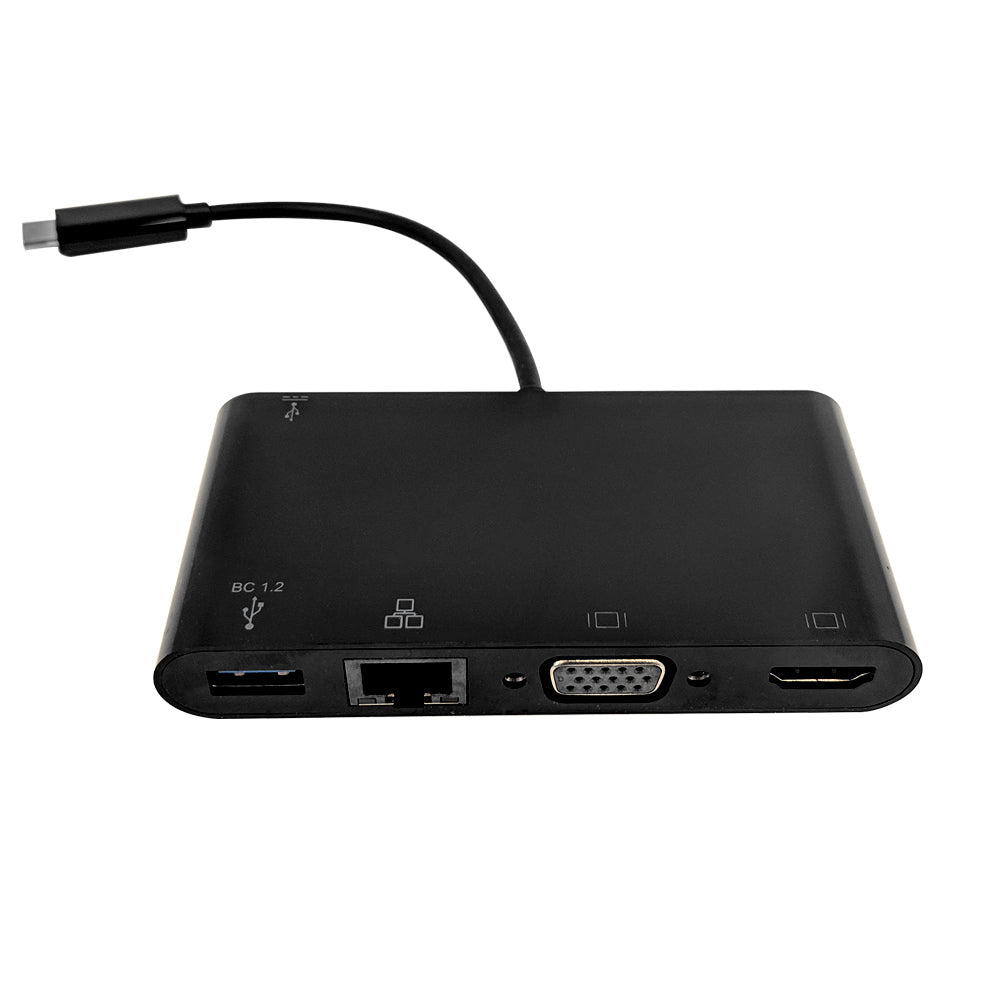

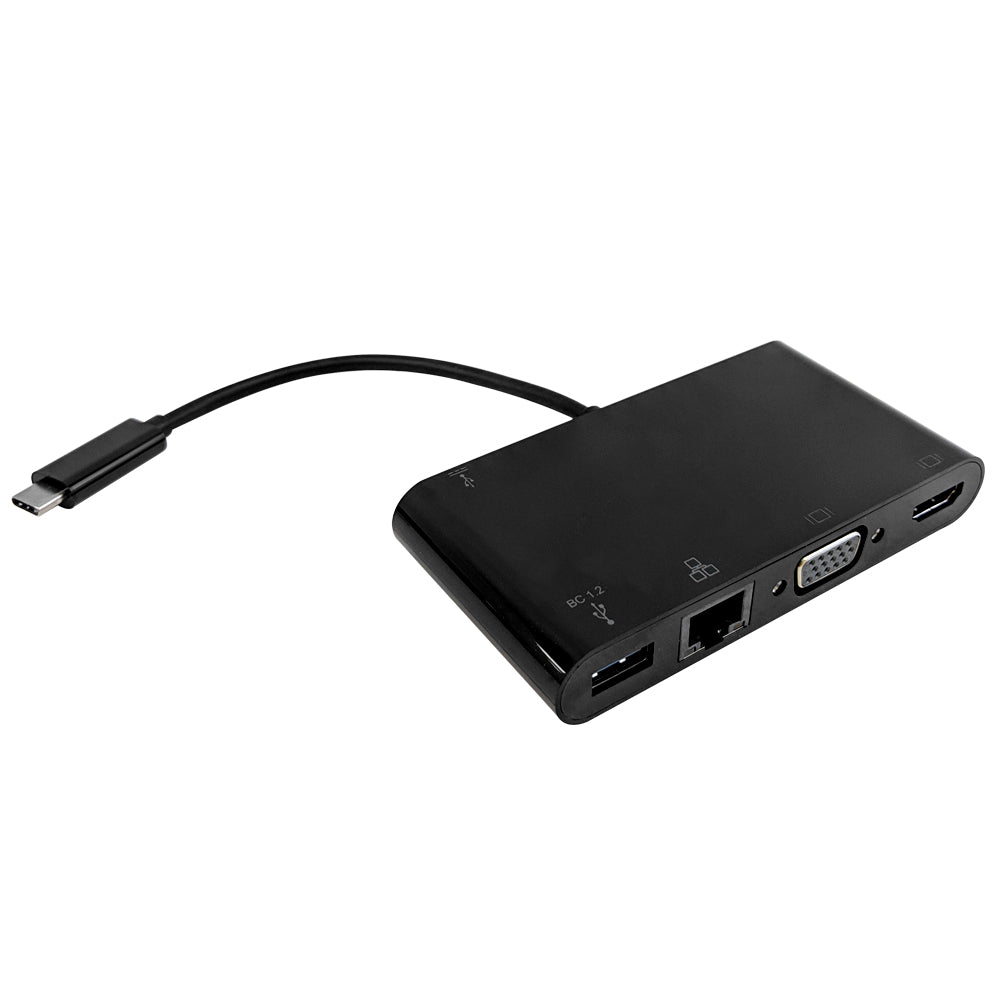

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male on one end and a HDMI female, USB 3.1 Type-C female, RJ45 female, VGA female and USB 3.0 female on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
Please note that the USB Type-C port on the input side can be used to simultaneously charge your device.
*Not intended for uses with multiple monitors. Additional monitors should be connected through the USB Type-C port of the docking station.
|
|
Expand your Type-C Devices ConnectivityThis 5×1 USB Type-C docking station has an HDMI and VGA ports for connecting external displays, an Ethernet port for network connection, a USB 3.0 Super Speed port and a USB Type-C port with Power Delivery charging. High Performance and Quality Video OutputThe HDMI output provides a simple Plug & Play connection to almost any HDMI display with an Ultra HD 4K resolution. The VGA output support monitors with 1920×1200 resolution. Stable Internet Access and Fast Data TransferWired network connection supports 10/100/1000 Mbps Bandwidth via the RJ45 port provides a faster, more secure and more stable Internet connection. And the Super Speed USB 3.0 Port supports faster data transfer up to 5Gbps.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| USB 3.1 Type-C Female | |
| RJ45 Female | |
| VGA Female | |
| USB 3.0 Female | |
| Performance | |
| USB Type-C Port | Supports Data Transmission + Power Delivery Charging |
| HDMI Resolution | 4Kx2K@30Hz, 9Gbps Bandwidth |
| VGA Resolution | 1920×1200@60Hz |
| USB Type A Port |
Supports USB 3.0 Super Speed (5Gbps), Downward Compatible with USB 2.0 / Supports BC 1.2, Max 7.5W(5V/1.5A) |
| Ethernet | 10/100/1000Mbps Bandwidth |
| Compatibility | Compliant with USB 3.1,Backward Compatible with USB 3.0 and USB 2.0 |
| System Requirements | |
| Windows Compliant | Compliant |
| Mac Compliant | Compliant |
| Certifications | |
| FCC | Compliant |
| CE | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.44 lbs [0.19kg] |
