Description

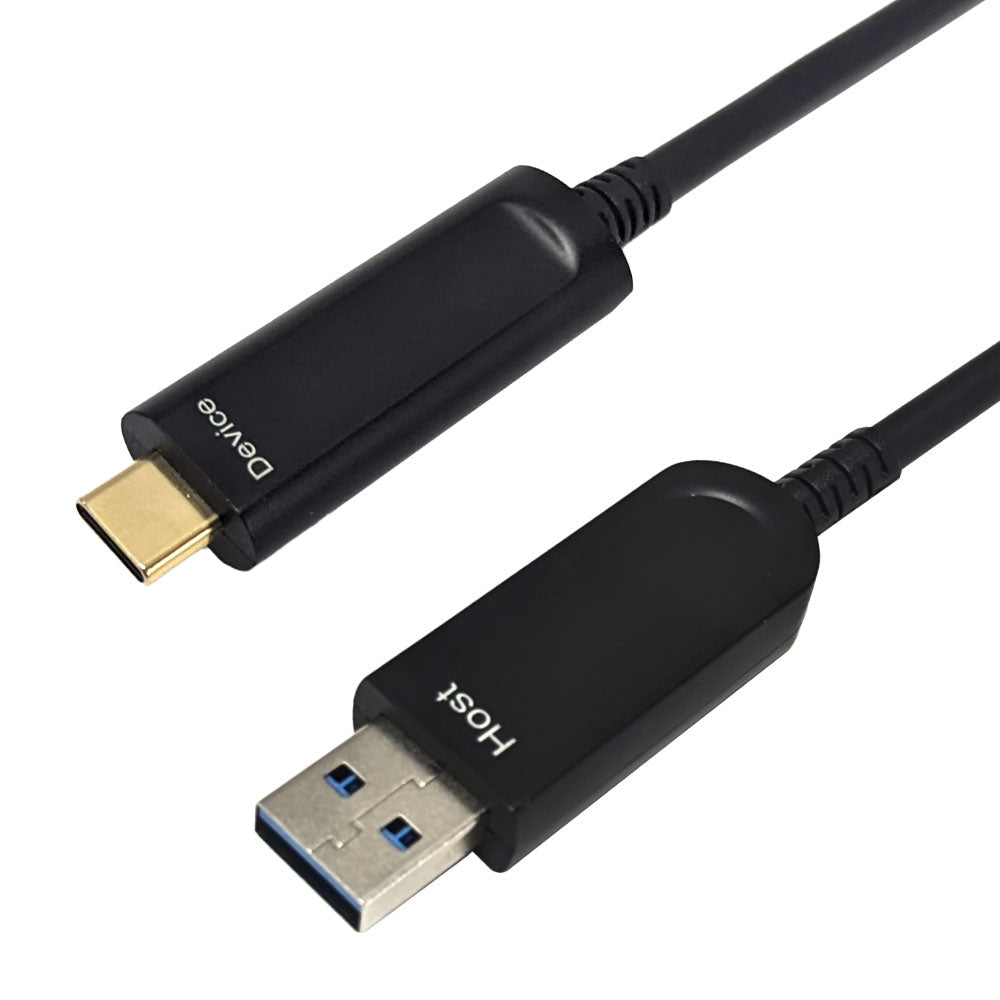

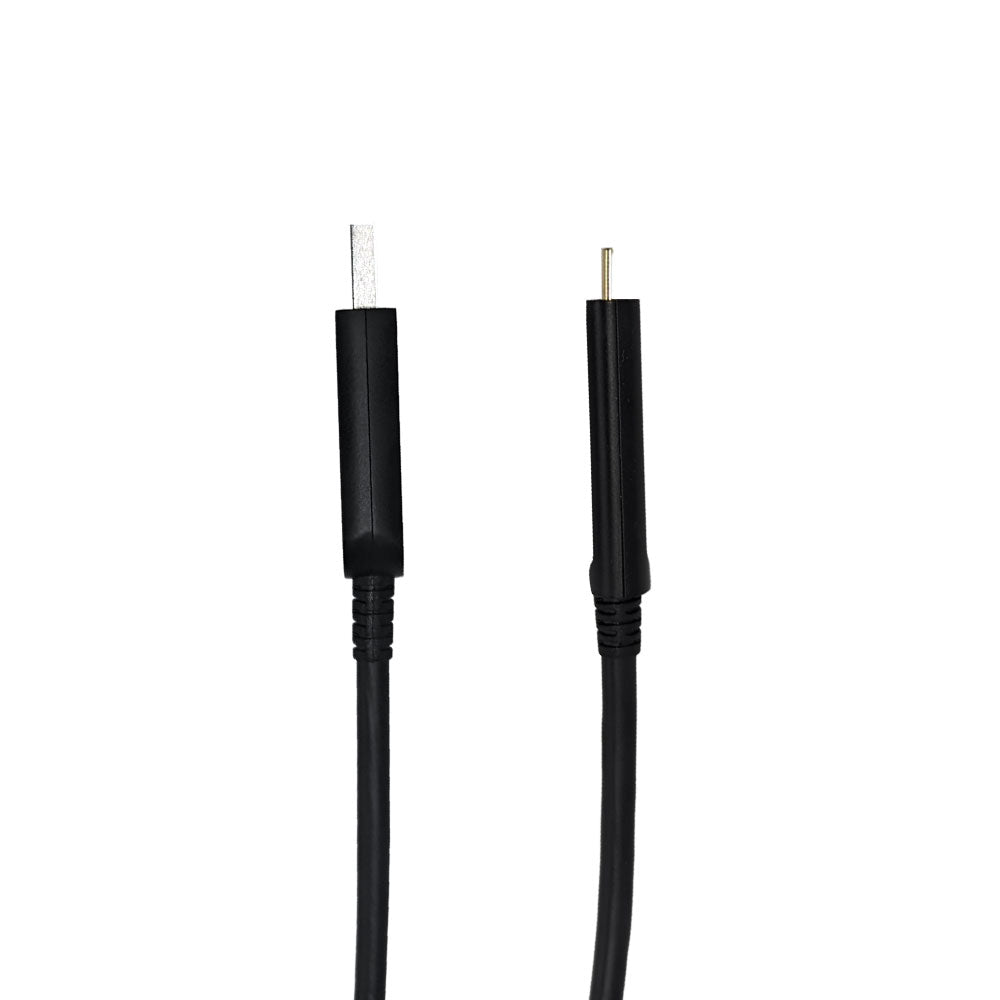

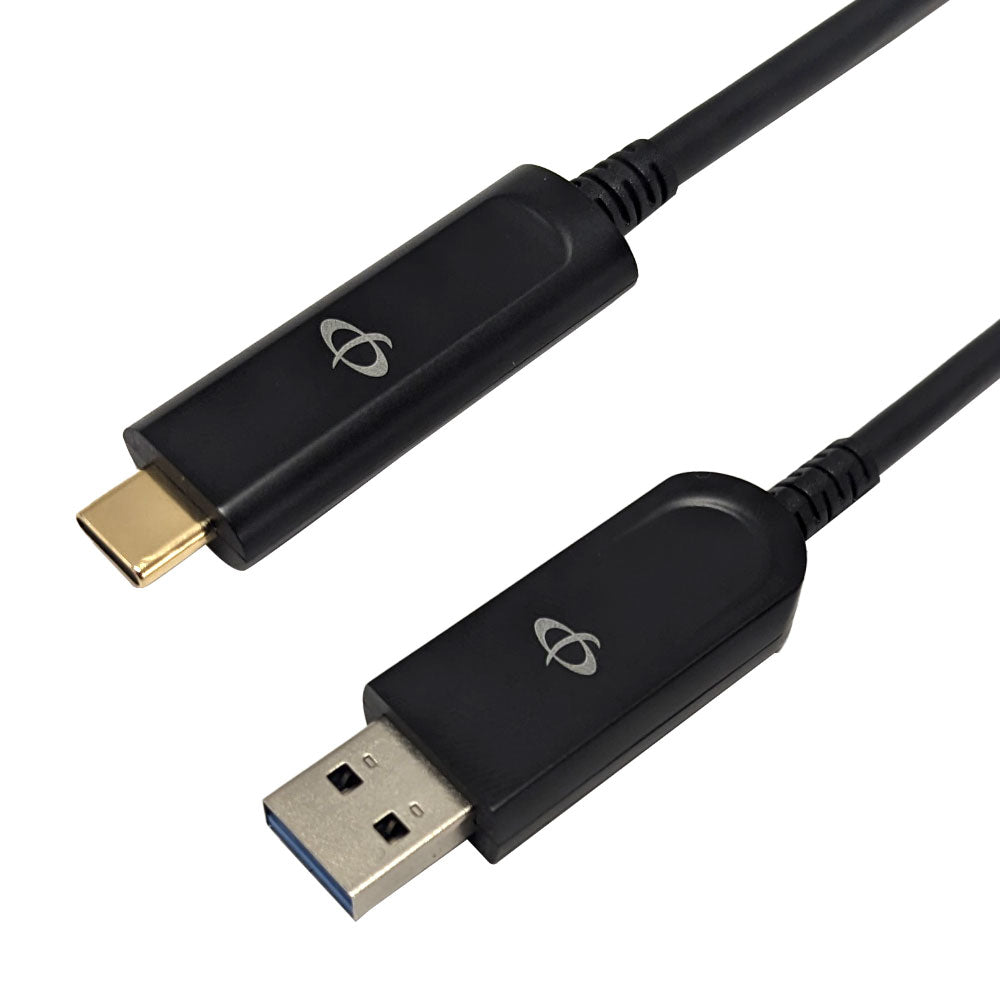

This active optical USB 3.1 cable consists of a USB type-C male on one end and a USB A male on the other. It is capable of transferring data at 10Gbps and is typically used to connect USB 3.1 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt™ 3 ports.
Features:
- No RF interference, stable in complex environments
- Supports USB 3.1 Gen 2 10Gbps data transmission
- Backwards USB 2.0 & USB 1.1
- Support 5V 900mA max.
|
Physical Characteristics
|
|
|---|---|
| Length | 10M / 15M |
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Jacket Rating | CMP |
| Strain Relief | Molded |
| Operating Temperature | -40℃～+70 ℃ |
|
Connectors
|
|
| Connector A | 9-pin USB 3.1 Gen 2 Type-C SuperSpeed Male |
| Connector B | 9-pin USB 3.1 Type-A SuperSpeed Male |
|
Performance
|
|
| Rating | USB 3.1 SuperSpeed – Gen 2 |
| Speed | 10 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB (2.0 and 1.1) |
| Power | 800mA |
| Power Consumption | ≤0.5W |
|
Approvals
|
|
| CE | Compliant |
| FCC | Compliant |
| c(UL) | Compliant – Cable |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | 3 Years Warranty |
